Description

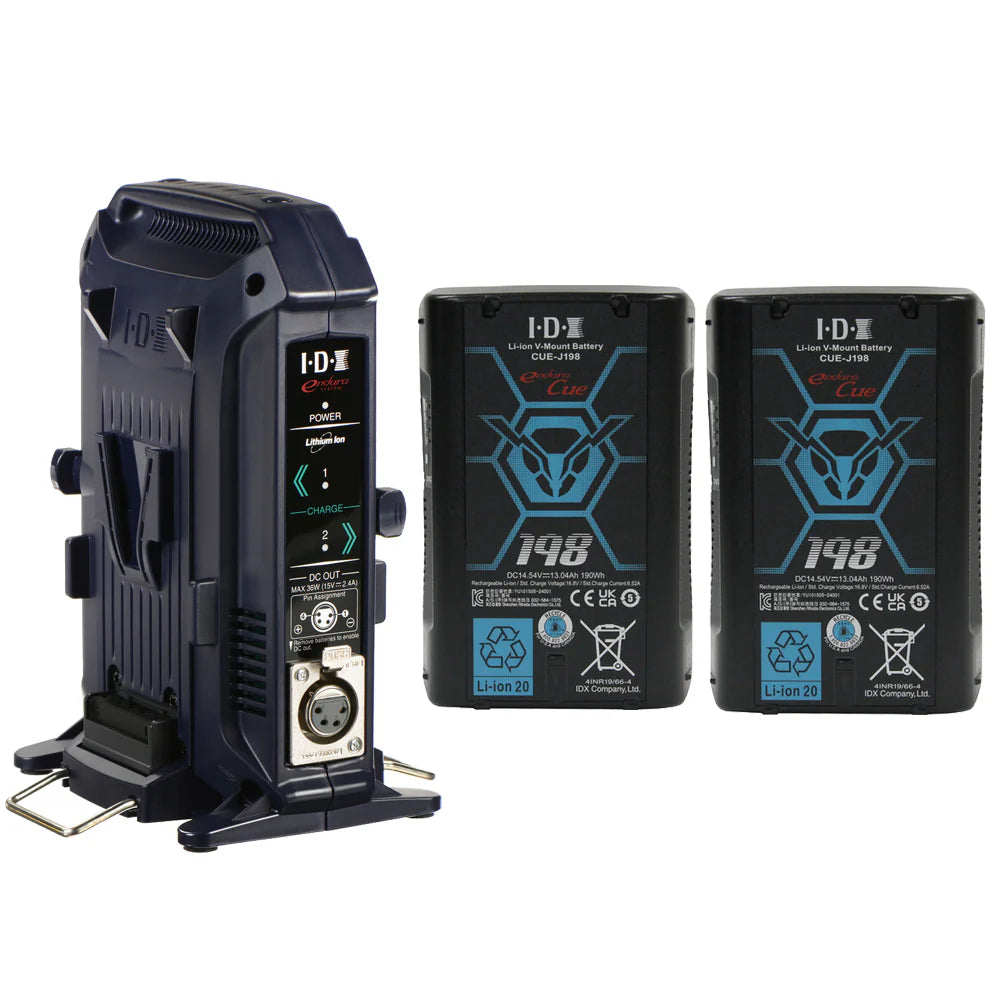

IDX CUE-J198 198Wh Li-Ion V-Mount Battery W 1x D-Tap
**Applicable to each CUE-J model in the range, customers can purchase two of the same models for the price of one! The CUE-J series includes the CUE-J98, CUE-J150, CUE-J198 & CUE-J300. Offer available until 31st July**
The CUE-J198 utilises the latest lithium-ion battery technology that allows IDX to increase the capacity of these new Cue series products rounding off the CUE-J198 with a 190Wh capacity. Each CUE-J series battery has a single built-in D-Tap output capable of taking an 80W load and a 4-LED power indicator. The CUE-J Series battery products are designed to be an affordable, reliable option for a variety of power needs such as powering cameras, portable production monitors, portable lighting and audio products that require power from a V-Mount plate or D-Tap to XLR cable input.
FEATURES
- 190Wh capacity
- Capable of handling up to 14A/156W loads
- (1) 80W D-Tap output (unregulated)
- 4 Power Indicator LEDs
- Lithium Ion V-Mount battery designed to meet Japan's stringent PSE safety regulations for enhanced mechanical and electrical safety
- Battery circuit protection ensures the CUE-J198 is fully protected against common causes of misuse, guarding against over-charge, over-discharge, and over-current
- The highest-grade Lithium Ion cells are used to ensure the CUE-J198 is one of the most reliable batteries on the market.
- Fully compatible with all ENDURA V-Mount chargers and accessories
- Environmentally friendly and recyclable
SPECIFICATIONS
| BATTERY CAPACITY |
14.54V, 13.04Ah, 190Wh |
|---|---|
| MAX. OUTPUT VOLTAGE |
16.8V DC |
| NOMINAL VOLTAGE |
14.8V DC |
| MAXIMUM DISCHARGE CURRENT |
14A/156W |
| D-TAP |
80W each |
| END VOLTAGE |
11.2V |
| BATTERY PROTECTION |
Over charge, Over discharge, Over current |
| AMBIENT TEMPERATURE |
To charge: 0°C ~ 40°C, To discharge: -20°C ~ 45°C, To store: -20°C ~ 45°C (less than 1 month) |
| DIMENSIONS |
97(W) x 146(H) x 59(D) mm |
| WEIGHT |
1,080 grams approx. |
