Description

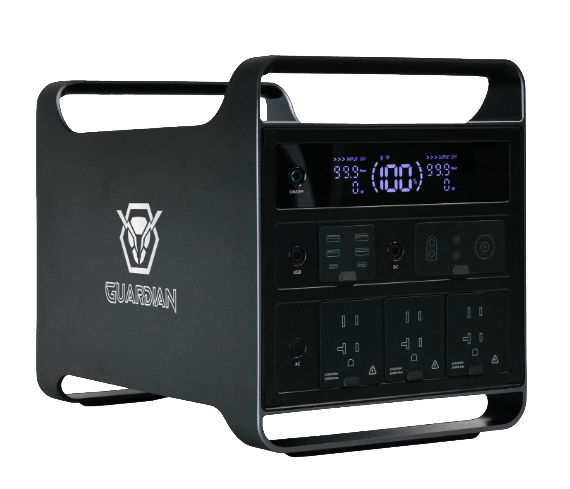

IDX SSP-2000 (GUARDIAN) 2008Wh Semi-Solid Li-Ion Portable Power Solution
3x AC Outputs, 6x USB Outputs, 12V DC Output, 1000W Solar Panel Charging
The GUARDIAN is a 2008Wh Portable Power Solution featuring 3x AC Outputs, 6x USB Outputs, 2x DC Outputs, 1x 12V Socket Output and 1x XT60 Solar Panel Input. Featuring semi-solid Lithium Ion cells impregnated with electrolyte liquid ensures absolute safety and reliability. In conjunction with the GaN Semi Conductor this allows for a lower impedance and extremely fast charge times, with 0-100% charge being achieved in just 2 hours. With this combination of internal technology, we can achieve a 2kWh unit that is compact and weighs less than 17kg!
Available in UK and EU specification.
Images show the Japan spec model. UK and EU models will have their respective and region specific AC ports.
The GUARDIAN has a total capacity of 2008Wh*, a nominal power output of 2000W and can be charged to 100% in just 2 hours. All from a unit that weighs less than 17kg and in a compact size; 21.6(W)x25.8(H)x35.5(D)cm. This is achieved by the combination of semi-solid lithium ion cells and GaN semiconductors. The semi-solid cells allow for faster charging and higher output due to the lower impedance, compared to traditional Li-Ion cells, and the GaN semiconductors are more efficient and faster, improving the power conversion efficiency, which leads to a smaller and lighter product.
This combination also means that it is one of the safest and reliable power solutions on the market. The electrolyte liquid used inside the Li-Ion cells is non-flammable and flame retardant, so even if an external shock, overcharge, or internal short circuit happens, heat generation does not occur and it does not burn. Whilst the semiconductors, slows down cell degradation and achieves a longer life-cycle.

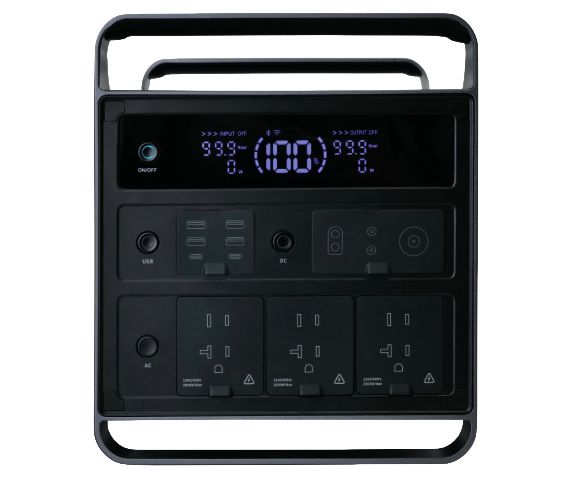

The GUARDIAN features a digital display which shows the total power output as well as time remaining when charging or discharging. Also, a myriad of output connectors including 3x 240V 50/60Hz AC Outputs, 2x USB-C PD, 4x USB-A, 2x DC5521 and 1x 12V Socket (which can be converted into a 4pin XLR using a conversion cable). This makes it suitable for a wide range of scenarios and gives users the flexibility to power numerous levels of equipment whenever required.
In addition, this unit can also be charged via solar panel, up to 1000W, without the need of a controller or inverter. Ideal when being used in remote locations without immediate access to charge via traditional AC.
Built with extreme temperature and outdoor elements in mind, the built-in cell pre-heating means charging can happen even when it is as low as -30℃, whilst the IP63 rating allows for use in the elements.
SPECIFICATIONS
| CAPACITY |
2008.8Wh (32.4V/62Ah) |
|---|---|
| WEIGHT |
Approx. 16.8Kg |
| BATTERY TYPE |
Semi-solid lithium-ion battery cells |
| AC INPUT |
210V ~ 245V (50/60Hz) Maximum 1200W |
| AC OUTPUT |
3x AC 230V(220V~240V) (50/60Hz) Maximum 2000W / Peak 3000W (<1 sec.) |
| DC INPUT (SOLAR CHARGING) |
Connector XT60, DC18V-50V Max 1000W/20A |
| DC INPUT (CAR CHARGING) |
Connector XT60, DC12.5V-15V max 100W, DC33V-40V max 500W |
| DC OUTPUT 2X USB-A (BLACK) |
DC 5V/2.4A |
| DC OUTPUT 2X USB-A (BLUE) |
Quick Charge 3.0 DC 5V/9V/12V/15V/20V (3A Maximum 60W) |
| DC OUTPUT 2X USB-C |
PD3.0 DC 5V/9V/12V/15V/20V (5A Maximum 100W) |
| DC OUTPUT 2X DC5521 |
DC12.6V 6A |
| DC OUTPUT 1X CIGAR SOCKET |
DC 12.6V/12A |
| LED LIGHT |
3 Stage Display |
| CHARGING TEMPERATURE |
-10~40°C (-30°C with pre-heat function) |
| OPERATING TEMPERATURE |
-20~45°C |
| LIFE CYCLES |
Over 1000 |
| IP RATING |
IP63 |
| WARRANTY TERMS |
2 Years Manufacturer Warranty |
| INCLUDED ACCESSORIES |
AC Charging Cable, Cigarette Lighter Charging Cable, Solar Panel Charging Cable |
