Description

IKAN AX20-FK-V2 Atlas 21.5-inch 3G-SDI/HDMI Field & Studio Monitor

Atlas 21.5-inch 3G-SDI/HDMI Field & Studio Monitor w/ Tally in Hard Case

FEATURES

  • Atlas 21.5-inch 3G-SDI/HDMI Field & Studio Monitor w/ Tally in Hard Case
  • 1920 x 1080 LCD display
  • Three colour tally indicator LED on the front (green, red, yellow)
  • SD card slot for loading 3D LUTs
  • Built-in hard case with a mount for light stand
  • 4K Ultra HD support via HDMI
  • Waveform, RGB parade, vectorscope, histogram, peaking, false colour, pixel-to-pixel, clip guides, image flip, audiometer
  • HDMI/3G-SDI input and output
  • V-mount battery plate

The Ikan Atlas AX20-FK-V2 monitor is designed to be the ultimate field monitor. The monitor incorporates many features that make it ideal for field use such as its durable hard case. The AX20-FK-V2 is full of many features designed specifically to make working in the field easier and more efficient. In addition, the Atlas AX20-FK-V2 supports HDR preview mode to help get the right shot for HDR acquisition.

Built for the Field

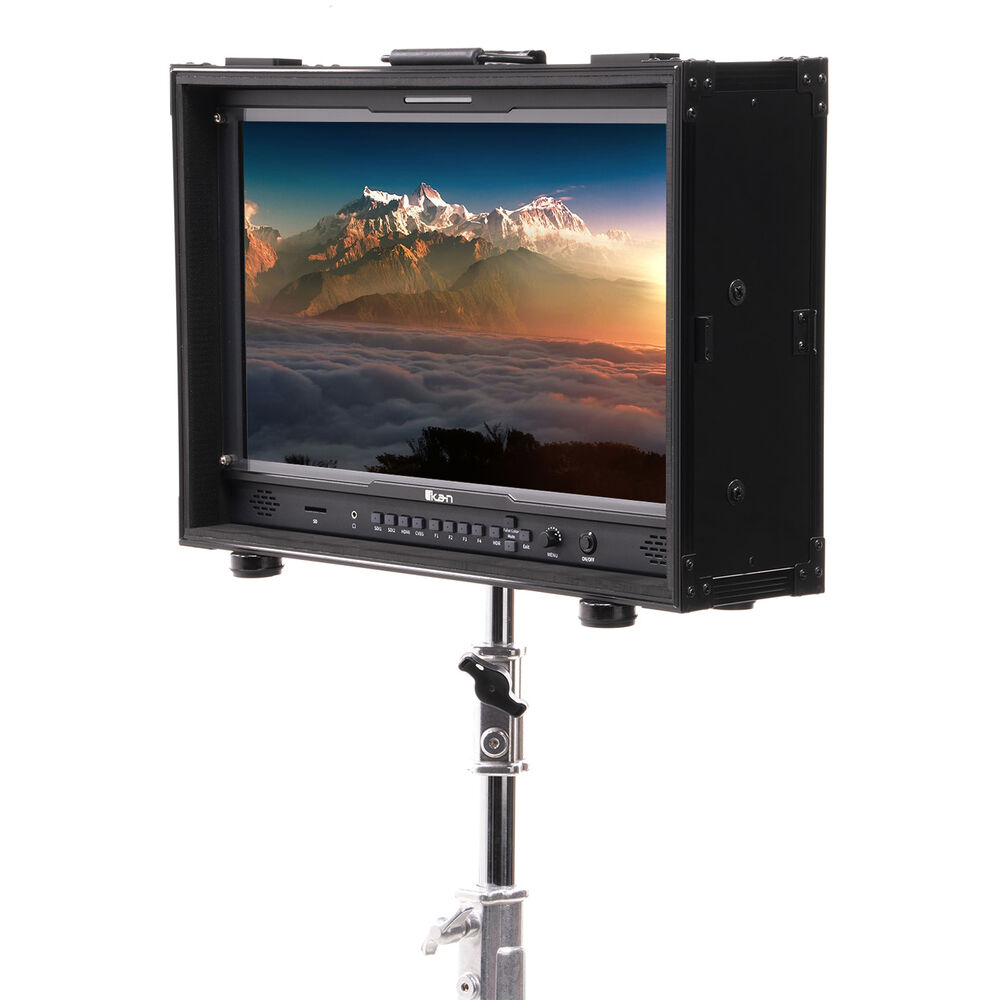

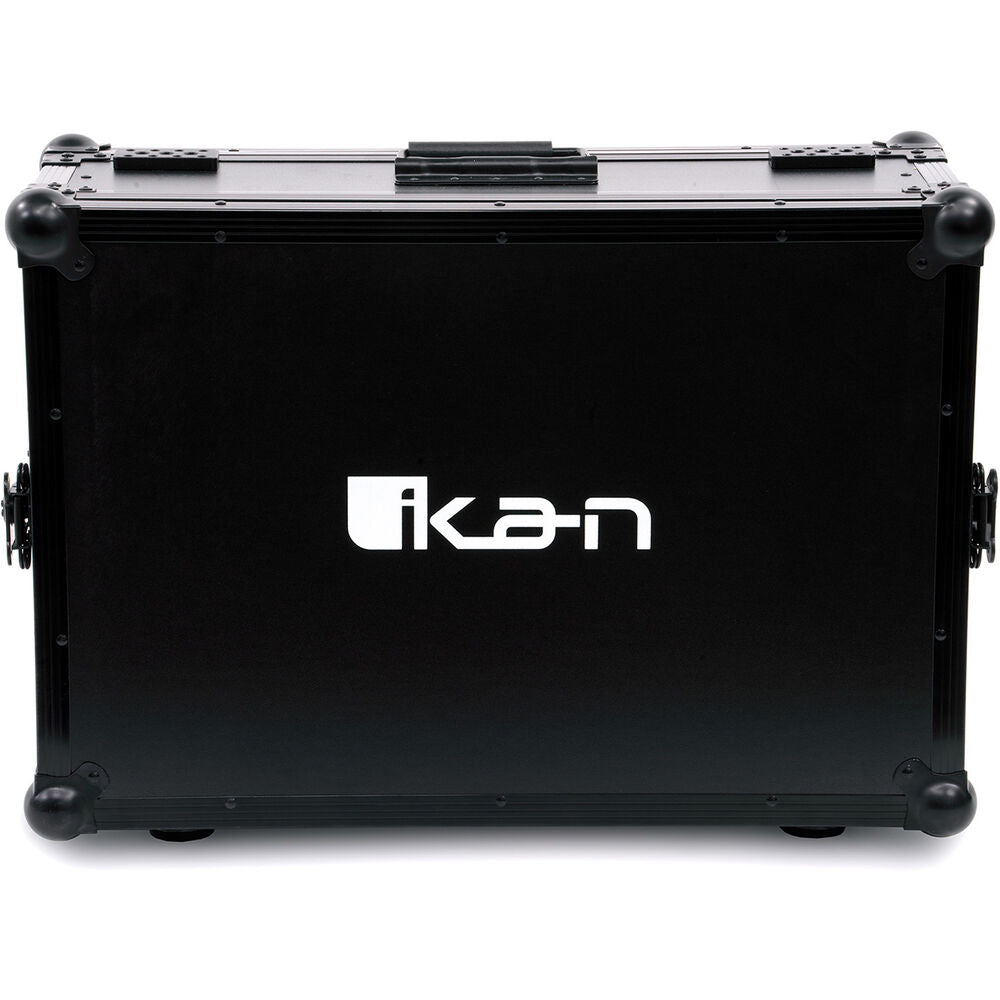

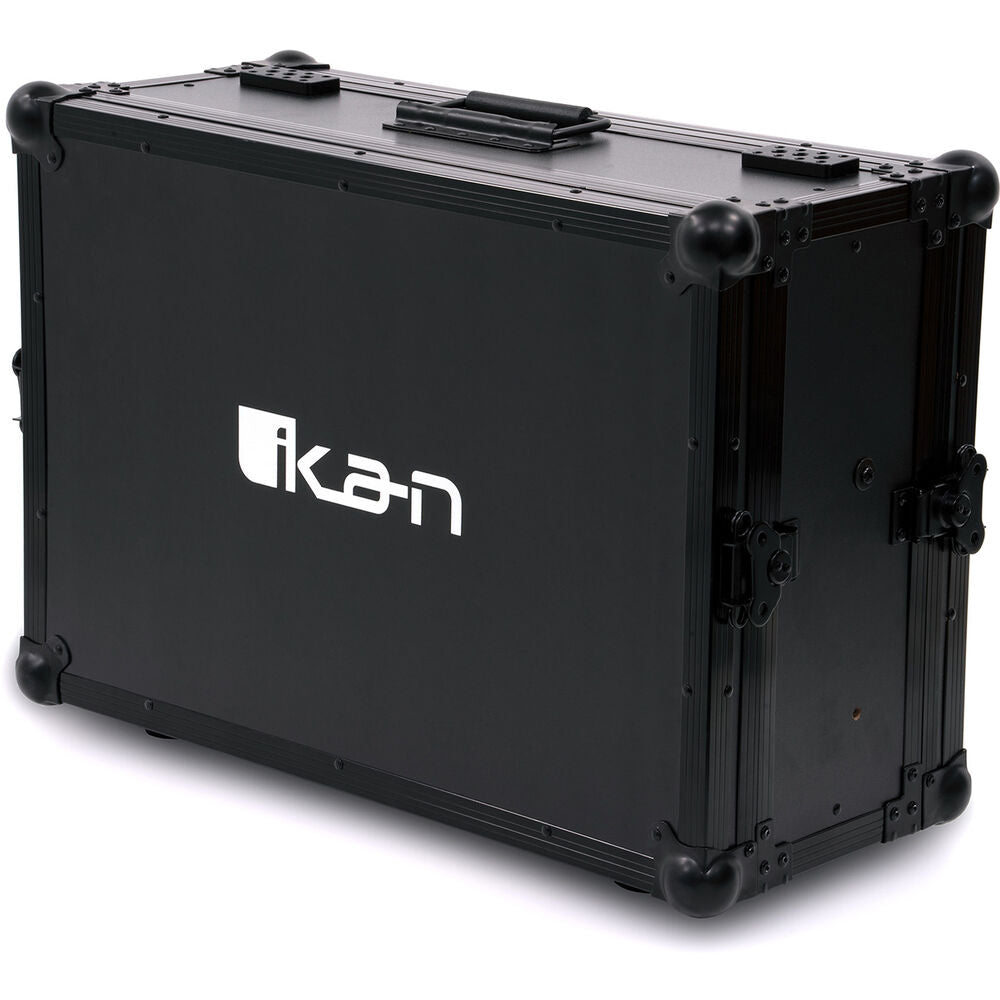

The Atlas AX20-FK-V2 monitor is designed with field usability in mind. The ultra-rugged case with built in light stand mount allows you to keep the monitor protected, easy to carry, and use on location. Additionally the monitor can also be mounted via the 100×100 VESA mount on the back of the monitor.

Tally Light Indicators

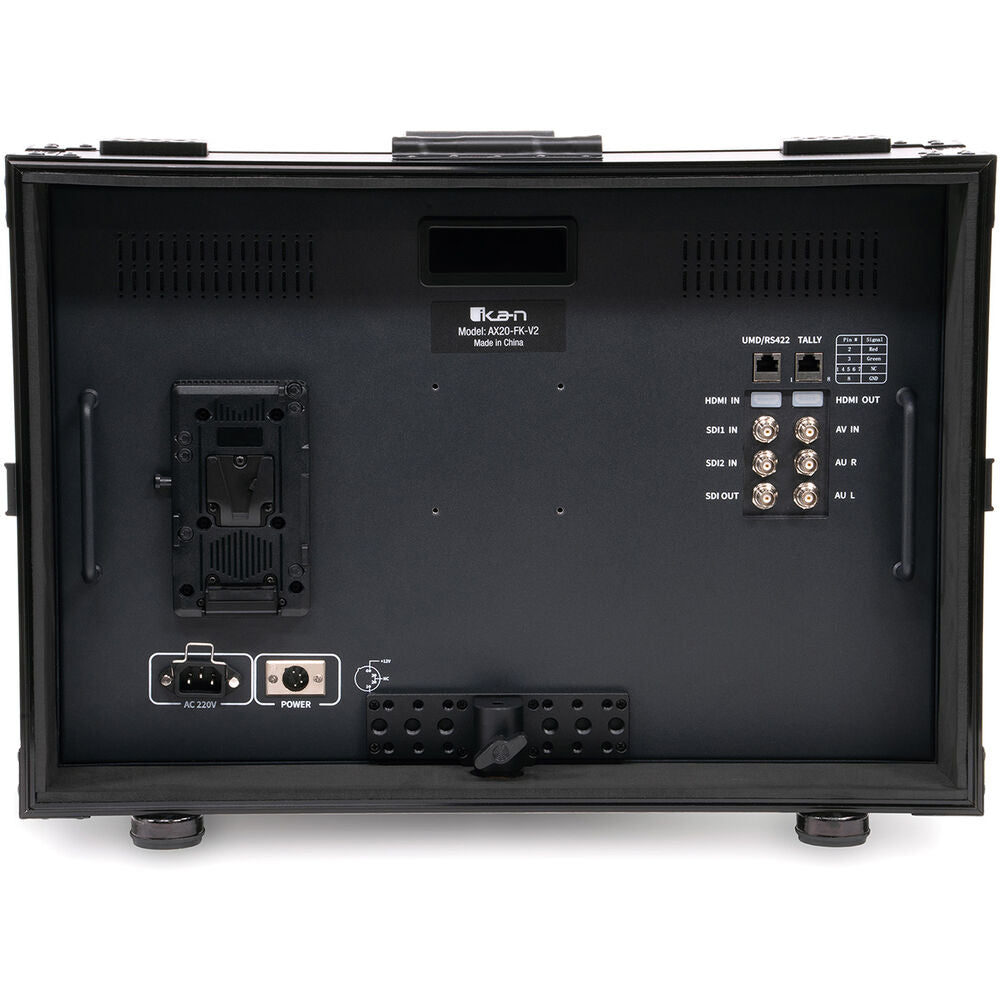

Incorporating a tally connector and three tally lights on the front, the monitor fits well into a switched multi-camera production. You can see the tally connector pin key on the back of the monitor.

Inputs and Outputs

In keeping with the theme of flexibility, the AX20-FK-V2 also offers many inputs and outputs.

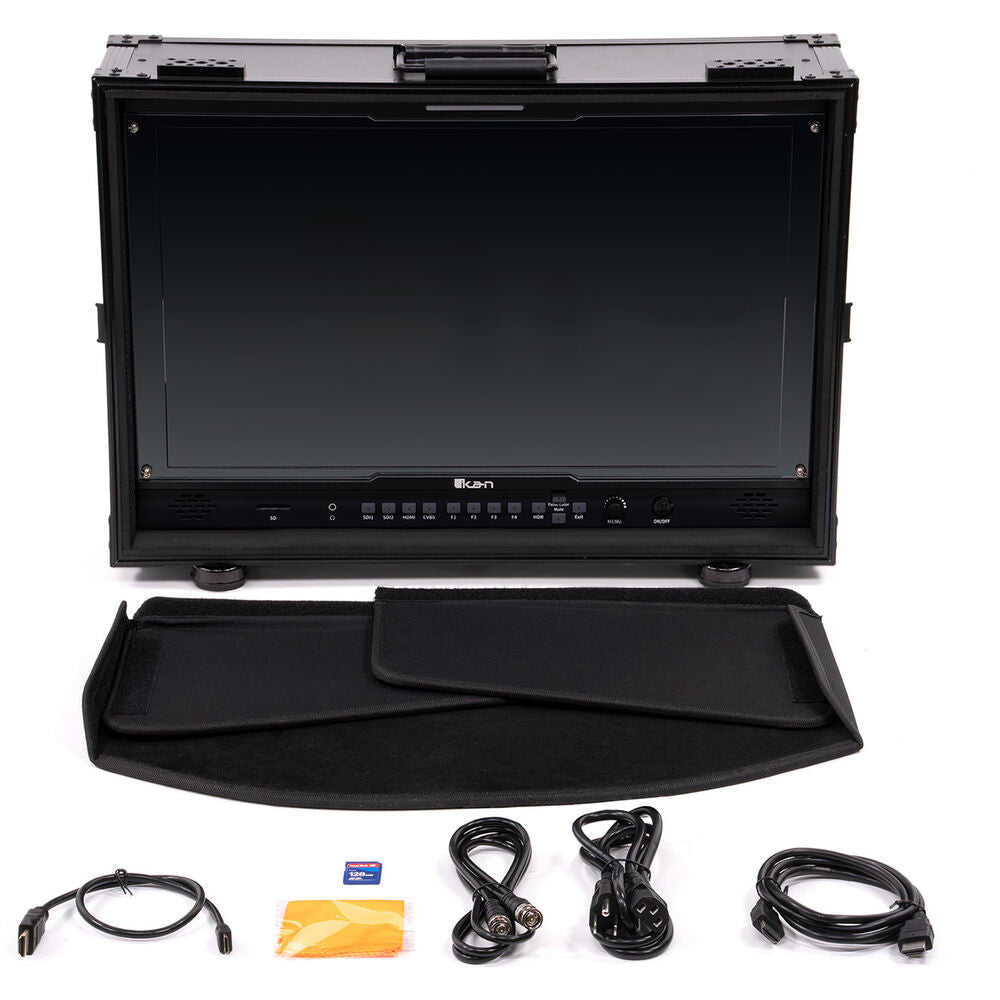

WHAT'S IN THE BOX

  • 1x AX20-FK-V2
  • 1x Power Cable
  • 1x Sunhood
  • 1x SD Card for LUTs
  • Two 3G-SDI Inputs and One Output
  • HDMI In and Out
  • Composite Video Input
  • RCA and XLR Audio Inputs
  • Tally Input

SPECIFICATIONS

Panel Type
LCD
Display Size
21.5" / 54.6 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
178°
Touchscreen
No
Maximum Brightness
400 nits / cd/m2
Contrast Ratio
1000:1
HDR Support
Yes
LUT Support
Yes
Image Controls
False Color, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform
Inputs/Outputs
Video I/O
2x BNC (3G-SDI) Input
1x HDMI Input
1x BNC (Composite) Input
1x BNC (3G-SDI) Output
1x HDMI Output
Audio I/O
2x BNC Input
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x IEC Input
1x XLR 4-Pin (24 VDC) Input
Other I/O
1x RJ45 (RS-422) Input
1x RJ45 (Tally) Input
Media/Memory Card Slot
Single Slot: SD/SDHC [LUT Upload Only]
Wireless
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 60/59.94
576i: 50
HDMI
UHD 4K: 24
DCI 4K: 30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 60
Power
Input Power
12 to 24 VDC
110 to 240 VAC, 50 / 60 Hz
Battery
No
Mounting
VESA Mounting-Hole Pattern
100 x 100 mm
Tripod/Accessory Mounting
Top
2x 1/4"-20 Female
2x 3/8"-16 Female
General
Environmental Resistance
No
Operating Conditions
-4 to 140°F / -20 to 60°C
Material of Construction
Aluminum
Dimensions
21 x 15 x 6" / 53.3 x 38.1 x 15.2 cm
Weight
20.00 lb / 9.07 kg
