Kiloview P3 5G Bonding Video Encoder

Kiloview P3 5G Bonding Video Encoder - KIL-P3

Redundant battery. 4-channel 5G cellular network, WIFI and Ethernet, HDMI+SDI dual inputs with H.265 encoding. 4.3-inch touch LCD screen.

Unlock Seamless Streaming with P3 Anytime, Anywhere!
Kiloview P3 is the next-gen 5G wireless bonding encoder based on KiloLink technology, supporting six network connections: 4-channel 5G cellular, WiFi (2.4G/5G dual-band) and Gigabit Ethernet. With a 3500mAh built-in battery and a 7000mAh external battery, it can guarantee your all-day use. In addition, P3 adopts a modular design, allowing users to choose between 5G/4G modules (WiFi/SD module is included in the package) and battery modules to meet the diversified business scenarios.

The P3 features 3G-SDI and 4K HDMI video inputs, supporting video inputs up to 4KP30 with H.265/H.264 encoding. With the permanent-free/ private-hostable KiloLink Server Pro, it truly achieves unlimited bonding and a seamless streaming experience.

HDMI+SDI Dual Interface, 4KP30 Image Quality
One unit for all your streaming scenarios: Whether you are using a camera with HDMI or SDI interface, the P3 can meet different connection requirements. It supports 4KP30 image quality, while we intend to provide you with every detail, in each frame

HEVC Codec Supported, Exclusive NDI HX Support
High Quality/ Low Bandwidth
- a Cost-effective Live Streaming Solution
P3 supports H.265/H.264 encoding format. H.265 encoding technology can not only achieve better image quality at lower bit rates but also achieve efficient data transmission with low bandwidth consumption. Meanwhile, you can always set your video encoding rate (within 40Mbps), and adjust it according to actual network conditions and video quality requirements, ensuring the perfect flexibility.

*At present, it supports only H.264, H.265 will be supported through subsequent firmware updates

Effortless On-site Production with Lightning
-Fast Efficiency
Exclusive NDI HX protocol ensures tier-1 production efficiency in your studio or production centre. NDI has become the preferred choice for IP production due to its high image quality/low latency transmission characteristics. When you choose P3, it not only means that you don’t need to purchase other NDI converters to start efficient production but also allows your workflow to be fully compatible with third-party production software such as Tricaster and vMix.

*At present, it support only NDI HX2, NDI HX3 will be supported through subsequent firmware updates

6-Channel Bonding, 5G Transmission
Go Live – Anytime, Anywhere:  P3 can be equipped with four 5G/4G modules of your choice, achieving 6-channel bonding transmission of 5G + 4G + WiFi + Ethernet. It fully utilizes patented KiloLink technology to realize strategies such as Automatic load balance & Dynamic adaptive bitrate through encryption algorithms, to realize tier-1 reliability in streaming. At the same time, through unique customized buffering time and dynamic bitrate adjustment, it ensures that users can efficiently transmit streams with top stability even in complex and ever-changing network environments.

Modular Design
DIY Your Exclusive Streaming Workflow
To meet the diverse needs of business situations (such as small-scale studios/ large-scale event live streaming), P3 adopts a more flexible modular design. You can choose the most cost-effective solution by picking 5G/4G and battery modules. The device is equipped with a WiFi module (including an SD storage module), and users can freely match different modules according to their actual scenarios and regional network environment (4G/5G modules and additional battery modules are purchased separately).

Multiple Storage Strategy Recording while Streaming
Capturing every moment: The P3’s standard WiFi module includes a free SD card module and supports multiple recording strategies including external USB/NAS network storage. Users can monitor videos while recording, with file formats supporting MOV, and MP4. Through the device’s LCD screen, users can view the recording status in real time, allowing for comprehensive control of the entire recording process.

Antenna Isolation Design Excellent Anti-interference Performance
The P3 use an internal antenna design and ensures sufficient isolation by setting the best distinguishing angle between different antennas. The internal antenna can fully resist external electromagnetic interference; while the isolation design effectively avoids the mutual interference phenomenon caused by redundant antenna stacking. In your actual live streaming work, whether in a weak network environment or signal blind spots, P3 can always guarantee you the maximum signal strength.

Intelligent Cooling System, Essential for Outdoor Use
Self-adjustable four-speed fan: To ensure stable performance of the equipment under extreme weather, P3 is equipped with a temperature-controlled fan that can be adjusted automatically. When the temperature detector on the chip recognizes that the temperature is higher than the preset value, the fan will turn on and allocate different levels of wind power according to the actual needs of heat dissipation. The P3’s intelligent fan ensures the cooling of the CPU in a timely while using the lowest energy consumption, ensuring continuously stable operation.

Dual Battery Modules for Your Uninterrupted Live Streaming
Rejecting the anxiety of mileage and enjoyment: The P3 has a 7000mAh external battery and a 3500mAh built-in battery. The external battery can stably last for 6+ hours when the 4-channel 5G module is operating at full load; while the built-in battery can provide a stable use of 3 hours. When the external battery turns to low battery mode, the system will switch to the internal battery automatically for power supply to ensure uninterrupted operation all day. Meanwhile, the DC interface can also support external power input.

Open Compatibility KIS Pro and Personal Hotspot Functionality Supported
All mainstream transmission protocols support:

You can transmit signals in various formats freely, such as NDI HX/SRT/RTMP/RTMPS/RTSP/RTP/HLS/TS-UDP, etc. When the signal reaches the studio or production centre, you don’t need to purchase a receiving server additionally, by just using any brand/model decoder to complete monitoring work.

*At present, the NDI HX direct/support function is easier to implement in “Local Deployment”. If your server is deployed in the cloud, you will need to carry out a penetration network strategy from the public network to the local network. Consult your network engineer or Kiloview technical support team for details.

Support the KIS Pro Intercom system: Synchronous voice intercom allows your seamless command and dispatch work.

Not only device but also personal hotspot: Now, you can easily open P3’s personal hotspot function with just one click, achieving the most efficient remote management of devices.

Innovative Interactive Design One-touch for Everything
Large-size LCD:
Easy Device Monitoring/ Quick Operation
P3 is equipped with a 4.3-inch touch LCD screen, which is used for previewing input images of the camera in real-time, and receiving images of feedback video*. Through the screen, users can view information in real-time, such as device IP address, network status, video resolution, Tally status, device CPU, temperature, as well as the encoding status of video and audio.

*The function is on schedule and will be supported through further firmware upgrades.

Portable Backpack Design
Your Convenient Live Streaming Assistant for All Scenarios
The compact and portable backpack design not only has rain protection, sun protection, and shockproof, but also can adapt to various live streaming scenarios such as in the shed, on the street, and outdoors (limited time, free in the package).

KiloLink Server Pro
The Completely Free Bonding Service Platform
from Conversion to Production
KiloLink Server Pro integrates centralized management and bonding services, distinguishing similar products in the market or its previous generation, and is decided to be permanently free for users. Its main functions include self-hostable servers, automatic bandwidth load balance, centralized visualization of device management, direct NDI HX streaming+unimited streaming channels, and no need for dedicated receivers on the back end. These unique features enable users to enjoy stable and reliable bonding live streaming with zero cost.

One-stop Centralized Device Management Platform
KiloLink Server Pro not only bonds but also integrates all KiloView products into one platform. It enables centralized online management, real-time status monitoring, remote parameter configuration, batch firmware management & upgrades. After deploying the server, users can complete unlimited device management and operations through the Web. It is compatible with mainstream browsers such as Chrome, Edge and Safari, allowing users to intuitively access device backends, check bonding link statuses, and manage streaming services anytime, anywhere.

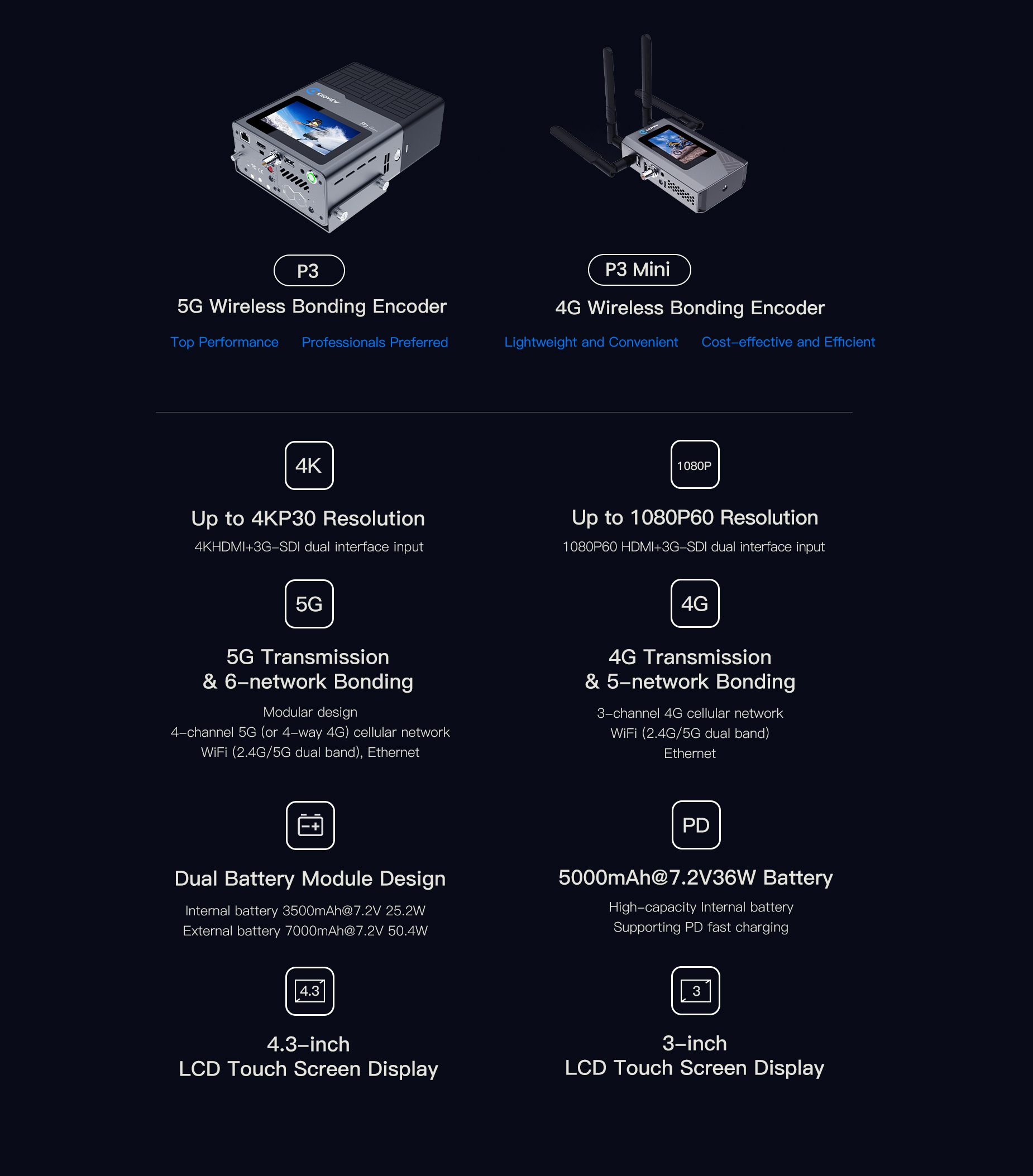

Find the Right Live-streaming Assistant for You
