Description

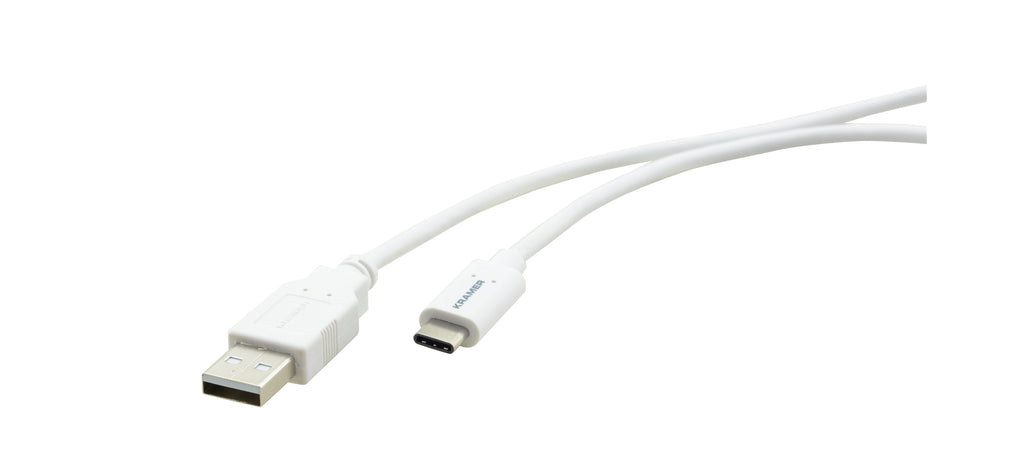

Kramer C-USB/C USB 2.0 Type-C Cable
FEATURES
- Lengths — 3ft to 10ft (1m to 3m)
- USB (M) Connector A — Type–C
- USB (M) Connector B — available in the following configurations: Type–C, Type–B, Type–A, Micro–B
Kramer's C−USB/C cables connect USB−C enabled devices with standard USB−A, B and Micro B devices (laptops, hard drives, legacy printers, hubs, smartphones, tablets and cameras). C−USB/C cables offer a whole new level of connectivity to devices using the new USB Type−C connector.
The symmetrical, low profile USB Type−C connector can be plugged in any direction, eliminating the frustration of getting the port insertion just right.
Key Features
- Quality Construction — High–quality shielded twisted pair (STP) construction, helps to prevent electromagnetic interference and ensures reliable data communication.
- Reversible USB Type–C Connector.
- Max. Data Rate — 480Mbps.
- Current Rating — 3A and 5A.
- PC, Mac & Mobile Compatible.
- Plug and Play — For printers, scanners, keyboards and other digital devices .
- Backward Compatibility — USB specifications 1.0 and 1.1.
- Molded Strain Relief — On the USB A, B & Micro B ends.
- RoHS Compliant.
SPECIFICATIONS
ELECTRICAL
TYPE:
USB 2.0.
MAX. DATA RATE:
480Mbps.
POWER RATING:
100W max.
PHYSICAL
CONNECTOR A:
USB Type–C male.
CONNECTOR B:
C–USB/CC — USB Type–C male
CONNECTOR B:
C–USB/CB — USB Type–B male
CONNECTOR B:
C–USB/CA — USB Type–A male
CONNECTOR B:
C–USB/CMicroB — USB Type–Micro B male.
CONNECTOR PLATING:
Nickel.
CONDUCTORS:
28AWG.
CABLE SHIELD TYPE:
Aluminum–Mylar foil with braid.
OVERALL SHEATH DIAMETER:
4.0mm.
OUTER SHEATH COLOR:
White.
STANDARDS COMPLIANCE
REGULATORY:
RoHS 2011/65/EU.
