Description

Kramer CL-4P 4-inch In–Ceiling Two–Way Closed Back Co–Axial Passive Speaker

FEATURES

  • 4”, 2–way coaxial passive speaker
  • Low–impedance (8Ω) / high–impedance (70V/100V)
  • Power ratings: 20W continuous / 30W peak
  • Nominal sensitivity: 87dB SPL
  • Maximum SPL: Continuous 100dB SPL / Peak 102dB SPL
  • Low–profile, light weight
  • Plenum rated: UL 2043, UL 1480A

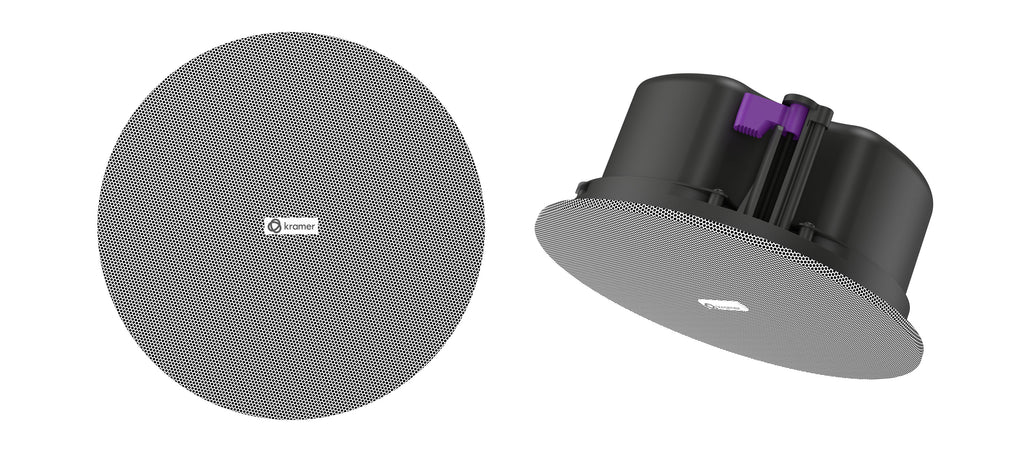

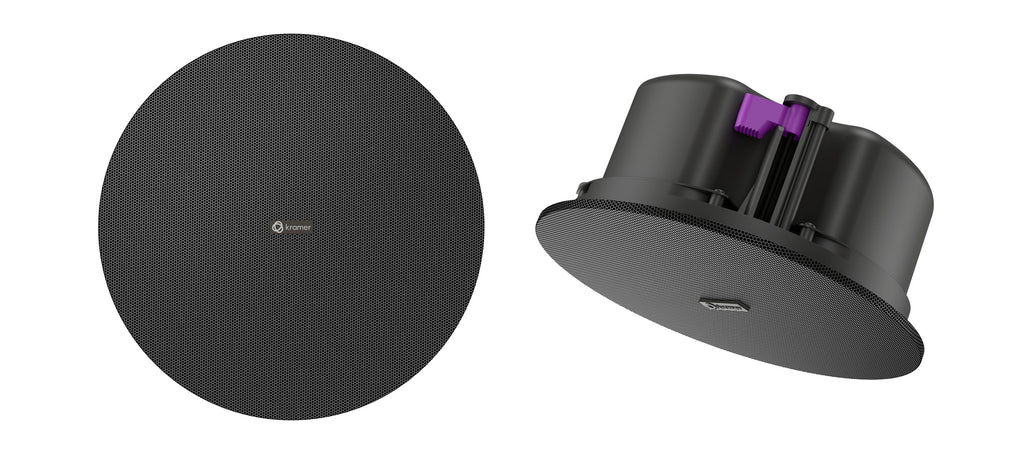

  • Black & white magnetic grills included in the box

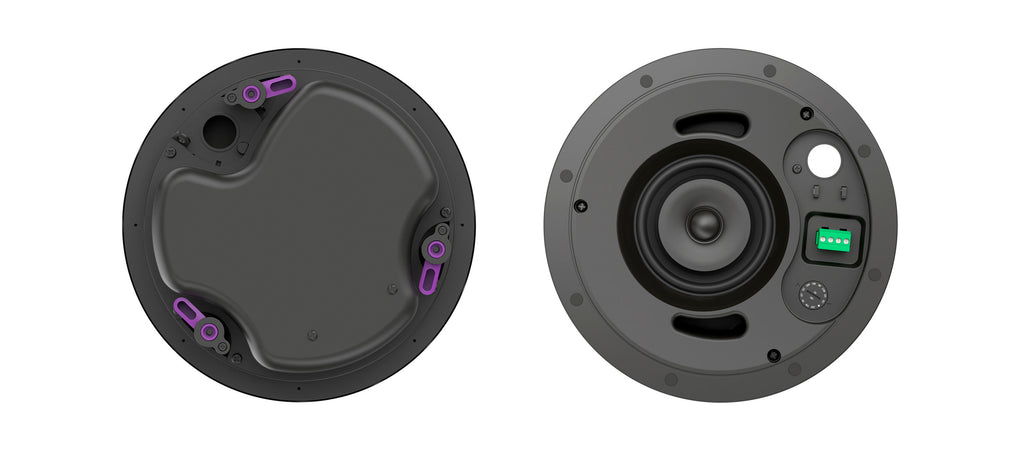

  • Front–access wiring for easy installation & troubleshooting
  • Eco–friendly packaging
  • Note: Mounting brackets are sold separately; Check the CSMR product page for more information.

The CL−4P – low−profile high performance, 2−way passive in−ceiling speaker
The CL−4P is a plenum rated low−profile high−performance ceiling speaker that provides exceptional sound with high SPL. The speaker was designed with present mid−range optimized for speech clarity and background music. The speaker supports both 8Ω low impedance as well as several 70V/100V high impedance modes. The speaker’s low profile and light weight make it ideal for light ceilings with low clearance without compromising on the sound quality. Features front−access wiring for easy installation and troubleshooting. Both black & white magnetic grills are included in the box.

Key Features

  • Premium sound with low profile & small form factor
  • Plenum rated UL2043 & UL1480A
  • Low–impedance (8Ω) / high–impedance (70V/100V)
  • Power ratings: 20 W continuous / 30 W peak
  • Sensitivity (1W@1m, free field): 87dB SPL
  • Maximum SPL (@1m): Continuous: 100dB SPL / Peak: 102dB SPL
  • Industrial design: black & white bezel–less magnetic grills included in the box, Low profile — light weight, front–access wiring
  • Eco–friendly mono–material packaging
  • Included in the box — 1 speaker (single unit), 2 speakers are packed in a single master box
    Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately)
    2 magnetic grills (1 white and 1 black per speaker)
    4–pin pluggable Euroblock connector, 28–12AWG
    Cutout template
    Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)
    Quick Start Guide

WHAT'S IN THE BOX

1 speaker (single unit), 2 speakers are packed in a single master box, Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately), 2 magnetic grills (1 white and 1 black per speaker), 4–pin pluggable Euroblock connector, 28–12AWG, Cutout template, Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable), Quick Start Guide

SPECIFICATIONS

Audio

Driver:
LF Driver:
100 mm (4”) high output driver with polypropylene cone and rubber surround
HF Driver:
19 mm (0.75 in) liquid cooled soft–dome tweeter
Frequency characteristics
Frequency Range:
(–10dB): 90Hz–18kHz
Frequency Response
(±3dB): 110Hz–18kHz
Dispersion angle:
125 deg. conical dispersion (1 kHz to 4 kHz)
Power ratings
@ 8Ω Low impedance:
20W continues / 30W peak
@ 100 V High impedance:
20W/10W/5W
@ 70 V High impedance:
20W/10W/5W/2.5W
Sound Pressure Level (SPL)
Sensitivity:
(1W@1m, free field): 87dB SPL
Maximum SPL:
Continuous: 100dB SPL / Peak: 102dB SPL

MECHANICAL

Installation
Type:
In–ceiling speaker installation with brackets and C–ring
Mounting:

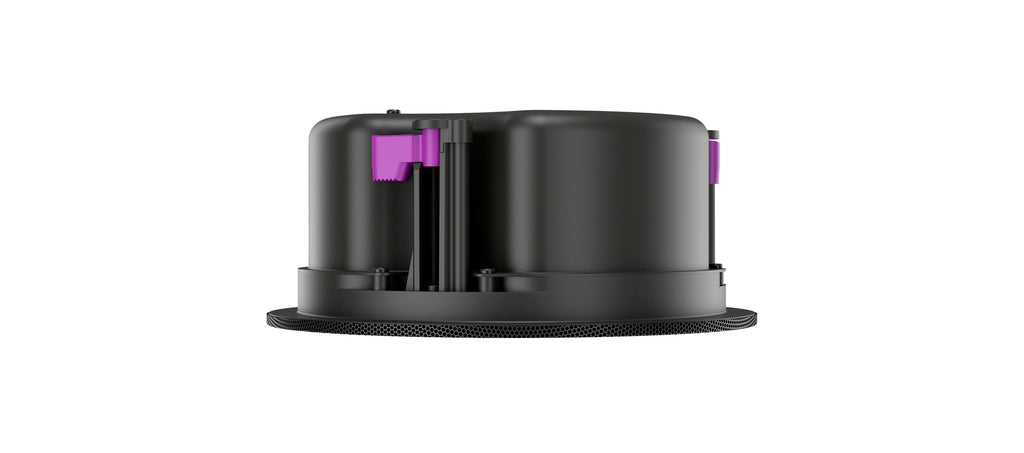

3–point screw down Dog–Ear clamp, up to 60mm / 2.36” ceiling thickness
Connectors:
4–pin pluggable Euroblock connector, 28–12AWG
Cutout:
Cutout template included in the box
Weight per single speaker:
2.18kg (4.81lbs)
Dimensions
Depth (ceiling clearance):
100mm / 4”
Back enclosure outer diameter:
203mm / 8”
Cutout diameter:
205mm / 8.1”
Grill diameter:
327mm / 9.1”
Shipping
Shipping dimensions (single unit):
320mm x 320mm x 166mm / 12.6" x 12.6" x 6.6"
Shipping dimensions (2 units in a Master box):
330mm x 330mm x 348mm / 13.0" x 13.0" x 13.7"
Shipping weight (single unit):
3.28KG / 7.23lbs
Shipping weight (2 units in a Master box):
6.95KG / 15.4lbs
Packaging
:
Eco–friendly mono–material packaging made entirely from recyclable carton, designed for durability and ease of recycling
Material
Grill:
Black/White Powder Coated Steel, Magnetic, with cloth, paintable, removable logo
Baffle:
V–0 Flame Retardant
Back enclosure:
Powder–coated steel
Environmental
Operating Temperature:
–5° to +50°C (23° to 122°F)
Storage Temperature:
–10° to +55°C (14° to 131°F)
Humidity:
30% to 85%, RHL non–condensing

REGULATORY

Safety
UL 2043 Certified:
Plenum rated for safe use in air–handling spaces, meeting fire and smoke standards.
UL1480A Certified:
Meets safety standards for fire–protective signaling in commercial spaces.
Environmental
:
RoHS, REACH, WEEE
