Description

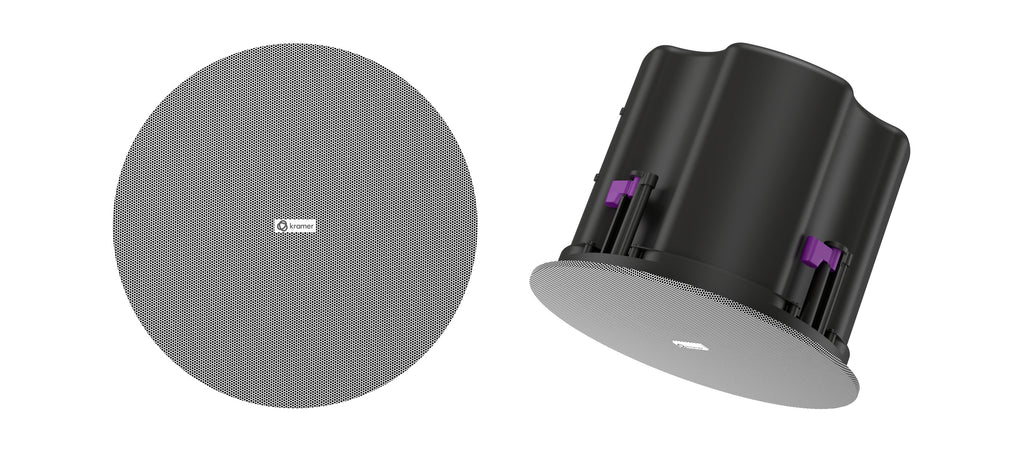

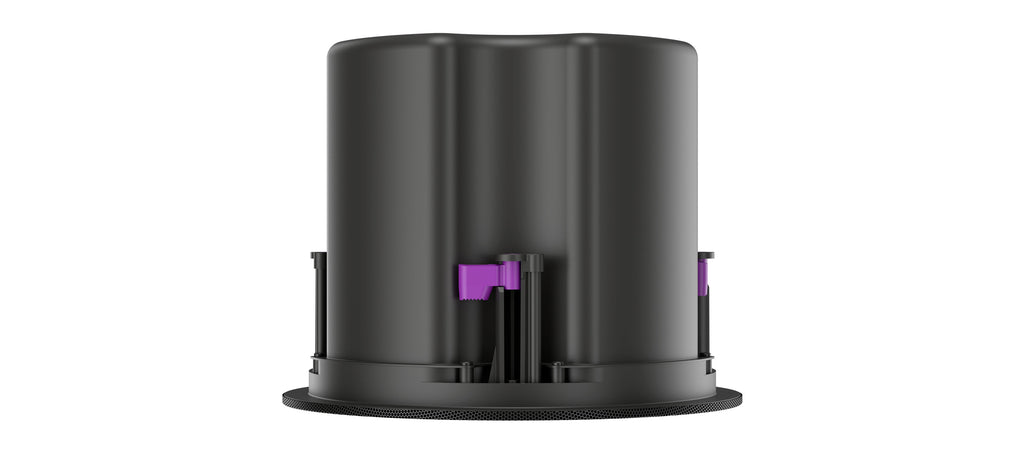

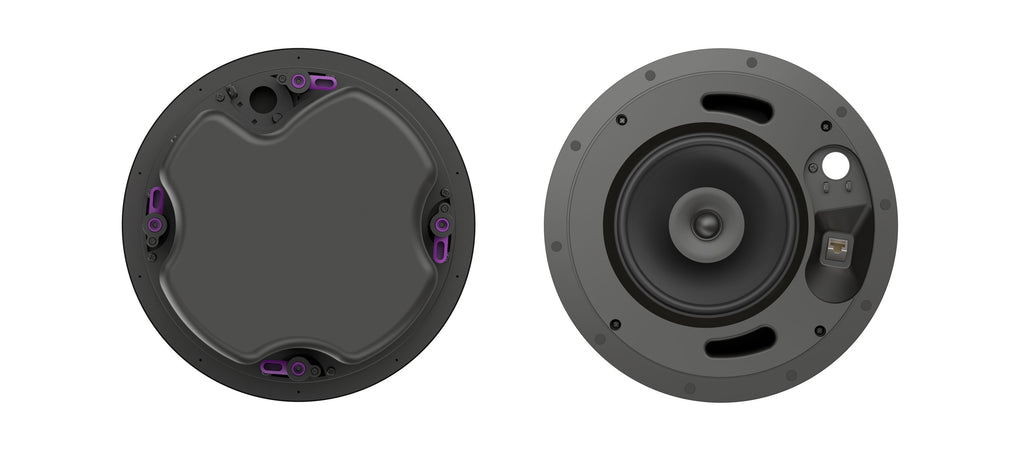

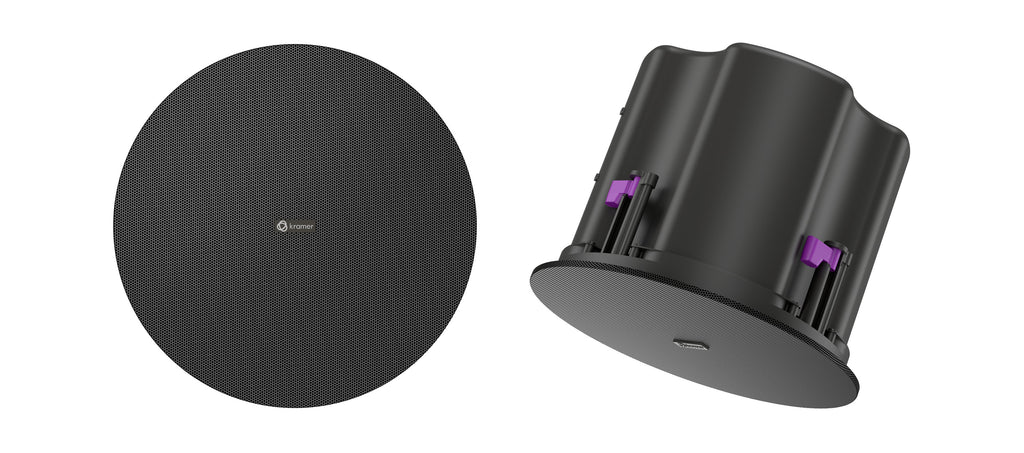

Kramer CL-6D 6.5-inch PoE Powered Dante In–Ceiling Speaker
FEATURES
- 6.5" 2–way Co–Axial, POE powered, Dante, in — ceiling speaker
- Superb sound with esthetic design
- Power handling: 10W continuous / 30W peek
- Nominal sensitivity (1W @ 1m free field): 88dB SPL
- Maximum SPL: Continuous 100dB SPL / Peak 103dB SPL
- Regulatory compliance: IEC62368(CB)/ CE LVD, UL62368–1, FCC/IC, BIS, RCM, RoHS, REACH, WEEE
- Black & white magnetic grills included in the box
- Front–access wiring for easy installation & troubleshooting
- Eco–friendly packaging
- Note: Mounting brackets are sold separately; Check the CSMR product page for more information.
Note: Download the Kramer Speaker Manager (.exe) and installation instructions from the Resources tab.
Kramer’s CL−6D is a premium 6.5” in−ceiling PoE−powered Dante speaker, engineered to deliver exceptional audio performance and effortless integration in modern commercial spaces. Optimized for both speech intelligibility and high−quality background music, the CL−6D is perfectly suited for meeting rooms, auditoriums, retail spaces, and hospitality environments.

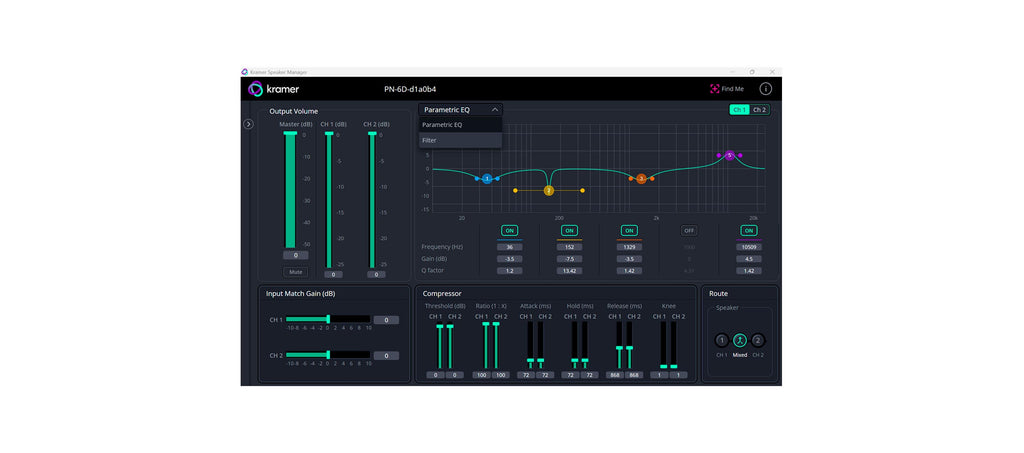

Equipped with a built−in amplifier, DSP, and mixer, the CL−6D supports two−channel mixing and advanced tuning capabilities including parametric EQ, high−pass/low−pass filters, input compression, output limiting, power management, and a “Find Me” tone—easily configured through Kramer’s intuitive Speaker Utility software.
To streamline installation and servicing, the CL−6D features front−access wiring, a reset button, and is supplied with both black and white magnetic grilles to blend seamlessly into any ceiling. The CL−6D also supports remote management and control via Kramer Control or third−party systems using its robust API.
Key Features
- Exceptional sound performance
- Complies with UL1480A for indoor installations (made from V–0 flame retardant materials)
- Supports PoE++/PoE+/PoE (auto–negotiate)
- Built–in mixer, DSP, and amplifier for two–channel mixing, parametric EQ, High pass and low pass filters, input compressor, output limiter and advanced power settings
- Features a built–in “Find Me” tone, making it easy to identify and locate individual speakers during installation or maintenance.
- Power handling: 10W continuous / 30W peak
- Sound Pressure Level (SPL): — Sensitivity (1W@1m, free field): 90dB SPL
Maximum SPL: Continuous: 100dB SPL / Peak: 105dB SPL - Regulatory compliance: — IEC62368(CB) / CE LVD, UL62368–1
FCC+IC, BIS, RCM
RoHS, REACH, WEEE - Industrial design: — wall–mounted, tool–less installation, available in black & white colors, removable logo
- The CL–6D PoE–powered Dante in–ceiling speaker is a premium audio solution designed for professional networked audio installations. It delivers high–performance sound with excellent speech clarity and background music reproduction, making it ideal for meeting rooms, auditoriums, and commercial spaces where quality, flexibility, and clean ceiling integration are essential.
WHAT'S IN THE BOX
- Included in the box: — 1 speaker (single unit), 2 speakers are packed in a single master box
Installation kit including C–ring, bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable (mounting rails (CSMR) are not included and should be purchased separately)
2 magnetic grills (1 white and 1 black per speaker)
Cutout template
Quick Start Guide
SPECIFICATIONS
Audio
Driver:
165 mm (6.5 in) high output driver with polypropylene cone and rubber surround
19 mm (0.75 in) liquid cooled soft–dome tweeter
Frequency characteristics
70Hz–20kHz
80Hz–18kHz
106deg. (1 kHz to 4 kHz)
Power handling:
10W continuous / 30W peak
10W continuous / 20W peak
10W continuous / 10W peak
Sound Pressure Level (SPL):
88dB SPL
PoE++: Continuous: 98dB / Peak: 103dB
PoE+: Continuous: 98dB / Peak: 101dB
PoE: Continuous: 98dB / Peak: 98dB
MECHANICAL
Installation
In–ceiling speaker installation with brackets and C–ring
4–point screw down Dog–Ear clamp, up to 60mm / 2.36” ceiling thickness
RJ–45, factory reset button
Cutout template included in the box
3.5kg (7.7lbs)
Dimensions
220mm / 8.7”
250mm / 9.9”
252mm / 9.92”
282mm / 11.1”
400mm x 400mm x 298mm / 15.8" x 15.8" x 11.8"
410mm x 410mm x 618mm / 16.2" x 16.2" x 24.4"
5.1Kg / 11.3lbs
10.9Kg / 24lbs
Material
Black/White Powder Coated Steel, Magnetic, with cloth, paintable, removable logo
V–0 Flame Retardant
Powder–coated steel
Environmental
–5° to +50°C (23°F to 122°F.)
–10° to +55°C (14°F to 131°F.)
30% to 85%, RHL non–condensing
Plenum rated for safe use in air–handling spaces, meeting fire & smoke standards.
Safety standards for fire–protective signaling in commercial spaces.
BALANCED LINE LEVEL INPUT
Eco–friendly mono–material packaging made entirely from recyclable cartons, designed for durability and ease of recycling
REGULATORY
Safety
Safety standard for audio equipment addressing risks related to electrical, mechanical, and environmental factors in low–voltage devices.
Safety of audio, equipment by addressing potential hazards through risk–based performance criteria for electrical and mechanical systems.
Safety, quality, and performance requirements specific to the Indian market.
(Regulatory Compliance Mark) electrical safety, electromagnetic compatibility (EMC), and radiofrequency (RF) standards for products in Australia and New Zealand.
EMI
Compliance with regulations for electromagnetic interference (EMI) and radio frequency (RF) emissions, ensuring that devices operate safely and do not cause harmful interference.
RoHS, REACH, WEEE
Accessories
In the Box
1 speaker (single unit), 2 speakers are packed in a single master box
In the Box
Installation kit including C–ring, bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable (mounting rails (CSMR) are not included and should be purchased separately)
In the Box
2 magnetic grills (1 white and 1 black per speaker)
In the Box
Cutout template
In the Box
Quick Start Guide
