Description

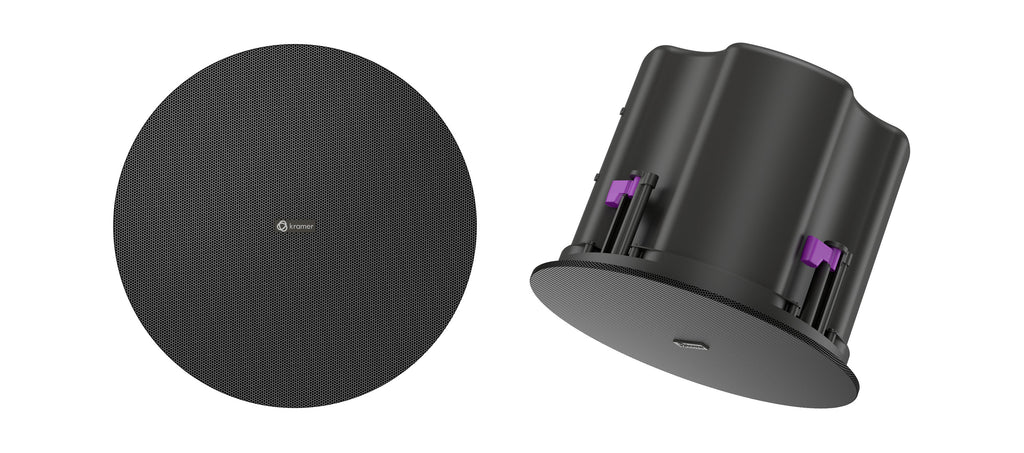

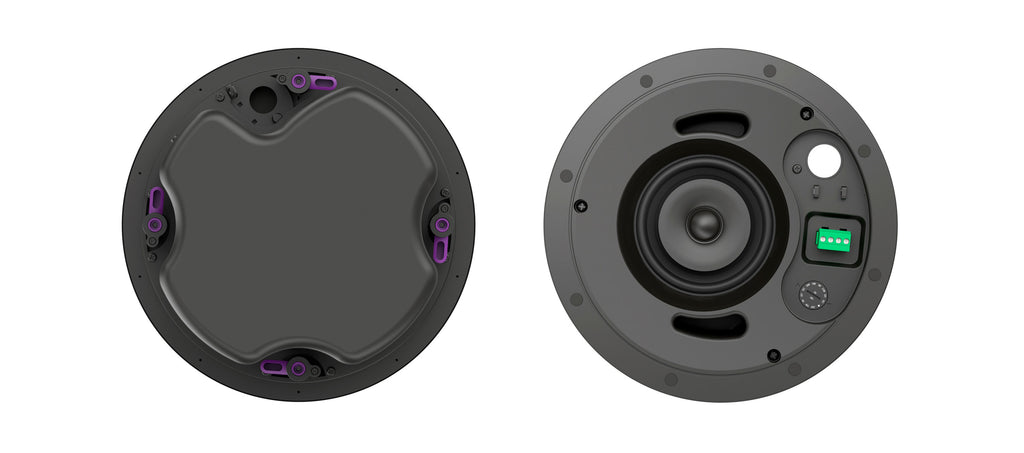

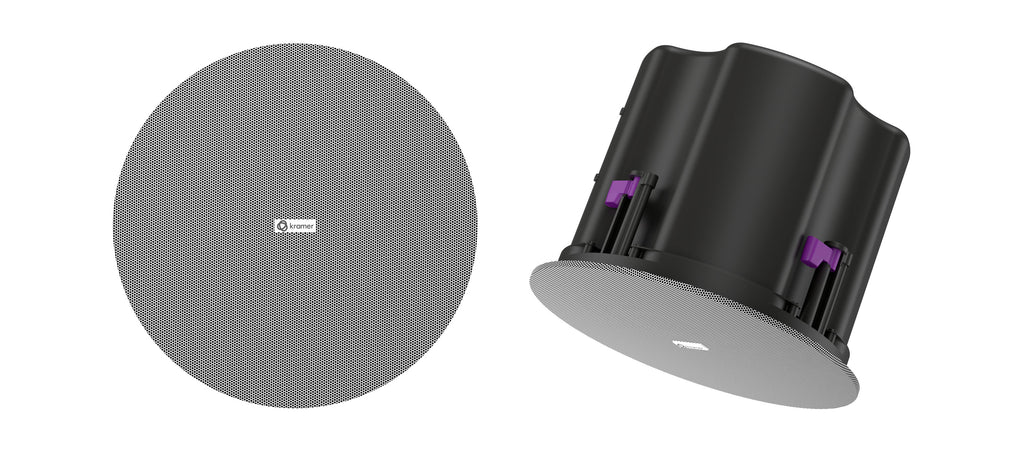

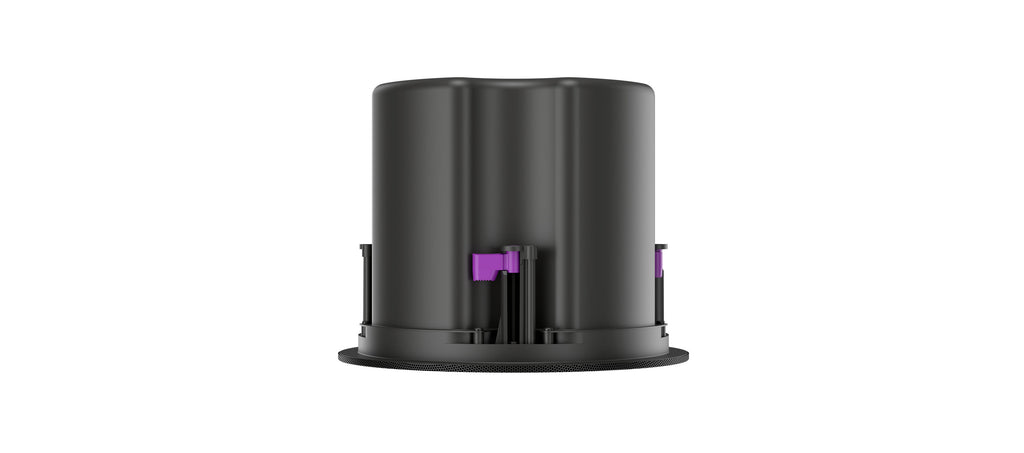

Kramer CL-6P 6.5-inch In-Ceiling Two–Way Closed Back Co–Axial Passive Speaker
FEATURES
- 6.5”, 2–way coaxial passive speaker
- Low–impedance (8Ω) / high–impedance (70V/100V)
- Power ratings: 30W continuous / 45W peak
- Nominal sensitivity: 88dB SPL
- Maximum SPL: Continuous 103dB SPL / Peak 105dB SPL
- Plenum rated: UL 2043, UL 1480A
- Black & white magnetic grills included in the box
- Front–access wiring for easy installation & troubleshooting
- Eco–friendly packaging
- Note: Mounting brackets are sold separately; Check the CSMR product page for more information.
The CL−6P – premium sound high performance, 2−way passive closed back ceiling speaker.
The CL−6P is a plenum rated high−performance ceiling speaker that provides exceptional sound with high SPL. The speaker was designed with present mid−range optimized for speech clarity and background music. The speaker supports both 8Ω low impedance as well as several 70V/100V high impedance modes. The high performance makes it ideal for high−end conferencing spaces and where premium sound quality is essential. Features front−access wiring for easy installation and troubleshooting. Both black & white magnetic grills are included in the box.
Key Features
- Premium sound with high SPL
- Plenum rated UL2043 & UL1480A
- Low–impedance (8Ω) / high–impedance (70V/100V)
- Power ratings: 30 W continuous pink noise / 45 W continuous program
- Sensitivity (1W@1m, free field): 88dB SPL
- Maximum SPL (@1m): Continuous: 103dB SPL / Peak: 105dB SPL
- Industrial design: black & white bezel–less magnetic grills included in the box, Low profile — light weight, front–access wiring
- Eco–friendly mono–material packaging
WHAT'S IN THE BOX
- Included in the Box — 1 speaker (single unit), 2 speakers are packed in a single master box
Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately)
2 magnetic grills (1 white and 1 black per speaker)
4–pin pluggable Euroblock connector, 28–12AWG
Cutout template
Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)
Quick Start Guide
SPECIFICATIONS
Audio
Driver:
165 mm (6.5 in) high output driver with polypropylene cone and rubber surround
19 mm (0.75 in) liquid cooled soft–dome tweeter
Frequency characteristics
70Hz–20kHz
80Hz–18kHz
106 deg. conical dispersion (1 kHz to 4 kHz)
Power ratings
30W continuous pink noise / 45W continuous program
30W/15W/7.5W
30W/15W/7.5W/3.8W
Sound Pressure Level (SPL)
88dB SPL
Continuous: 103dB SPL / Peak: 105dB SPL
MECHANICAL
Installation
In–ceiling speaker installation with brackets and C–ring
4–point screw down Dog–Ear clamp, up to 60mm / 2.36” ceiling thickness
4–pin pluggable Euroblock connector, 28–12AWG
Cutout template included in the box
3.75kg (8.3lbs)
Dimensions
220mm / 8.66”
250mm / 9.84”
252mm / 9.92”
282mm / 11.1”
720mm x 350mm x 306mm/ 28.4" x 13.8" x 12.1"
11.6kg (25.6lbs)
Packaging
Eco–friendly mono–material packaging made entirely from recyclable carton, designed for durability and ease of recycling
Material
Black/White Powder Coated Steel, Magnetic, with cloth, paintable
V–0 Flame Retardant
Powder–coated steel
Environmental
–5° to +50°C (23° to 122°F)
–10° to +55°C (14° to 131°F)
30% to 85%, RHL non–condensing
REGULATORY
Safety
Plenum rated for safe use in air–handling spaces, meeting fire and smoke standards.
Meets safety standards for fire–protective signaling in commercial spaces.
Environmental
RoHS, REACH, WEEE
