Description
Kramer CL-6P-LP Low Profile 6.5-inch In–Ceiling Two–Way Closed Back Co–Axial Passive Speaker
FEATURES
- Low Profile 6.5”, 2–way coaxial passive ceiling speaker
- Depth (ceiling clearance): 115mm / 4.53”
- Low–impedance (8Ω) / high–impedance (70V/100V)
- Power ratings: 30W continuous / 45W peak
- Nominal sensitivity: 90dB SPL
- Maximum SPL: Continuous 105dB SPL / Peak 107dB SPL
- Plenum rated: UL 2043, UL 1480A

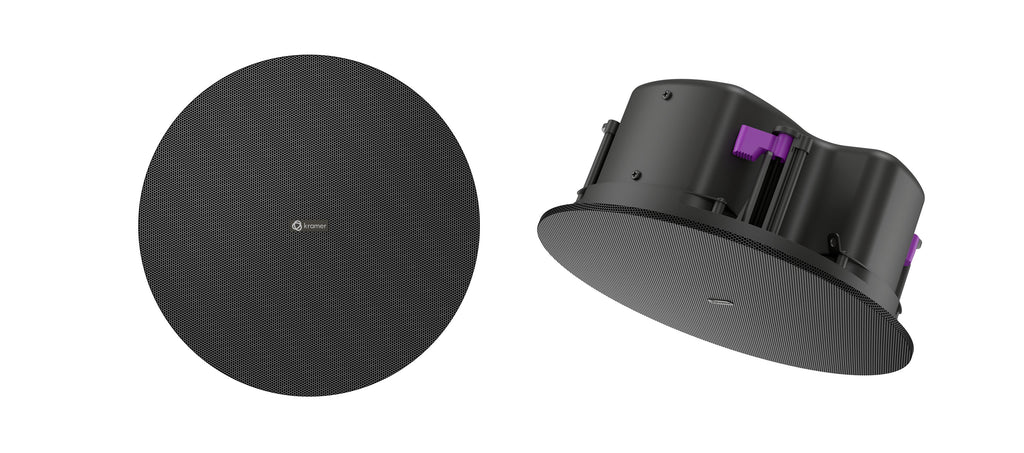

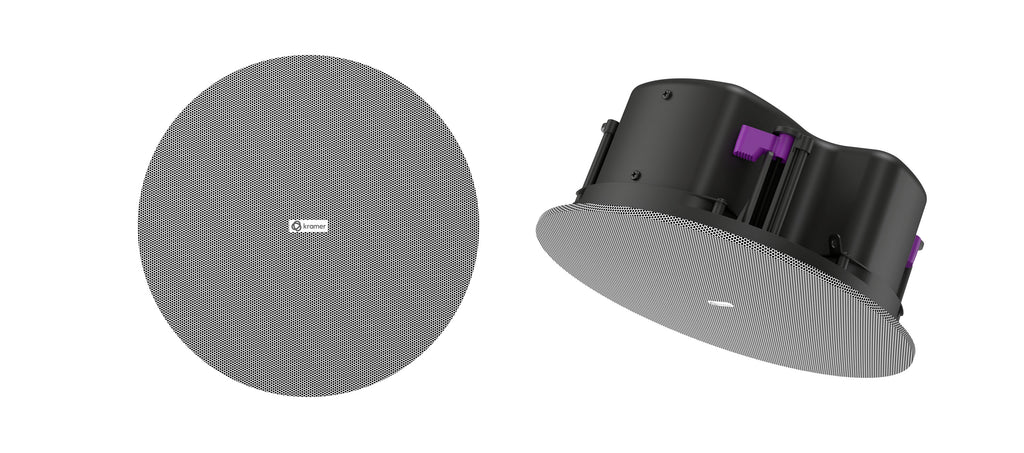

- Black & white magnetic grills included in the box
- Front–access wiring for easy installation & troubleshooting
- Eco–friendly packaging
- Note: Mounting brackets are sold separately; Check the CSMR product page for more information.
The CL−6P−LP – low profile, premium 2−way closed back passive ceiling speaker.
The CL−6P−LP is a plenum−rated, low−profile, closed−back ceiling speaker designed specifically for speech intelligibility−focused environments such as meeting rooms, conferencing spaces, and collaboration areas.
Engineered with a present mid−range acoustic profile and wider dispersion, the CL−6P−LP delivers clear, consistent speech coverage across the room − reducing listener fatigue and improving communication effectiveness.
Supporting both 8Ω low−impedance and 70V/100V high−impedance distributed audio systems, the CL−6P−LP offers maximum deployment flexibility for professional installations. Its closed−back, low−profile design makes it ideal for shallow ceiling spaces where traditional ceiling speakers cannot be installed.
The CL−6P−LP features front−access wiring for fast installation and simplified maintenance. Black and white magnetic grilles are included to seamlessly match any interior design.
Key Features
- Premium sound with high SPL and wide dispersion
- Plenum rated UL2043 & UL1480A
- Low–impedance (8Ω) / high–impedance (70V/100V)
- Power ratings: 30 W continuous pink noise / 45 W continuous program
- Sensitivity (1W@1m, free field): 90dB SPL
- Maximum SPL (@1m): Continuous: 105dB SPL / Peak: 107dB SPL
- Industrial design: black & white bezel–less magnetic grills included in the box, Low profile — light weight, front–access wiring
- Eco–friendly mono–material packaging
WHAT'S IN THE BOX
- Included in the Box — 1 speaker (single unit), 2 speakers are packed in a single master box
Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately)
2 magnetic grills (1 white and 1 black per speaker)
4–pin pluggable Euroblock connector, 28–12AWG
Cutout template
Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)
Quick Start Guide
SPECIFICATIONS
