Description
Kramer CL-8P High performance 8-inch In-Ceiling Closed Back Co-Axial Two-Way Passive Speaker
FEATURES
- 8”, 2–way coaxial high performance passive ceiling speaker
- Low–impedance (8Ω) / high–impedance (70V/100V)
- Power ratings: 60W continuous / 90W peak
- Nominal sensitivity: 90dB SPL
- Maximum SPL: Continuous 108dB SPL / Peak 110dB SPL
- Plenum rated: UL 2043, UL 1480A
- Black & white magnetic grills included in the box
- Front–access wiring for easy installation & troubleshooting
- Eco–friendly packaging
- Note: Mounting brackets are sold separately; Check the CSMR product page for more information.

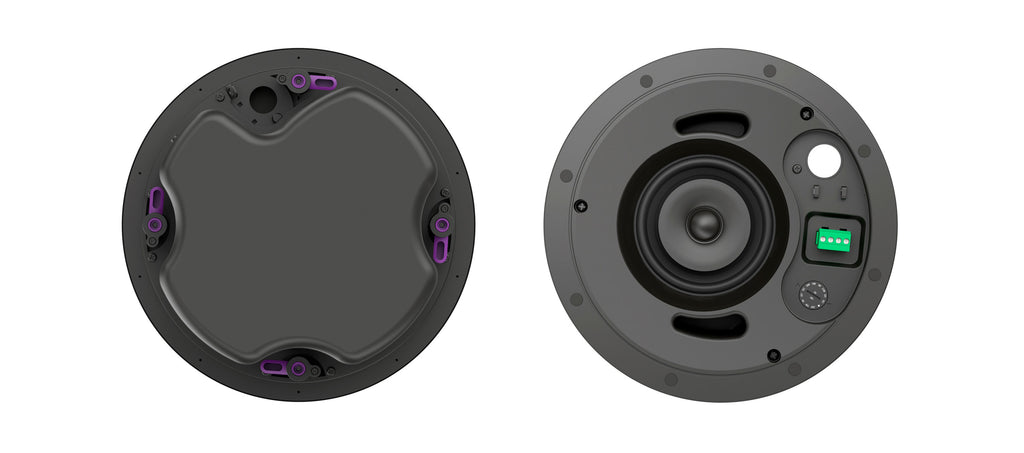

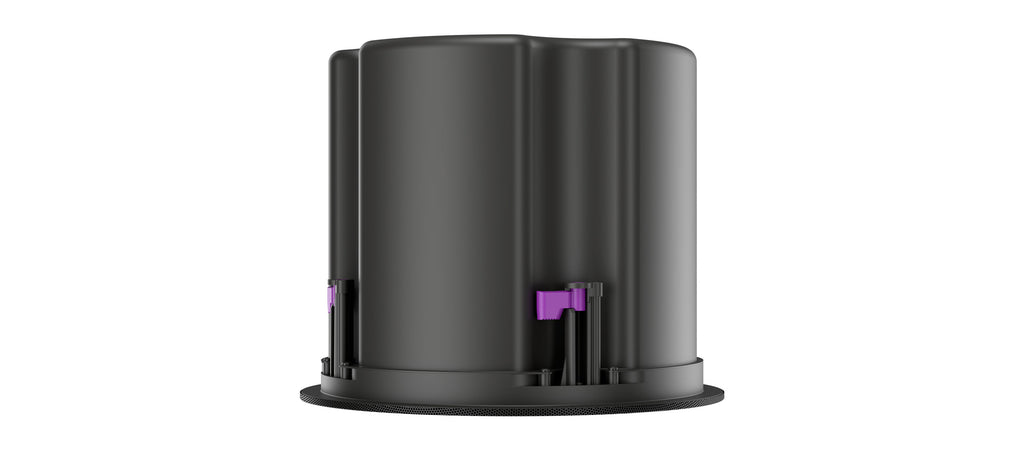

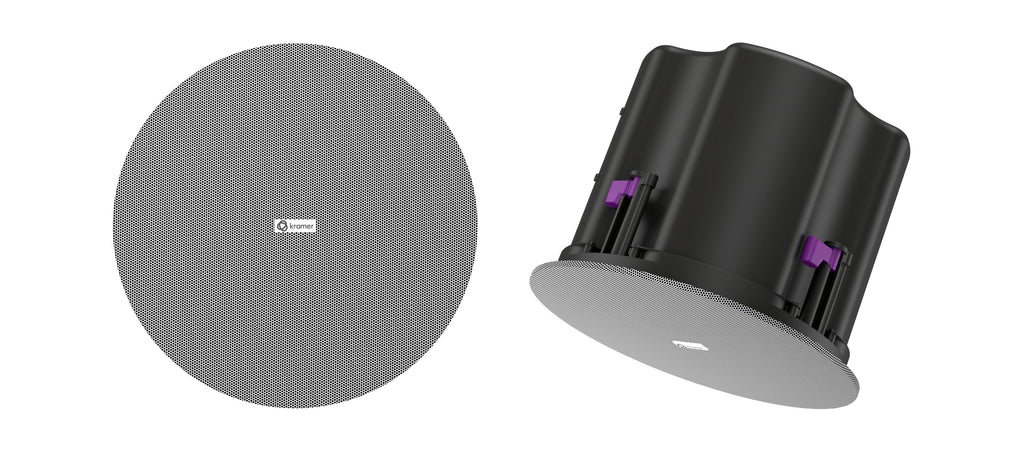

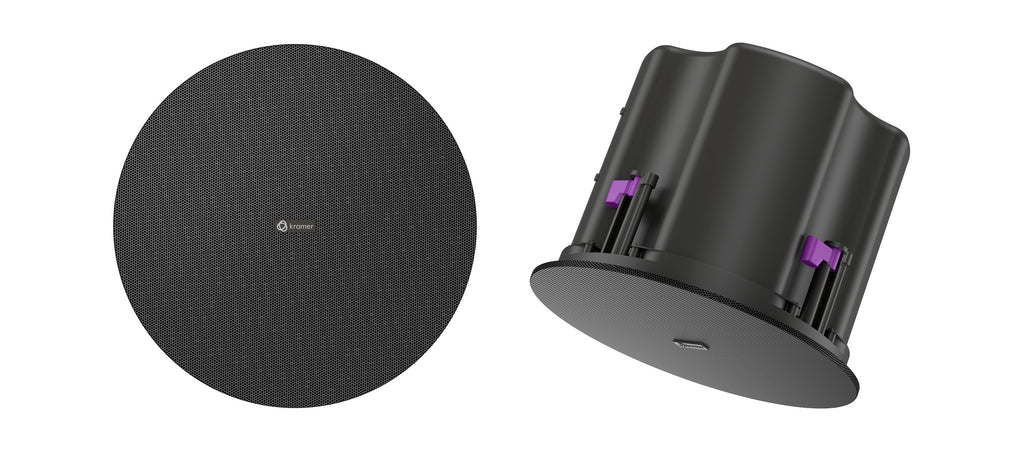

Kramer CL−8P – high performance, 8" two−way passive in−ceiling speaker
The CL−8P is a plenum rated high−performance ceiling speaker that provides exceptional sound with high SPL. The speaker was designed with present mid−range optimized for speech clarity and background music. The speaker supports both 8Ω low impedance as well as several 70V/100V high impedance modes. The speaker’s high performance and sound quality make it ideal for high−end areas with high ceilings such as auditoriums, hotel lobbies and boardrooms. Features front−access wiring for easy installation and troubleshooting. Both black & white magnetic grills are included in the box.
Key Features
- Premium sound with high SPL
- Plenum rated UL2043 & UL1480A
- Low–impedance (8Ω) / high–impedance (70V/100V)
- Power ratings: 60W continuous / 90W peak
- Sensitivity (1W@1m, free field): 90dB SPL
- Maximum SPL (@1m): Continuous: 108dB SPL / Peak: 110dB SPL
- Industrial design: black & white bezel–less magnetic grills included in the box, Low profile — light weight, front–access wiring
- Eco–friendly mono–material packaging
WHAT'S IN THE BOX
- Included in the Box — 1 speaker (single unit), 1 speaker box packed in a master box
Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately)
2 magnetic grills (1 white and 1 black per speaker)
4–pin pluggable Euroblock connector, 28–12AWG
Cutout template
Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)
Quick Start Guide
SPECIFICATIONS
Audio
Driver:
200 mm (8 in) with polypropylene cone and rubber surround
25 mm (1 in) liquid cooled soft–dome tweeter
Frequency characteristics
55Hz–20kHz
70Hz–20kHz
82 deg. conical dispersion (1 kHz to 4 kHz)
Power ratings
60W continuous / 90W peak
60W / 30W / 15W
60W / 30W / 15W / 7.5W
Sound Pressure Level (SPL)
90dB SPL
Continuous: 108dB SPL / Peak: 110dB SPL
MECHANICAL
Installation
In–ceiling speaker installation with brackets and C–ring
4–point screw down Dog–Ear clamp, up to 60mm / 2.36” ceiling thickness
4–pin pluggable Euroblock connector, 28–12AWG
Cutout template included in the box
6.23kg (13.7lbs)
Dimensions
270mm / 10.7”
295mm / 11.6”
297mm / 11.7
327mm / 12.9
430mm x 430mm x 338mm / 17" x 17" x 13.3"
438mm x 438mm x 351mm / 17.3" x 17.3" x 13.9"
9.2KG / 20.3lbs
Packaging
Eco–friendly mono–material packaging made entirely from recyclable cartons, designed for durability and ease of recycling
Material
Black/White Powder Coated Steel, Magnetic, with cloth, paintable, removable logo
V–0 Flame Retardant
Powder–coated steel
Environmental
–5° to +50°C (23° to 122°F)
–10° to +55°C (14° to 131°F)
30% to 85%, RHL non–condensing
BALANCED LINE LEVEL INPUT
8.5KG / 18.8lbs
REGULATORY
Safety
Plenum rated for safe use in air–handling spaces, meeting fire and smoke standards.
Meets safety standards for fire–protective signaling in commercial spaces.
Environmental
RoHS, REACH, WEEE
