Description

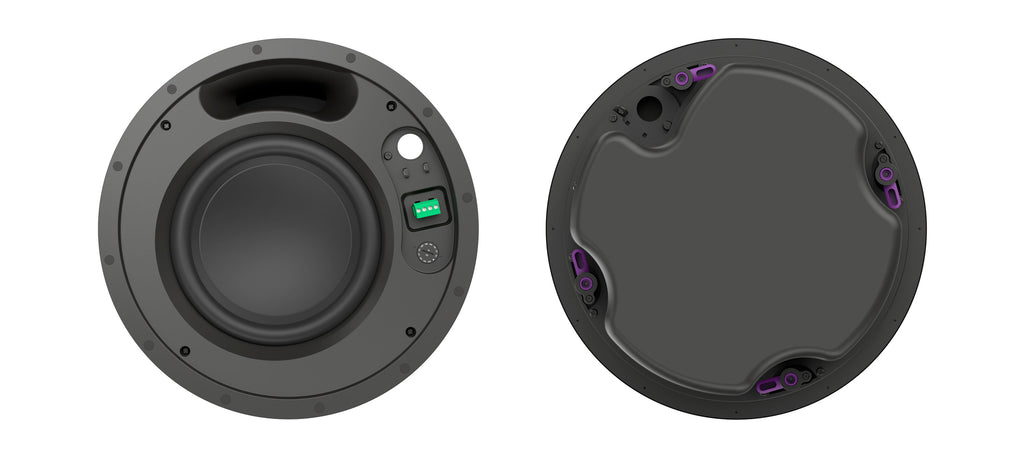

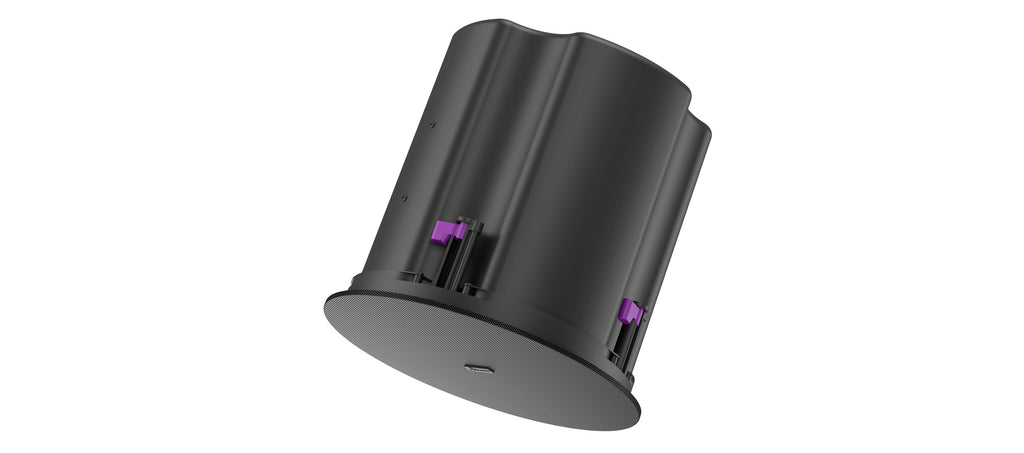

Kramer CL-8P-SUB 8-inch In–ceiling Subwoofer
FEATURES
- 8”, In–ceiling Subwoofer
- Low–impedance (8Ω) / high–impedance (70V/100V)
- Power ratings: 80W continuous / 120W peak
- Nominal sensitivity: 84dB SPL
- Maximum SPL: Continuous 103dB SPL / Peak 105dB SPL
- Plenum rated: UL 2043, UL 1480A

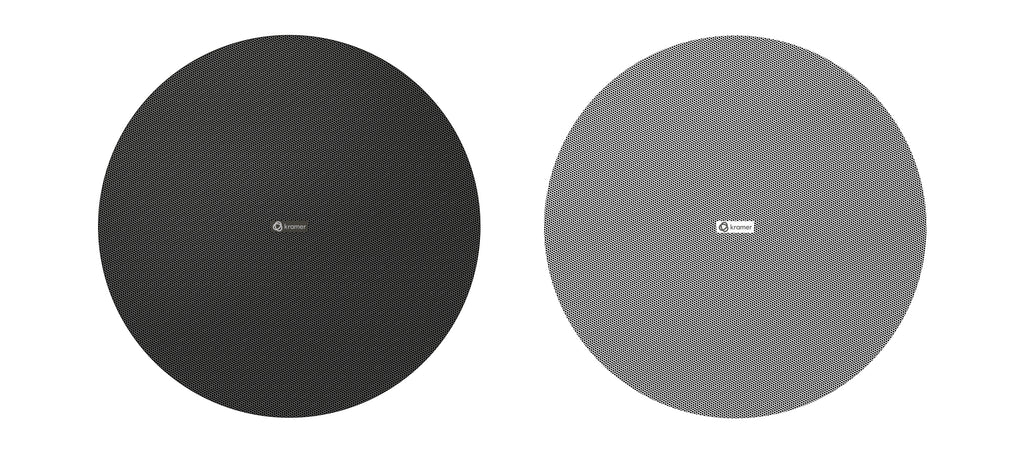

- Black & white magnetic grills included in the box
- Front–access wiring for easy installation & troubleshooting
- Eco–friendly packaging
- Note: Mounting brackets are sold separately; Check the CSMR product page for more information.
The CL−8P−SUB is an In−Ceiling Passive Subwoofer that enhances any space with deep, rich bass while seamlessly integrating into the ceiling. Designed for both low impedance (8Ω) and high impedance (70V/100V) systems, it offers implementation flexibility. Features front−access wiring for easy installation and troubleshooting. Both black & white magnetic grills are included in the box.
Key Features
- Enhances the sound of every space
- Plenum rated UL2043 & UL1480A
- Low–impedance (8Ω) / high–impedance (70V/100V)
- Power ratings: 8W continuous / 120W peak
- Sensitivity (1W@1m, free field): 84dB SPL
- Maximum SPL (@1m): Continuous: 103dB SPL / Peak: 105dB SPL
- Industrial design: black & white bezel–less magnetic grills included in the box, front–access wiring
- Eco–friendly mono–material packaging
WHAT'S IN THE BOX
- Included in the Box — 1 speaker (single unit), 1 speaker box packed in a master box
Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately)
2 magnetic grills (1 white and 1 black per speaker)
4–pin pluggable Euroblock connector, 28–12AWG
Cutout template
Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)
Quick Start Guide
SPECIFICATIONS
Audio
Driver:
200 mm (8 in) with polypropylene cone, butyl rubber surround, copper–clad coil, vented aluminum former
Frequency characteristics
45Hz–570Hz
80Hz–500Hz
Omnidirectional
Power ratings
80W continuous / 120W peak
80W/40W/20W
80W/40W/20W/10W
Sound Pressure Level (SPL)
84dB SPL
Continuous: 103dB SPL / Peak: 105dB SPL
MECHANICAL
Installation
In–ceiling speaker installation with brackets and C–ring
4–point screw down Dog–Ear clamp, up to 60mm / 2.36” ceiling thickness
4–pin pluggable Euroblock connector, 28–12AWG
Cutout template included in the box
8.05kg (17.75lbs)
Dimensions
315mm / 12.4”
295mm / 11.62”
297mm / 11.7”
327mm / 12.9”
430mm x 430mm x 378mm / 17" x 17" x 15"
438mm x 438mm x 391mm / 17.3" x 17.3" x 15.4"
11.4KG / 25.2lbs
Packaging
Eco–friendly mono–material packaging made entirely from recyclable cartons, designed for durability and ease of recycling
Material
Black/White Powder Coated Steel, Magnetic, with cloth, paintable
V–0 Flame Retardant
Powder–coated steel
Environmental
–5° to +50°C (23° to 122°F)
–10° to +55°C (14° to 131°F)
30% to 85%, RHL non–condensing
BALANCED LINE LEVEL INPUT
10.6KG / 23.4lbs
REGULATORY
Safety
Plenum rated for safe use in air–handling spaces, meeting fire and smoke standards.
Meets safety standards for fire–protective signaling in commercial spaces.
Environmental
RoHS, REACH, WEEE
