Description

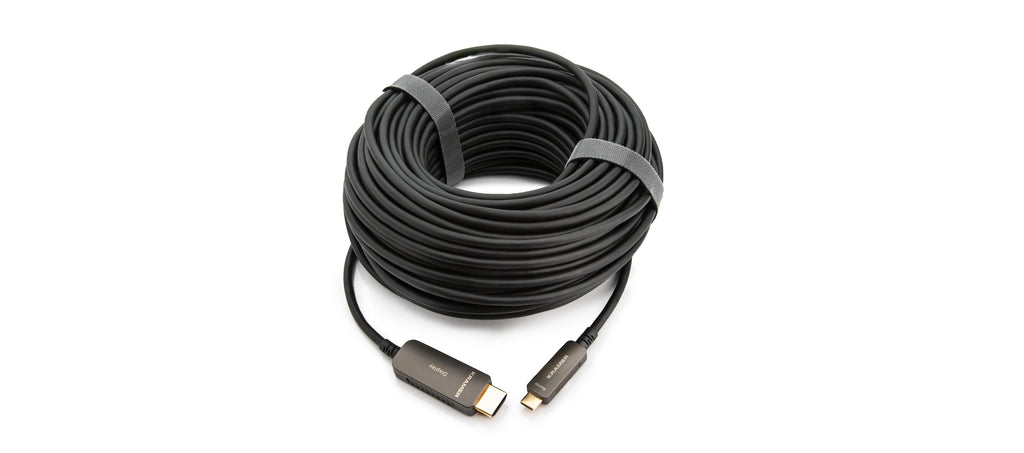

Kramer CLS-AOCU/CH Active Optical 4K USB Type C (M) to HDMI (M) - Low Smoke & Halogen Free
FEATURES
- Lengths — 5–30m (15–98')
- Max. data rate: 18Gbps
- Max. resolution: 4K@60Hz
- Low smoke & halogen free
- No external power required
- Supports HDCP 2.2
CLS−AOCU/CH is an innovative active optical USB C to HDMI cable for 4K signals up to 30 meters (98ft).
CLS−AOCU/CH cables are thinner, lighter, and more flexible than copper or even standard optical cables. They offer transparent EDID and HDCP support with no signal attenuation and reduced risk of EMI and RFI interference. CLS−AOCU/CH cables are an ideal solution for maximizing signal integrity in critical AV installations.
Key Features
- Video Resolution — Up to 4K@60Hz (4:4:4).
- High Data Transfer Rate — Up to 18Gbps.
- Embedded Audio — PCM 8–channel, Dolby Digital True HD and DTS–HD Master Audio.
- HDMI Support — HDCP 2.2/1.4, HDR, EDID.
- High–Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity.
- Reduced EMI & RFI.
- Thin Construction — 4.7mm diameter.
- Jacket Construction — Low smoke & halogen free.
- RoHS 2011/65/EU, CE, FCC Compliant.
- Varied Selection of Lengths — Available in versions from 5 to 30m (15 to 98ft).
SPECIFICATIONS
Video
Max Resolution:
4K@60Hz
Supported Color Spaces:
RGB, YCbCr, xvYCC, BT.2020
HDMI Support:
HDR, HDCP 2.2/1.4, EDID
Audio
Supported Audio Formats:
DTS HD 7.1, Dolby TrueHD
PHYSICAL
USB-C Source:
On a male HDMI type A, 24K gold–plated
HDMI Display:
On a male HDMI type A, 24K gold–plated
General
Cable Type:
Hybrid with 4x polymer insulated glass fibers
Copper Type:
30–20 AWG tinned copper wire
Flammability:
LSHF
MECHANICAL
Cable Bending Radius:
20mm
JACKET
Color:
Black
Diameter:
4.7 +/ — 0.2mm
Power
Consumption:
< 1.5W
Environmental Conditions
Operating Temperature:
0–50°C
Storage Temperature:
–20–70°C
STANDARDS COMPLIANCE - EC VERIFIED
Safety:
CE/FCC
Regulatory Compliance (Standards Compliance)
Environmental:
REACH, RoHS 2011/65/ EU
