Description

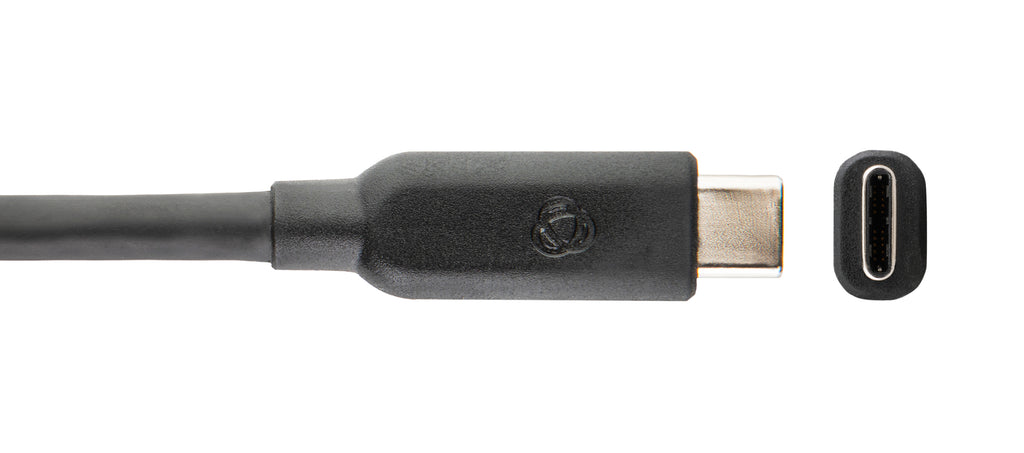

Kramer CT-U32/FF USB 3.2 GEN-2 Full Featured USB-C Cable
FEATURES
- TAA compliance
- Lengths: 3 to 6ft (0.9–1.8m)
CT−U32/FF is a USB−C(M) to USB−C(M), USB 3.2 Gen−2 SuperSpeed+ (10G) data, transfer Video 4K@60 (4:4:4) and charge other devices (60W). The symmetrical, low profile USB Type−C connector, can be plugged in any direction, thus eliminating the frustration of getting the port insertion just right.
This cable is made in a TAA compliant country.
Key Features
- Quality Construction — High–quality Tripple shielded twisted pair (STP) construction helps prevent electromagnetic interference and ensures reliable data communication.
- Reversible USB Type–C Connector
- 4K@60 (4:4:4)
- Transfer Data Rates — Up to 10Gbps
- 60W power (20V, 3A)
- PC, Mac & Mobile Compatible
- Plug and Play — For monitors, Web cameras, printers, scanners, keyboards and other digital devices
- USB Backward Compatibility — 1.0, 1.1, 2.0 and 3.0
SPECIFICATIONS
OVERALL
Type:
USB 3.2 GEN–2
Video:
4K@60 4:4:4
Max. Data Rate:
10 Gbps
ETH Support:
10/100/1000 Mbps
PHYSICAL
Connector A:
USB Type–C Male Nickel plated with gold pins
Connector B:
USB Type–C Male Nickel plated with gold pins
SCREENING
Type:
Triple shielding
JACKET
Material:
LDPE
Color:
Black
Diameter:
5.2mm ±0.2mm
Bending Radius:
50mm
ELECTRICAL
Temperature Rating:
80°C
Voltage Rating:
30V
Conductor Resistance – 32AWG:
563Ω/km MAX. at 20°C (68°F)
Conductor Resistance – 30AWG:
354Ω/km MAX. at 20°C (68°F)
Conductor Resistance – 24AWG:
74.5Ω/km MAX. at 20°C (68°F)
STANDARDS COMPLIANCE
Safety:
CE, UL
Flammability Rating:
VW–1
