Description

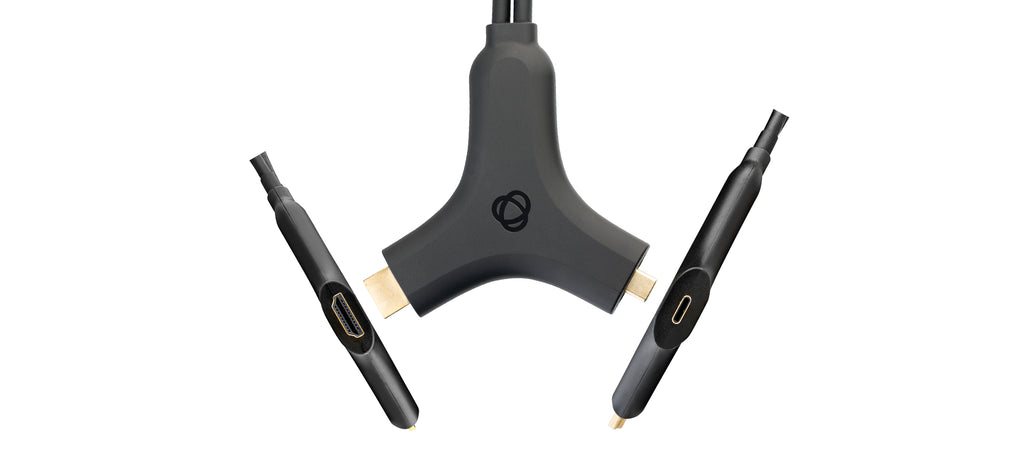

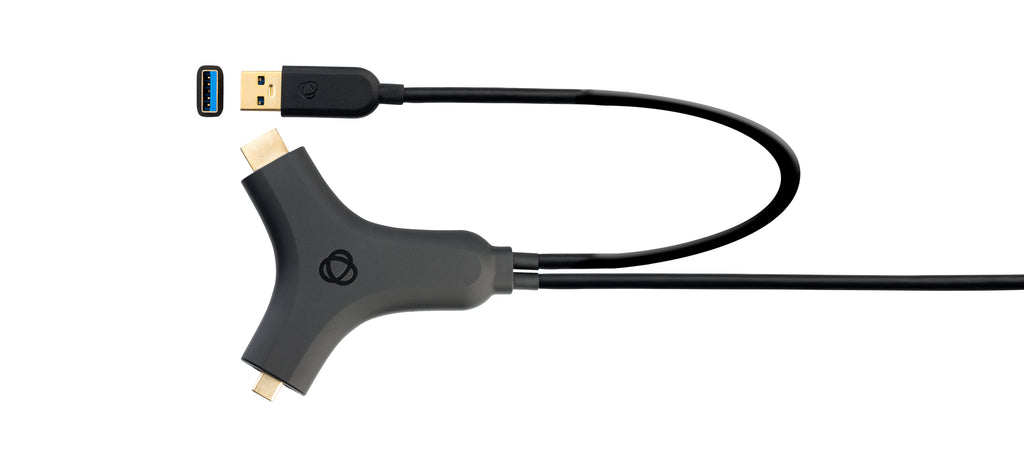

Kramer Electronics C-CU32/UC+H Active Multi–Format Input (M) to USB C Output (M) Adapter Cable
FEATURES
- High–Performance Adapter Cable — Supports 4K@30Hz (4:4:4) digital video connectivity.
- USB 3.2 data (10Gbps)
- Active Adapter — Retimes the signal to ensure full resolution and USB 3 signal quality.
- Simplifies Equipment Requirements — Replaces multiple separate cables, adapters, and dongles with a single multi–head cable.
- Plug and Play Installation — No software required.
- 2.7 Meter Output Cable.
C−CU32/UC+H is an active multi−format male input to USB−C male output adapter that enables you to connect HDMI + USB 3 or USB Type−C source (Laptop) to an USB−C acceptor (monitor or switcher).
The adaptor supports full USB−C 3.2 features (when the input is HDMI, need to connect the USB 3.2 A type connector).
The adaptor is perfect for BYOD meeting rooms as direct connection between the Laptop to the USB−C monitor, or in a big meeting room by connecting it between the laptop to the under the desk USB−C switcher (for example, SWT3−31−HU−TR, it’s recommended to set the input EDID to 4K@30 4:4:4).
Note: Devices connected to the C−CU32/UC+H USB−C Output, require their own power source.
Note: Compatible with PG−U32/FF (sold separately) for laptops with tightly spaced USB−C ports or a large gap between the port and desk surface.
Key Features
- High–Performance Adapter Cable — Supports full 4K@30Hz digital video connectivity.
- Active Adapter — Retimes the signal to ensure full resolution signal quality.
- Simplifies Equipment Requirements — Replaces multiple separate cables, adapters, and dongles with a single multi–head cable.
- Plug and Play Installation — No software required.
- 2.7 Meter Output Cable.
- 60W power charging
SPECIFICATIONS
