Description

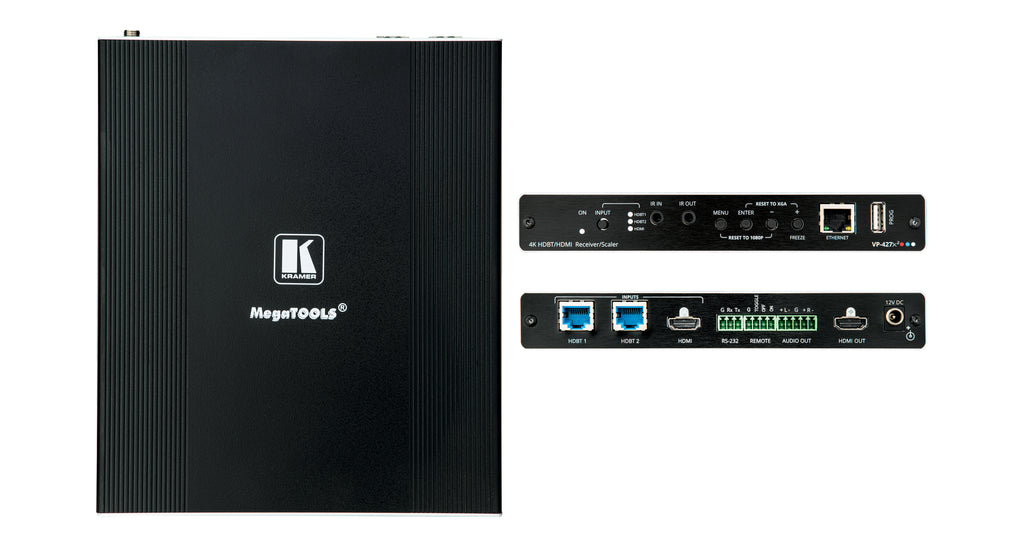

Kramer Electronics VP-427X2 4K HDR HDBT Receiver / Scaler Tool with HDBaseT and HDMI Inputs
FEATURES
- 2 HDBT and 1 HDMI inputs
- Resolutions up to 4K@60Hz (4:4:4)
- Auto–switching inputs
- Ethernet, IR, RS–232 control and tunneling
- CEC auto display control
- HDCP 2.2 & 1.4 compliant
VP−427X2 is a high−performance auto−switcher/scaler receiver with 2 HDBaseT inputs and a local HDMI input for 4K HDMI™ over extended−reach HDBaseT. It supports automatic and manual glitch−free switching between the 3 inputs, and up− or down−scaling to any resolution up to 4K@60Hz (4:4:4). The output scaling automatically matches the resolution of the HDMI display on the output, or it can be manually set by the user. VP−427X2 enables extending video signals up to 180m over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
Key Features
- Comprehensive Receiver/Scaler — Scales signals of all standard resolutions up to 4K@60Hz (4:4:4) for routing to the HDMI output. Constant output sync prevents signal disruption when switching between inputs and when no video is detected.
- HDMI Signal Extension — HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
- Audio De–embedding — Analog balanced stereo output for de–embedding the audio to speakers.
- Data Tunneling — Extend RS–232, IR, and Ethernet over the HDBaseT line.
- Built–in Automated Control — Includes easy connection to occupancy sensors and contact closure switches.
- CEC Support — Supports passing of CEC from input to output. Automatically sends CEC commands to shut down the output display after a timeout period when no input signal is found and to power up the display when the input returns.
- Cost–Effective and Convenient Control Options — Ethernet and RS–232 serial ports, and local control via front panel input selection and OSD menu buttons.
- ProcAmp Control — Contrast, brightness, color, etc.
- Convenient Unit Control and Configuration Options — Local control via front panel source switching buttons and OSD menu. Distance control via RS–232 serial commands transmitted by a PC, touch screen system or other serial controllers.
- Easy, Cost–effective Maintenance — Local firmware upgrade via USB connector.
- Easy and Elegant Installation — Compact MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
SPECIFICATIONS
Inputs
2 HDBaseT:
On an RJ–45 connector
1 HDMI:
On a female HDMI connector
Outputs
1 HDMI:
On a female HDMI connector
1 Balanced Analog Stereo Audio:
On a 5–pin terminal block
Ports
1 IR:
On a 3.5mm mini jack
1 RS–232:
On a 3–pin terminal block
1 Ethernet:
100Mbps, on an RJ–45 connector
Video
Output Resolutions:
640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz RB, 2560x1600@60Hz RB, 1920x1080@60Hz, 1280x720@60Hz, 2048x1080@50/60Hz, 2560x1440@60Hz RB, 720x480p@60Hz, 720x576p@50Hz, 1280x720p@50/60Hz, 1920x1080p@24/25/30/50/60Hz, 2560x1080p@50/60Hz, 2K@24/25/30/50/60Hz, 4K@24/25/30/50/60Hz
Max. Range:
180m at 1080p@60Hz, 100m (328ft) at 4K@60Hz (4:2:0)
Latency:
Up to 2 frames
Content Protection:
HDCP 2.2/1.4
Switching Time Between Inputs:
<2.5 seconds
User Interface
Control:
Input selection buttons, and remote contact–closure switches switches. Kramer API via RS–232 serial commands transmitted by a PC, touch screen system or other serial controller, embedded web pages via LAN for configuration and control
Indicators:
Power, link, input selection LEDs
Power
Source:
12V DC
Consumption:
2.1A
Enclosure
Size:
MegaTOOLS®
Type:
Aluminum
Cooling:
Convection ventilation
Environmental Conditions
Operating Temperature:
0° to +40°C (32° to 104°F)
Storage Temperature:
–40° to +70°C (–40° to 158°F)
Humidity:
10% to 90%, RHL non–condensing
Accessories
Included:
Power adapter, rubber feet, mounting bracket
Product Dimensions
PRODUCT DIMENSION:
18.75cm x 14.50cm x 2.54cm (7.38" x 5.71" x 1.00" ) W, D, H
Product Weight
PRODUCT WEIGHT:
1.1kg (2.3lbs) approx.
Shipping Dimensions
SHIPPING DIMENSION:
35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
Shipping Weight
SHIPPING WEIGHT:
1.7kg (3.8lbs) approx.
