Description

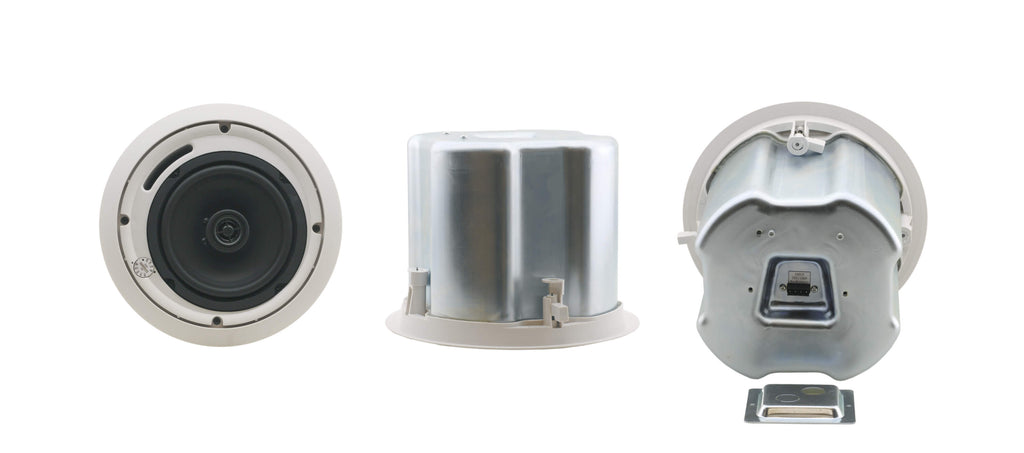

Kramer Galil 6-C 6.5-Inch 2-Way Closed–Back Ceiling Speakers
FEATURES
- UL Listed
- Woofer — 6.5” polypropylene cone
- Tweeter — 0.5” Mylar dome
- Impedance — 8Ω
- Power Handling — 30W RMS, 80W Continuous
- Transformer Taps — 70/100V
- 2 Speakers (1 Pair)
The Galil 6−C (formerly SPK−C612) Closed−back Ceiling Speaker features a multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.
Key Features
- Type — 2–way coaxial speaker.
- Woofer — 6.5” polypropylene cone.
- Tweeter — 0.5” Mylar dome.
- Impedance — 8Ω.
- Power Handling — 30W RMS, 80W continuous program.
- Transformer Taps — 70V: 30W/15W/7.5W/3.7W/Off (Lo–Z); 100V: 30W/15W/7.5W/Off (Lo–Z).
- UL 1480 & 2043 Listed
- Package Includes — 2 speakers (1 pair), ceiling mounting kit, template and user manual.
SPECIFICATONS
DESCRIPTION
2–way closed–back ceiling speakers.
FREQUENCY RESPONSE
80Hz to 20kHz @ — 10dB, 95Hz to 20kHz @ ±3dB.
WOOFER
6.5” (165mm) polypropylene with rubber surround.
TWEETER
0.5” (13mm) Mylar dome.
IMPEDANCE
8Ω (transformer tap in off position).
TRANSFORMER TAPS
70V — 3.7W/7.5W/15W/30W/Off (Lo–Z), 100V — 7.5W/15W/30W/Off (Lo–Z).
SENSITIVITY
87dB SPL, 1W @1m.
MAX SPL
Continuous: 100.7dB, peak: 103.7dB.
POWER HANDLING
30W RMS, 80W continuous program.
CROSSOVER FREQUENCY
9.2kHz.
COVERAGE ANGLE
101°.
DIRECTIVITY FACTOR (Q)
7.5 averaged 1kHz to 10kHz.
DIRECTIVITY INDEX (DI)
8.6dB averaged 1kHz to 10kHz.
INPUT CONNECTOR
Terminal block.
MATERIALS
ABS bezel, aluminum grill, metal back can.
OPERATING TEMPERATURE
0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE
–40° to +70°C (–40° to 158°F) .
HUMIDITY
10% to 90%, RHL non–condensing.
WEIGHT PER SINGLE SPEAKER
2.85kg (6.28lbs) approx.
SHIPPING WEIGHT (FOR PAIR)
8kg (17.64lbs) approx.
INSTALLATION DIMESIONS
Mounting depth: 19.6cm (7.72")
Cutout diameter: 22.4cm (8.82")
ACCESSORIES
Installation bracket, safety cord attached to grill, ceiling mounting kit
COLORS
Available in white.
