Description

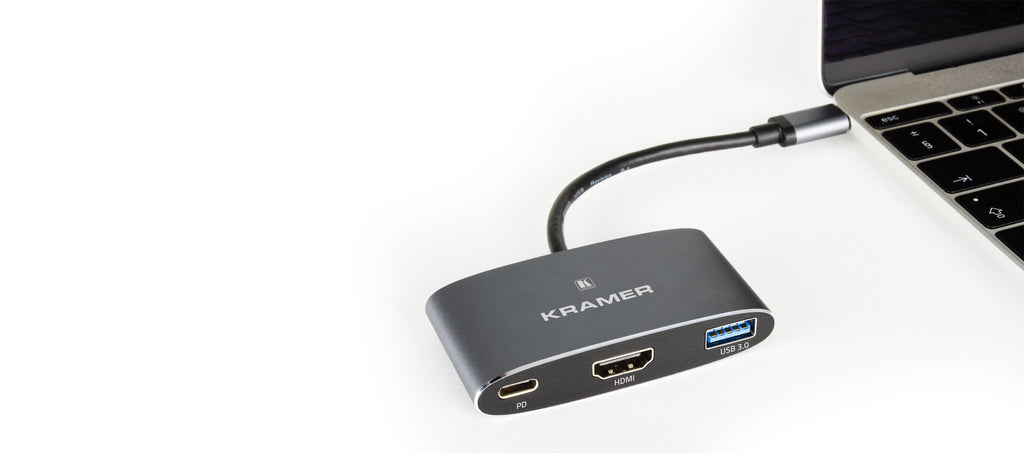

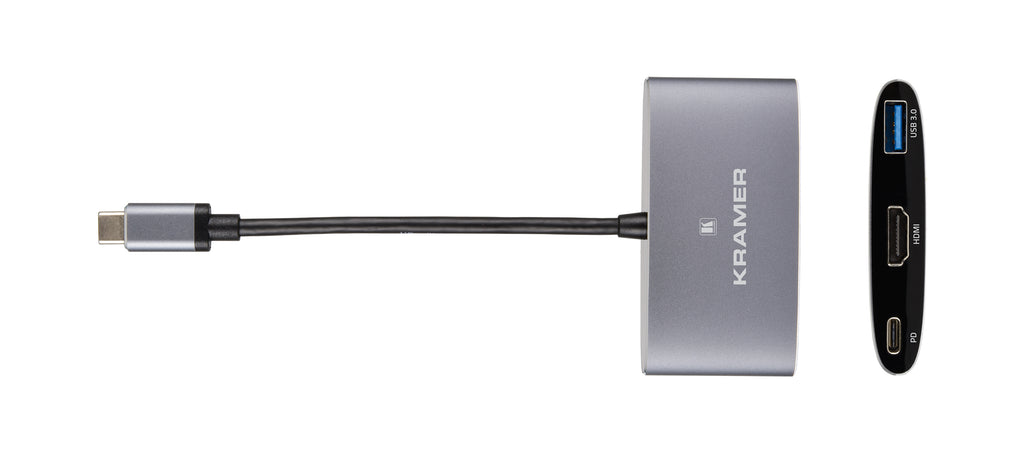

Kramer KDock-1 USB-C Hub Multiport Adapter
FEATURES
- 4K@30 HDMI output
- USB 3.0
- USB–C charging pass–through
KDock−1 is a USB−C hub multiport adapter specially designed to support mobile devices and is an ideal accessory for MacBook, laptops equipped with USB type−C, smartphones, and tablets. KDock−1 enables you to connect your USB−C device to an HDMI™ video output, USB 3.0 port, and USB−C charging pass−through.

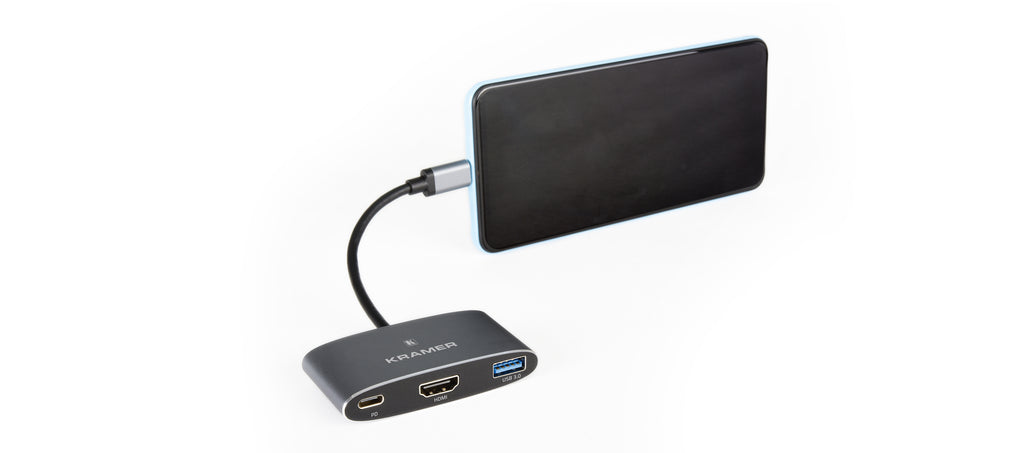

Note: Video output for smartphones is supported only for smartphones that support DisplayPort Alt mode through USB−C.
SPECIFICATIONS
Inputs
1 USB:
On a USB Type–C male connector
Outputs
1 HDMI:
On a female HDMI connector.
Ports
1 USB 2.0/3.0:
On a female USB type–A connector.
1 USB:
On a female USB type–C connector for charging.
Video
Max Resolution (HDMI output):
3840x2160P@30Hz.
Max Bandwidth (HDMI output):
10.2Gbps (3.4Gbps per graphic channel).
Content Protection (HDMI output):
HDCP 1.4.
General
USB 2.0 Data Transmission Speed:
Up to 480Mbps(60MB/s).
USB 3.0 Data Transmission Speed:
Up to 5.0Gbps (640MB/s)
Power
Delivery
60W.
USB Charging:
BC1.2 (5V 1.5A)
Environmental Conditions
Operating Temperature:
0° to +70°C (32° to 158°F).
Storage Temperature:
–10° to +55°C (14° to 131°F).
Humidity:
5% to 90%, RHL non–condensing.
Enclosure
Type:
Aluminum with built–in 16cm/6.3" flexible USB–C cable.
Regulatory Compliance (Standards Compliance)
Safety:
CE.
Environmental:
RoHs, FCC.
