Description

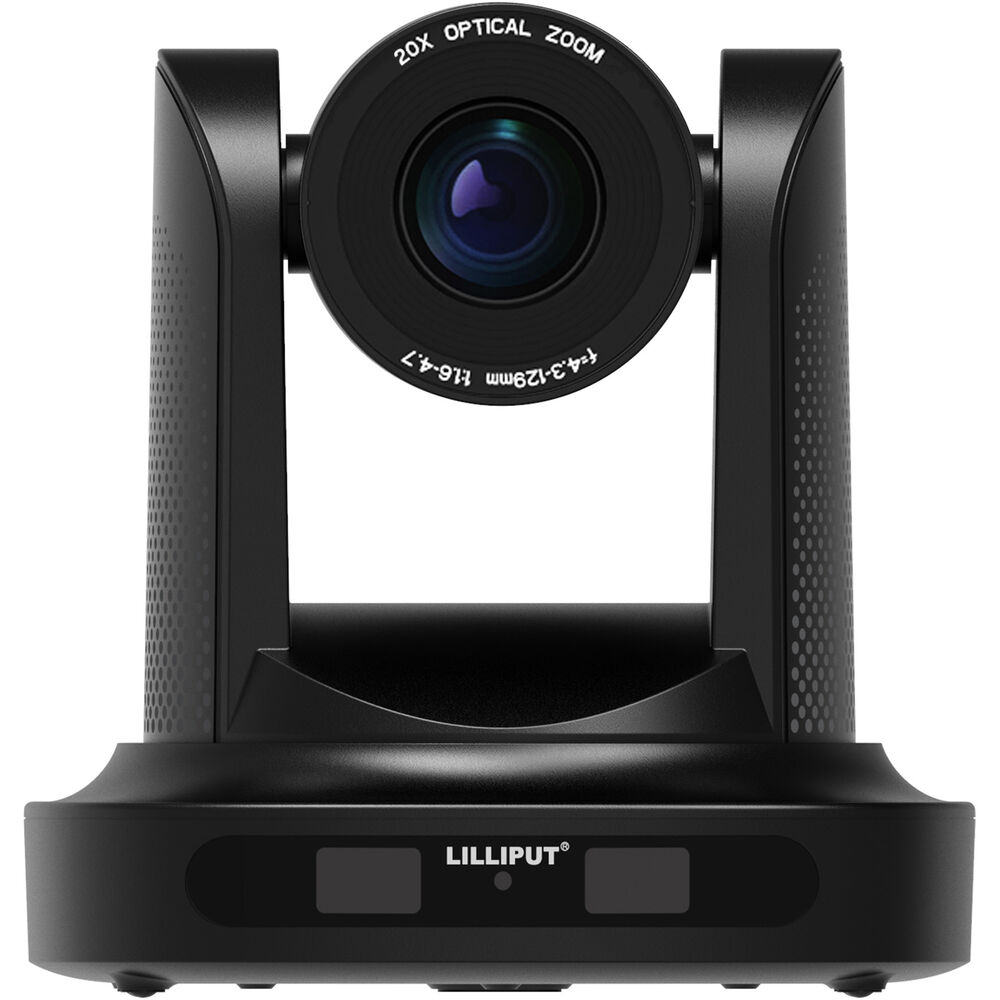

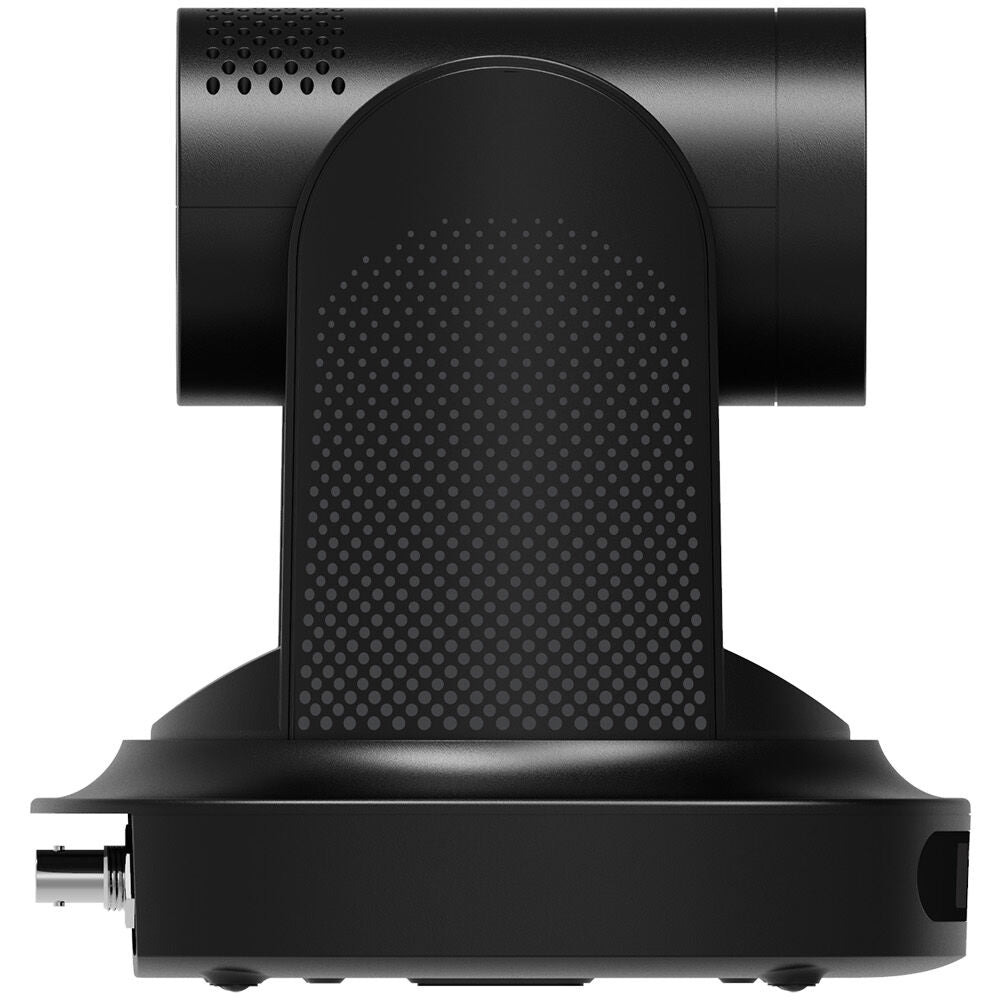

Lilliput C20N HD PTZ Camera with 20x Optical Zoom NDI|HX HDMI 3G-SDI
FEATURES
- HD CMOS Sensor Captures 1080p60 Video
- 20x Optical Zoom, 10x Digital Zoom
- ±170° Pan, -30 to +90° Tilt
- HDMI & 3G-SDI Output
- RS-232, RS-485 & NDI|HX Serial Control
- RTSP, RTMP, SRT & NDI|HX Streaming
- DC & PoE Power Support
- 3.5mm Audio Input
- Image Flip Function
- Includes IR Remote Control
SPECIFICATIONS
| MODEL NO. | C20P | C30P | C20N | C30N | |

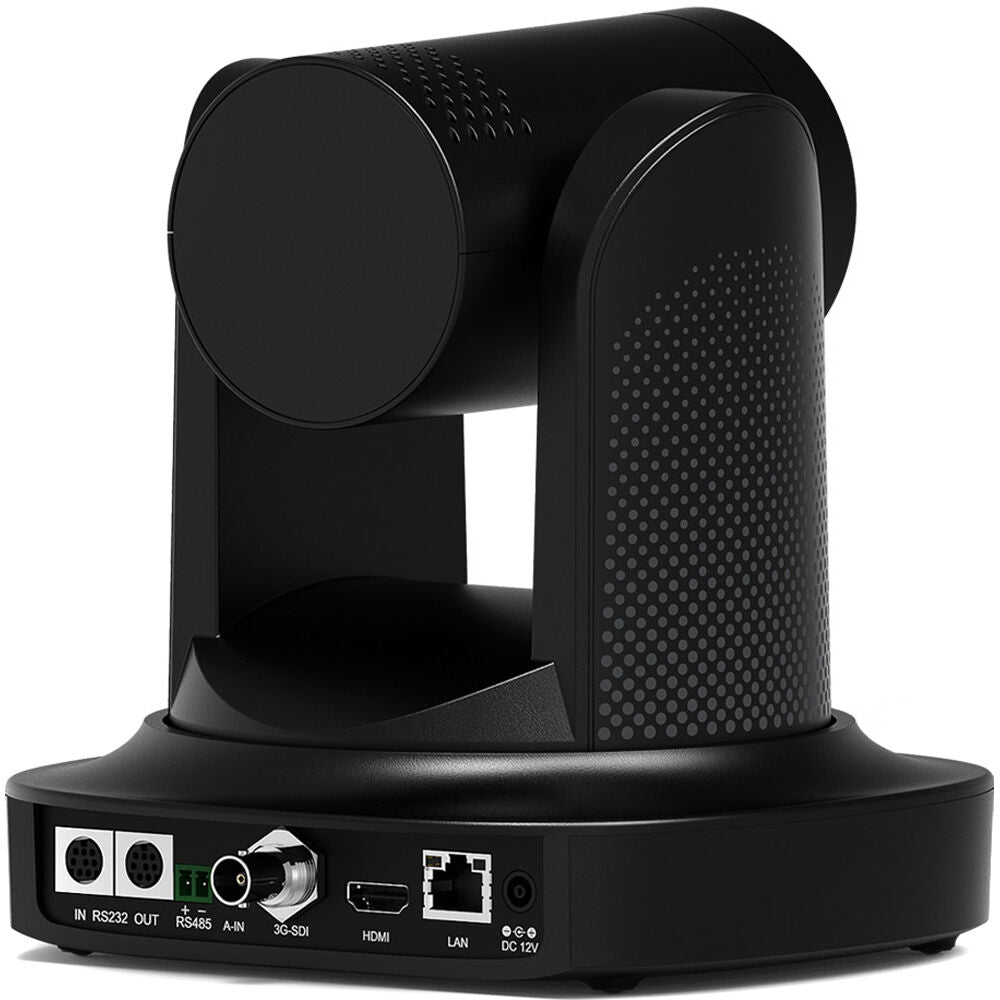

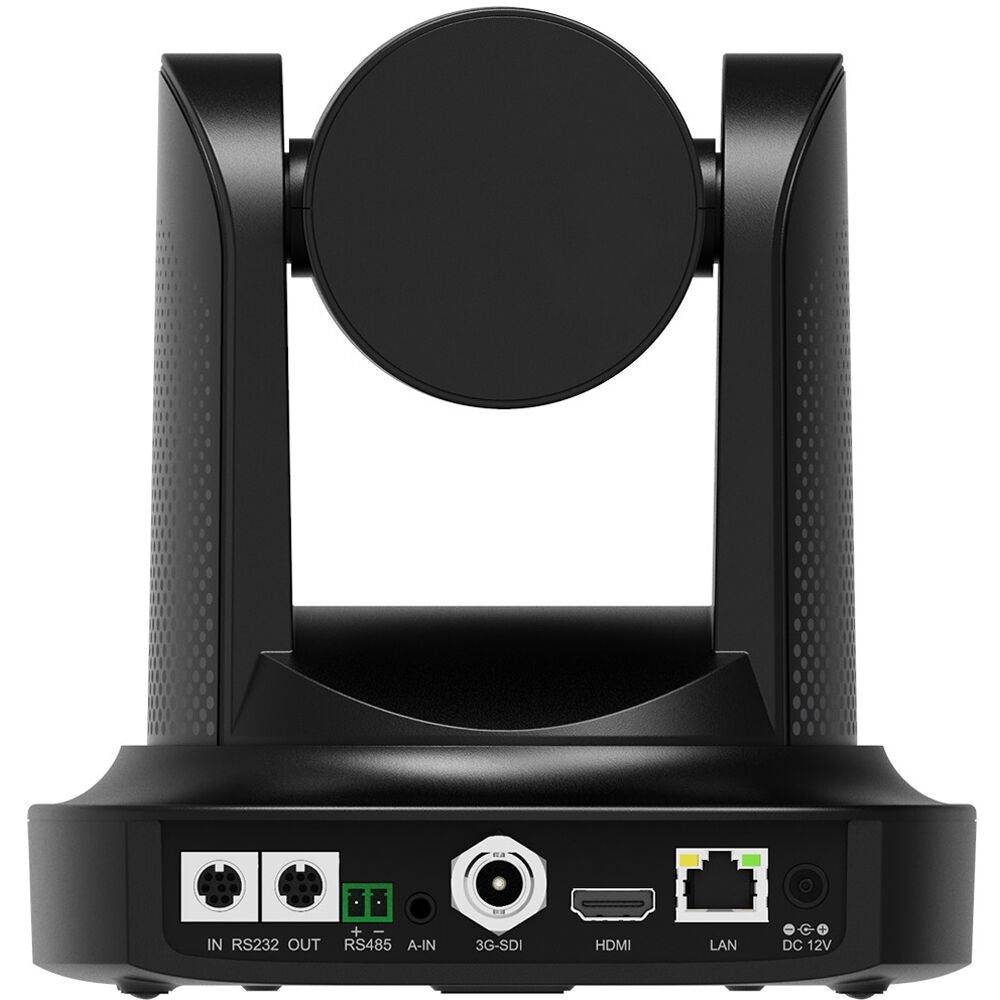

| INTERFACES | Video Out | SDI, HDMI | |||
| LAN Port | IP Streaming: RTSP/RTMP/SRT | ||||
| POE | POE | POE&NDI丨 HX | POE&NDI丨 HX | ||
| Audio Input | 3.5mm audio (Line-level) | ||||
| Control Interface | RS-232 In and Out, RS485 In | ||||
| Control Protocol | Onvif, VISCA over IP/ VISCA/ Pelco-D/P | ||||
| Video Format | HDMI/ SDI Video up to 1080P60 | ||||
| CAMERA PARAMETERS | Optical Zoom | 20× | 30× | 20× | 30× |
| Focal Length | F=5.5~110mm | F=4.3~129mm | F=5.5~110mm | F=4.3~129mm | |
| View Angle | 3.3°(tele) | 2.34°(tele) | 3.3°(tele) | 2.34°(tele) | |
| 54.7°(wide) | 65.1°(wide) | 54.7°(wide) | 65.1°(wide) | ||
| Aperture Value | F1.6 ~ F3.5 | F1.6 ~ F4.7 | F1.6 ~ F3.5 | F1.6 ~ F4.7 | |
| Sensor | 1/2.8 inch, High quality HD CMOS sensor | ||||
| Effective Pixels | 16: 9, 2.07 Megapixel | ||||
| Digital Zoom | 10× | ||||
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) | ||||
| DNR | 2D & 3D DNR | ||||
| SNR | >55dB | ||||
| White Balance | Auto/ Manual/ One Push/ 3000K/ 3500K/ 4000K/ 4500K/ 5000K/ 5500K/ 6000K/ 6500K/ 7000K | ||||
| WDR | OFF/ Dynamic level adjustment | ||||
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | ||||
| Other Camera Parameters | Auto Focus, Auto Aperture, Auto Electronic Shutter, BLC | ||||
| PTZ PARAMETERS | Rotation Angle | Pan: ±170°, Tilt: -30°~+90° | |||
| Rotation Speed | Pan: 60°/sec (Range: 0.1 -180°/sec), Tilt: 30°/sec (Range: 0.1-80°/sec) | ||||
| Preset Number | 255 presets (10 presets by remote controller) | ||||
| OTHERS | Input Voltage | DC12V±10% | |||
| Input Current | 1A (Max) | ||||
| Consumption | 12W (Max) | ||||
| Temperature | Working Temperature: -10~+50°C, Store Temperature: -10~+60°C | ||||
| Working Humidity | Working Humidity: 20~80% RH (no condensation), Store Humidity: 20~95% RH (no condensation) | ||||
| Dimension | 170×170×180.31mm | ||||
| Weight | Net weight: 1.25kg; Gross weight: 2.1kg | ||||
| Accessories | Power Supply, RS232 Control Cable, Remoter, Manual | ||||
| Installation Methods | 1/4 inch tripod hole; Bracket installation for Optional | ||||
