Description

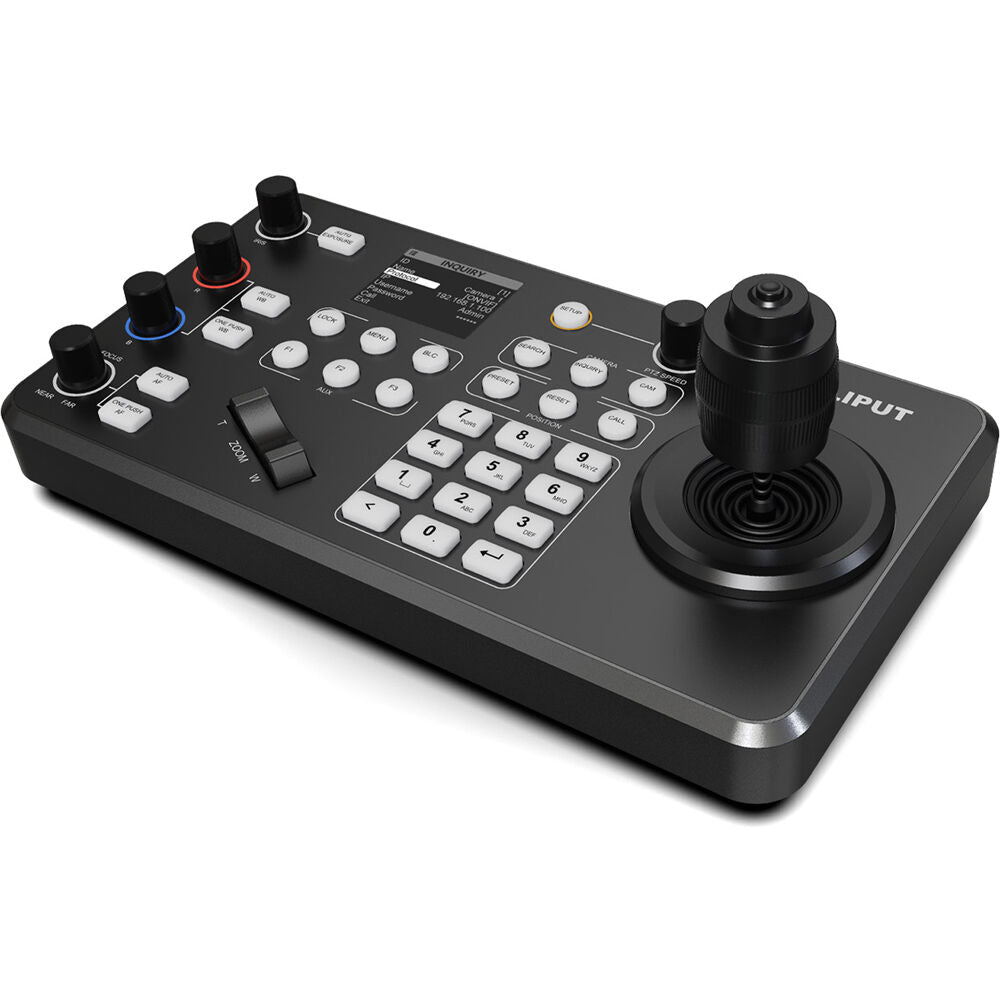

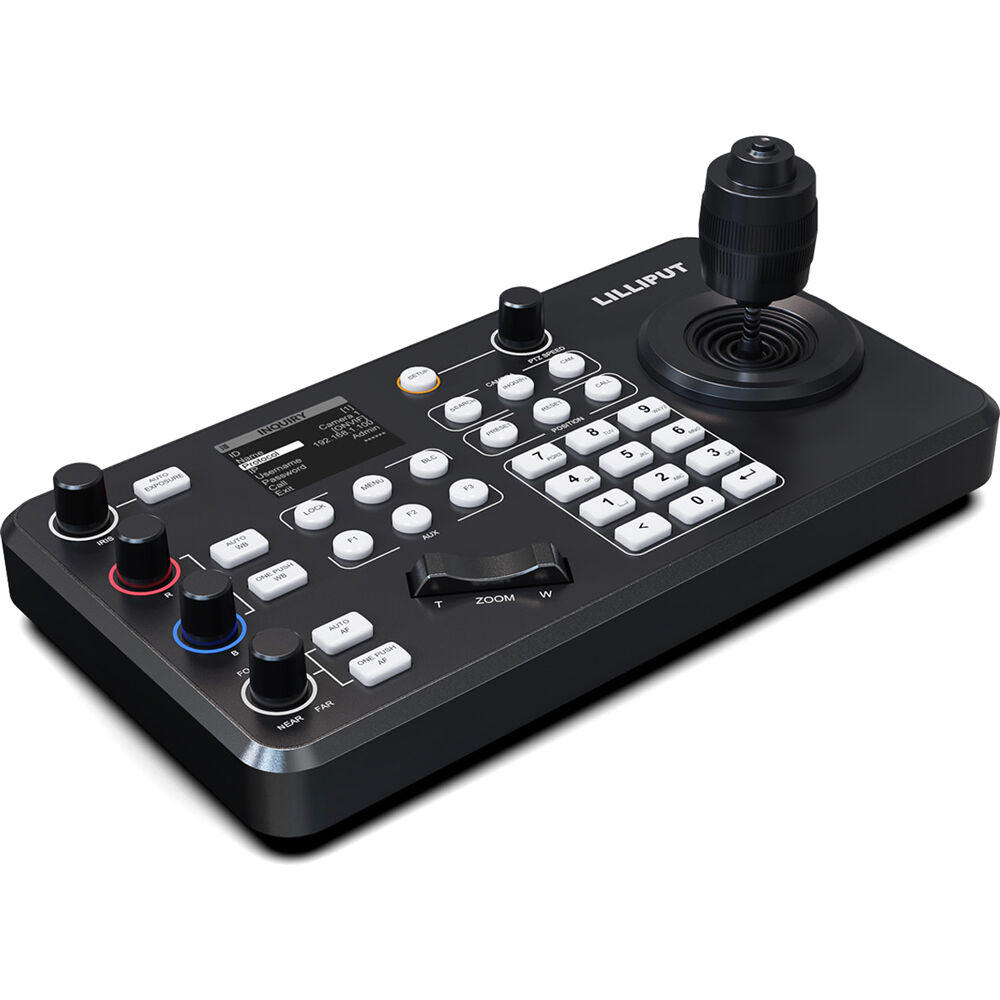

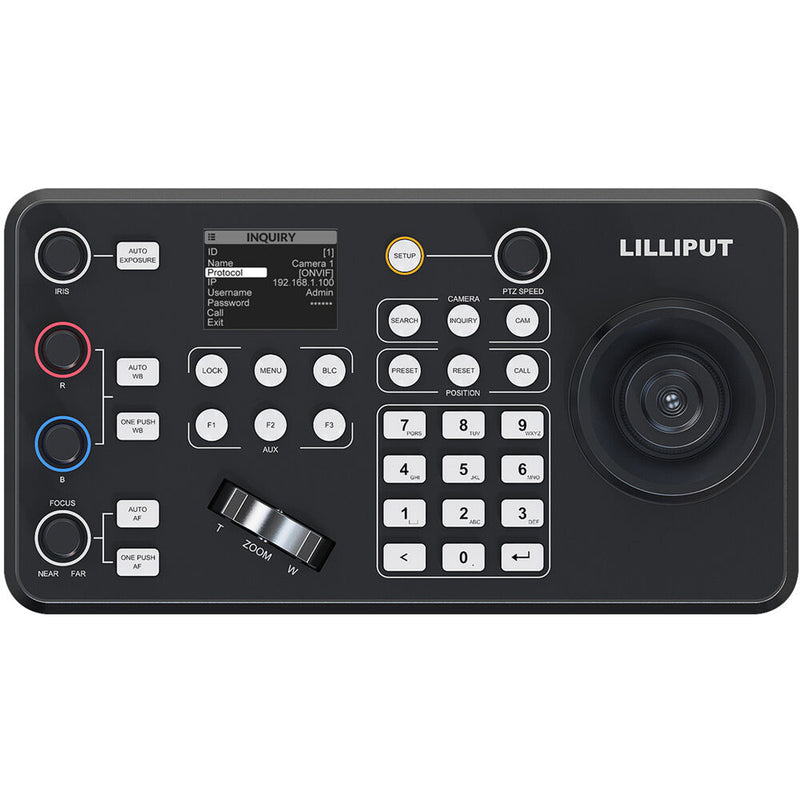

Lilliput K1 PTZ Camera Joystick Controller
The controller offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras.
FEATURES
- Pan/Tilt/Zoom PTZ Controls
- IP, RS-422, RS-485 & RS-232 Controls
- VISCA/VISCA-over-IP/Pelco-P & D Support
- Control 255 IP Cameras on 1 Network
- PoE & 12 VDC Power Supplies
- 2.2" LCD Display, Joystick
- 3 x User-Assignable Camera Call-Up Keys
- Rocker/Seesaw Switch for Zoom Control
- Auto-Search Available IP Cameras
SPECIFICATIONS

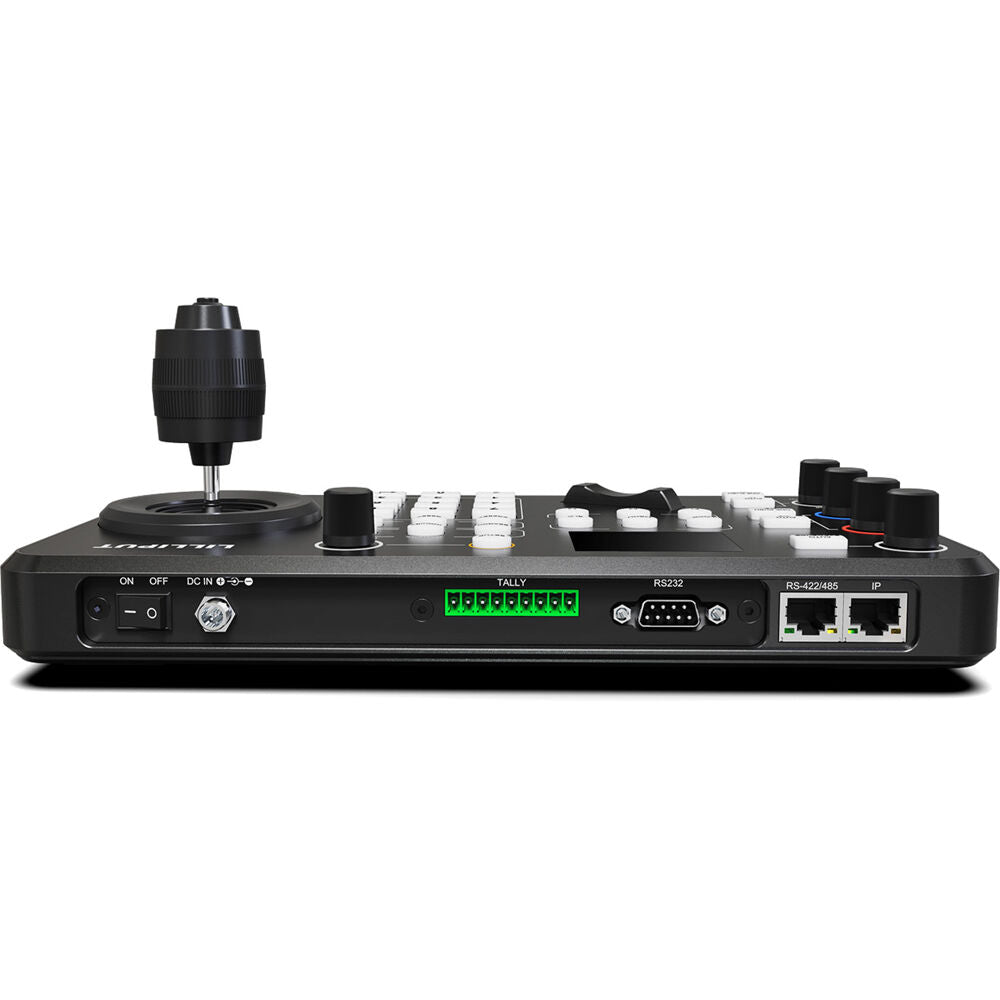

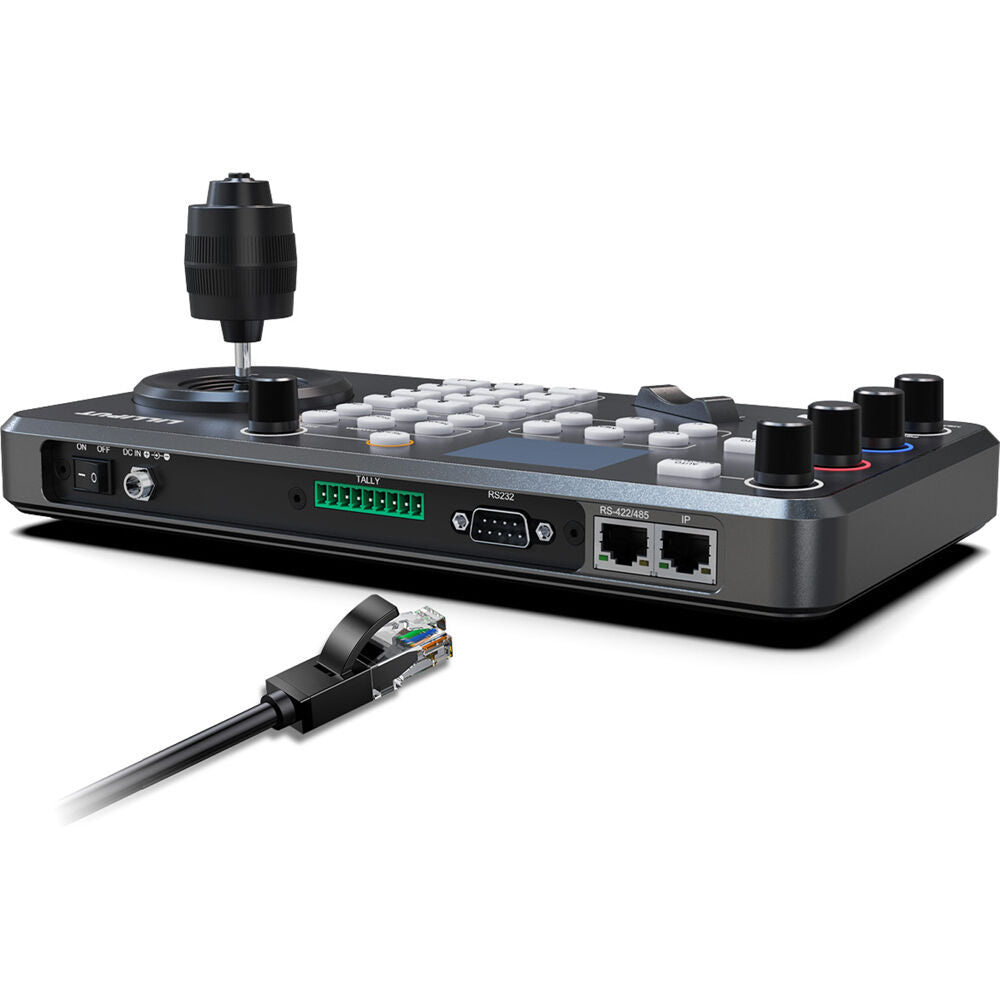

| CONNECTIONS | Interfaces | IP(RJ45), RS-232, RS-485/RS-422 |
| Control Protocol | IP Protocol: ONVIF, VISCA Over IP | |
| Serial Protocol: PELCO-D, PELCO-P, VISCA | ||
| USER INTERFACES |
Serial Baud Rate | 2400, 4800, 9600, 19200, 38400 bps |
| Display | 2.2 inch LCD | |
| Joystick | Pan/Tilt/Zoom | |
| Camera shortcut | 3 channels | |

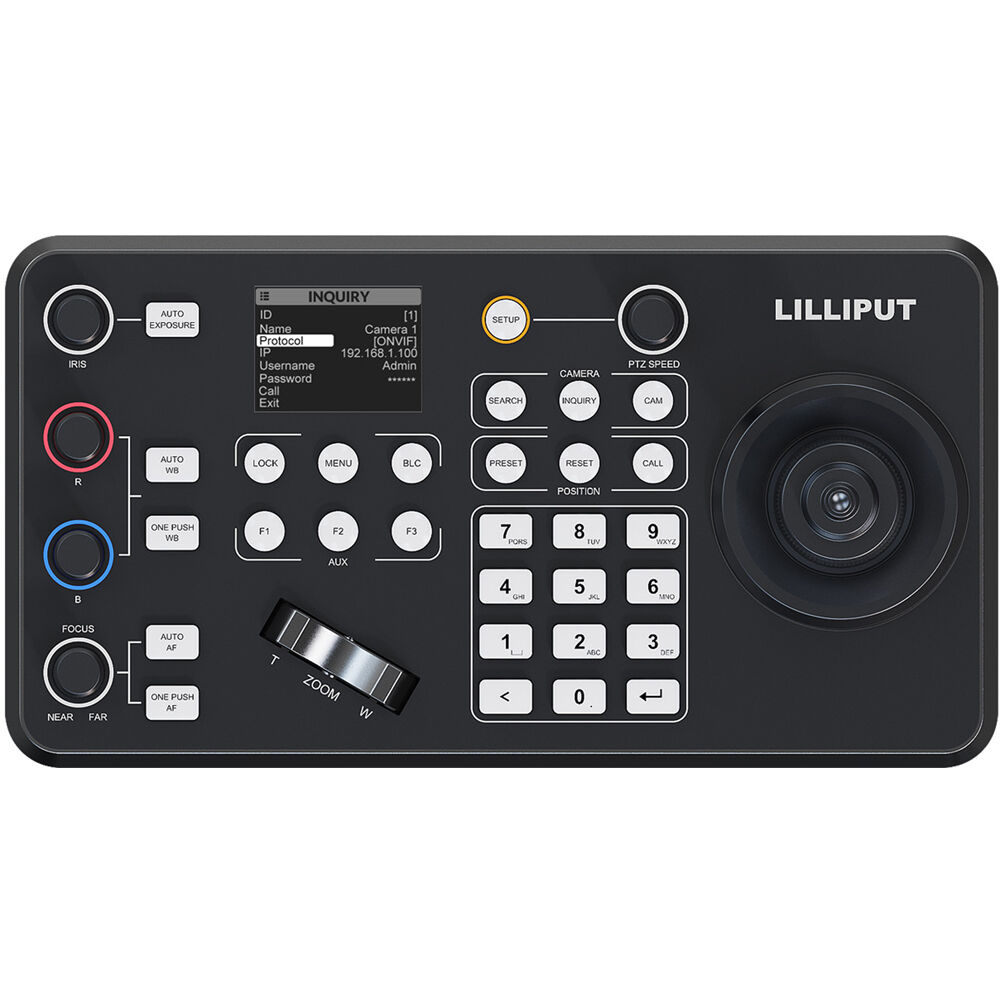

| Keyboard | User-assignable keys×3, Lock×1, Menu×1, BLC×1, Rotation button×5,Rocker×1,Seesaw×1 | |
| Camera Address | Up to 255 | |
| Preset | Up to 255 | |
| POWER | Power | PoE/ DC 12V |
| Power Consumption | PoE: 5W, DC: 5W | |
| ENVIRONMENT | Working Temperature | -20°C~60°C |
| Storage Temperature | -40°C~80°C | |
| DIMENSION | Dimension(LWD) | 270mm×145mm×29.5mm/ 270mm×145mm×106.6mm(With joystick) |
| Weight | 1181g |
