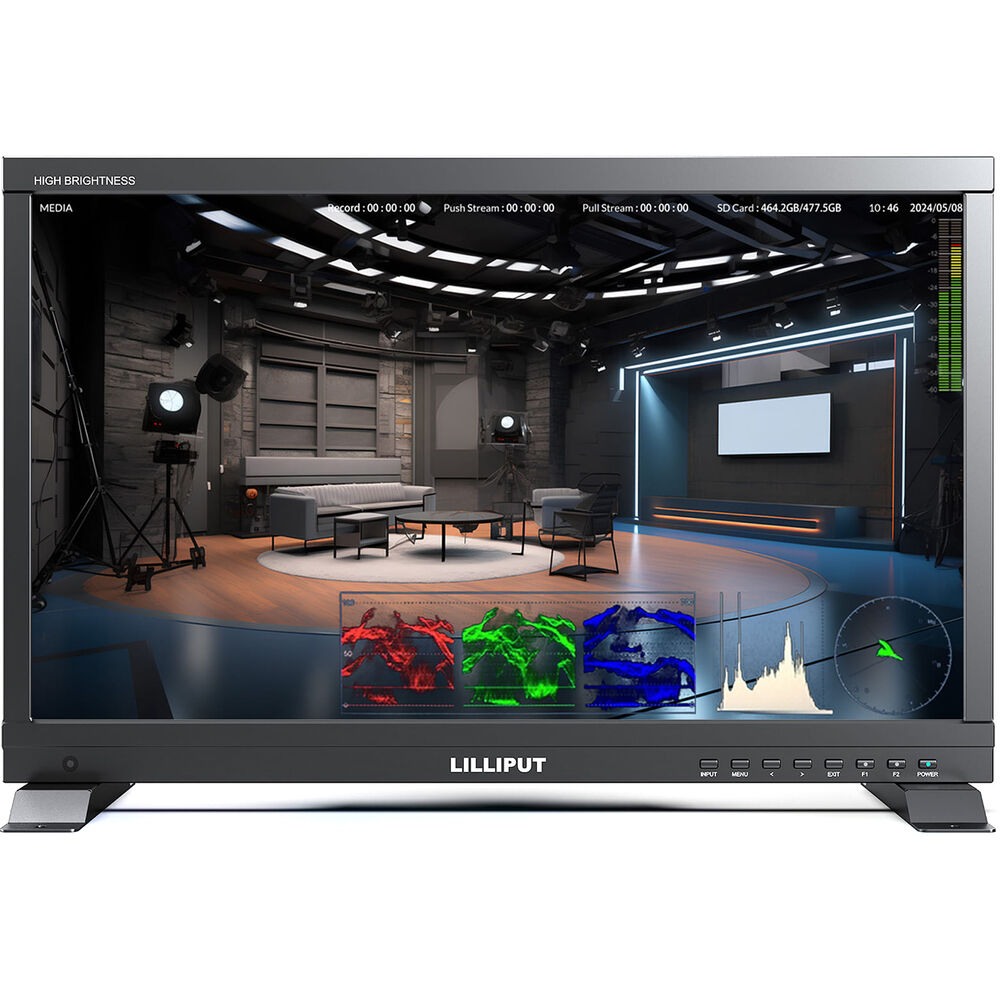

Lilliput PVM220S-E 21.5-inch Live Stream Recording Monitor
FEATURES
- Live Streaming & Recording Monitor
- 1000 cd/m² Brightness, 1000:1 Contrast
- 3G-SDI & HDMI 2.0 Connectivity
- Records on SD Cards up to 512GB
- 3D LUT & HDR Support
- Full-Screen Waveform & Vectorscope

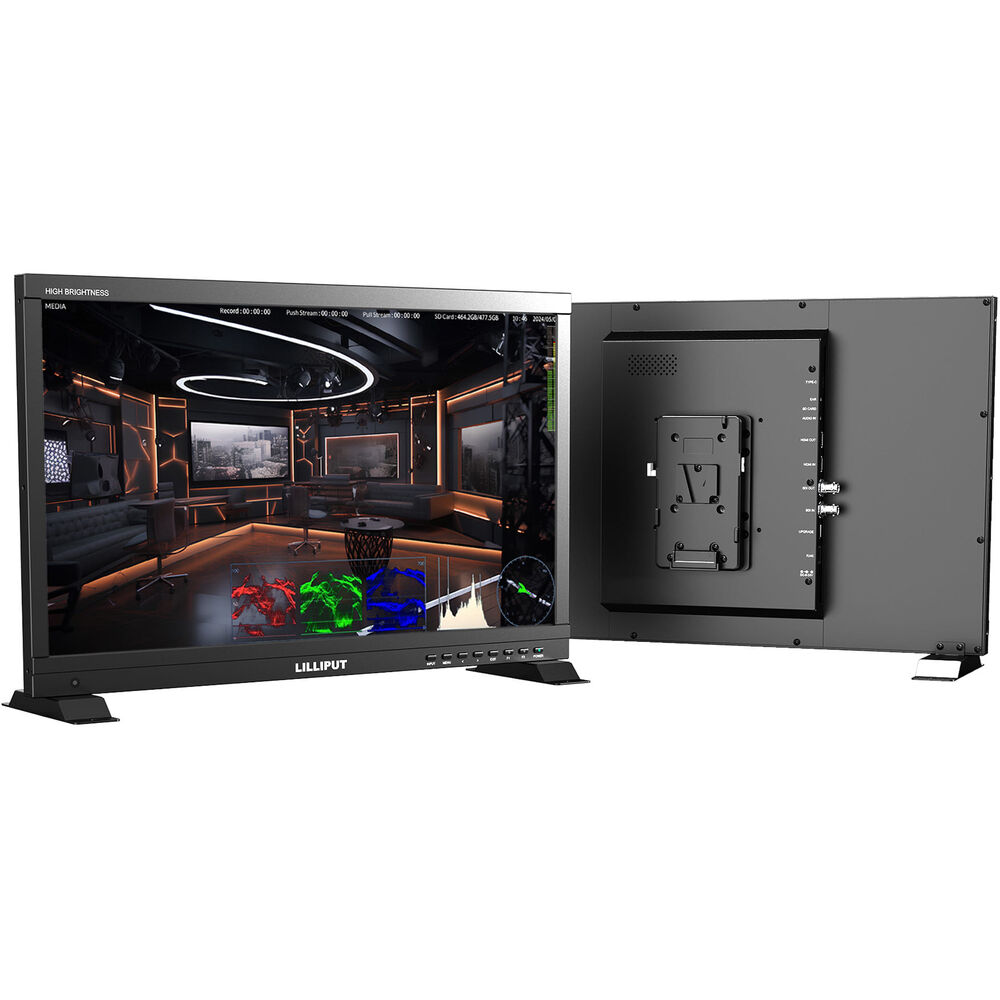

- Integrated V-Mount Battery Plate
- 178° Viewing Angle
- 15 VDC, 4A Adapter Included
LILLIPUT PVM220S-E is a professional high brightness broadcast monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer.
Compatible with a multitude of inputs – the PVM220S-E features 3G SDI and HDMI 2.0 input connections for broadcast quality monitoring. Adding value to the system, it also features accurate waveform and vector functions - which can provide strong support for capturing accurately the color of your images.
As a recording product, it can also digitally record any input HDMI or SDI video signal and save it to an SD card. The recorded video supports up to 1080p resolution, in .mkv format.
 |
 |
 |
 |
 |
 |
 |
 |
SPECIFICATIONS
| Display | |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1000:1 |
| Resolution | 1920 x 1080 |
| Technology | Calibration to Rec.709 with optional calibration unit |
| Viewing Angle | 178°/178°（H/V) |
| HDR | ST2084 300/1000/10000/HLG |
| LUT Support | 3D LUT (.cube format) |
| Screen Size | 21.5" |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… |
| Supported Formats | |
| HDMI Formats Supported | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
| Monitor Specification | |

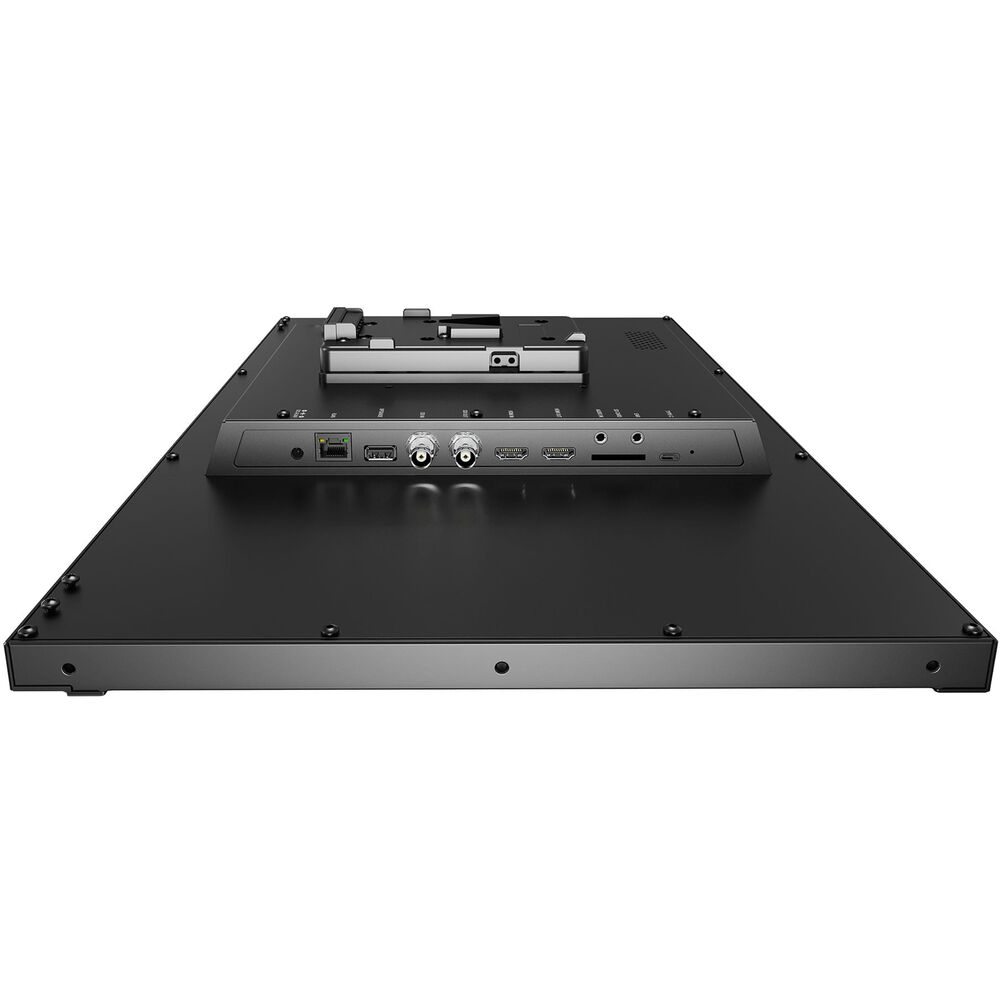

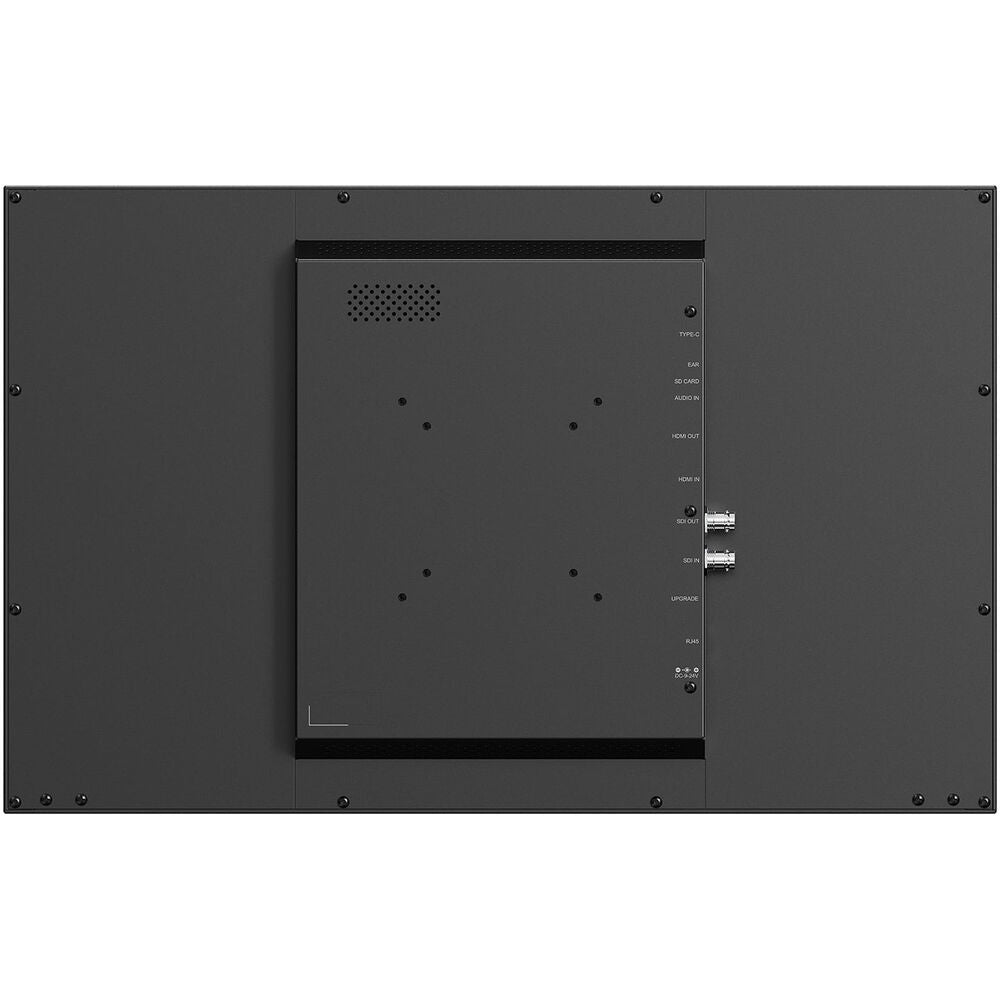

| Video Inputs | SDI 1×3G, 1X HDMI 2.0 |

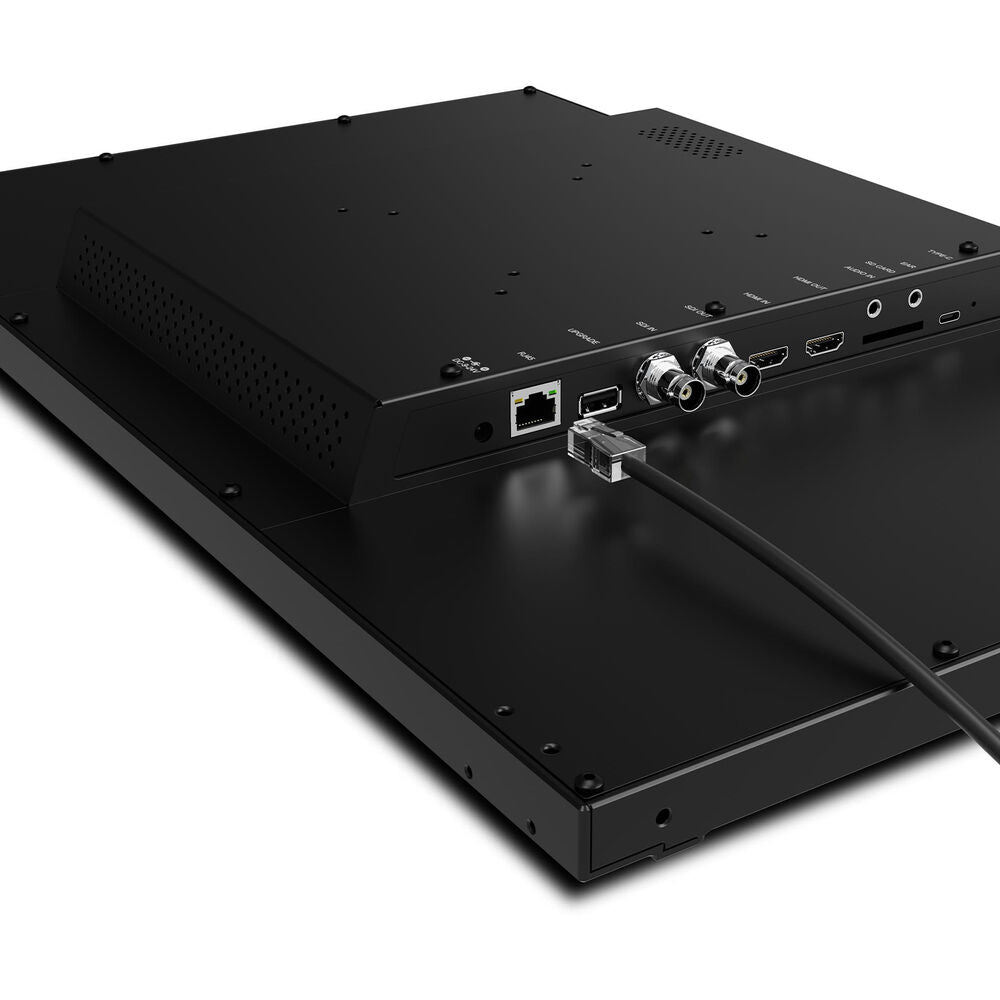

| Video Outputs | SDI 1×3G, 1X HDMI 2.0, LAN - 1×1000M (PoE is optional) |
| Audio In / Out (48 kHz PCM Audio) | |
| Built In Speakers | 1x |
| Ear Jack | 3.5mm |
| HDMI Audio Frequency | 8ch 24-bit |
| SDI Audio Frequency | 2ch 48kHz 24-bit |
| Recording | |
| Video Resolution | 1920×1080 / 1280×720 / 720×480 |
| Frame Rates | 60 / 50 / 30 / 25 / 24 |
| Codecs Supported | H.264 |
| Audio Supported Rates | 44.1kHz / 48kHz |
| Storage (Recording) | SD Card - supports up to 512GB |
| Split Recording File Intervals | 1min / 5 mins / 10 mins / 20 mins / 30 mins / 60mins |
| Size | |

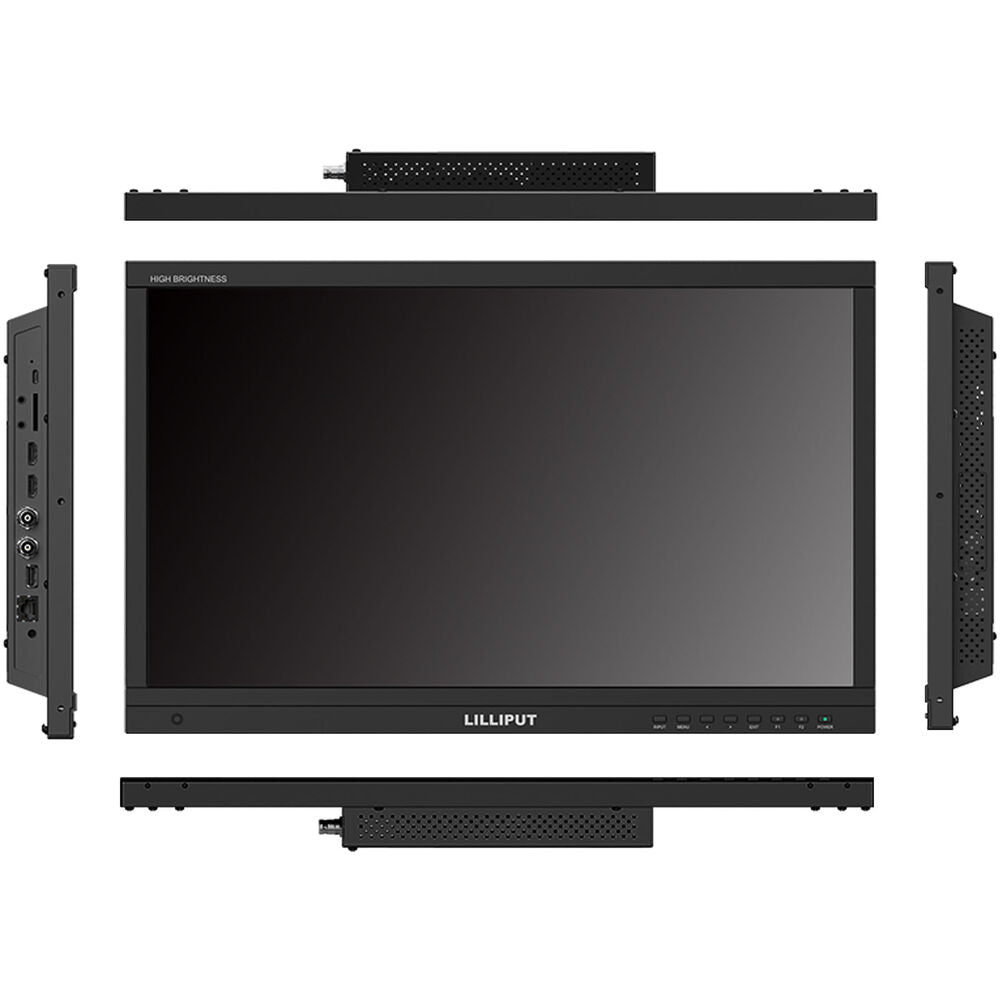

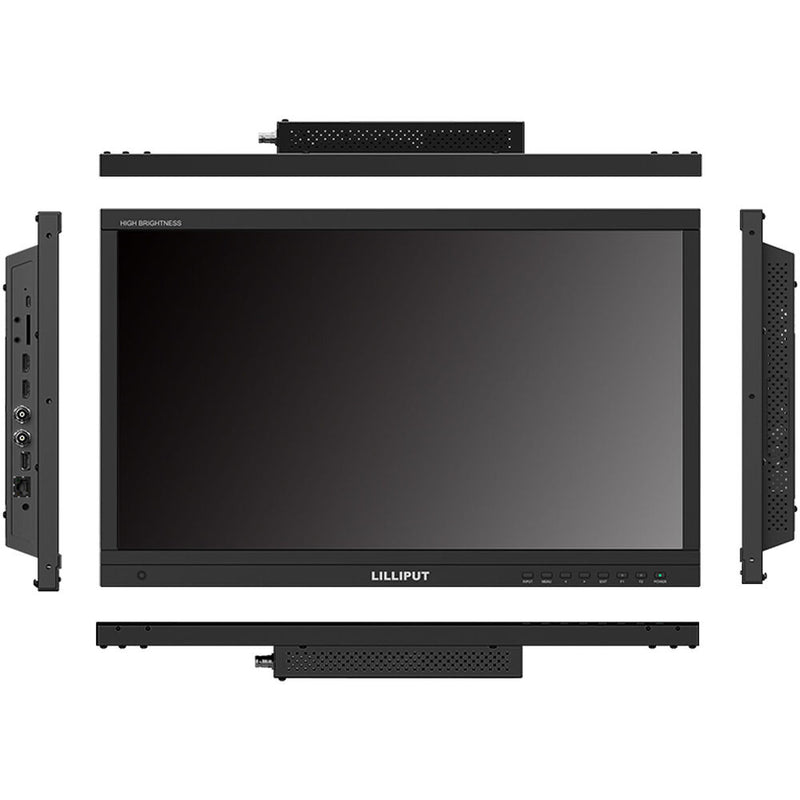

| Dimensions | 508mm × 321mm × 47mm |
| Weight | 4.75kg |
| Power | |
| Compatible Batteries | V-Lock or Anton Bauer Mount (Optional) |
| Input Voltage | DC 9-24V, Battery 14.8V Nominal |
| Power Consumption | ≤53W (DC 15V / Optional PoE PD function, supports IEEE802.3 bt protocol) |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
