Description

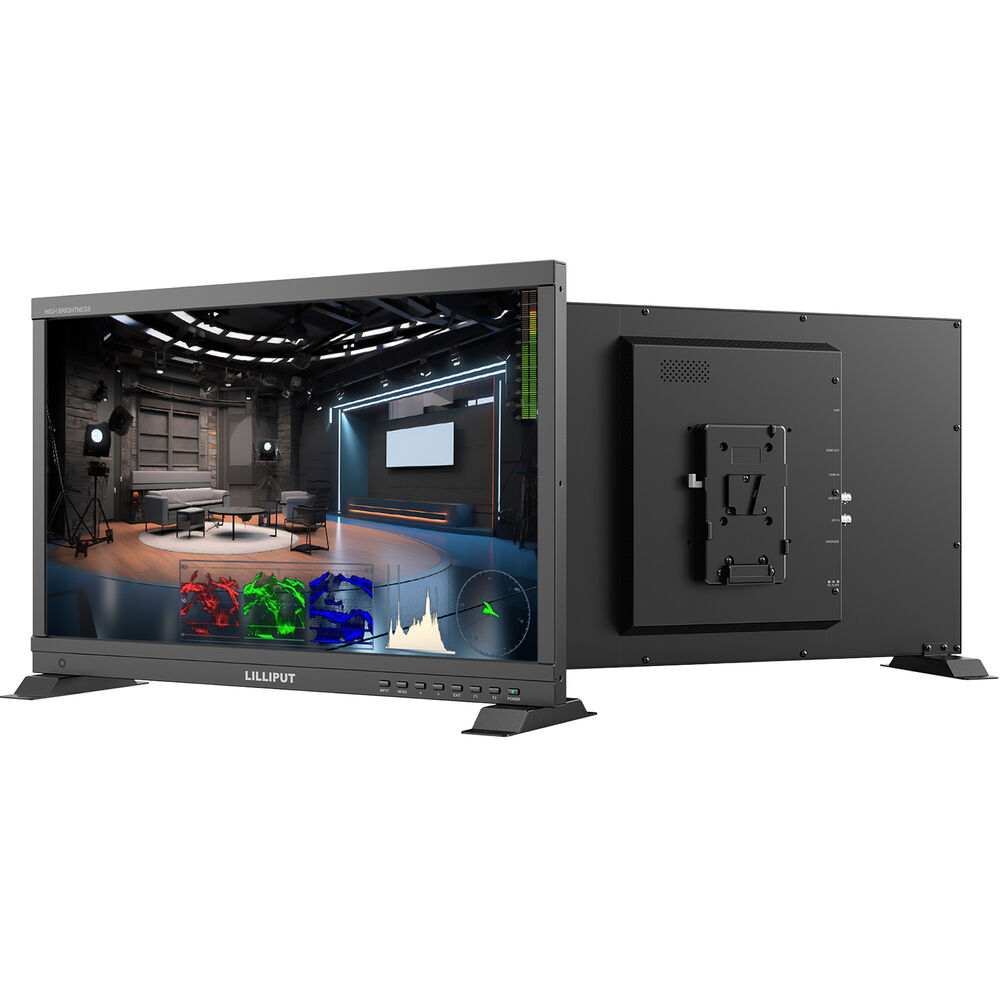

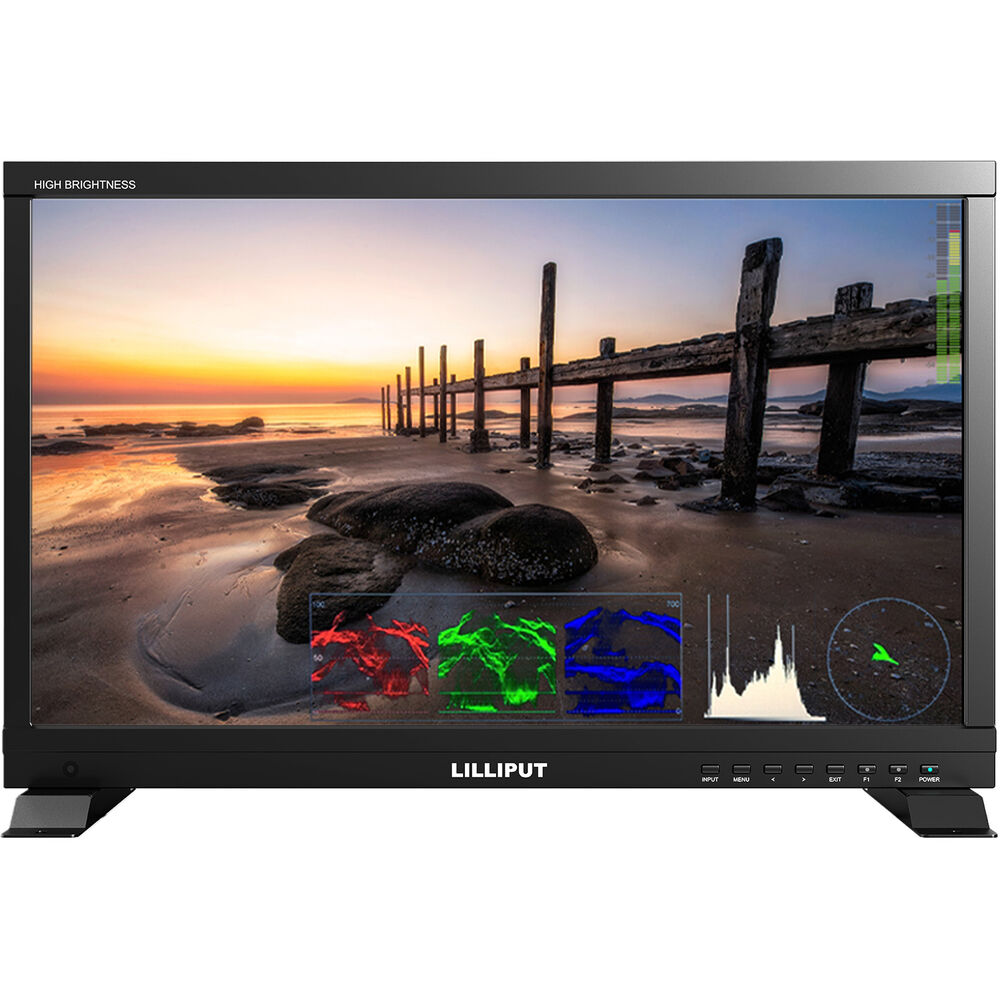

Lilliput PVM220S-H High Brightness SDI/HDMI 21.5-inch Professional Video Monitor
FEATURES
- Professional High-Brightness HD Monitor
- 1000 cd/m² Brightness, 1000:1 Contrast
- 3G-SDI & HDMI 2.0 Connectivity
- 3D LUT & HDR Support
- Full Screen Waveform & Vectorscope
- Integrated V-Mount Battery Plate
- 178° Viewing Angle
- 15 VDC, 4A Adapter Included
LILLIPUT PVM220S-H is a professional high brightness broadcast monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer.
Compatible with a multitude of inputs – the PVM220S-H features 3G SDI and HDMI 2.0 input connections for broadcast quality monitoring. Adding value to the system, it also features accurate waveform and vector functions - which can provide strong support for capturing accurately the color of your images.
 |
 |
 |
 |
 |
 |
SPECIFICATIONS
| Display | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Look Up Table Support | 3D LUT (.cube format) |
| Resolution | 1920 x 1080 |
| Technology | Calibration to Rec.709 with optional calibration unit |
| Viewing Angle | 178°/178°（H/V) |
| HDR | ST2084 300/1000/10000/HLG |
| Screen Size | 21.5" |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… |
| Supported Formats | |
| HDMI Formats Supported | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
| SDI Formats Supported | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| Monitor Specification | |

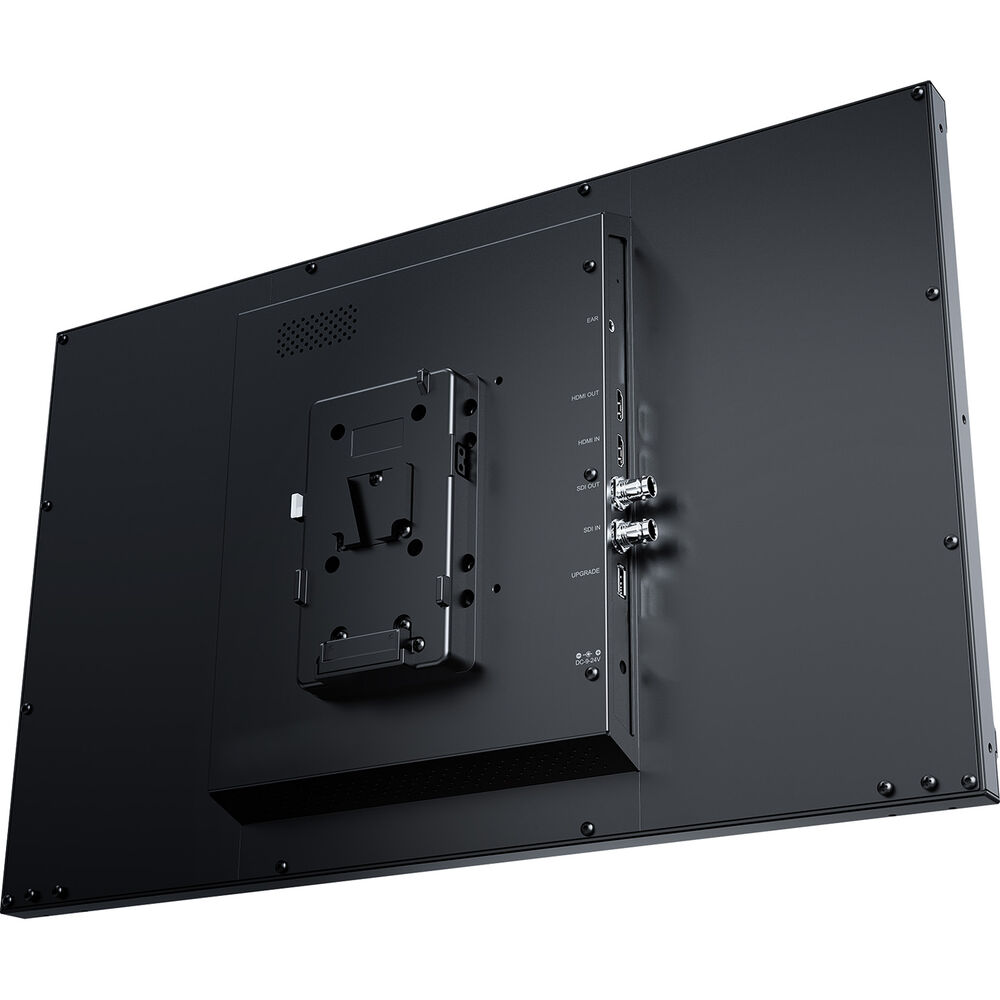

| Video Inputs | SDI 1×3G, 1X HDMI 2.0 |
| Video Outputs | SDI 1×3G, 1X HDMI 2.0 |
| Audio In / Out (48 kHz PCM Audio) | |
| Built In Speakers | 1 |
| Ear Jack | 1x 3.5mm |
| HDMI Audio Frequency | 8ch 24-bit |
| SDI Audio Frequency | 2ch 48kHz 24-bit |
| Size | |
| Dimensions | 508mm × 321mm × 47mm |
| Weight | 4.7 kg |
| Power | |

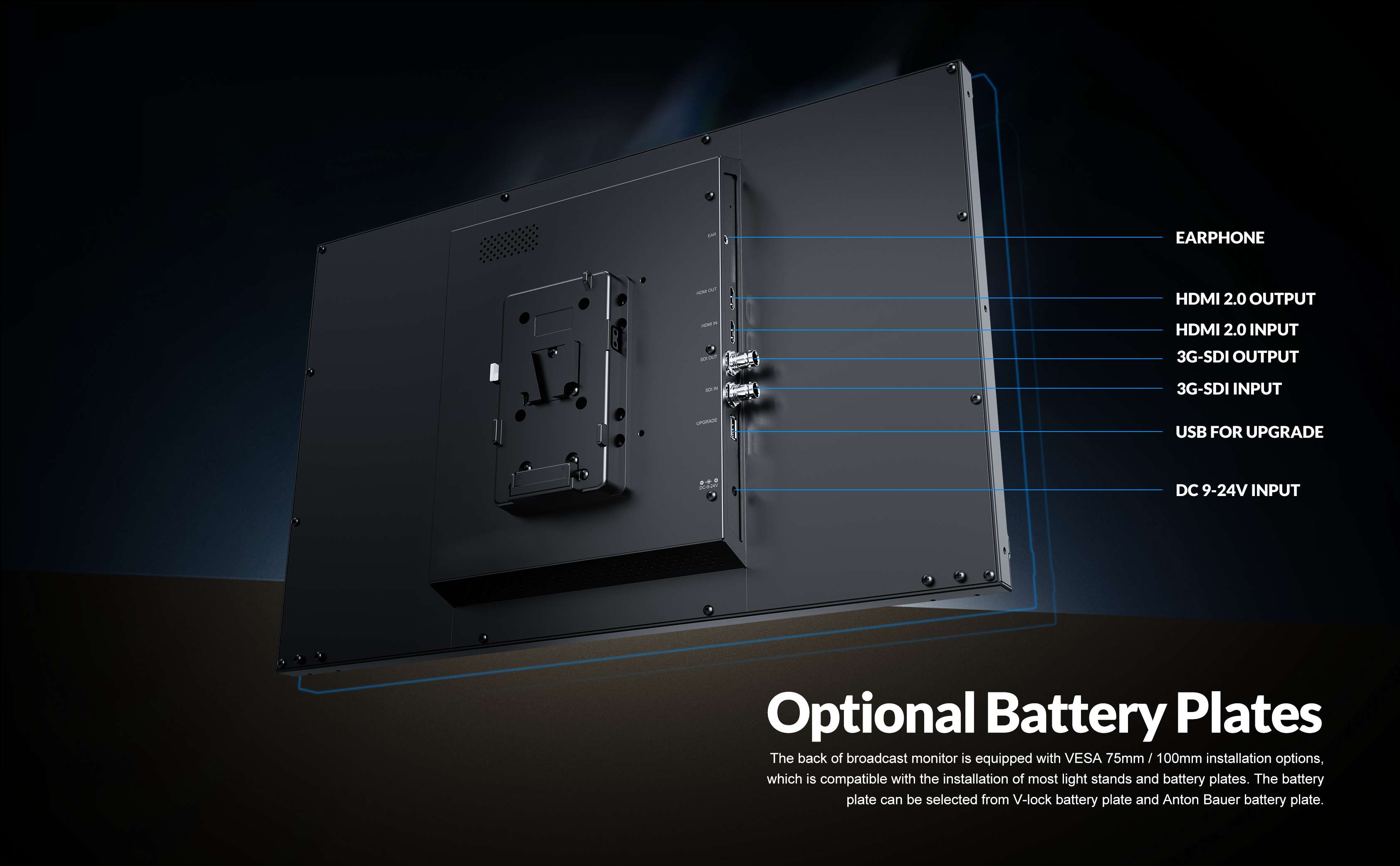

| Compatible Batteries | V-Lock or Anton Bauer Mount |
| Input Voltage | DC 9-24V |
| Power Consumption | ≤53W (15V) |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
