Lilliput PVM270S 27-inch 3G-SDI Preview Video Monitor with PVW/PVM Video Switcher

27 inch HDMI/SDI preview video monitor with PVW/PGM, Recording, Daisy-Chain, HDR, Quad-View

New 27 inch Full HD monitor for directors, production crews, and camera operators: 1000 cd/m² brightness, 3G-SDI and HDMI 2.0, PVW/PGM, video and audio analysis, optional flight case with mounting hardware for accessories. Built for OB, studio, prompter, and control room use.

FEATURES

• 27 inch 1920 x 1080 display, 1000 cd/m², 1000:1 contrast, 178°/178° viewing angle
• 5 video inputs: 2x 3G-SDI and 3x HDMI 2.0; multiview layouts including full screen, vertical, dual, triple, and quad
• PVW/PGM workflow with configurable sources; PGM Cut shortcut; PGM and 3D LUT on 3G-SDI PGM/LUT OUT and shared HDMI OUT
• HDR: ST2084 300/1000/10000, HLG; 3D LUT (.cube); log formats SLog2/SLog3, CLog, NLog, ArriLog, JLog, user-defined
• HDMI 2.0 ↔ 3G-SDI (bidirectional); up to 1080p 24/25/30/50/60 on PGM/LUT HDMI OUT and SDI PGM/LUT OUT; excludes SDI loop-out
• Scopes and camera assist: waveform, histogram, peaking, false colour, exposure; audio level meter for multiview
• Remote control: LAN (RJ45); GPI (8-pin RJ45); USB for LUT load and firmware updates
• DC 10 to 24V operation (15V DC adapter with 4-pin XLR included); V-mount or Anton Bauer plate included; 2x built-in speakers; VESA mount plate and base stand included

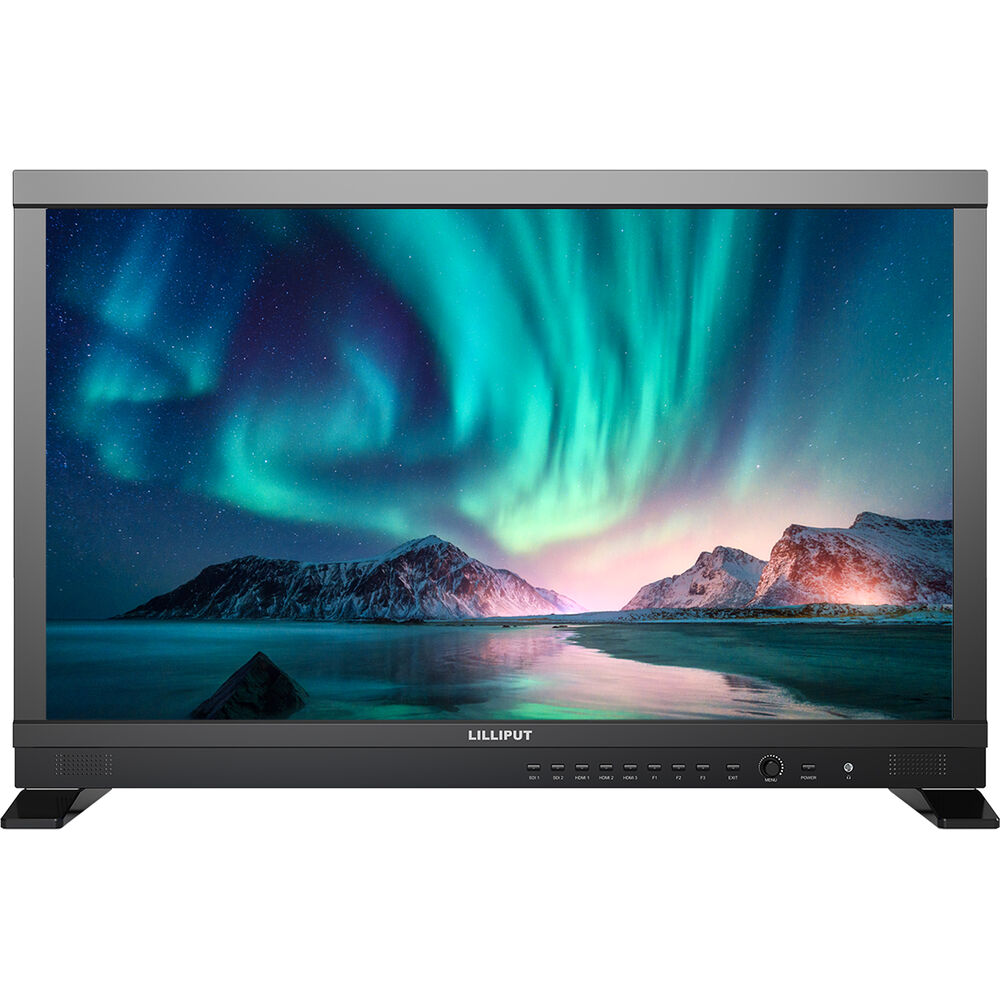

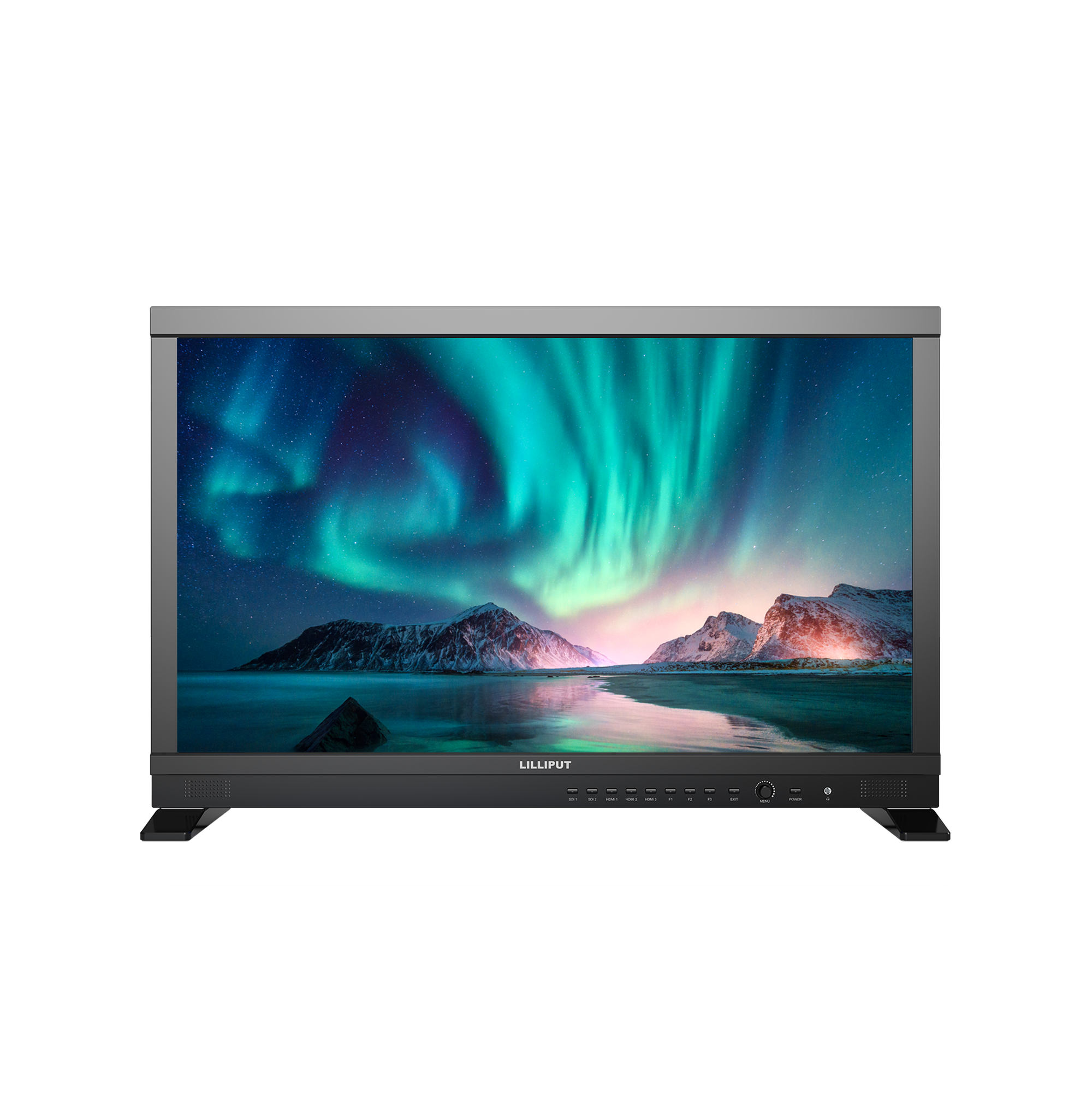

High brightness for real-world viewing conditions

The PVM270S uses a 1920 x 1080 panel rated at 1000 cd/m² with a 1000:1 contrast ratio and wide viewing angles. That matters when a director or camera operator is standing beside an OB truck in glare, or when a monitor sits beside a window in a temporary gallery. It also suits control room desks where overhead lighting would wash out a dimmer panel.

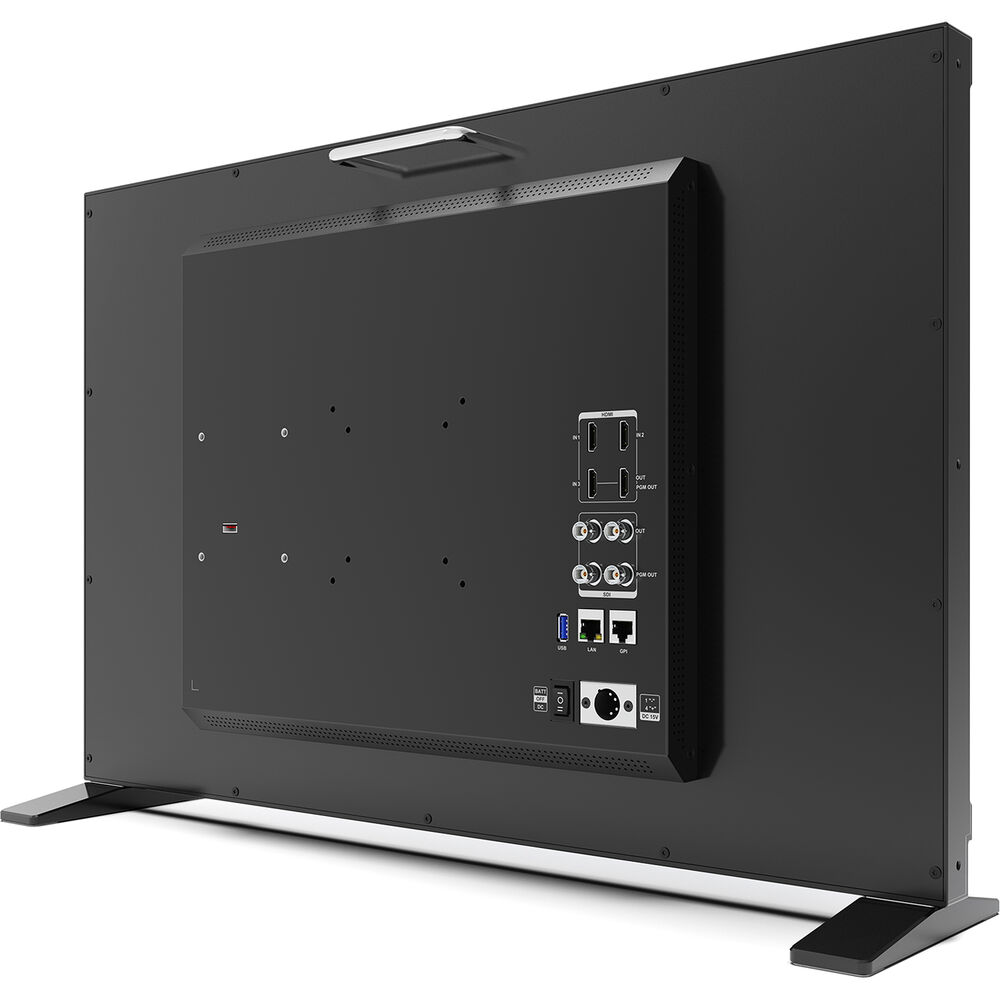

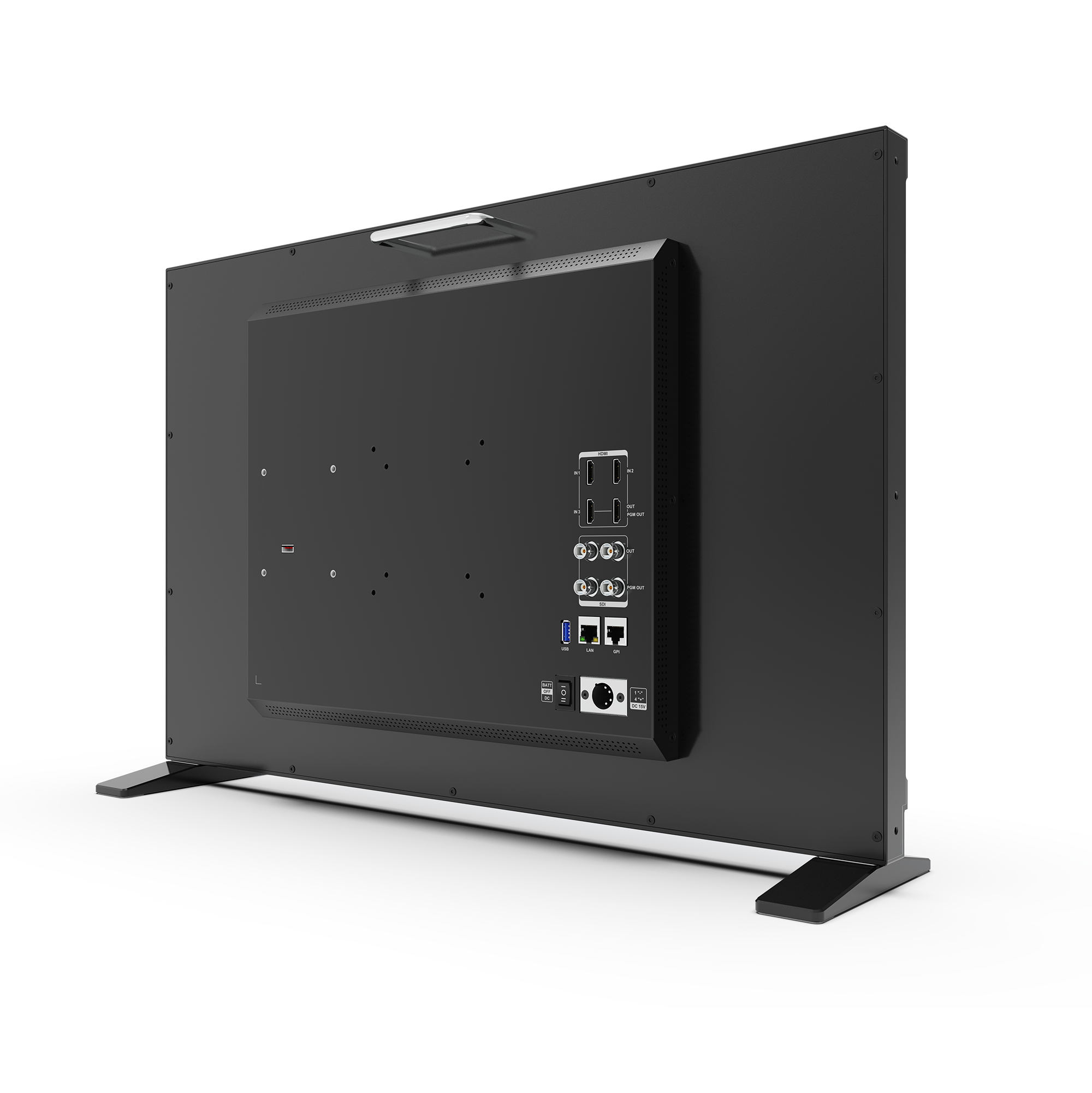

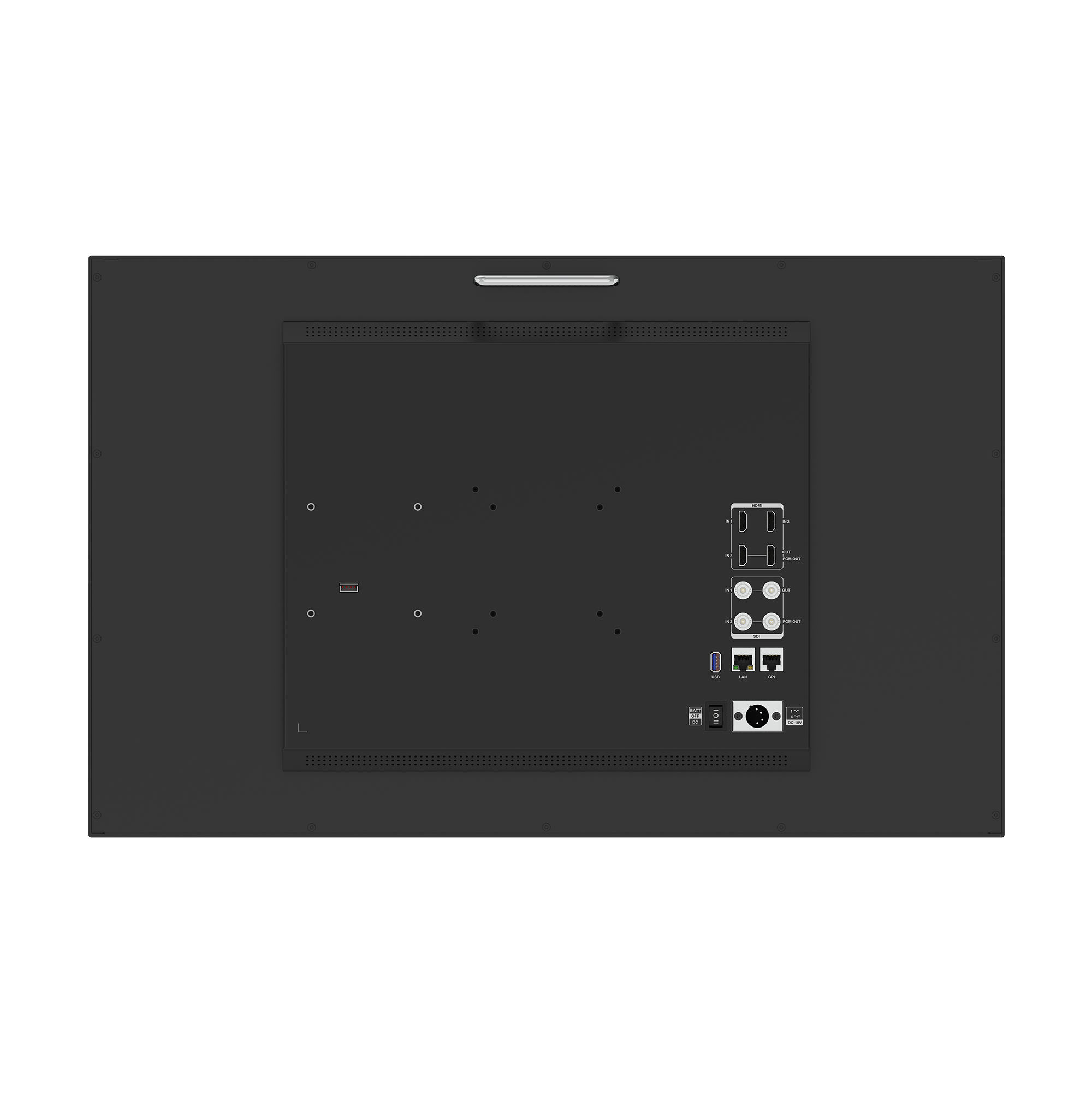

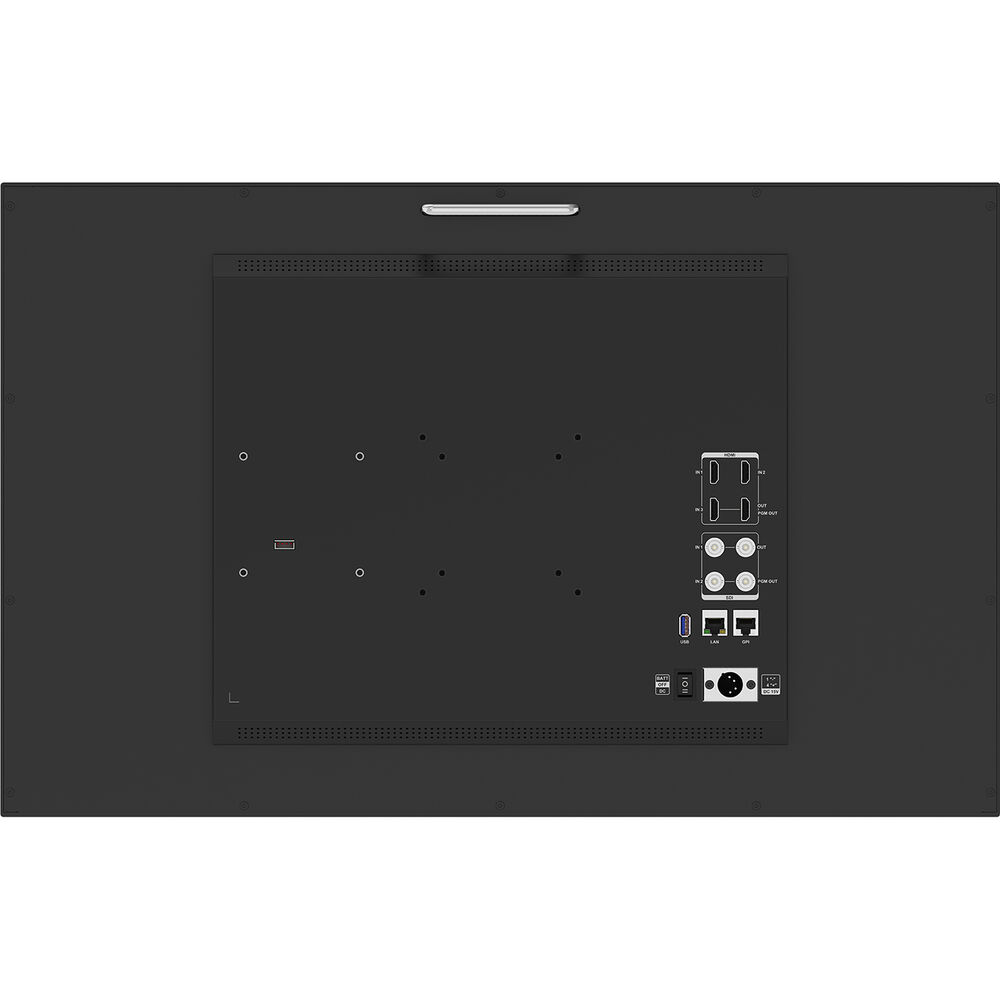

Professional connectivity: 3G-SDI and HDMI 2.0

Five inputs cover demanding installs: two 3G-SDI and three HDMI 2.0 inputs, with formats up to 1080p on SDI and up to 2160p on HDMI. Outputs include SDI loop and dedicated PGM/LUT paths on both SDI and HDMI, plus bidirectional HDMI 2.0 and 3G-SDI cross-conversion at up to 1080p on the PGM/LUT outputs, so production crews can patch into mixed HDMI and SDI facilities without extra glue hardware.

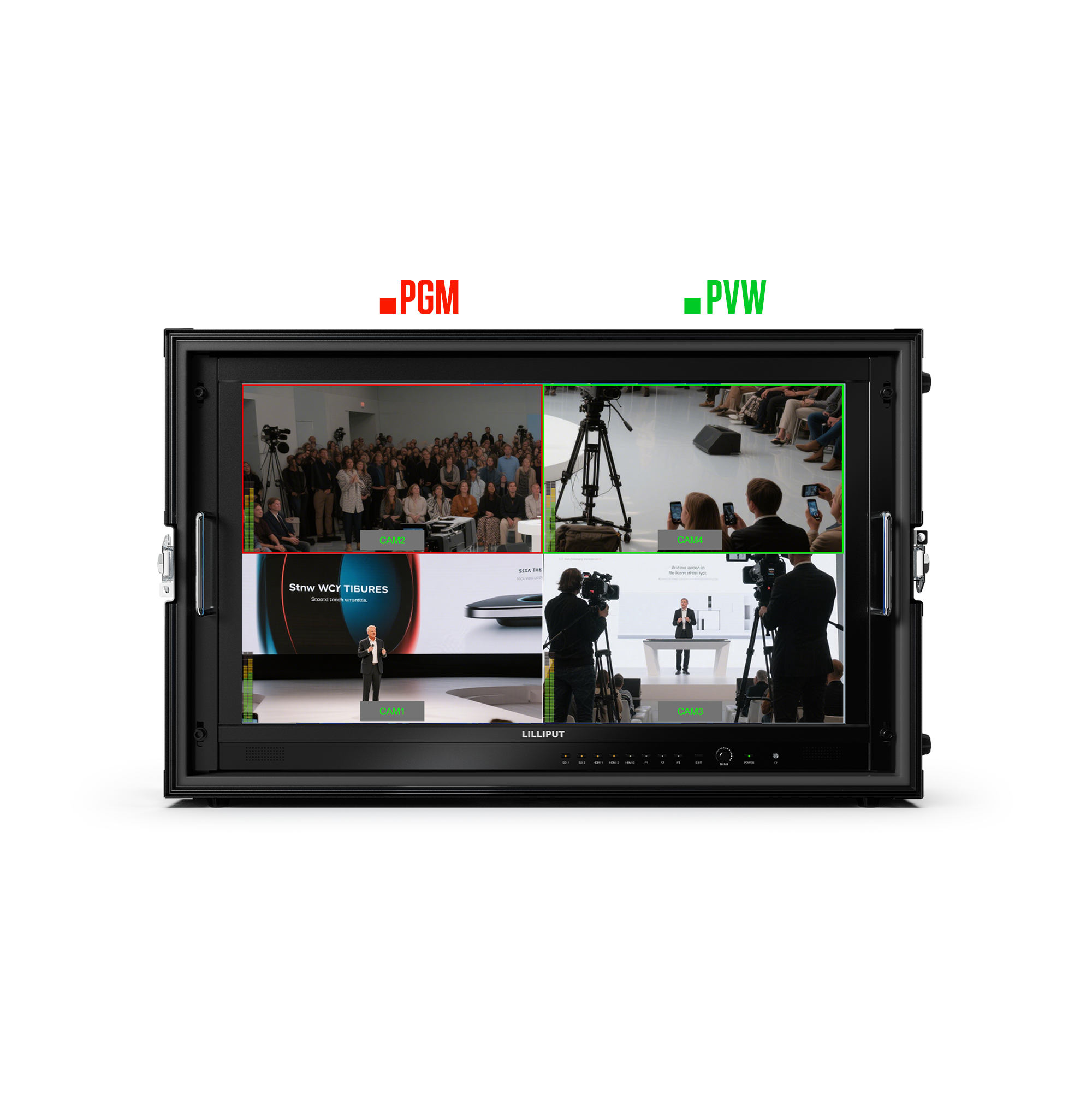

PVW and PGM for multi-camera workflows

For multi-camera shoots and live environments, the monitor supports multiview layouts (full-screen, dual, triple, and quad) with configurable sources. PVW and PGM source selection, PGM Cut shortcuts, and outputs on the shared PGM/LUT buses make it straightforward to line up what goes to air or to downstream kit. That workflow fits OB vans and studio floors as much as a security operations centre feeding a matrix.

Mounting options for studio, OB, and fixed installs

The PVM270S ships with a desktop base stand, VESA mount plate, and a V-mount or Anton Bauer battery plate option, so production crews can mount it on carts, pedestals, or wall brackets. LAN and GPI remote control and USB for LUT load and firmware updates fit typical broadcast and AV rack and desk setups.

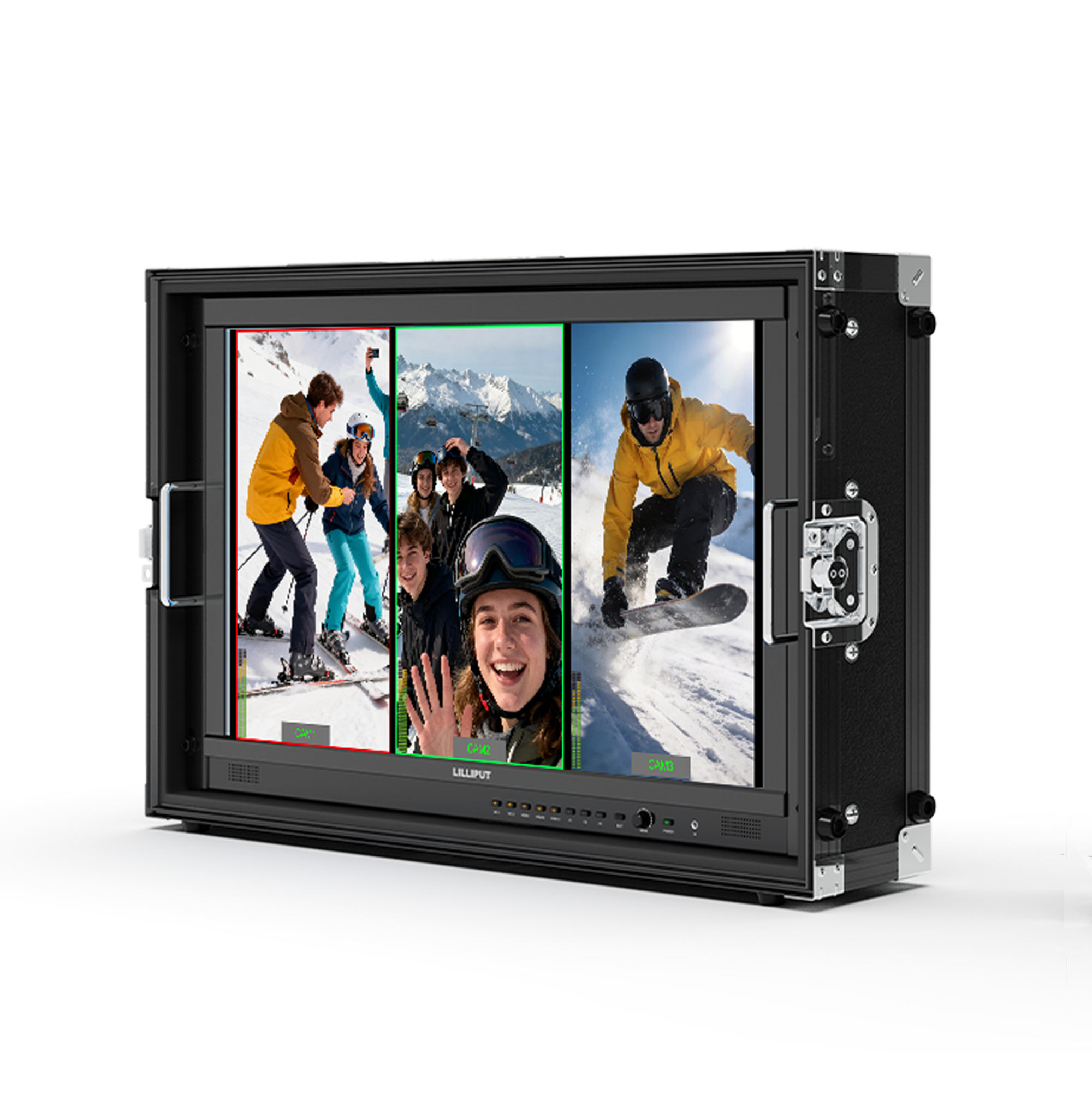

Optional flight case for transport

For moves between venues or OB trucks, an optional rugged flight case and sunshade help protect the monitor on the road, alongside the included DC power adapter (4-pin XLR) and wide DC input range. The case includes mountable gears for attaching 1/4 inch and 3/8 inch screw peripherals, so crews can bolt on arms, antenna brackets, or other accessories without drilling the shell.

Built for broadcast and security applications

The same clarity and connectivity that suit broadcast preview and live production also support security control rooms: high brightness for long-shift viewing at a control room position, multi-source layouts for camera walls, and PGM-capable outputs for recording or distribution. Full specifications, downloads, and reseller options are on the product page.

SPECIFICATIONS
