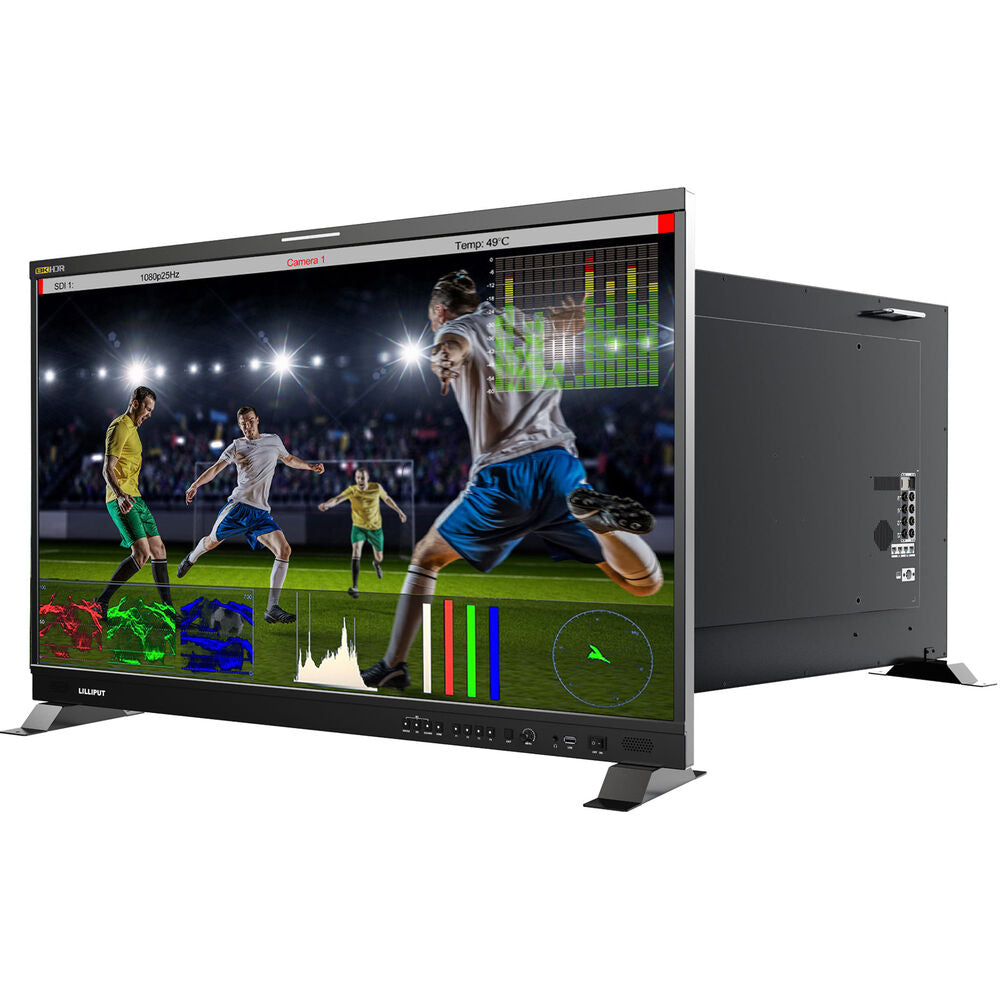

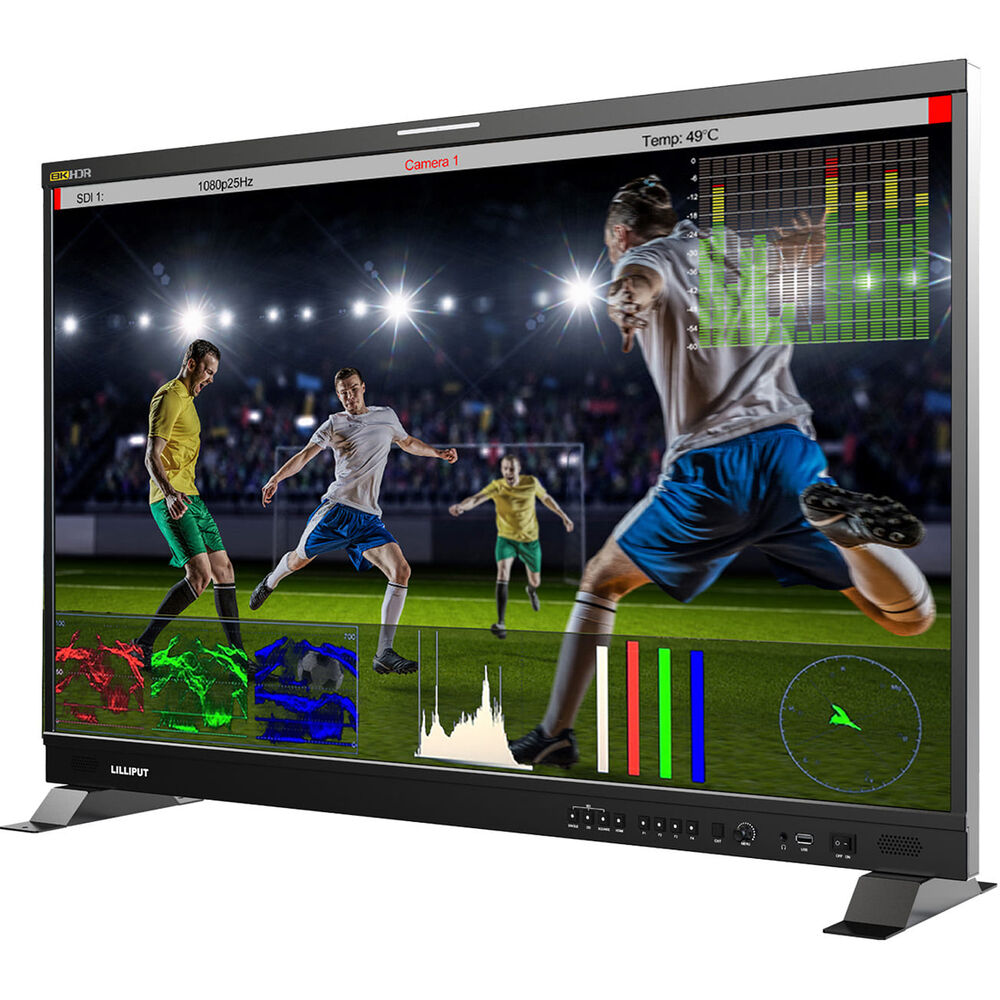

Lilliput Q43-8K 43.1-inch HDMI/12G-SDI Production Broadcast Monitor
with 4K panel, 3D-LUT, Remote Control, Quad-View and Tally
The Lilliput Q43-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal. It takes 4 x 12G-SDI input feeds via the BNC connectors at the back of the unit, and in compliance with the ST2082-12 video protocol, combines them to create an 8K 60Hz video signal which it displays on the 3840 x 2160 pixel panel.
With other features such as REC. 709 and DCI-P3 Color Space, 3D LUT Support, Remote Control through LAN connection, Multiview and Quad-Split, and an optionally purchased 12G-SFP connection - the Q43-8K packs massive value monitoring into an easy-to-operate system.
SPECIFICATIONS
Display
| Panel Type |
IPS-Type LCD
|
| Display Size |
43.00" / 109.2 cm
|
| Native Resolution |
3840 x 2160
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178°
Vertical: 178°
|
| Touchscreen |
No
|
| Maximum Brightness |
400 nits / cd/m2
|
| Contrast Ratio |
1200:1
|
| Color Support |
1.07 Billion Colors
|
| HDR Support |
Yes: Hybrid Log Gamma
|
| Color Gamut |
100% Rec. 709
100% DCI-P3
100% NTSC
100% Rec. 2020
100% EBU
|
| LUT Support |
Yes
|
| Image Controls |
Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Image Freeze, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Screen Split - Quarter, Vectorscope, Waveform
|
Inputs/Outputs

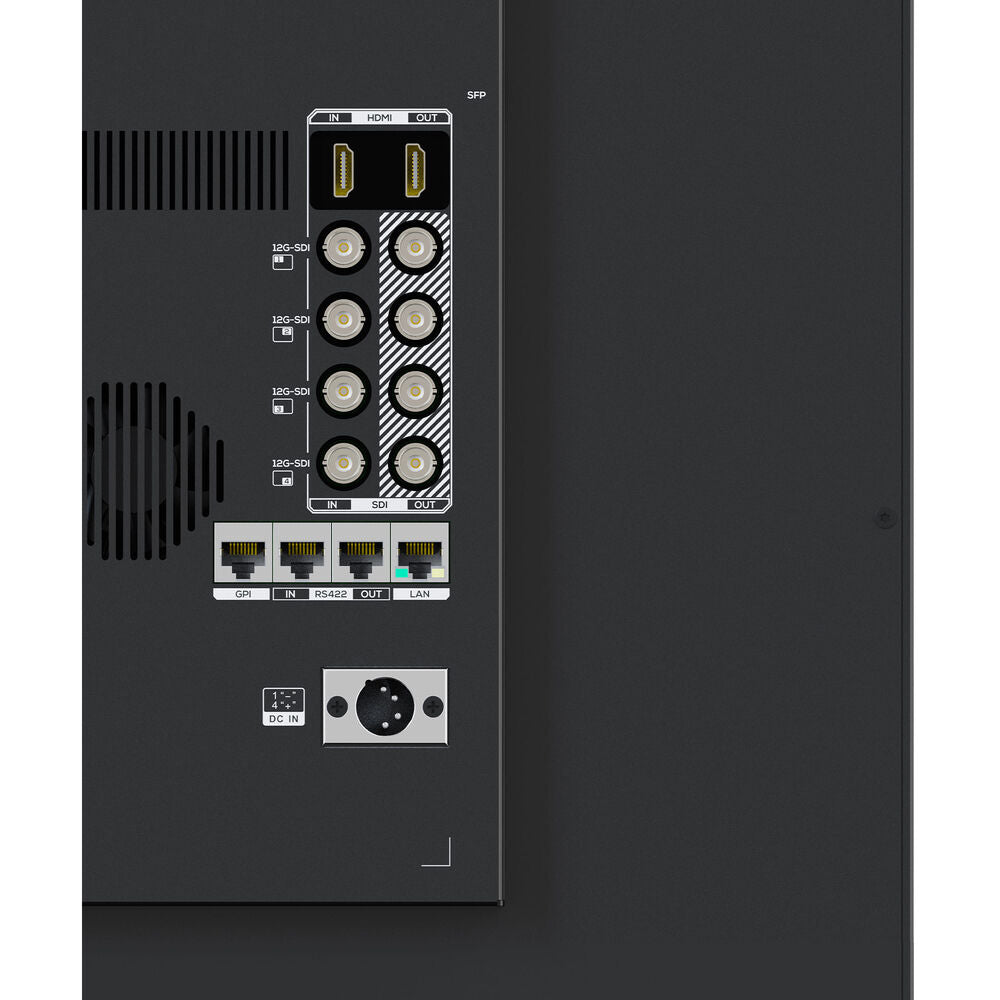

| Video I/O |
4x BNC (12G-SDI) Input
4x BNC (12G-SDI) Output
1x HDMI 2.0 Input
1x HDMI 2.0 Output
|
| Embedded Audio |
Fiber/HDMI/SDI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
Stereo
|
| Power I/O |
1x XLR 4-Pin (24 VDC) Input
|
| Other I/O |
1x RJ45 (GPI) Input
1x RJ45 (LAN) Input/Output
1x RJ45 (RS-422) Input
1x RJ45 (RS-422) Output
|
| Expansion Slots |
1x SFP+ Slot
|
| Media/Memory Card Slot |
No
|
Wireless
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
Fiber
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
SDI
8K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
|
Power
| Input Power |
24 VDC
|
| Battery |
No
|
| Power Consumption |
77 W (Maximum)
|
General
| Dimensions |
38.1 x 23.8 x 1.9" / 968.5 x 604.9 x 48.5 mm
|
| Weight |
32.0 lb / 14.5 kg
|
