Lillliput UQ31 31.5-inch HDMI/12G-SDI Production Broadcast Monitor with 4K Panel

LilliputSKU: UQ31

Need this in a hurry? Check current lead times for Lilliput

Price:
Sale price£2,700.00(incl. VAT)
£2,250.00

(ex VAT)

Tax included

Stock:
In Stock (EU Warehouse) Lead Time 3 to 5 Days
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

Lillliput UQ31 31.5-inch HDMI/12G-SDI Production Broadcast Monitor with 4K Panel

31.5 inch HDMI/12G-SDI production broadcast monitor with 4K panel, 3D-LUT, Remote Control, Quad-View and Tally

FEATURES

  • HDR Support, Load Custom 3D LUTs
  • 1000 cd/m² Brightness
  • HDMI 2.0, 12G-SDI, SFP+ Input/Output
  • 1000:1 Contrast Ratio
  • 178° H/V Viewing Angle
  • Preinstalled V-Mount Battery Plate

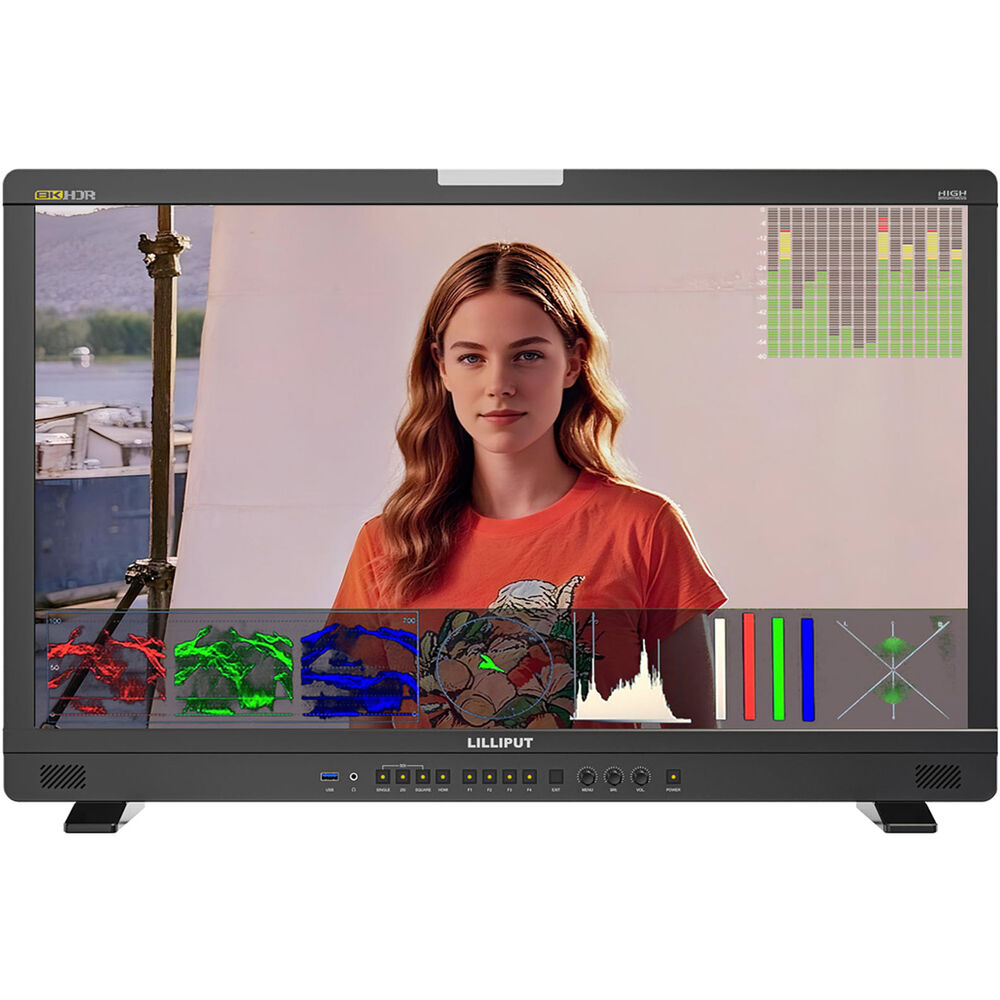

  • Built-In Image Monitoring Tools

The Lilliput UQ31 is the third iteration, and most feature-rich version of our flagship Lilliput Q31 model range.

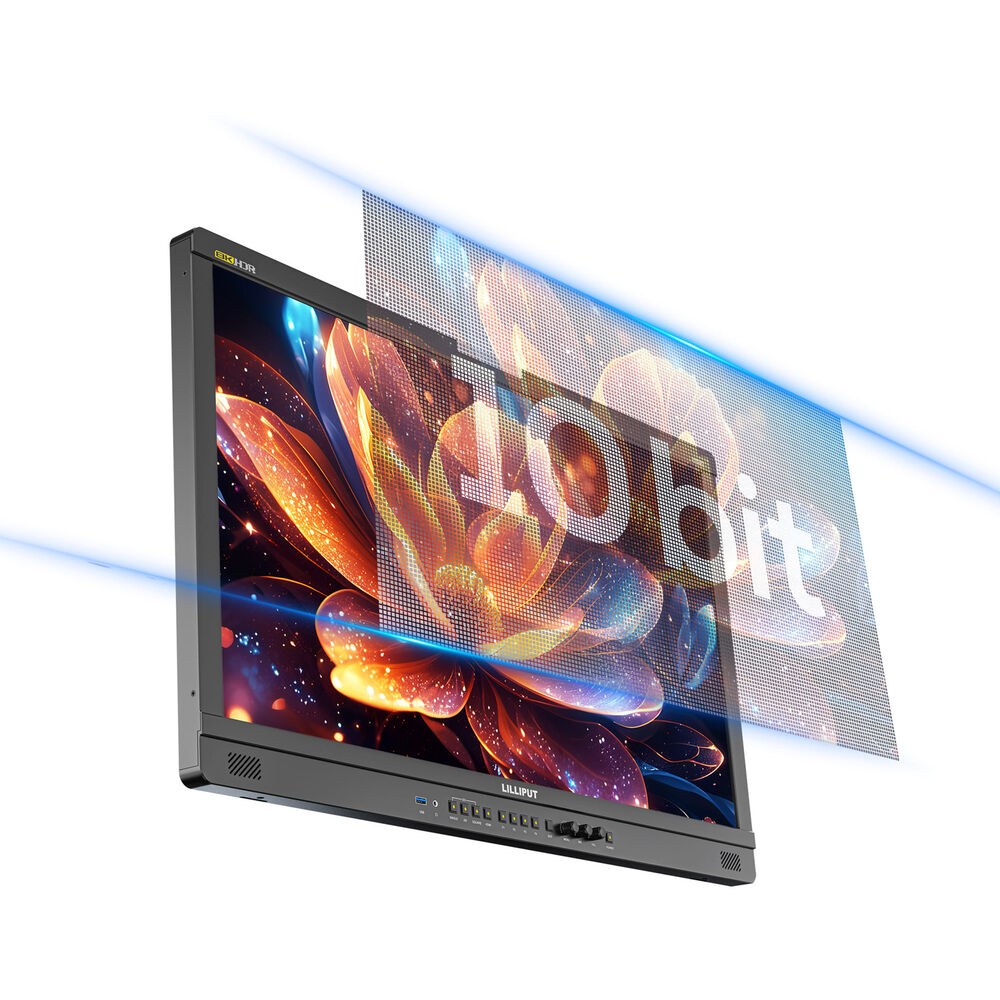

Featuring a 1000 NIT LED 10 Bit Panel, 100% compliance with the REC.709 colour space (and 80% REC.2020), it has the best spec of panel on a Lilliput 31" monitor.

If you were looking to use it with remotely - in an OB Van or control room for example - you can do so using the supplied LAN Remote Control software. Connect the monitor to your LAN and use the remote control software to access all the monitor features and settings on a PC or Mac.

Also, with the ability to input an 8K signal through either HDMI 2.1, 12G-SDI, or via an optional Fiber SFP system it truly is the best of the Lilliput Q-Range.




SPECIFICATIONS

Display
Panel Type
IPS-Type LCD
Display Size
31.5" / 80.0 cm
Native Resolution
3840 x 2160
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
No
Maximum Brightness
1000 nits / cd/m2
Contrast Ratio
1000:1
Color Support
1.07 Billion Colors
HDR Support
Yes: Hybrid Log Gamma
Color Gamut
100% Rec. 709
98% DCI-P3
100% NTSC
80% Rec. 2020
LUT Support
Yes
Image Controls
Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Histogram, Image Freeze, Overscan, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Screen Split - Quarter, Vectorscope, Waveform

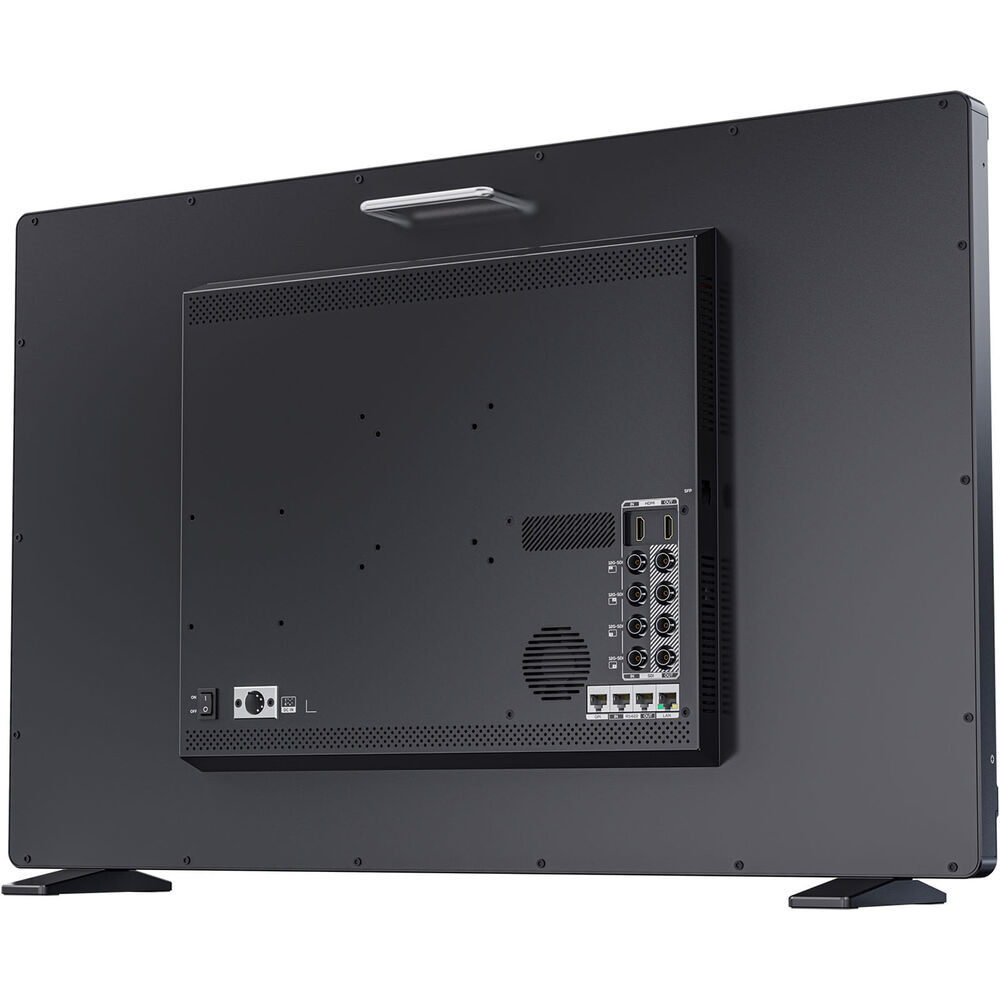

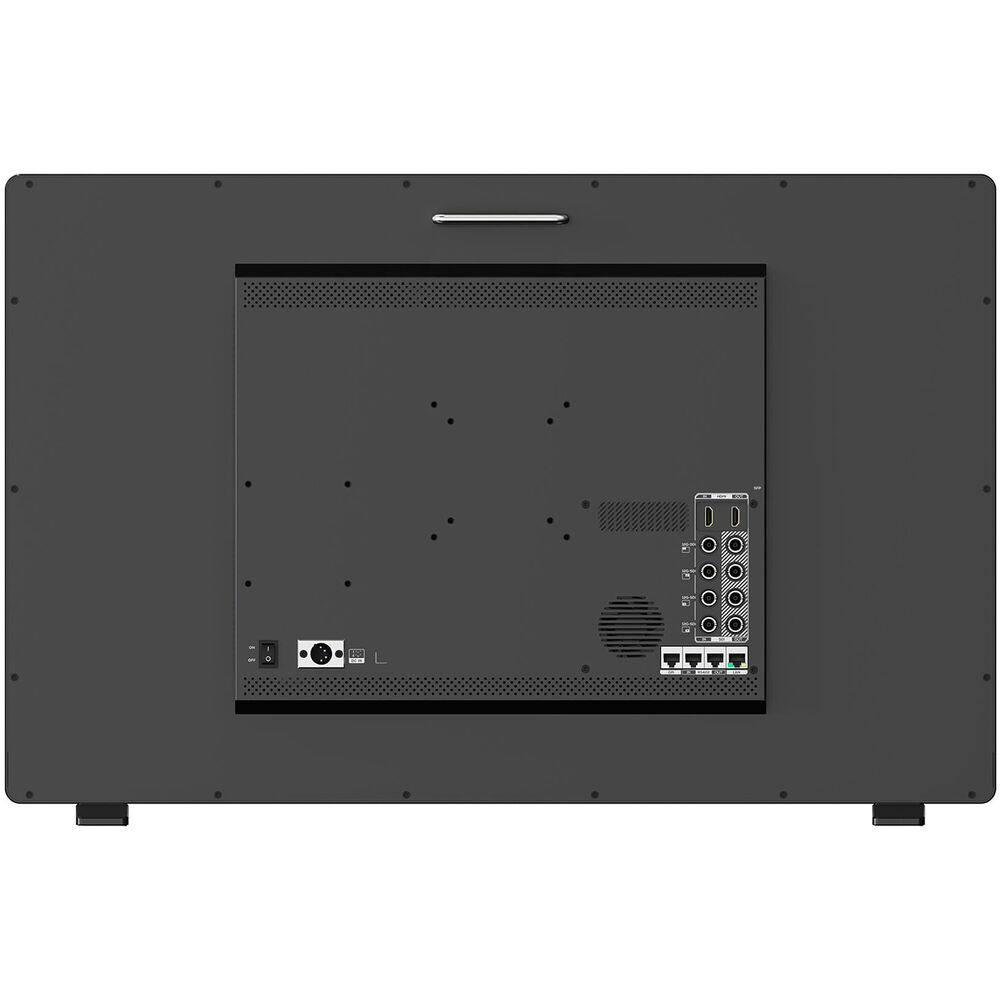

Inputs/Outputs
Video I/O
4x BNC (12G-SDI) Input
4x BNC (12G-SDI) Output
1x HDMI 2.1 Input
1x HDMI 2.1 Output
Embedded Audio
Fiber/HDMI/SDI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
Stereo
Power I/O
1x XLR 4-Pin (15 VDC) Input
Other I/O
1x RJ45 (GPI) Input
1x RJ45 (LAN) Input/Output
1x RJ45 (RS-422) Input
1x RJ45 (RS-422) Output
Expansion Slots
1x SFP+ Slot
Media/Memory Card Slot
No
Wireless
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
HDMI
8K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
Fiber
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
SDI
8K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
Power
Input Power
15 to 32 VDC
Battery
1x V-Mount on Fixed Plate
Power Consumption
94 W
Mounting
VESA Mounting-Hole Pattern
100 x 100 mm, 75 x 75 mm
General
Environmental Resistance
No
Operating Conditions
32 to 122°F / 0 to 50°C
Storage Conditions
-4 to 140°F / -20 to 60°C

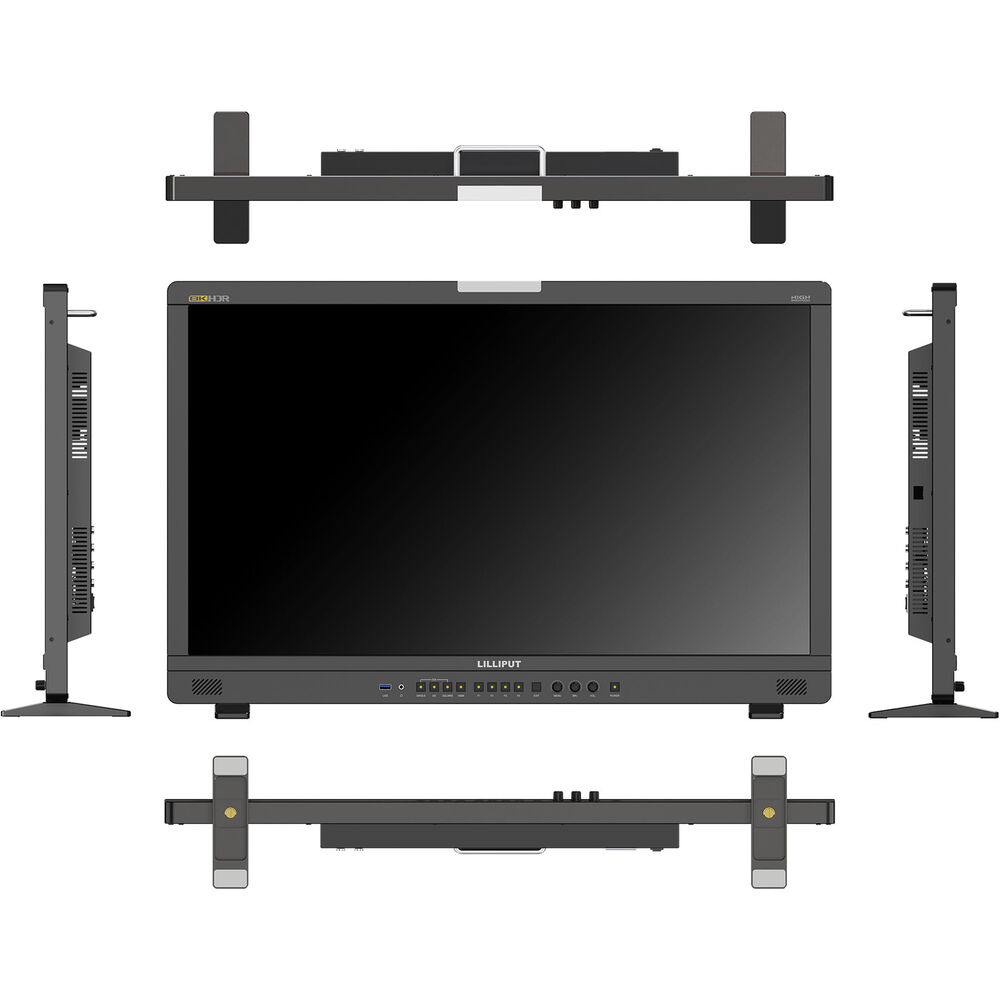

Dimensions
29.4 x 18.7 x 2.2" / 747 x 475.1 x 55 mm
Weight
27.6 lb / 12.5 kg
