Description

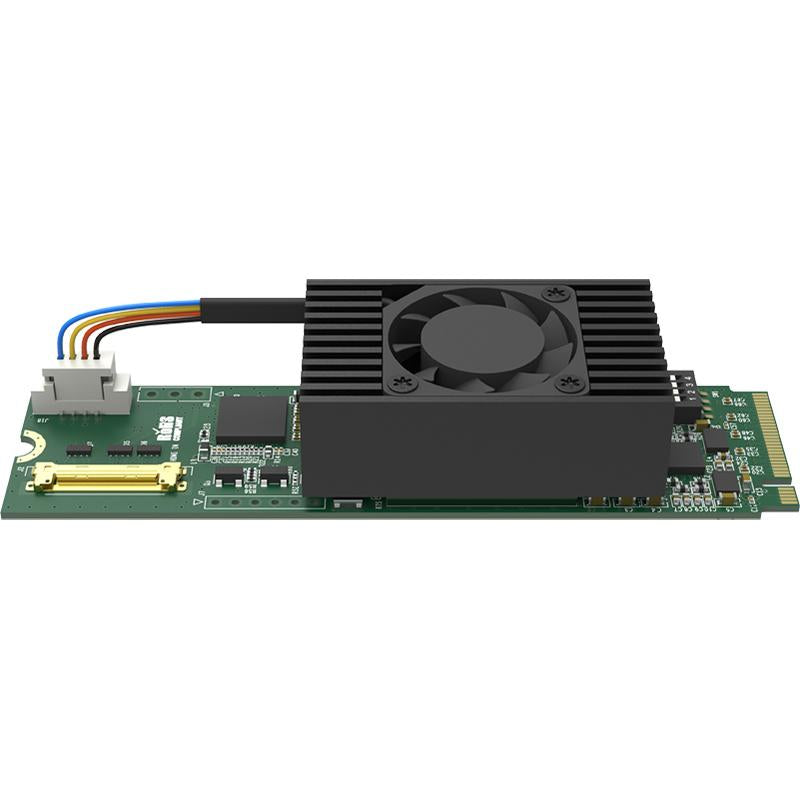

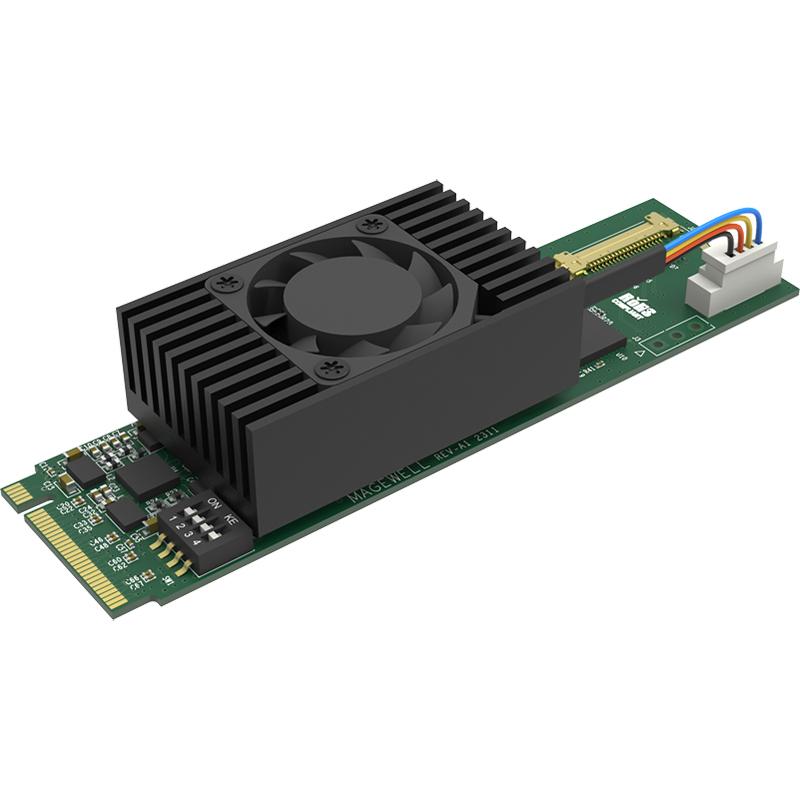

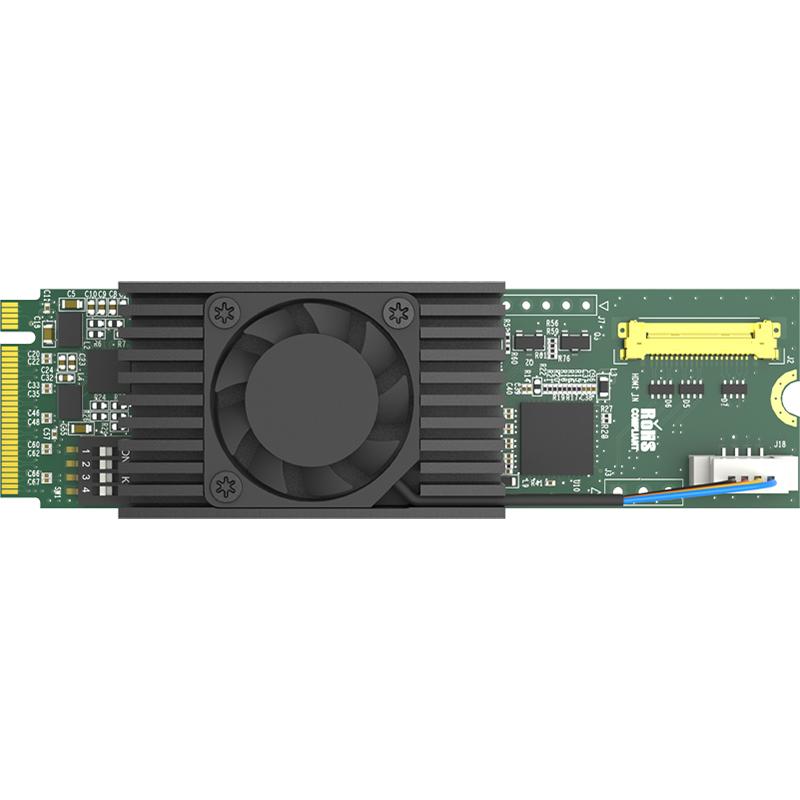

Magewell Eco Capture HDMI 4K Plus M.2
Single channel 4Kp60 capture card
FEATURES
- Single channel 4Kp60 capture card
- Captures one-channel HDMI + embedded audio
- High throughout for capture and supports higher frame rates
- M.2 2280 standard size for small or portable systems
- Input Interface: HDMI x1
- Supports input resolution up to 4096x2160 60fps
- Host Interface: M.2 2280 Type M (PCIe Gen3 x4)
Video Engine
- Auto detection of input signal format
- Colour formats conversion
- Low latency mode
- SG-DMA transmission mode
- Multiple replicated capture streams
Software
- Window & Linux driver and SDK
- Upgradable firmware
- Compatible with Capture Express, Magewell Bridge for NDI®, Plugin for Premiere®
Other Features
- Continuously work for 24hx7
- LED status indicator
- Multiple devices on one host
- On-board dip switch to set card number
- 2-year Warranty
WHAT'S IN THE BOX
- Eco Capture HDMI 4K Plus M.2
- 1x LVDS 0.5PH 20-Pin cable
- 1x LVDS 0.5PH 20-Pin to HDMI adapter
Eco Capture HDMI 4K Plus M.2 Specifications
Input Features- 594MHz HDMI receiver, max input video: 4096x2160 4:4:4 60fps
- Max input audio: 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
- Support input RGB/YUV 4:4:4 8-bit, YUV 4:2:2 12-bit, or RGB/YUV 4:4:4 10/12-bit signals up to 594MHz pixel clock
- Support up to 8-channel IEC60958/IEC61937 audio streams via SDK
- Support HDR10
- HDMI input interface: LVDS 0.5PH 20-Pin to DVI-D 1.0, HDMI 2.0
Process and Capture Features
- ~2400MB/s per channel DMA bandwidth in PCIe 3.x system
- ~1600MB/s per channel DMA bandwidth in PCIe 2.x system
- ~800MB/s per channel DMA bandwidth in PCIe 1.x system
- Video processing pipelines with ~360Mpixels/s processing bandwidth
- Capture videos up to 4096x2160, frame rates up to 240fps. Typical outputs include (actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.):
- 4096x2160p 5/10/15/25/29.97/30/50/60
- 3840x2160p 5/10/15/25/29.97/30/50/60
- 1920x1080p 5/10/15/25/29.97/30/50/60/120
- 1280x720p 5/10/15/25/29.97/30/50/60/120 etc.
- Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos
- Support custom output formats using Magewell Capture SDK
- Support custom EDID, video scaling, de-interlacing, color format conversion and frame rate conversion
- Support multiple replicated capture streams, and unlimited capture streams for any one input channel with the same format
- Support timestamp & A/V synchronization
- Hardware based 100ns high resolution clock
- Audio frames (192 audio samples) & video frames are stamped with hardware clock
- Hardware clock can be synchronized across cards via SDK
- Support firmware upgrade
SDK & APIs
- The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
- Windows DirectShow/DirectKS/Wave API/DirectSound/WASAPI
- Linux V4L2/ALSA
Supported OS
- Windows 10/11/Server 2016 (x86 & x64) and above
- Linux (x86, x64 & ARM architecture)
Input Interfaces
- LVDS 0.5PH 20-Pin (Part number: 11580)
- DVI-D 1.0
- HDMI 2.0
Host Interfaces
- M.2 2280 Type M (PCIe Gen3 x4)
Supported Softwares
- VLC
- VirtualDub
- OBS
- XSplit
- vMix
- VidBlaster
- Wirecast
- Microsoft Media Encoder
- Adobe Flash Media Encoder
- Any other DirectShow/V4L2 encoding/streaming software
LED Indicator
- Status LEDs indicate the working state of each channel:
- Pulsing slowly: input signal unlocked
- On: input signal locked
- Double blinks: memory failed or FPGA configuration failed
- Off: firmware or power supply abnormal
Form Factor
- M.2 2280 standard size (22 mm x 80 mm)
Accessories
- LVDS 0.5PH 20-Pin cable (Part number: 11580)
- LVDS 0.5PH 20-Pin to HDMI adapter (Part number: 11580) (20.5cm)
Power Consumption
- Max current at 3.3V: ~ 2 A
- Max power consumption: ~ 6.6 W
Working Environment
- Operating temperature: 0 to 40deg C
- Storage temperature: –20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
