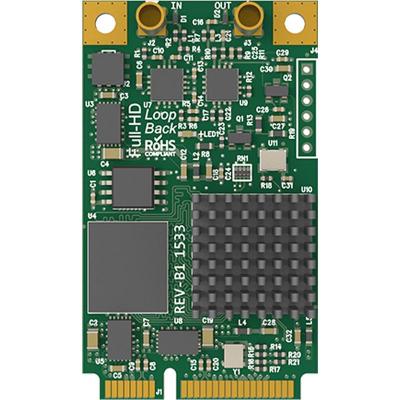

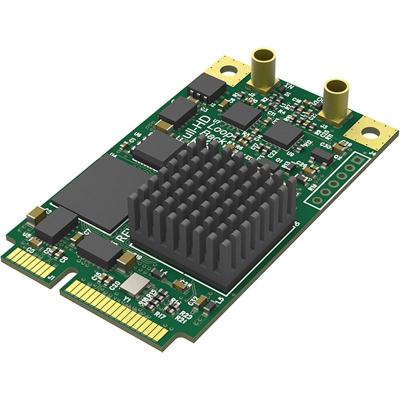

Magewell Pro Capture Mini SDI

One-channel HD Capture Card - Small Heatsink

Pro Capture Mini SDI

• One-channel HD capture card - Small Heatsink
• Captures SD/HD/3G/ 2K SDI + embedded audio
• Loop-through SD/HD/3G/2K SDI
• Input Interface: SD/HD/3G/2K SDI x1
• Loop-through Interface: SD/HD/3G/2K SDI x1
• Supports input/Loop-through resolution up to 2048×2160 pixels
• Host Interface: PCIe Gen2 x1

Video Engine
• 10-bit video processing
• Deinterlace
• Cropping
• Colour Adjustment
• Hardware Timestamp
• Colour Space Conversion
• Up/down Conversion
• Aspect Ratio Conversion
• OSD
• SG-DMA Transmission mode

Signal Detection & Support
• Auto Detection of Input Signal Format
• Time Code
• Closed Caption

Software Environment
• OS: Windows, Linux, Mac
• Driver and Firmware: Universal Driver, Updatable Firmware
• Included Software: Capture Express
• Compatible Software: 50+

Other Features
• Multiple Capture Streams
• Low Latency Mode
• Multiple Devices on One Host
• Mounting Hole
• Continuously Work for 24hx7
• High-speed Memory
• LED Status Indicator
• Rotary Switch
• Windows, Linux and Mac SDK
• 2-year Warranty
