Magewell Pro Convert 12G SDI 4K Plus - MAGEPRC12SDI4KP

MagewellSKU: MAGEPRC12SDI4KP

Price:
Sale price£834.00(incl. VAT)
£695.00

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

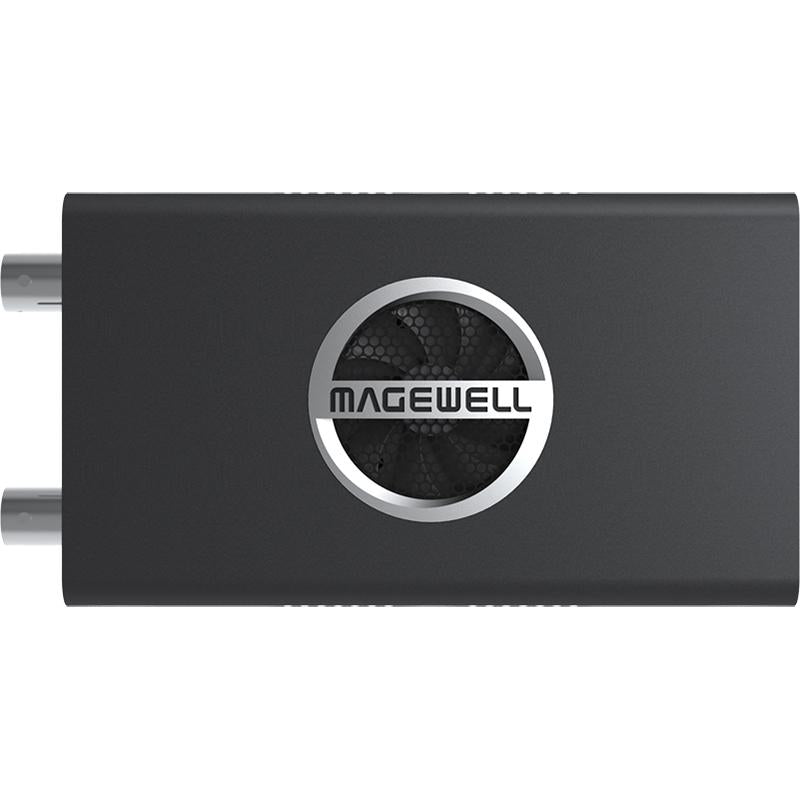

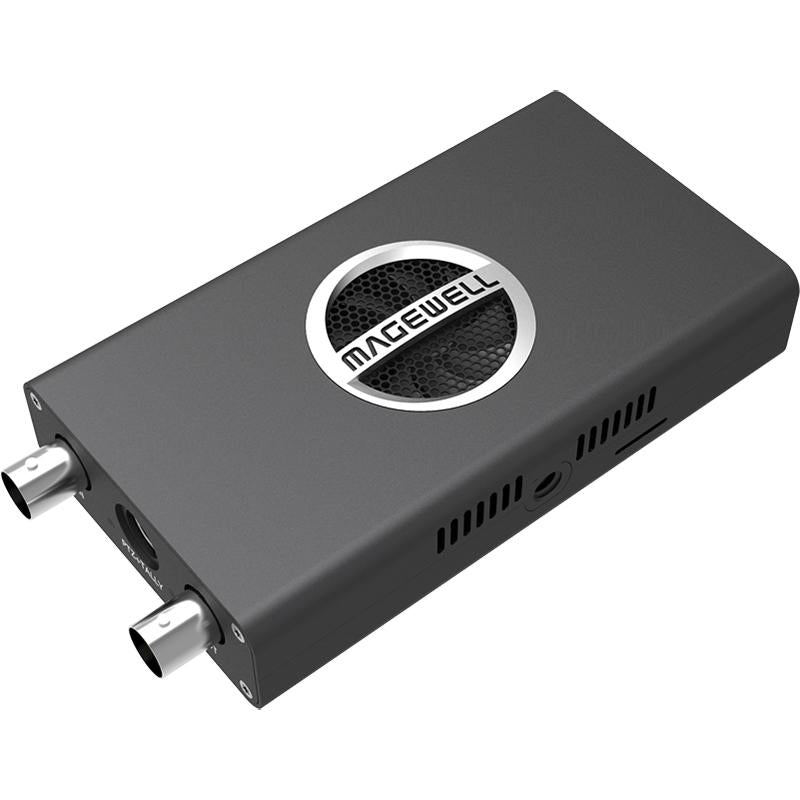

Magewell Pro Convert 12G SDI 4K Plus

Converts one channel of 12G-SDI video up to 4Kp60 into Full NDI® with loop-through

FEATURES

  • Converts one channel of 12G-SDI video up to 4Kp60 into Full NDI® with loop-through
  • Connects existing source equipment into NDI-enabled, IP-based media networks
  • Supports inputs up to 4K at 60fps with 16 channels of embedded audio
  • Plug-and-play ease of use with automatic input format detection and DHCP network configuration

Input Features

  • Single-link 12G-SDI input and loop-through
  • Support for up to 4096x2160 60fps input
  • Support for up to 16 (mono) audio channels

NDI® Format

  • Support for up to 4096x2160 60fps 4:2:2 8-bit NDI encoding
  • Send NDI streams across network segments
  • Remotely control PTZ cameras via NDI
  • Support for NDI 5.x

Features & Advantages

  • Very low latency
  • Advanced configuration and device status through intuitive Web GUI
  • Tally lights and camera mounting for live production applications
  • HTTP-based APIs for custom integration
  • Provide Crestron Plugins
  • Provide Q-SYS Control Plugins

WHAT'S IN THE BOX

  • Pro Convert 12G SDI 4K Plus
  • 1x Power Adapter (US/EU/UK/AU/JP)
  • 1x USB Type A to Type B cable
  • 1x Mini DIN8 to DIN8+DB9 cable
  • 1x Tally Light
  • 1x L bracket

SPECIFICATIONS

Input & Loop through Features

  • Max video input & loop through: 4096x2160 60fps. Supported resolutions include:
    • 4096x2160p/3840x2160p/2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • 2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60
    • 1280x720p 50/59.94/60
    • 720x576 25p/50i (PAL SD)
    • 720x480 29.97p/59.94i (NTSC SD)
  • Support RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
  • Support RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support RGB, YUV BT.601/709/2020 video input
  • 16-channel SDI embedded audio inputs

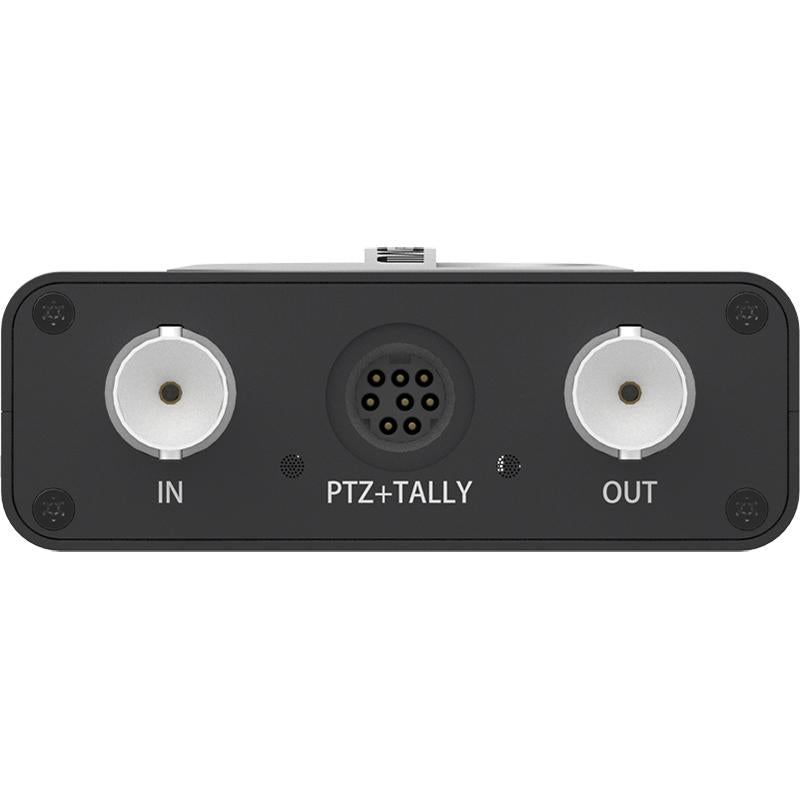

  • SD/HD/3G/6G/12G-SDI BNC input & loop through
  • Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081)/12G (ST 2082) SDI standards
  • Receive 12G-SDI transmitted up to 30m (98ft), 6G-SDI 80m (262ft)

NDI® Encoding Features

  • Encoding Full NDI real-time stream at up to 4096x2160 60fps 4:2:2 8-bit
  • Output the same resolution as input or any custom resolution. Typical outputs include:
    • 4096x2160p/3840x2160p/2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • 2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60
    • 1280x720p 50/59.94/60
  • Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
  • Encoding 16-channel NDI-embedded audio
  • Support NDI 5.x

Configuration Management

  • Register with Control Hub
  • Remote control via WebUI and Control Hub
  • Provide comprehensive information regarding the device and signals in real-time
  • Allow to configure how an input is processed and encoded, including deinterlacing, up/down scaling, frame rate, aspect ratio, as well as the network connection
  • Update firmware
  • Support USB RNDIS/ECM
  • Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provide HTTP APIs

On-board Control Buttons

  • 16 Position Rotary DIP Switch: set board-index from 0 to F

PTZ Control

  • Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI
  • Mini-DIN–8 jack (shared with Tally light)

Network Interfaces

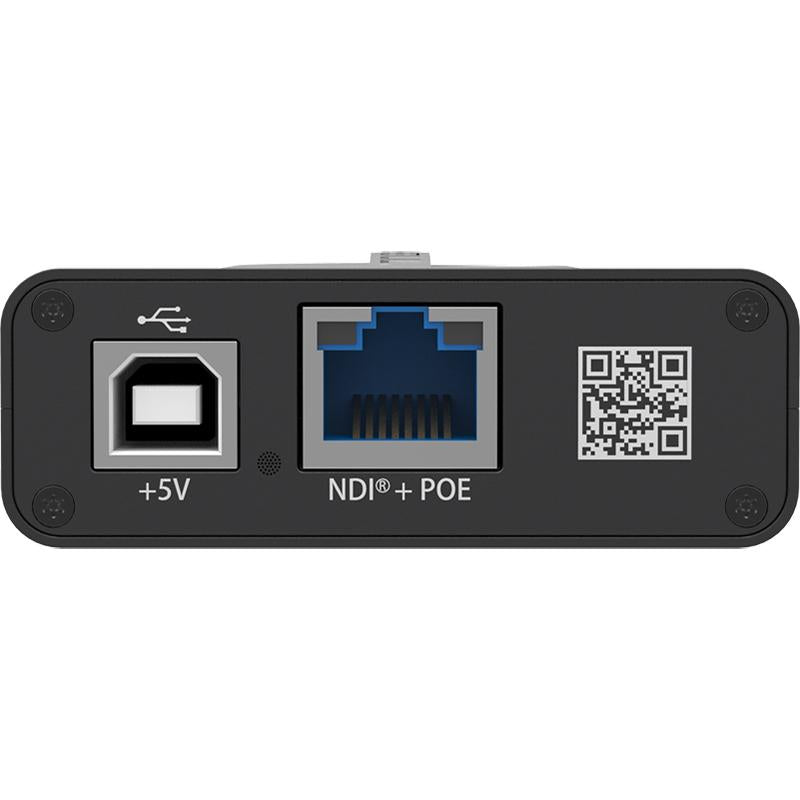

  • 10/100/1000Mbps Ethernet
  • IEEE 802.3af PoE

USB Interface

  • USB2.0 Type B
    • 5V/2.1A power supply
    • USB RNDIS/ECM

Supported Products

  • NDI Studio Monitor
  • OBS
  • vMix
  • Any other NDI-enabled product

LED Indicators

  • Status LEDs indicate:
    • Power supply: on/off
    • Tally: preview/program
    • Input signal: locked/unlocked
    • Loop through signal: on/off

Form Factor

  • 117.5mm (L) x 66.7mm (W) x 23.4mm (H)

Accessories

  • USB 2.0 A to B cable
  • 5V/2.1A power adaptor
  • Mini-DIN 8 breakout cable
  • Tally light
  • L-bracket

Screw Mounting Hole

  • ¼–20 threaded hole

Power Consumption

  • 5V max current: ~1.65A
  • Max power consumption: ~8.5W

Working Environment

  • Operating temperature: 0 to 45 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
