Magewell Pro Convert AES67

Multi-format IP audio converter and capture device

Pro Convert AES67

• Multi-format IP audio converter and capture device
• Offers a seamless bridge between analog audio, software and IP standards including AES67, NDI®, SRT and more
• Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
• Enables mixed-technology local and remote production workflows and ProAV installations

Input/Receiving Features
• Receiving up to 46 audio channels

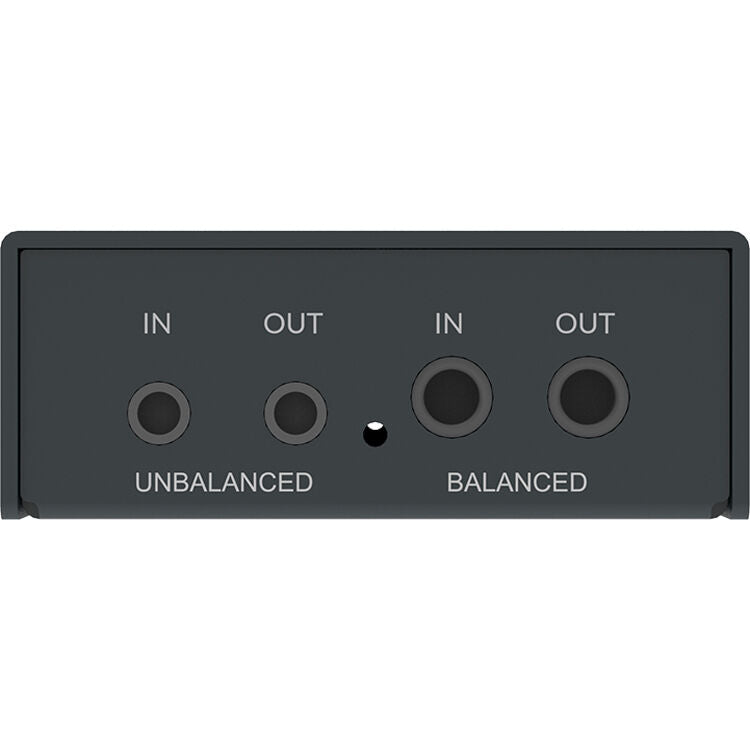

• 1 x 2-channel 3.5mm unbalanced in
• 1 x 2-channel 4.4mm balanced in
• 1 x 4-channel 24-bit/48k UAC in
• Receiving 4 x 8-channel 24-bit AES67 streams both multicasted and unicasted
• It is optional to receive 1 x 4-channel 16-bit SRT stream or 1 x 4-channel 16-bit NDI® stream or 1 x 4-channel 16-bit Icecast stream

Output/Sending Features
• 1 x 2-channel 3.5mm unbalanced out
• 1 x 2-channel 4.4mm balanced out
• 1 x 4-channel 24-bit/48k UAC out
• Multicast and unicast up to 8 x 8-channel 24-bit AES67 streams
• Encoding 1 x 4-channel 16-bit audio for Icecast/SRT/NDI® stream simultaneously

Audio routing and mixing Features
• Any analogue or IP-based input channel can be routed and mixed into any analogue, IP or UAC output via a web-based user interface

Others
• Plug-and-play as a UAC device
• Provide comprehensive information regarding the device and signals in real-time
• Remote control via Web GUI and Control Hub
• Support USB RNDIS/ECM
• Provide HTTP APIs
• Provide Crestron Plugins
