Description

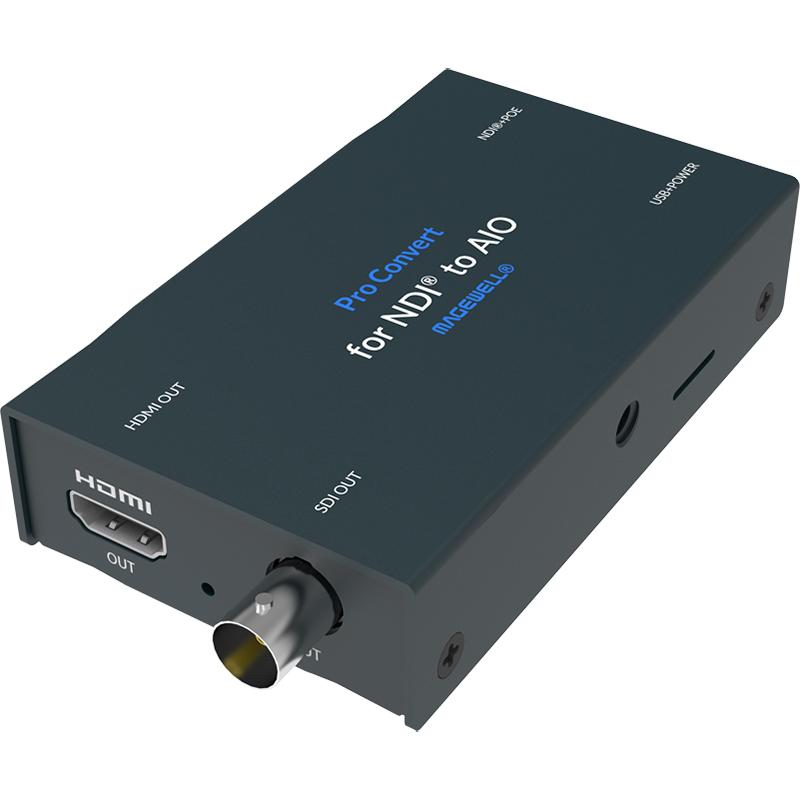

Magewell Pro Convert for NDI® to AIO

Converts a live NDI® stream into HDMI and SDI

FEATURES

  • Converts a live NDI® stream into HDMI and SDI
  • Connects baseband presentation or distribution equipment into IP-based media networks
  • Supports NDI technology including Full NDI and NDI|HX mode
  • Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP

Output Features

  • Support for up to 1920x1080 60fps HDMI and SDI output
  • Support for 48KHz, 16-bit 8-channel audio streams

Decoding Features

  • Support for decoding up to 2K 60fps NDI streams
  • Support for decoding full NDI® and NDI®|HX
  • Support for NDI 6
  • Discover NDI devices across network segments
  • Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP

Features & Advantages

  • Very low latency
  • Advanced configuration and device status through intuitive Web GUI or on-board controls
  • HTTP-based APIs for custom integration
  • Image flip for inverted projector installations
  • Safe area controls
  • Provide Crestron Plugins
  • Provide Q-SYS Control Plugins

WHAT'S IN THE BOX

  • Pro Convert for NDI® to AIO
  • 1x Power Adapter (US/EU/UK/AU/JP)
  • 1x USB Type A to Type B cable
  • 1x L bracket

Pro Convert for NDI to AIO Specifications

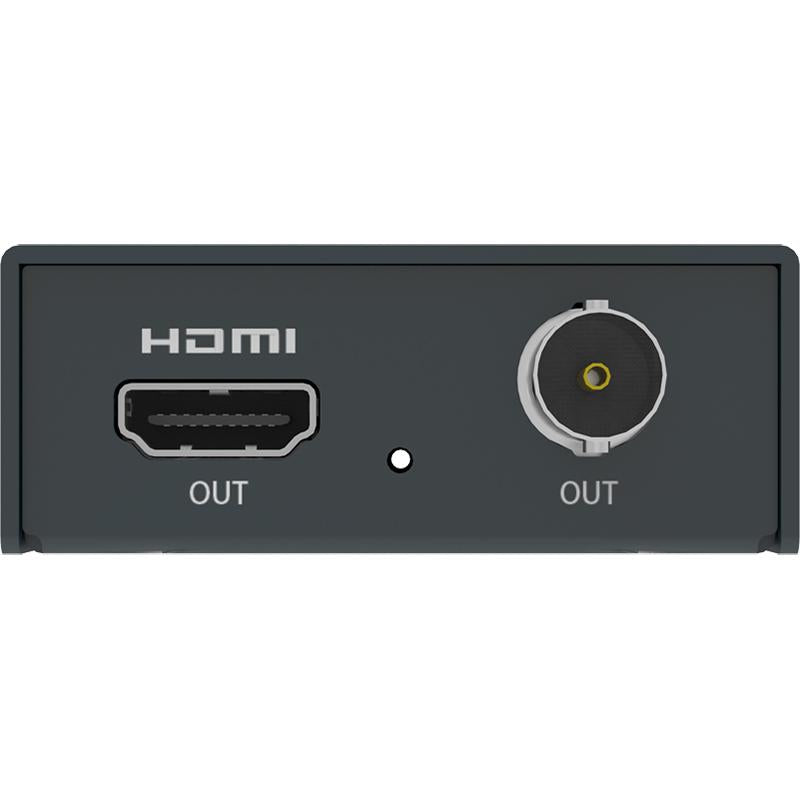

HDMI Output
  • Max output: 1920x1080p60
  • Delivery video within 2K at the preferred video format according to the EDID of the connected monitor
  • Support YUV BT.601, YUV BT.709 signal
  • Support 48KHz 8-channel audio output
  • HDMI interface: HDMI 1.4

SDI Output

  • Max output: 1920x1080p60. Supported output formats are:
    • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
    • 1920x1080i 50/59.94/60
    • 1280x720p 23.98/24/25/29.97/30/50/59.94/60
    • 720x576i50
    • 720x480i59.94
  • Support YUV BT.601/709 signal
  • Support 48KHz 8-channel audio output
  • SD/HD/3G-SDI BNC output
  • Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards
  • Output 3G-SDI signal and transmitted distance at 130m (427ft)

Decoding Features

  • Decoding up to 2Kp60 streams of NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP protocols
  • Simultaneously decode and output HDMI and SDI signals
  • H.264/H.265 video decoders
  • AAC/MP3 audio decoders
  • Support NDI 6.2

Configuration Management

  • Register with Control Hub
  • Remote control via WebUI and Control Hub
  • Provide comprehensive information regarding the device and decoded signals in real-time
  • Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
  • Update firmware
  • Support USB RNDIS/ECM
  • Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provide HTTP APIs

On-board Control Buttons

  • MENU: press to display the menu, or cycle through the options
  • SELECT: press to display the menu, enter current option, or confirm the selection
  • 16 Position Rotary DIP Switch: set board-index from 0 to F

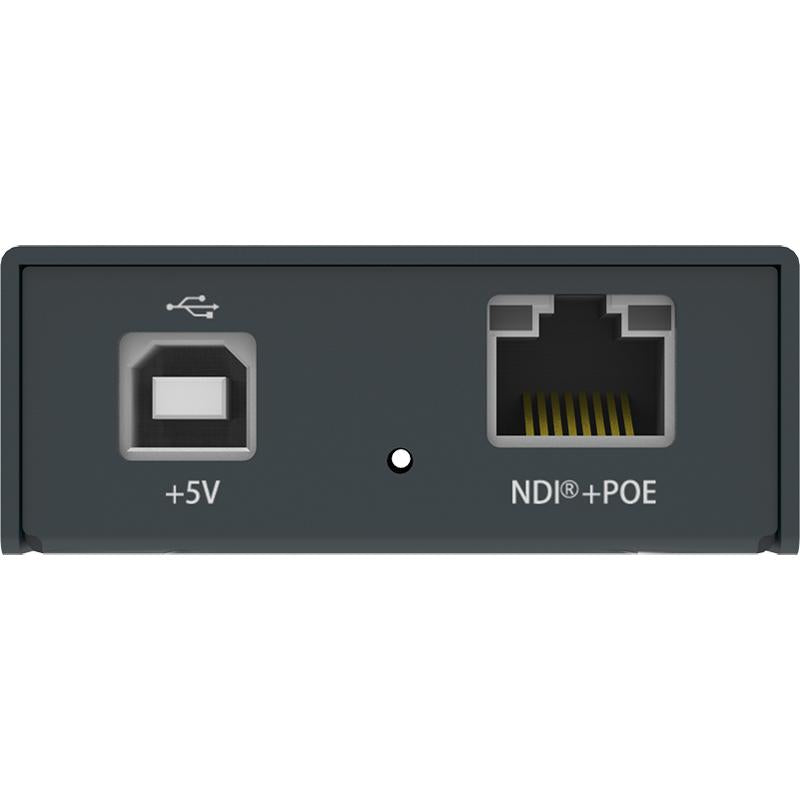

Network Interfaces

  • 10/100/1000Mbps Ethernet
  • IEEE 802.3af PoE

USB Interface

  • USB2.0 Type B
    • 5V/2.1A power supply
    • USB RNDIS/ECM

LED Indicators

  • Power LED status indicator
    • On: power connected
    • Off: power unconnected
  • Decode LED status indicator
    • On: decoding
    • Blinks: decoding error
    • Off: source unselected

Form Factor

  • 100.9mm (L) x 60.2mm (W) x 23.3mm (H)

Accessories

  • USB 2.0 A to B cable
  • 5V/2.1A power adaptor
  • L-bracket

Screw Mounting Hole

  • ¼–20 threaded hole

Power Consumption

  • 5V max current: ~1.05A
  • Max power consumption: ~5.5W

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
