Description

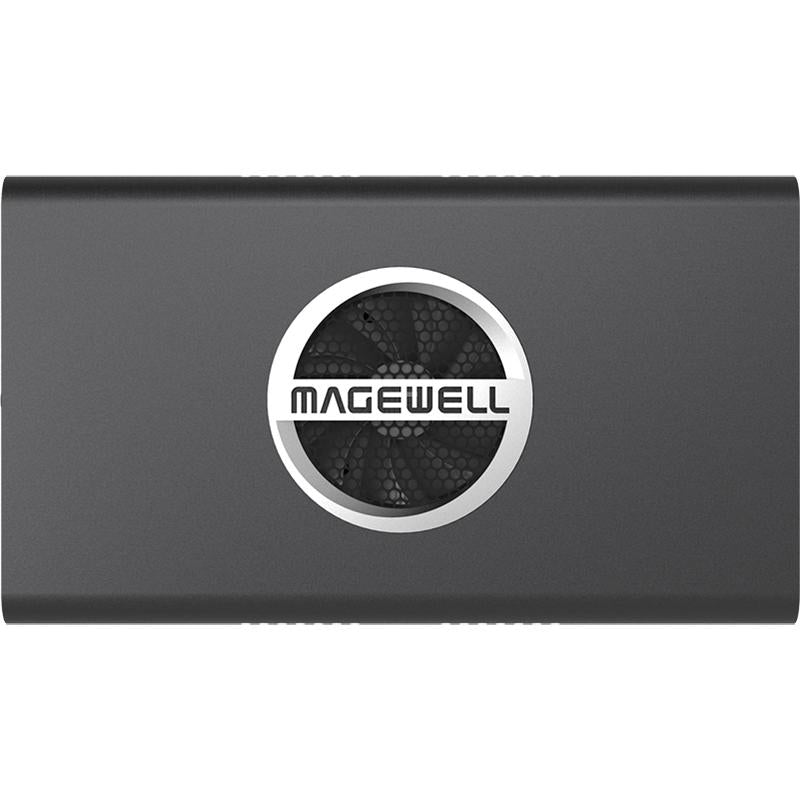

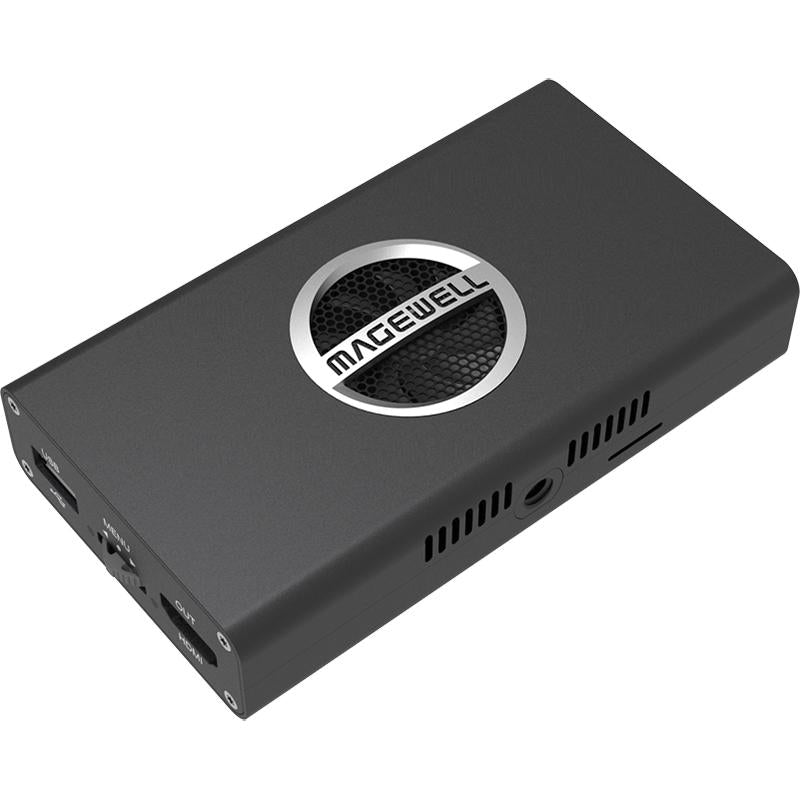

Magewell Pro Convert for NDI® to HDMI 4K
Converts a live NDI® stream into 4K HDMI signal
FEATURES
- Converts a live NDI® stream into 4K HDMI signal
- Connects baseband presentation or distribution equipment into IP-based media networks
- Decodes Full NDI or NDI|HX into 4K HDMI at a super-low latency
- Automatically optimizes output based on EDID characteristics of connected display
Output Features
- Support for up to 4096x2160 60fps HDMI output
- Support for 96KHz, 16-bit 8-channel audio streams
Decoding Features
- Support for decoding 4K 60fps NDI streams
- Support for decoding full NDI® and NDI®|HX
- Support for NDI 5.x
- Discover NDI devices across network segments
- Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP
- Support for decoding alpha channel
Features & Advantages
- Very low latency
- Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
- HTTP-based APIs for custom integration
- Image flip for inverted projector installations and safe area controls
- Automatic output optimization for target display with integrated up/down conversion
- Provide Crestron Plugins
- Provide Q-SYS Control Plugins& Advantages
WHAT'S IN THE BOX
- Pro Convert for NDI® to HDMI 4K
- 1x Power Adapter (US/EU/UK/AU/JP)
- 1x USB Type A to Type B cable
- 1x L bracket
Pro Convert for NDI to HDMI 4K Specifications
Output Features- Max output: 4096x2160 60fps 4:4:4 8-bit
- Delivering video at the preferred video format according to the EDID of the connected monitor. Supported output formats include:
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60
- 2560x1440p 60/100/120/144
- 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
- 1920x1080i 50/59.94/60
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p50
- 720x576i50
- 720x480p59.94/60
- 720x480i59.94/60
- Support 48KHz 8-channel audio output
- HDMI interface: HDMI 1.4/2.0
Decoding Features
- Decoding up to 4Kp60 streams of Full NDI, NDI®|HX, NDI®|HX2, NDI®|HX3, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP protocols
- H.264/H.265 video decoders
- AAC/MP3 audio decoders
- Support NDI 5.x
Configuration Management
- Register with Control Hub
- Remote control via WebUI and Control Hub
- Provide comprehensive information regarding the device and decoded signals in real-time
- Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, alpha blending, audio gain, sample rate, and channel mapping, as well as the network connection
- Update firmware
- Support USB RNDIS/ECM
- Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
- Provide HTTP APIs

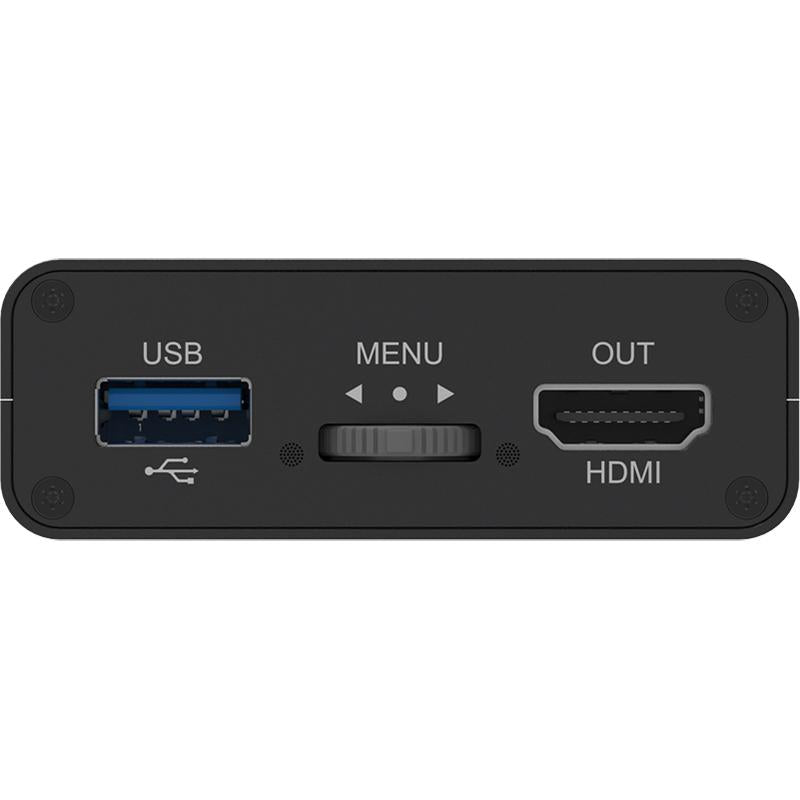

On-board Control Buttons
- MENU: press to display the menu or select current parameter, or toggle the switch left and right to cycle through the options
- 16 Position Rotary DIP Switch: set board-index from 0 to F

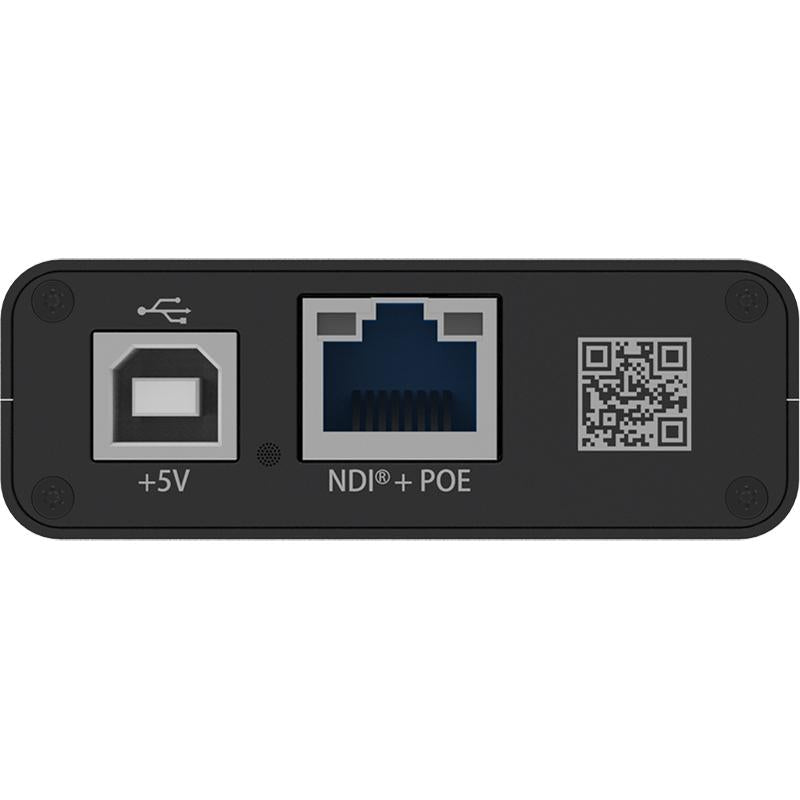

Network Interfaces
- 10/100/1000Mbps Ethernet
- IEEE 802.3af PoE
USB Interfaces
- USB2.0 Type B
- 5V/2.1A power supply
- USB RNDIS/ECM
- USB3.0 Type A
- Connecting peripherals (keyboard and/or mouse) to customize the video and audio settings
LED Indicators
- Power LED status indicator
- On: power connected
- Off: power unconnected
- Decode LED status indicator
- On: decoding
- Blinks: decoding error
- Off: source unselected
- Tally: preview/program
Form Factor
- 117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories
- USB 2.0 A to B cable
- 5V/2.1A power adaptor
- L-bracket
Screw Mounting Hole
- ¼–20 threaded hole
Power Consumption
- 5V max current: ~1.6A
- Max power consumption: ~7.2W
Working Environment
- Operating temperature: 0 to 45 deg C
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
