Description

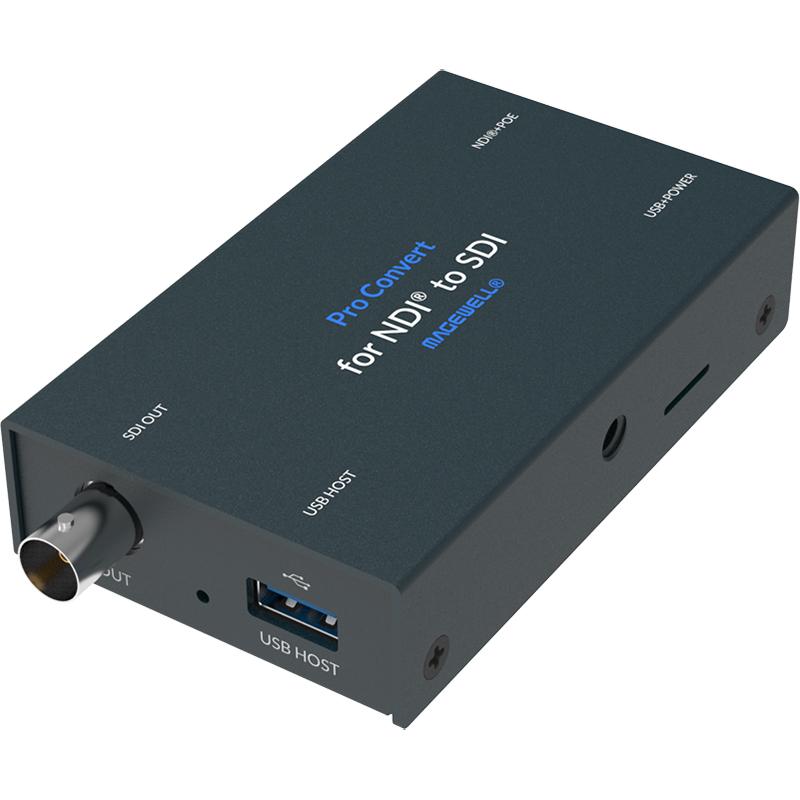

Magewell Pro Convert for NDI® to SDI
Converts a live NDI® stream into SDI
FEATURES
- Converts a live NDI® stream into SDI
- Connects baseband presentation or distribution equipment into IP-based media networks
- Supports NDI technology including full-bandwidth NDI and high-efficiency NDI|HX mode
- Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP
Output Features
- Support for up to 1920x1080 60fps SDI output
- Support for 48KHz, 16-bit 8-channel audio streams
Decoding Features
- Support for decoding up to 2K 60fps NDI streams
- Support for decoding full NDI® and NDI®|HX
- Support for NDI 6
- Discover NDI devices across network segments
- Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP
Features & Advantages
- Very low latency
- Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
- HTTP-based APIs for custom integration
- Image flip for inverted projector installations
- Safe area controls
- Provide Crestron Plugins
- Provide Q-SYS Control Plugins
WHAT'S IN THE BOX
- Pro Convert for NDI® to SDI
- 1x Power Adapter (US/EU/UK/AU/JP)
- 1x USB Type A to Type B cable
- 1x L bracket
Pro Convert for NDI to HDMI Specifications
Output Features- Max output: 4096x2160 60fps 4:4:4 8-bit
- Delivering video at the preferred video format according to the EDID of the connected monitor. Supported output formats include:
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60
- 2560x1440p 60/100
- 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
- 1920x1080i 50/59.94/60
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p50
- 720x576i50
- 720x480p59.94/60
- 720x480i59.94/60
- Support 48KHz 8-channel audio output
- HDMI interface: HDMI 1.4/2.0
Decoding Features
- Decoding up to 2Kp60 streams of NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP protocols
- H.264/H.265 video decoders
- AAC/MP3 audio decoders
- Support NDI 6.2
Configuration Management
- Register with Control Hub
- Remote control via WebUI and Control Hub
- Provide comprehensive information regarding the device and decoded signals in real-time
- Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
- Update firmware
- Support USB RNDIS/ECM
- Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
- Provide HTTP APIs
On-board Control Buttons
- MENU: press to display the menu, or cycle through the options
- SELECT: press to display the menu, enter current option, or confirm the selection
- 16 Position Rotary DIP Switch: set board-index from 0 to F

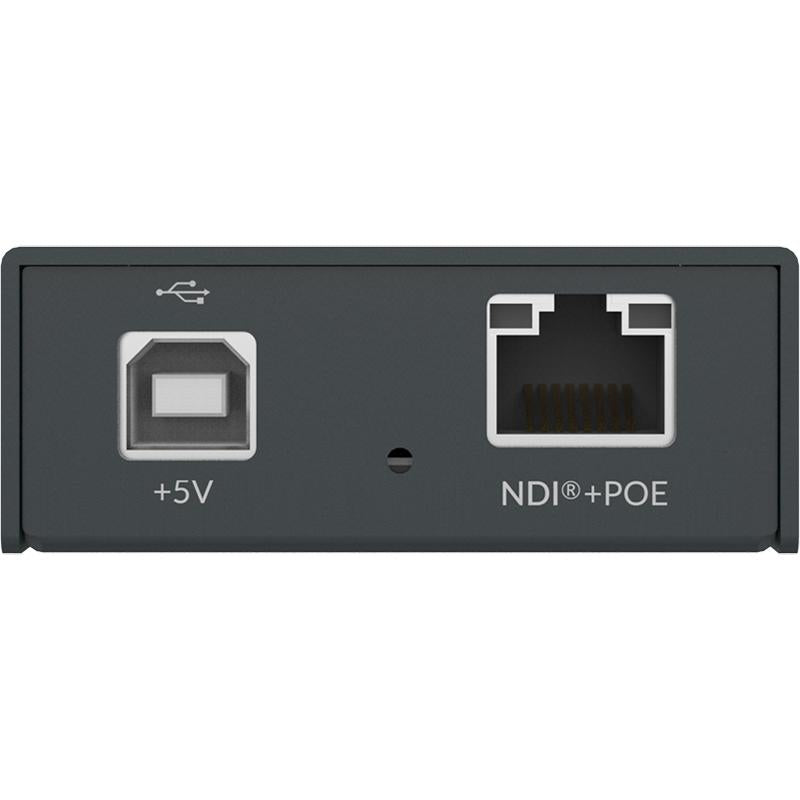

Network Interfaces
- 10/100/1000Mbps Ethernet
- IEEE 802.3af PoE
USB Interfaces
- USB2.0 Type B
- 5V/2.1A power supply
- USB RNDIS/ECM

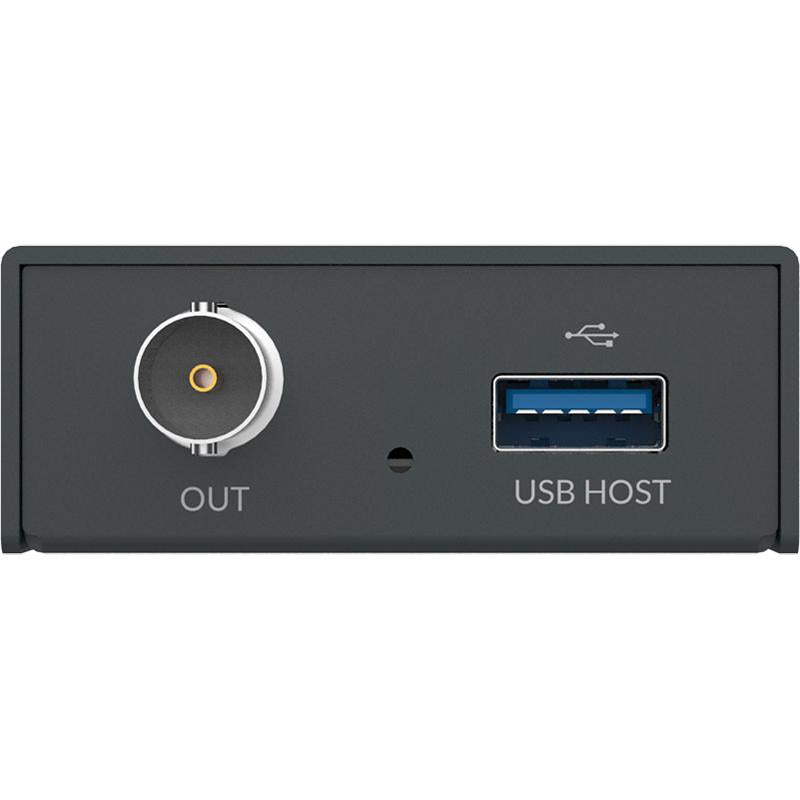

- USB3.0 Type A
- Connecting peripherals (keyboard and/or mouse) to customize the video and audio settings
LED Indicators
- Power LED status indicator
- On: power connected
- Off: power unconnected
- Decode LED status indicator
- On: decoding
- Blinks: decoding error
- Off: source unselected
Form Factor
- 100.9mm (L) x 60.2mm (W) x 23.3mm (H)
Accessories
- USB 2.0 A to B cable
- 5V/2.1A power adaptor
- L-bracket
Screw Mounting Hole
- ¼–20 threaded hole
Power Consumption
- 5V max current: ~1.1A
- Max power consumption: ~5W
Working Environment
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
