Magewell Pro Convert HDMI TX - MAGEPRCONHDMITX

MagewellSKU: MAGEPRCONHDMITX

Price:
Sale price£355.20(incl. VAT)
£296.00

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

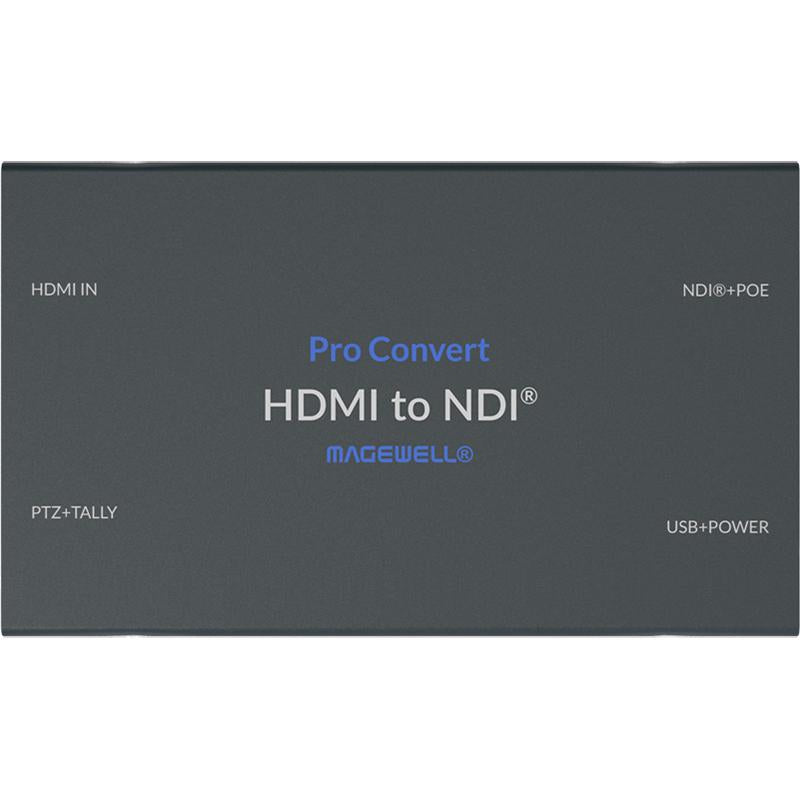

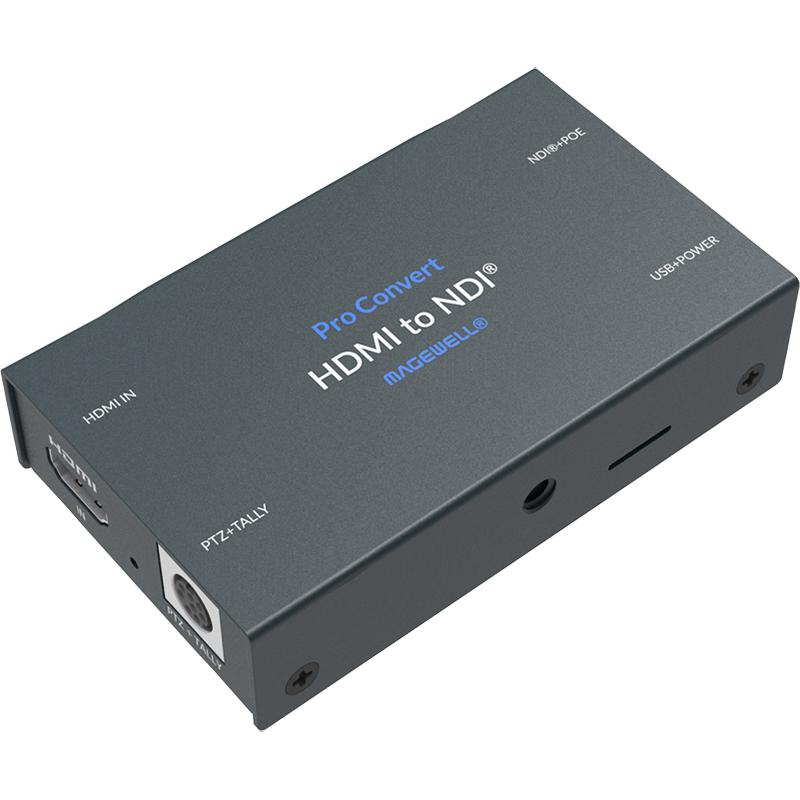

Magewell Pro Convert HDMI TX

Converts an HD HDMI input signal into Full NDI®

FEATURES

  • Converts an HD HDMI input signal into Full NDI®
  • Supports up to 2048x1200 60fps input signals
  • Connects existing source equipment into NDI-enabled, IP-based media networks
  • Plug-and-play ease of use with automatic input format detection and DHCP network configuration

Input Features

  • Support for up to 2048x1200 4:4:4/4:2:2 60fps HDMI input
  • Support for 8-channel IEC60958 audio streams

NDI® Format

  • Support for up to 2048x1200 60fps 4:2:2 8-bit NDI encoding
  • Send NDI streams across network segments
  • Remotely control PTZ cameras via NDI
  • Support for NDI 5.x

Features & Advantages

  • Very low latency
  • Advanced configuration and device status through intuitive Web GUI
  • Tally lights and camera mounting for live production applications
  • HTTP-based APIs for custom integration
  • Provide Crestron Plugins
  • Provide Q-SYS Control Plugins

WHAT'S IN THE BOX

  • Pro Convert HDMI TX
  • 1x Power Adapter (US/EU/UK/AU/JP)
  • 1x USB Type A to Type B cable
  • 1x Mini DIN8 to DIN8+DB9 cable
  • 1x Tally Light
  • 1x L bracket

Pro Convert HDMI TX Specifications

Input Features
  • Max video input: 2048x1200 60fps 4:4:4/4:2:2
  • Input video at any format by custom EDID of input port
  • Video formats: RGB, YUV BT.601/709/2020
  • 8-channel HDMI-embedded audio

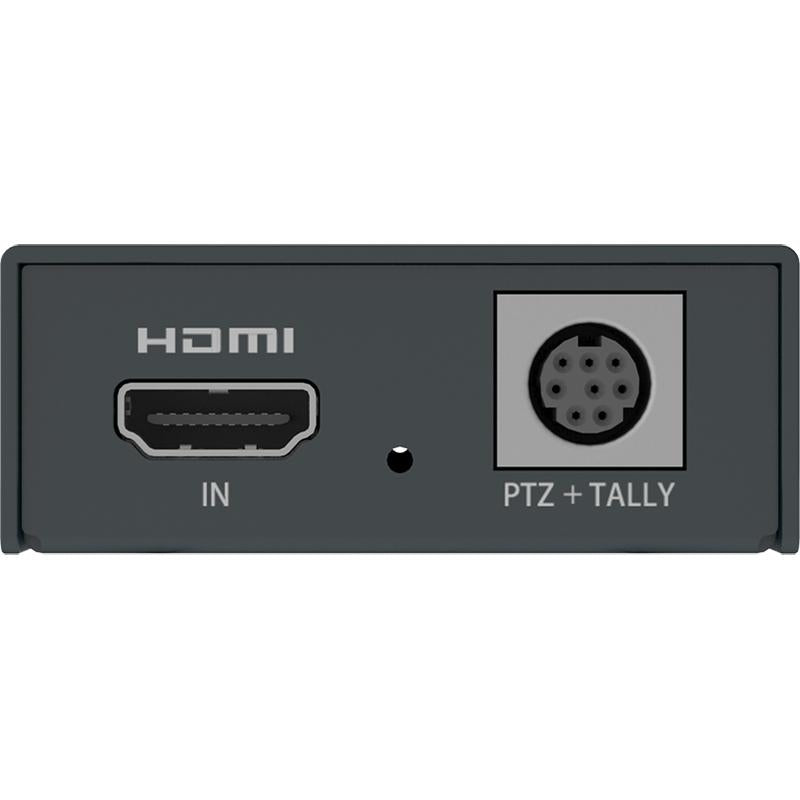

  • HDMI interface: HDMI 1.4, DVI-D

NDI® Encoding Features

  • Encoding Full NDI real-time stream at up to 2048x1200 60fps 4:2:2 8-bit.
  • Output the same resolution as input or any custom resolution. Typical outputs include:
    • 2048x1080p/1920x1080p 23.98/24/25/29.97/30/50/59.94/60
    • 1920x1080i 25/29.97/30/50/59.94/60
    • 1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
    • 720x480p/720x480i 59.94/60/119.88/120
    • 720x576p/720x576i 50/100
  • Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
  • Encoding 2-channel NDI-embedded audio
  • Support NDI 5.x

Configuration Management

  • Register with Control Hub
  • Remote control via WebUI and Control Hub
  • Provide comprehensive information regarding the device and input signals in real-time
  • Allow to configure how an input is processed and encoded, including deinterlacing, EDID, up/down scaling, frame rate, aspect ratio, as well as the network connection
  • Update firmware
  • Support USB RNDIS/ECM
  • Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provide HTTP APIs

On-board Control Buttons

  • 16 Position Rotary DIP Switch: set board-index from 0 to F

PTZ Control

  • Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI
  • Mini-DIN–8 jack (shared with Tally light)

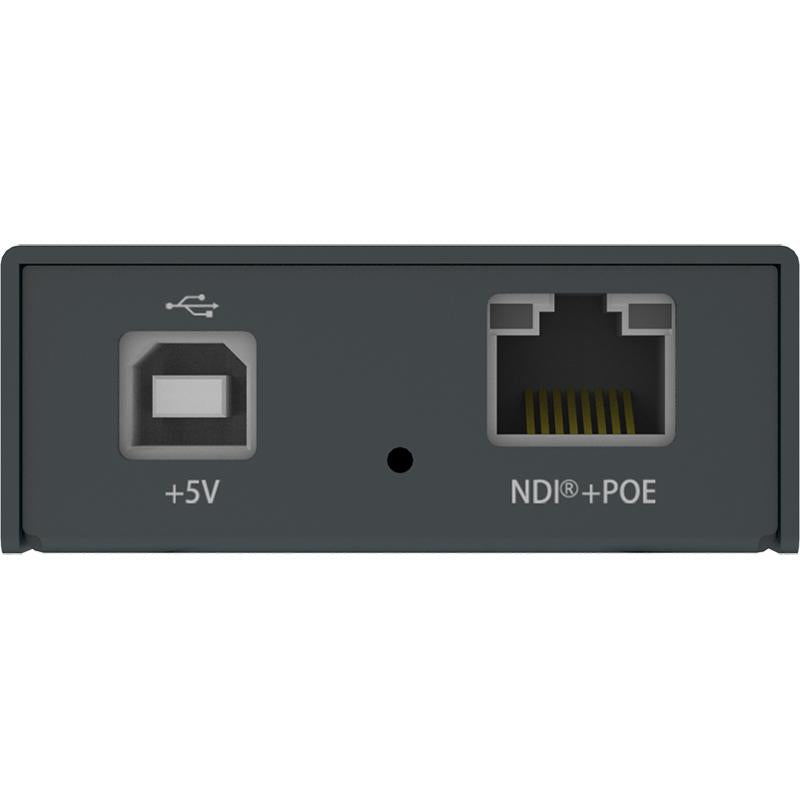

Network Interfaces

  • 10/100/1000Mbps Ethernet
  • IEEE 802.3af PoE

USB Interface

  • USB2.0 Type B
    • 5V/2.1A power supply
    • USB RNDIS/ECM

Supported Products

  • NDI Studio Monitor
  • OBS
  • vMix
  • Any other NDI-enabled product

LED Indicators

  • Status LEDs indicate:
    • Power supply: on/off
    • Input signal: locked/unlocked

Form Factor

  • 100.9smm (L) x 60.2mm (W) x 23.3mm (H)

Accessories

  • USB 2.0 A to B cable
  • 5V/2.1A power adaptor
  • Mini-DIN 8 breakout cable
  • Tally light
  • L-bracket

Screw Mounting Hole

  • ¼–20 threaded hole

Power Consumption

  • 5V max current: ~1.5A
  • Max power consumption: ~6W

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
