Description

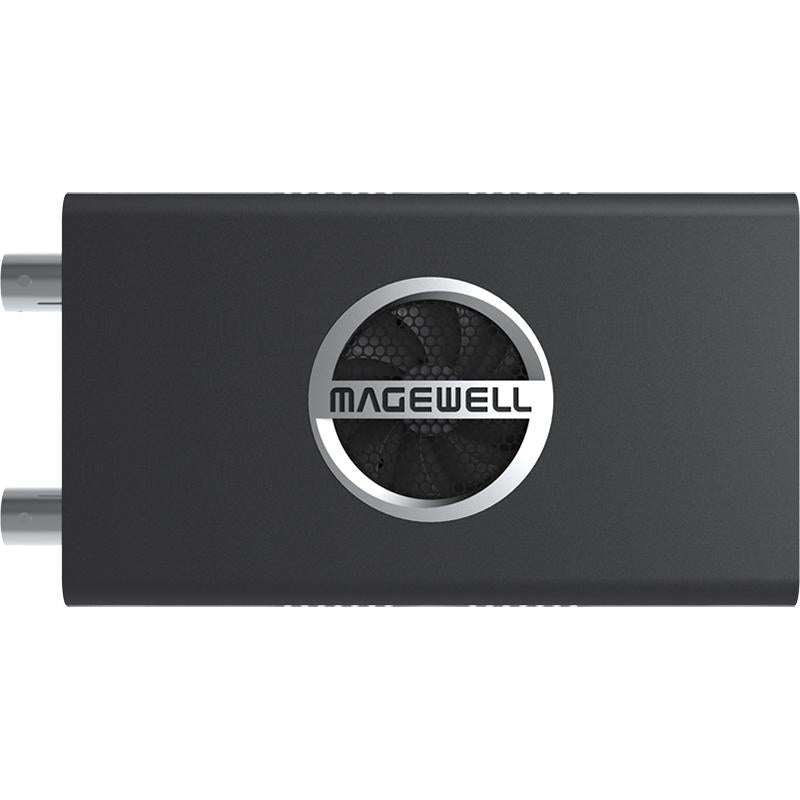

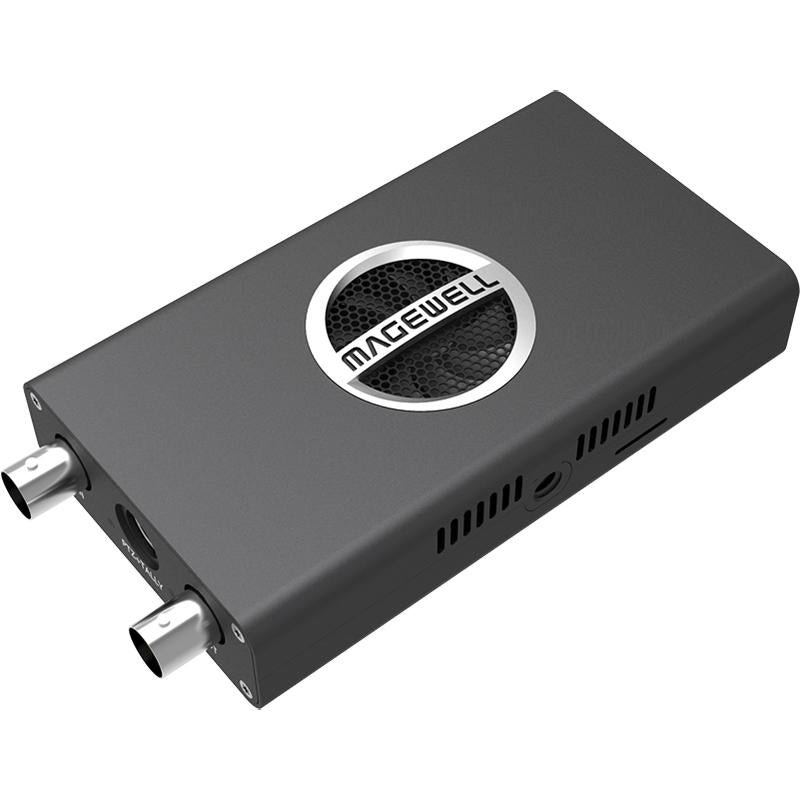

Magewell Pro Convert SDI 4K Plus
Converts one-channel of 6G-SDI input signal into Full NDI® with loop-through
FEATURES
- Converts one-channel of 6G-SDI input signal into Full NDI® with loop-through
- Supports up to 4096x2160 30fps input signals
- Connects existing source equipment into NDI-enabled, IP-based media networks
- Plug-and-play ease of use with automatic input format detection and DHCP network configuration
- Supports 16 audio channels
Input Features
- Single-link 6G-SDI input and loop-through
- Support for up to 4096x2160 30fps input
- Support for up to 16 (mono) audio channels
NDI® Format
- Support for up to 4096x2160 60fps 4:2:2 8-bit NDI encoding
- Send NDI streams across network segments
- Remotely control PTZ cameras via NDI
- Support for NDI 5.x
Features & Advantages
- Very low latency
- Advanced configuration and device status through intuitive Web GUI
- Tally lights and camera mounting for live production applications
- HTTP-based APIs for custom integration
- Provide Crestron Plugins
- Provide Q-SYS Control Plugins
WHAT'S IN THE BOX
- Pro Convert SDI 4K Plus
- 1x Power Adapter (US/EU/UK/AU/JP)
- 1x USB Type A to Type B cable
- 1x Mini DIN8 to DIN8+DB9 cable
- 1x Tally Light
- 1x L bracket
Pro Convert SDI 4K Plus Specifications
Input & Loop through Features- Max video input & loop through: 4096x2160 30fps. Supported inputs include:
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30
- 2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 2048x1080i/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 1280x720p 50/59.94/60
- 720x576 25p/50i (PAL SD)
- 720x480 29.97p/59.94i (NTSC SD)
- Support RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
- Support RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Support RGB, YUV BT.601/709/2020 video input
- 16-channel SDI embedded audio inputs
- SD/HD/3G/6G-SDI BNC input & loop through
- Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081) SDI standards
- Receive 6G-SDI transmitted up to 100m (328ft)
NDI® Encoding Features
- Encoding Full NDI real-time stream at up to 4096x2160 60fps 4:2:2 8-bit
- Output the same resolution as input or any custom resolution. Typical outputs include:
- 4096x2160p/3840x2160p/2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60
- 1280x720p 50/59.94/60
- Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
- Encoding 16-channel NDI-embedded audio
- Support NDI 5.x
Configuration Management
- Register with Control Hub
- Remote control via WebUI and Control Hub
- Provide comprehensive information regarding the device and signals in real-time
- Allow to configure how an input is processed and encoded, including deinterlacing, up/down scaling, frame rate, aspect ratio, as well as the network connection
- Update firmware
- Support USB RNDIS/ECM
- Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
- Provide HTTP APIs
On-board Control Buttons
- 16 Position Rotary DIP Switch: set board-index from 0 to F

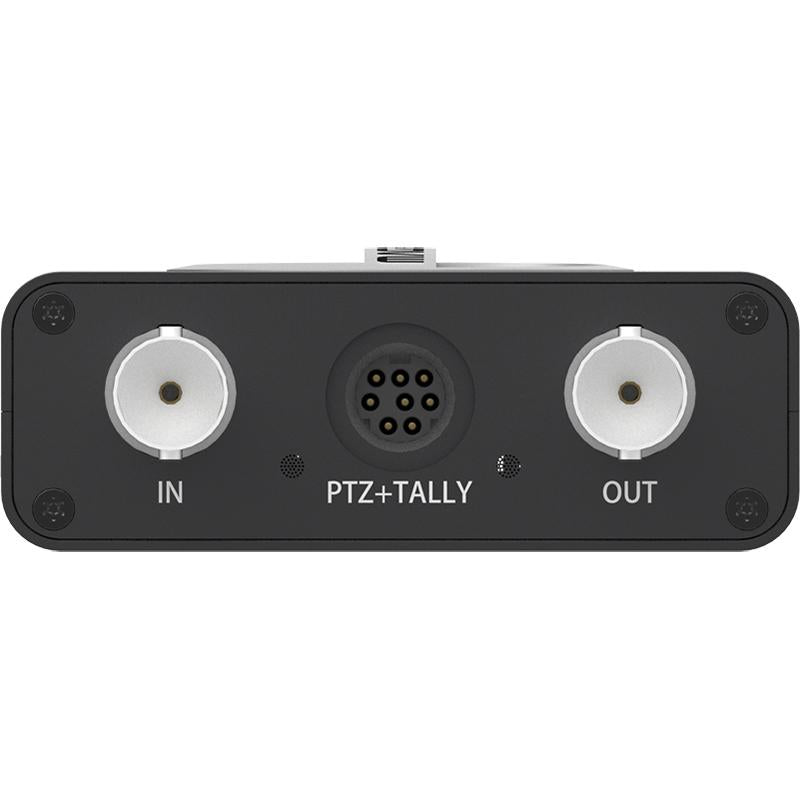

PTZ Control
- Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI
- Mini-DIN–8 jack (shared with Tally light)
Network Interfaces
- 10/100/1000Mbps Ethernet
- IEEE 802.3af PoE

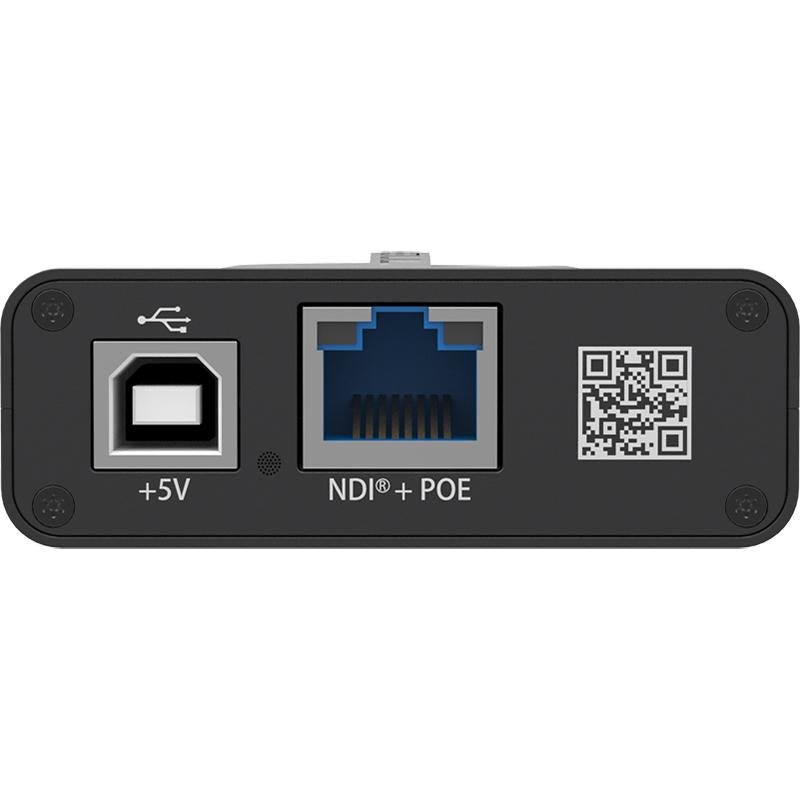

USB Interface
- USB2.0 Type B
- 5V/2.1A power supply
- USB RNDIS/ECM
Supported Products
- NDI Studio Monitor
- OBS
- vMix
- Any other NDI-enabled product
LED Indicators
- Status LEDs indicate:
- Power supply: on/off
- Tally: preview/program
- Input signal: locked/unlocked
- Loop through signal: on/off
Form Factor
- 117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories
- USB 2.0 A to B cable
- 5V/2.1A power adaptor
- Mini-DIN 8 breakout cable
- Tally light
- L-bracket
Screw Mounting Hole
- ¼–20 threaded hole
Power Consumption
- 5V max current: ~1.5A
- Max power consumption: ~7W
Working Environment
- Operating temperature: 0 to 45 deg C
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
