Description

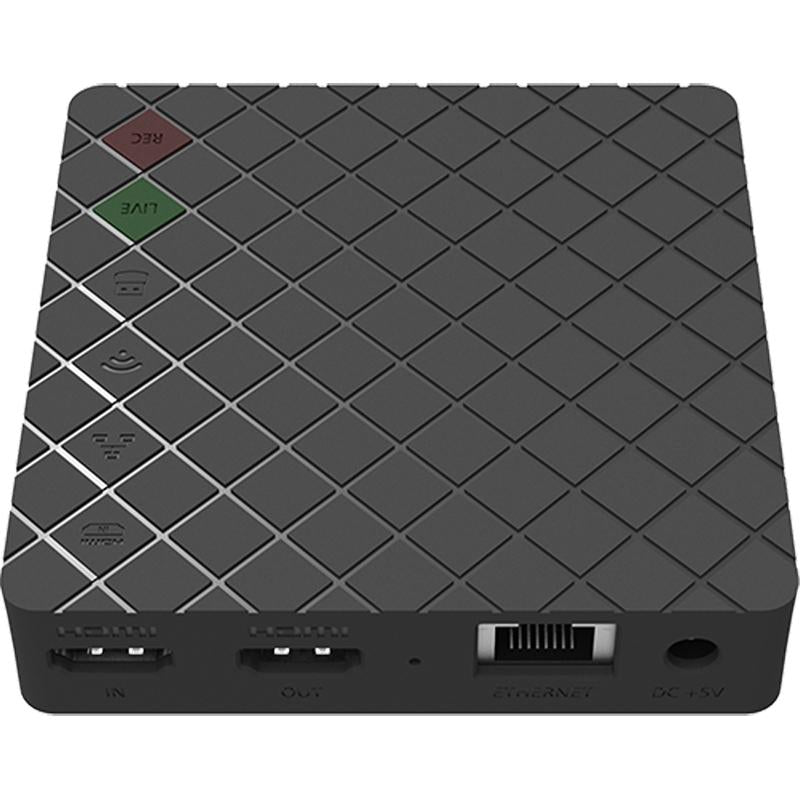

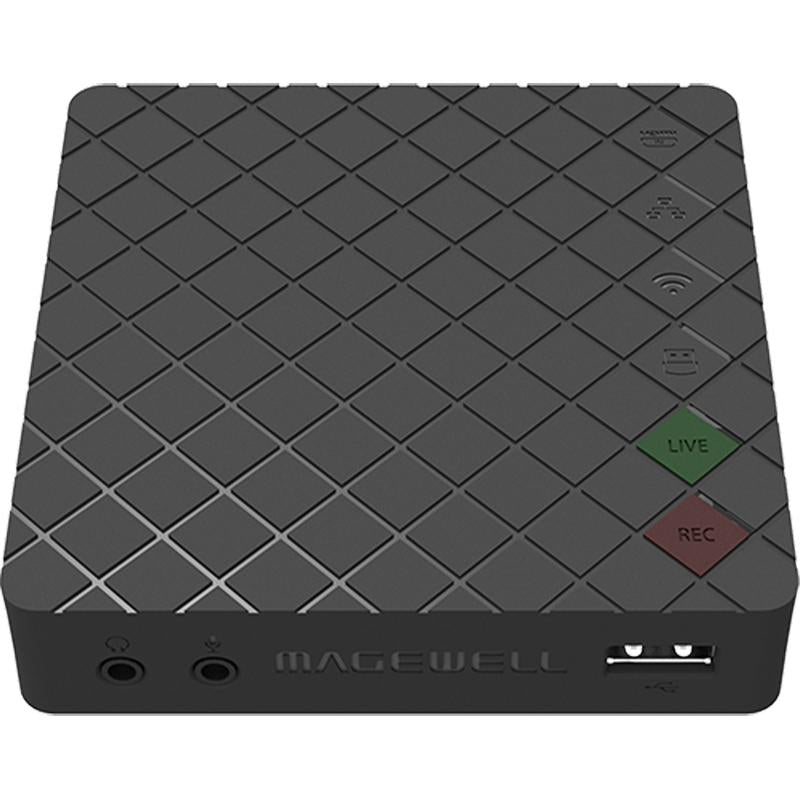

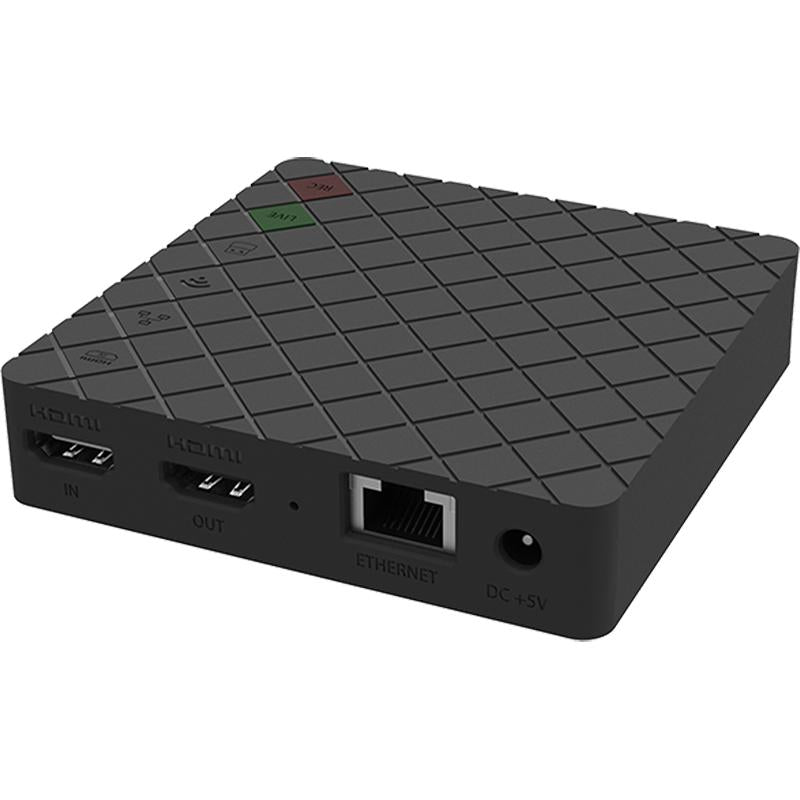

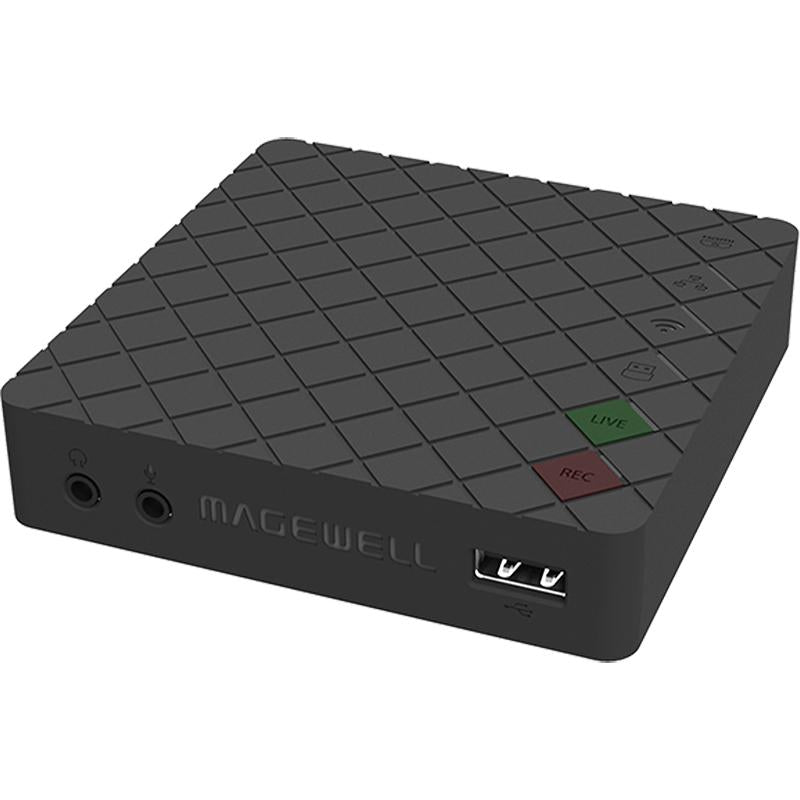

Magewell Ultra Stream HDMI
Dedicated HDMI streaming encoder with loop-through
FEATURES
- Dedicated HDMI streaming encoder with loop-through
- Live streaming to popular services such as Facebook Live, YouTube or Twitch
- Streams to a custom-specified RTMP or RMTPS server and supports sending RTSP streams
- Records video to the internal storage, a connected USB drive or an associated smartphone
- Internet connectivity via wired Ethernet, Wi-Fi and optional 3G/4G modem support
HDMI Specific Features
- Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loop-through signals
Audio Input/Output
- Add narration through the analog microphone input
- Monitor the input signal through the analogue headphone output
Encoding Features
- H.264 or HEVC (video) and AAC High Quality (audio) encoding; Video bitrates up to 8Mbps
Streaming Features
- Stream to servers or platforms based on RTMP or RTMPS protocol
- Stream to 2 servers simultaneously
- Support for RTSP protocol
Recording Features
- Record to internal storage (32GB), USB flash drive or the associated smartphone
- Record as MP4 or MOV files
Others
- Internet connectivity via wired Ethernet, Wi-Fi or optional 3G/4G modem support
- Control via on-device buttons, intuitive smartphone app or browser-based interface
- HTTP-based APIs for custom integration
WHAT'S IN THE BOX
- Ultra Stream HDMI
- 1x Power Adapter (US/EU/UK/AU/JP)
- 1x Power Cable
- 1x HDMI Cable
- Max HDMI input & loop-through signals:
- 4096x2160 4:2:0 60fps
- 4096x2160 4:4:4/4:2:2 30fps
- Custom EDID
- Supported HDMI inputs include:
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
- 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
- 1920x1080i 25/29.97/30/50/59.94/60
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60/144
- 720x576p 50/100/144
- 720x576i 25/50
- 720x480p 59.94/60/144
- 720x480i 29.97/30
- 8/10/12-bit color
- Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
- Input audio from 3.5mm microphone
- HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D
Encoding Features
- Dual stream encoding: main stream and sub stream
- Max bitrate:
- Main Stream - 8Mbps
- Sub Stream - 2Mbps
- Supported resolutions:
- HD: 1920x1080, 1600x1200, 1600x900, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768
- SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
- Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
- H.264/H.265(HEVC) video encoders
- Encoding 2-channel AAC at 48kHz, 16-bit
- Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
- Extracting audio from HDMI signal and output through 3.5mm headphone
- Encoding videos after de-interlacing
Streaming Features
- Natively support streaming to Facebook, Twitch and YouTube
- Supported streaming protocols including RTSP/RTMP/RTMPS
- Up to 2 streaming sessions simultaneously
Recording Features
- Recording to a USB flash drive, internal SD storage and paired mobile device simultaneously
- To a USB Flash Drive
- support auto-recording, normal recording
- recording as MP4 or MOV files
- Recording duration can be 5/10/30/40/50/60/90/120 min
- Downloading recorded videos via WebUI
- To internal SD storage (32GB)
- support auto-recording, loop-styled or normal recording
- recording as MP4 or MOV files
- Recording duration can be 5/10/30/40/50/60/90/120 min
- uploading recorded videos to a specified FTP server (FTP over TLS is supported), your Dropbox and Google Drive via WebUI
- Downloading recorded videos via WebUI
- To paired mobile device
- recording as MP4 files
- taking still image snapshots during recording
- timer recording at 15s, 30s, 1min, 2min, 5min
Configuration Management
- Register with 2 Control Hub platforms
- Remote control via Application, WebUI and Control Hub
- Provide comprehensive information regarding the system information of device and working status in real-time
- Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
- Update firmware
- WebUI supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
- Provide HTTP APIs
Network
- Wired Ethernet network: 10/100/1000Mbps
- Wi-Fi 802.11 a/b/g/n/ac
- 3G/4G USB mobile broadband Modem (not included)
- Bluetooth 4.0 BLE

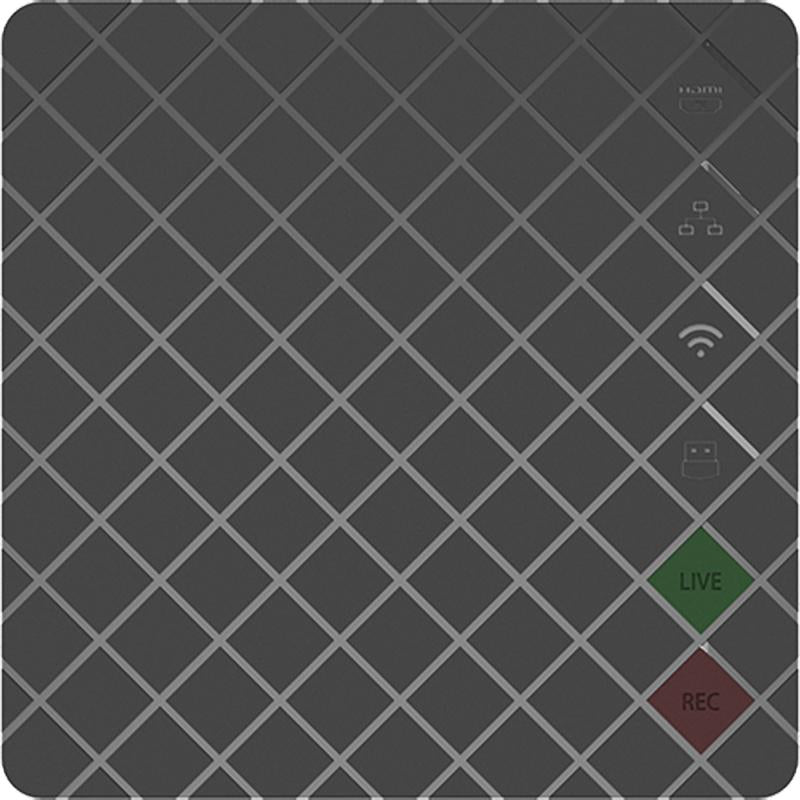

LED Indicators
- Indicate the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
- Indicate the working state of the device: startup, recording, streaming, updating
Power Supply and Consumption
- DC 5V/2A
- Max power consumption: ~9.6 W
Form Factor
- 94.20mm x 94.20mm x 22.30mm
Accessories
- AC adapter
- HDMI cable
Working Environment
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
