Magewell Ultra Stream SDI - MAGEULTTRMSDI

MagewellSKU: MAGEULTTRMSDI

Price:
Sale price£375.00(incl. VAT)
£312.50

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

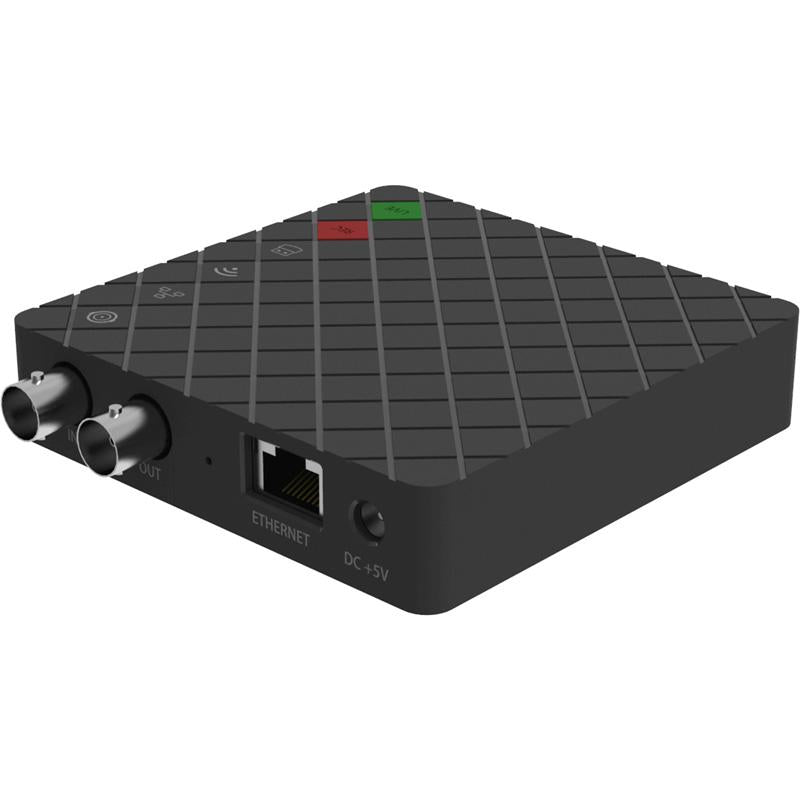

Magewell Ultra Stream SDI

Dedicated SDI streaming encoder with loop-through

FEATURES

  • Dedicated SDI streaming encoder with loop-through
  • Live streaming to popular services such as Facebook Live, YouTube or Twitch
  • Streams to a custom-specified RTMP or RMTPS server and supports sending RTSP streams
  • Records video to the internal storage, a connected USB drive or an associated smartphone
  • On-device controls plus intuitive smartphone app and browser-based web UI

SDI Specific Features

  • Support for up to 2048x1080 60fps input and loop-through signals

Audio Input/Output

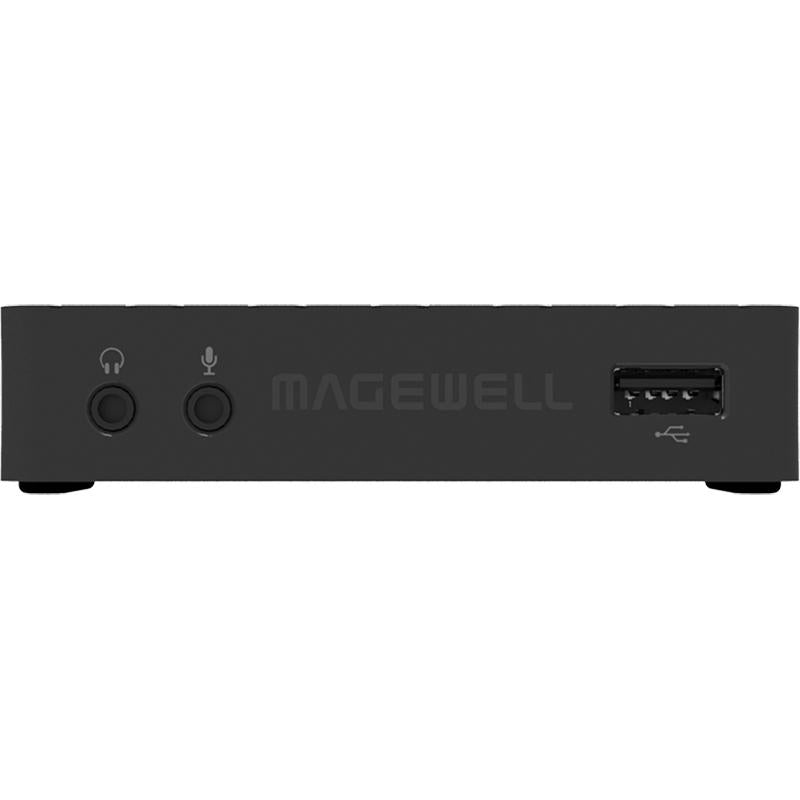

  • Add narration through the analogue microphone input
  • Monitor the input signal through the analog headphone output

Encoding Features

  • H.264 or HEVC (video) and AAC High Quality (audio) encoding; Video bitrates up to 8Mbps

Streaming Features

  • Stream to servers or platforms based on RTMP or RTMPS protocol
  • Stream to 2 servers simultaneously
  • Support for RTSP protocol

Recording Features

  • Record to internal storage (32GB), USB flash drive or the associated smartphone
  • Record as MP4 or MOV files

Others

  • Internet connectivity via wired Ethernet, Wi-Fi or optional 3G/4G modem support
  • Control via on-device buttons, intuitive smartphone app or browser-based interface
  • HTTP-based APIs for custom integration

WHAT'S IN THE BOX

  • Ultra Stream SDI
  • 1x Power Adapter (US/EU/UK/AU/JP)
  • 1x Power Cable

Ultra Stream SDI Specifications

Input Features
  • Max input & loop-through signal: 2048x1080 60fps
  • Supported SDI inputs include:
    • 2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • 1280x720p 25/29.97/30/50/59.94/60
    • 720x576 25p/50i (PAL SD)
    • 720x480 29.97p/59.94i (NTSC SD)
  • 8/10/12-bit color
  • Support 16-Channel SDI embedded audio
  • Input audio from 3.5mm microphone

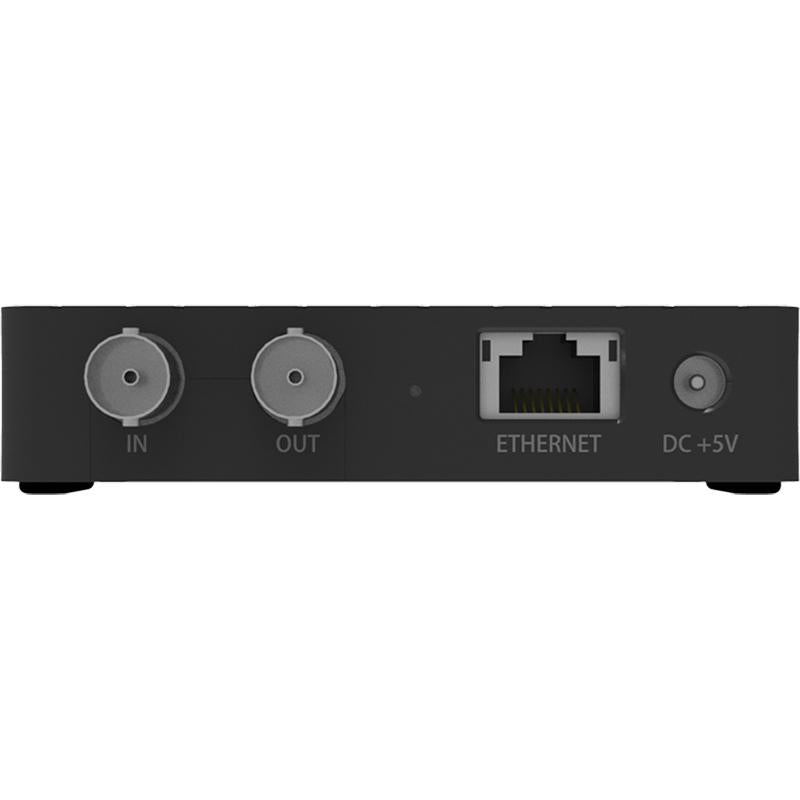

  • SD/HD/3G BNC input & loopthrough
  • SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standards

Encoding Features

  • Dual-stream encoding: main stream and sub stream
  • Max bitrate:
    • Main Stream - 8Mbps
    • Sub Stream - 2Mbps
  • Supported resolutions:
    • HD: 1920x1080, 1600x1200, 1600x900, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768
    • SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
  • Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
  • H.264/H.265(HEVC) video encoders
  • Encoding 2-channel AAC at 48kHz, 16-bit
  • Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
  • Extracting audio from SDI signal and output through 3.5mm headphone
  • Encoding videos after de-interlacing

Streaming Features

  • Natively support streaming to Facebook, Twitch and YouTube
  • Supported streaming protocols including RTSP/RTMP/RTMPS
  • Up to 2 streaming sessions simultaneously

Recording Features

  • Recording to a USB flash drive, internal SD storage and paired mobile device simultaneously
  • When recording to a USB Flash Drive
    • support auto-recording, normal recording
    • recording as MP4 or MOV files
    • Recording duration can be 5/10/30/40/50/60/90/120 min
    • Downloading recorded videos via WebUI
  • When recording to internal SD storage (32GB)
    • support auto-recording, loop-styled or normal recording
    • recording as MP4 or MOV files
    • Recording duration can be 5/10/30/40/50/60/90/120 min
    • uploading recorded videos to a specified FTP server (FTP over TLS is supported), your Dropbox and Google Drive via WebUI
    • Downloading recorded videos via WebUI
  • When recording to paired mobile device
    • recording as MP4 files
    • taking still image snapshots during recording
    • timer recording at 15s, 30s, 1min, 2min, 5min

Configuration Management

  • Register with 2 Control Hub platforms
  • Remote control via Application, WebUI and Control Hub
  • Provide comprehensive information regarding the system information of device and working status in real-time
  • Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
  • Update firmware
  • WebUI supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provide HTTP APIs

Network

  • Wired Ethernet network: 10/100/1000Mbps
  • Wi-Fi 802.11 a/b/g/n/ac
  • 3G/4G USB mobile broadband Modem (not included)
  • Bluetooth 4.0 BLE

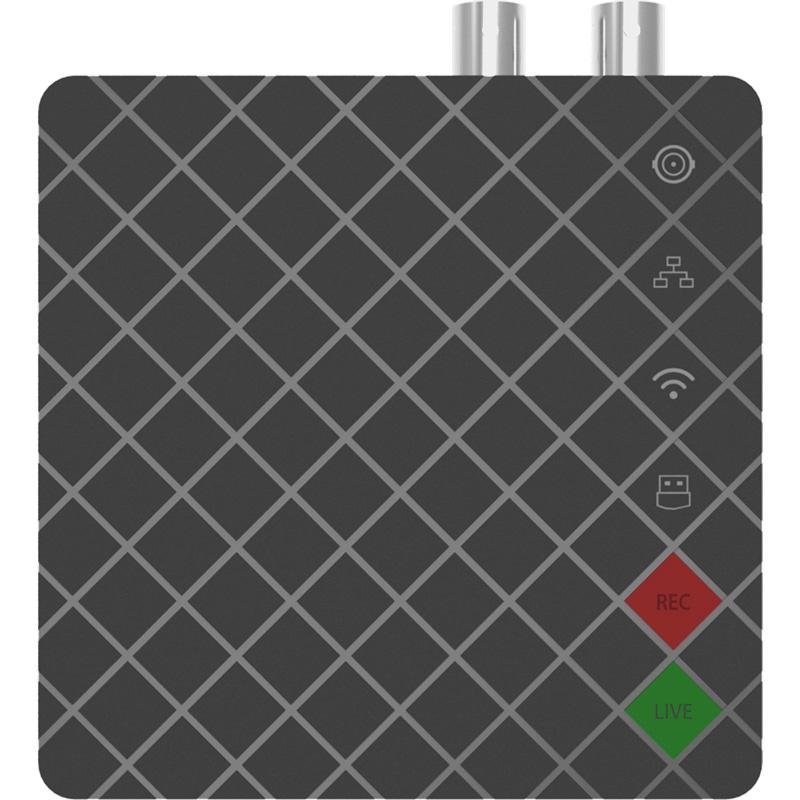

LED Indicators

  • Indicate the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
  • Indicate the working state of the device: startup, recording, streaming, updating

Power Supply and Consumption

  • DC 5V/2A
  • Max power consumption: ~7.2 W

Form Factor

  • 94.20mm x 94.20mm x 22.30mm

Accessories

  • AC adapter

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
