Description

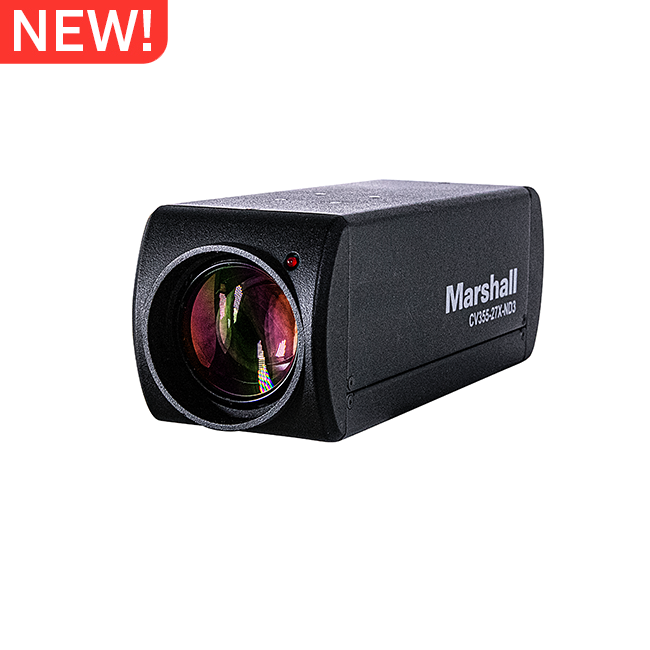

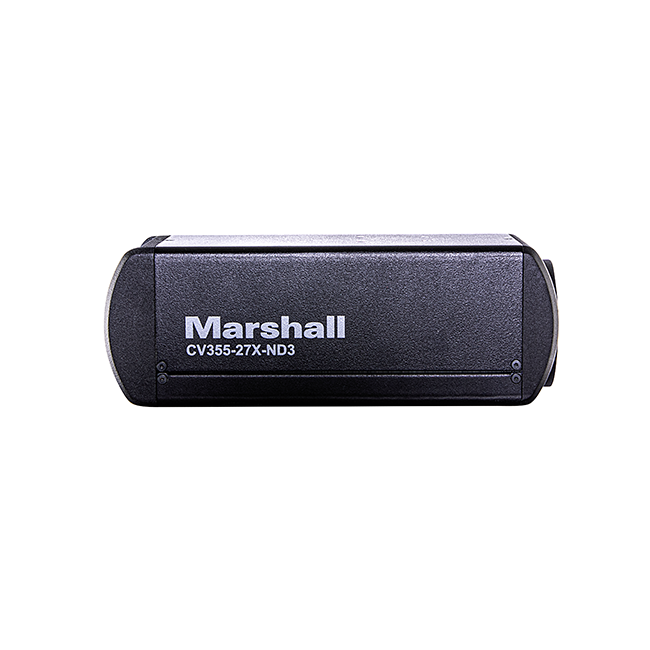

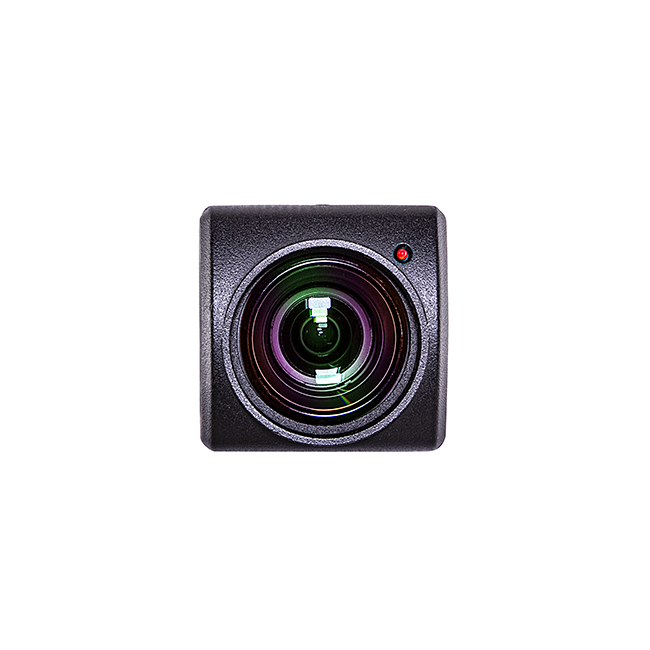

Marshall Electronics CV355-27X-ND3 FHD60 27x with NDI® (NDI HX2, NDI HX3) & 3GSDI
FEATURES
- 8.5 Megapixel (1/2.5″) FHD sensor
- 27x Optical Zoom (5.56~150.29mm) & 12X digital zoom
- HOV Wide/Tele: 68° / 3.2°
- Resolutions and frame rates:
- 1080p 60/59.94/50/30/29.97/25 fps
- 1080i 60/59.94/50 fps
- 720p 60/59.94/50/30/29.97/25 fps
- Supports NDI HX2 and HX3
- NDI/IP, 3G/HD-SDI, and HDMI simultaneous outputs
- Switchable NDI and IP output
- Ethernet I/O supports video, control, and PoE over a single cable
- RS232 and 3.5mm audio input with passthrough
The CV355-27X-ND3 27X optical zoom NDI® (NDI HX2, NDI HX3) camera utilizes a professional grade 8.5-megapixel sensor to capture crisp FHD video up to 1920×1080 at 60fps with support for all FHD formats. Marshall’s straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.
27X Optical Zoom
The 27X optical zoom block offers an extensive zoom range from 5.56mm to 150mm starting at 60° all the way out to 3.2° horizontal angle-of-view for maintaining image crispness from ultra-wide to long telephoto shots.
NDI® (NDI HX2, NDI HX3) Workflow
keep your productions looking great NDI® preserves visual quality, frame accuracy, and source synchronization. NDI® also opens up a wide range of NDI® Tools available to make your new camera easily discoverable, controllable, adjustable, and consumable into NDI® workflows.
Low-light Sensitivity
The CV355-27X-ND3 operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.
NDI® Network
Ideal for use in NDI® networked and A/V installations, the CV355-27X-NDI offers the convenience of NDI® HX2|HX3, 3G/HDSDI and HDMI simultaneous outputs with stereo audio embedding.
CV355-27X-ND3 Applications:
The CV355-27X-ND3 is suitable for use in networked FHD and workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, concerts, house of worship and many more.
WHAT'S IN THE BOX
- x Marshall CV355-27X-ND3 27X Camera Body
- 1x Power Supply Unit (PSU)
- 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
SPECIFICATIONS
| CV355-27X-ND3 Specifications | |
| Sensor | IMX317 |
| Optical Zoom | 27x |
| Digital Zoom | 12x |
| Angle of View (H) | 60° |
| Vertical Viewing Angle | 35° |
| Diagonal Viewing Angle | 68° |
| Aperture | F1.66~F4.98 |
| Focal Length | f=5.56mm~150.29mm |
| Focus Distance | Wide：1m ~ ∞ / Tele：1.5m ~ ∞ |
| MTF | Wide: center 1100/corner 900 Tele: center 1100/corner 800 |
| Field of View | Wide Horizontal viewing angle=60° (+/-5%) Tele Horizontal viewing angle=3.2° (+/-5%) |
| Minimum Environmental Illumination | 10 lux |
| Camera | |
| Stream | Dual Stream (Main/Sub) / Webpage |
| Streaming Protocol | RTSP / RTMP / RTMPS / SRT / NDI(HX2/HX3) |
| Video Compression | HEVC (H.265) / AVC (H.264) / MJPEG |
| Audio Compression | G.711 / AAC |
| Preset | 256 |
| Preset Speed | NA |
| Focus System | Auto/ One-Push AF / Manual |
| Electronic Shutter | 1/1 to 1/10000 sec |
| Exposure Control | Auto / Shutter Pri / Iris Pri / Manual |
| Gain Control | Auto, Manual |
| Brightness Control | Yes |
| 3D NR | Yes |
| WDR | Yes |
| Backlight Compensation | Yes |
| White Balance | Auto, Manual R/B Gain |
| Flip / Mirror | Yes |
| Firmware Update | Operation on Webpage |
| Output Resolution | |
| HDMI | 1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 fps 1080i : 60 / 59.94 / 50 fps 720p : 60 / 59.94 / 50 / 30 / 29.97 / 25 fps |
| 3G-SDI | 1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 fps 1080i : 60 / 59.94 / 50 fps 720p : 60 / 59.94 / 50 / 30 / 29.97 / 25 fps |
| Stream | PTZ view 1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 fps 1080i : 60 / 59.94 / 50 fps 720p : 60 / 59.94 / 50 / 30 / 29.97 / 25 fps 360p : 30 / 29.97 / 25 fps |
| Webpage | PTZ: MJPEG 360p |

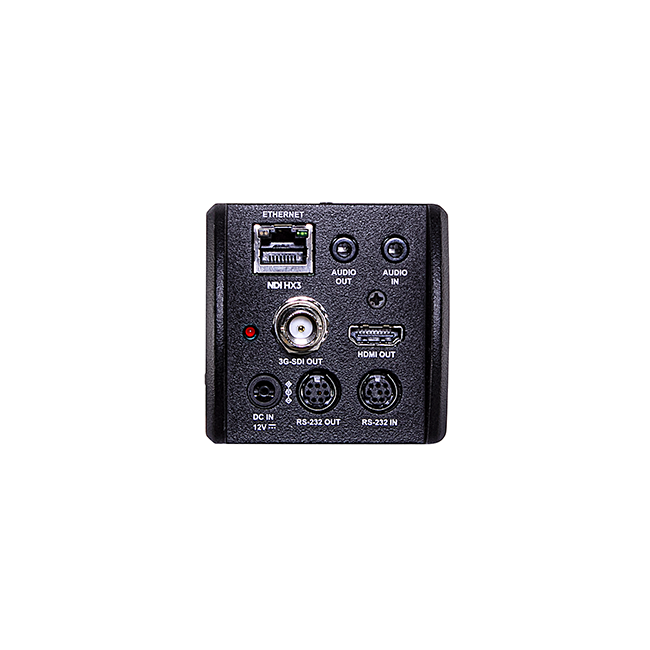

| Interface | |
| Line In | x1 ; 3.5mm phone jack |
| Line Out | x1 ; 3.5mm phone jack |
| Audio Output | HDMI / 3G-SDI / RTSP / RTMP / SRT |
| Audio Type | Stereo, Unbalanced |
| Audio Compression Format | AAC |
| HDMI | x1 |
| Audio Output | Yes |
| HDMI Color Format | RGB / YUV422 |
| 3G-SDI | x1 |
| Audio Output | Yes |
| Serial | RS232 |
| RS232 In | RS232 In ; Mini-Din x1 |
| RS232 Out | RS232 Out ; Mini-Din x1 |
| Network | |
| Ethernet RJ45 Port | x1 ; 1Gbps |
| Number of Clients (connection) | RTSP 1080P60 *5 |
| Network Protocol | DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, RTCP, RTP, TCP, UDP |
| Network Security | No Critical issues |
| Camera Control | |
| Serial Control | RS-232 In x1 ; RS-232 Out x1 |
| Protocol | VISCA |
| Baud Rate | 9600 / 38400 |
| Network | Webpage HTTP CGI HTTP API Onvif Profile S VISCA over IP |
| General | |
| Tally Light | Yes ; Red |
| Service Button | NA |
| Power Supply | POE ; IEEE 802.3af DC 12V/3A ; EIAJ Type 4 |
| Power Consumption | PoE : ≦ 10.5W ; DC : ≦9W |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -20 to 60 °C |
