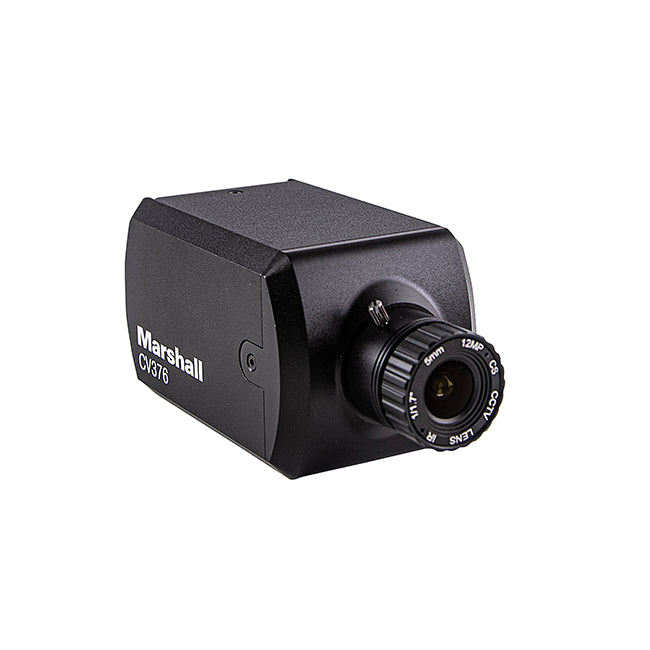

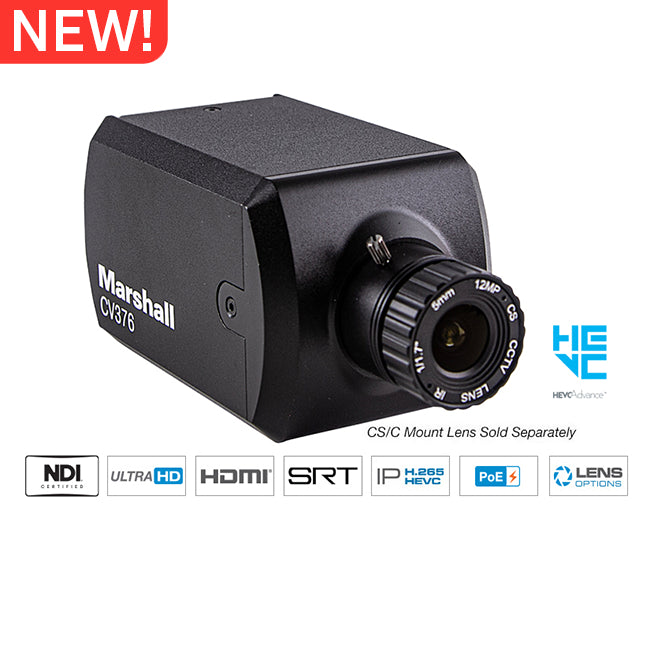

Marshall Electronics CV376 Compact POV Camera NDI HX3 & HDMI Accepts CS Mount Lens
3840x2160p up to 60fps over HDMI & IP (NDI HX3 supports up to 1080p50/60)
FEATURES
- 8.46 Megapixel 1/2.8″ UHD sensor
- Flexible interchangeable CS & C lens mount (lens sold separately)
- Simultaneous HDMI & Ethernet IP video outputs
- Supports NDI HX3/HX2, RTSP, RTMP & SRT streaming protocols
- H.264 and HEVC video codecs
- 3840×2160 up to 60P
- Audio input for embedding audio into video output
- I/O breakout cable with integrated OSD control joystick
- VISCA over IP & Web GUI remote control
- Powered via included 12VDC power supply or PoE
The Marshall CV376 network streaming POV camera features a new sensor that delivers clear UHD video via IP streaming. This compact camera provides exceptional video through simultaneous HDMI and Ethernet IP outputs, supporting efficient NDI HX3, SRT, RTSP, RTMP and HEVC streaming for modern production workflows. The durable aluminium alloy body with protected rear I/O wings ensures reliable operation in demanding environments, while the advanced sensor delivers crystal-clear, colour-accurate images with enhanced low-light sensitivity and refined remote adjustment capabilities.
Featuring the efficient NDI HX3 codec, the CV376 delivers premium-quality, low-latency streaming with end-to-end latency of approximately 100ms while using significantly less bandwidth than conventional streaming methods. Simultaneous HDMI output and support for multiple streaming protocols including NDI HX3/HX2, SRT, RTSP, RTMP, H.264 and HEVC provide exceptional workflow flexibility.
The CV376 features a flexible interchangeable CS/C lens mount with DC iris support, allowing users to choose from a wide range of Marshall CS and C mount prime and varifocal lenses. This makes the camera ideal for applications requiring longer throw distances, telephoto lenses or specialised optics.

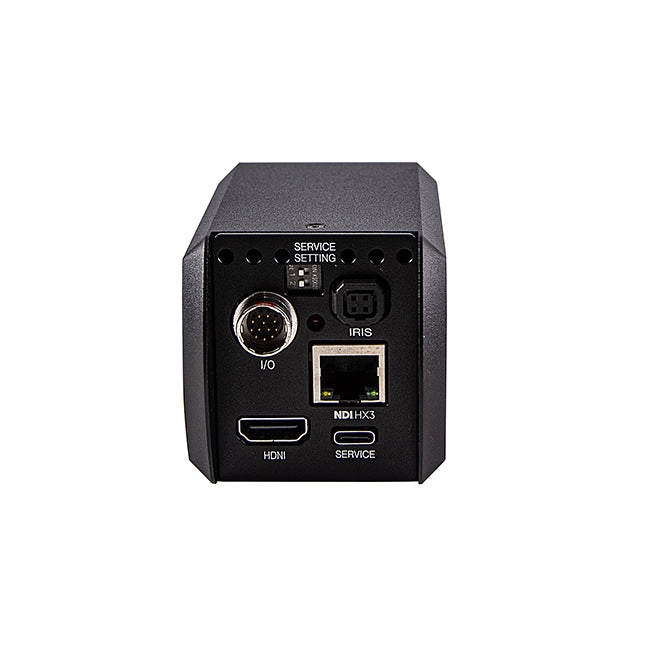

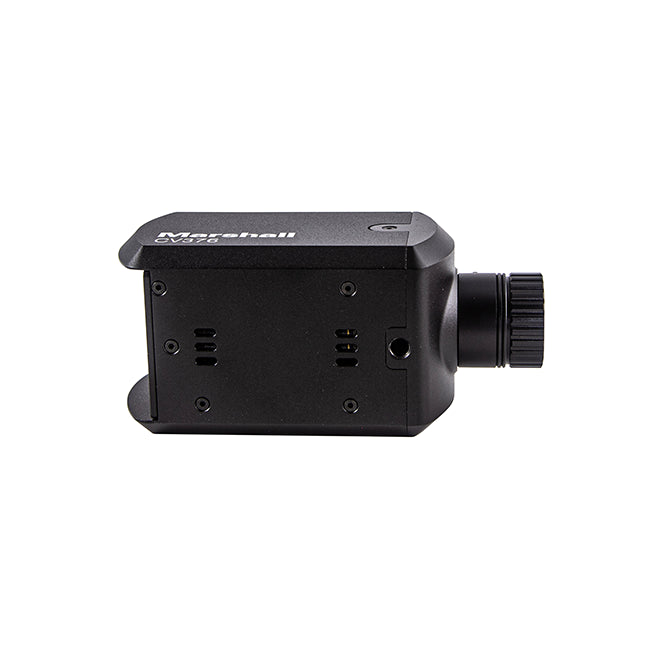

Machined from a solid block of aluminium alloy, the compact CV376 is built for durability while maintaining a discreet footprint. The included breakout cable provides audio input, power and an integrated joystick for quick access to on-screen menus. Remote camera adjustment and image matching are available through VISCA over IP or the intuitive web-based GUI. The camera can be powered using the included 12VDC power supply or via PoE over a single CAT cable for simplified installation.
WHAT'S IN THE BOX
- 1x Marshall CV376 Camera Body
- 1x Camera Breakout Cable
- 1x Power Supply Unit (PSU)
SPECIFICATIONS
| Sensor | |
| Image Sensor | 1/2.8” Progressive CMOS (Approx. 8.46 megapixels) |
| Scanning System | 16:9 Progressive |
| Sync. System | Internal |
| Effective Pixel | 3840(H) x 2160(V) |
| Min. Illumination | 0.5Lux (Day), 0.01Lux (Night) |
| Optics | |
| Lens | CS Mount Compatible |
| Functions | |
| Back Light Compensation | WDR, BLC |
| Exposure | Auto / Manual |
| White Balance | AUTO / Manual / Indoor / Outdoor / One Push / AUTO Tracking(ATW) |
| Day & Night System | Day / Night: TDN(ICR) |
| Electronic Shutter | 1/30~1/10000 |
| Functions | Image Mirror/Flip, 2D+3DNR, Anti Flicker |
| Ethernet | |
| IP Protocols | NDI|HX2, NDI|HX3, SRT, RTMP, RTSP |
| Video Encode Format | H.264 / H.265 (Note: RTMP supports only H.264) |
| Video Output | |
| Interfaces | HDMI, Ethernet |
| Output Resolutions (HDMI) | 2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94/60, 720p25/29.97/30/50/59.94/60 |
| Output Resolutions (IP) | 2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60 |
| Output Resolutions (NDI|HX2) | 2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60 |
| Output Resolutions (NDI|HX3) | 1080p50/60 |
| Audio Input | |
| Line Level | 16kHz, 32kHz, 48kHz sample rates |
| Control | |
| Network | Web GUI / VISCA over IP |
| General | |
| Operation Temperature | 0℃ ~ 50℃ |
| Power Input | 12VDC (10V to 13.5VDC) |
| Power Consumption | 12VDC power: 5.625W, POE power: 6.7W |
| Dimensions | 99.08mm(L) x 56mm(W) x 56mm(H) (without lens) |
| Weight | 0.8 lbs (without lens) |
