Marshall Electronics CV566 3GSDI HDMI Mini GENLOCK Camera

SKU: CV566

Price:
Sale price£539.88(incl. VAT)
£449.90

(ex VAT)

Tax included

Stock:
In stock
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

Marshall Electronics CV566 3GSDI HDMI Mini GENLOCK Camera

The world's favourite POV cameras, the 500 & 300 series from Marshall are now available with GENLOCK. Introducing the New CV566 & CV366, built around the next generation Sony 1/2.8" sensor and Tri-Level Sync feature for faster seamless switching.

FEATURES

2.2 Megapixel (1/2.8") 16:9 HD
Durable Body with interchangeable M12 lens mount (sold with 3.6mm)
3GSDI (SMPTE 292M & 424M) + HDMI simultaneous outputs
Tri-Level Genlock Sync for faster more seamless switching via 3GSDI
Full-HD Resolutions: 1920x1080p, 1280x720p and 1920x1080i
Framerates Supported: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
Remote adjust & match via Camera Control Software, CV-RCP-V2 (CCU) or 3rd party sources
Micro-USB port for firmware upgrades in the field (downloadable from website)

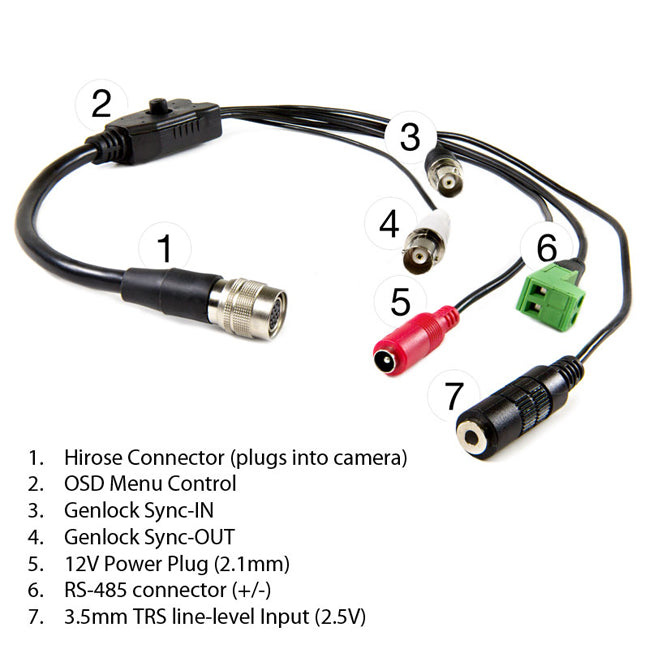

Locking Hirose Cable: Genlock (I/O), RS485 control, Audio (stereo) and 12V Power
Includes 12v power supply, can operate 12V+/-10% with a 6 watt draw

Mini CV566 Genlock Camera is built around a next generation Sony 1/2.8" sensor and Tri-Level Sync feature for quicker seamless switching. Delivering exceptional video performance from a mini-size body with 3GSDI & HDMI. 1920x1080p60 (progressive), 1280x720p & 1920x1080i (interlaced) with a wide selection of framerates including 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60fps. Supplied with 3.6mm M12 lens.

New Sony 1/2.8" (6.46mm) CMOS Solid-Sate Image Sensors

The next generation Sony Exmor sensors provide clear HD images with true color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR light wavelengths can be captured.

Genlock Tri-Level Sync Feature

Tri-level sync runs at higher frequency which allows multiple cameras to be plugged into HD workflows already in sync (genlock) with much less latency when switched and more seamless transitions.

Durable, Flexible, Powerful, Performance

The durable CV500-series cameras are chiseled from one block of aluminum alloy with rear panel protection, which enable them to be used in rough environments and continue to produce clean reliable signals.

CV566 Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter.

SPECIFICATIONS

Sensor
Sensor Type 1/2.8″ 2.2 Megapixel
Resolution & Frame Rates
HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60
HD 1920x1080i 50, 59.94 & 60
HD 1280x720p 50, 59.94 & 60

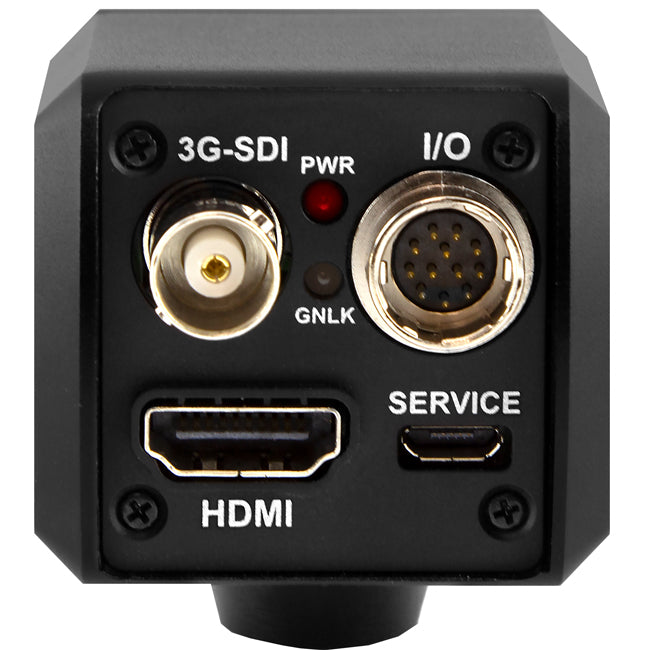

Input & Output Connectors
Video Output 1x 3G-SDI & 1x HDMI
I/O Breakout Cable 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input & 1x Tri-Level Genlock
Firmware & Service 1x Micro-USB
Lens
Mount Type M12
Focal Length 4.0mm
Focus Manual
Image Control Settings
White Balance Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain)
Control Protocol
Control Protocol RS-485
General
Power Input 12V DC



WHAT'S IN THE BOX

  • 1x Marshall CV566 Camera Body
  • 1x Camera Breakout Cable
  • 1x 4.0mm M12 Lens
  • 1x Power Supply Unit (PSU)
