Description

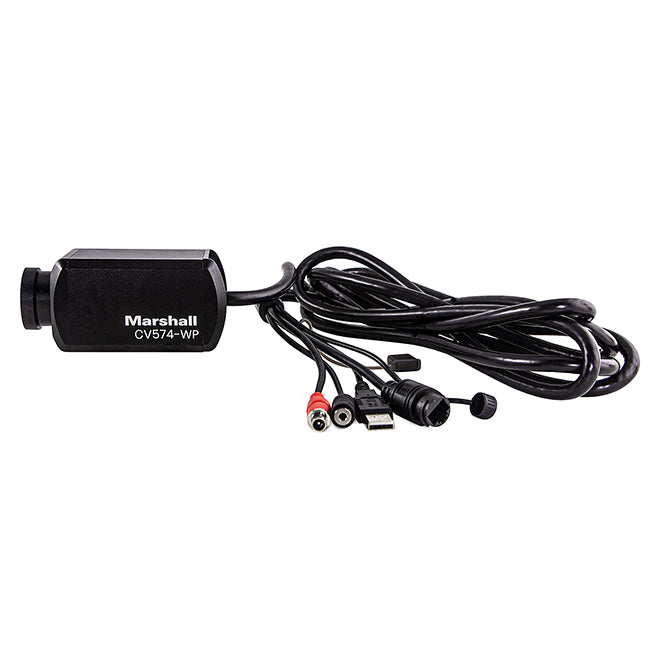

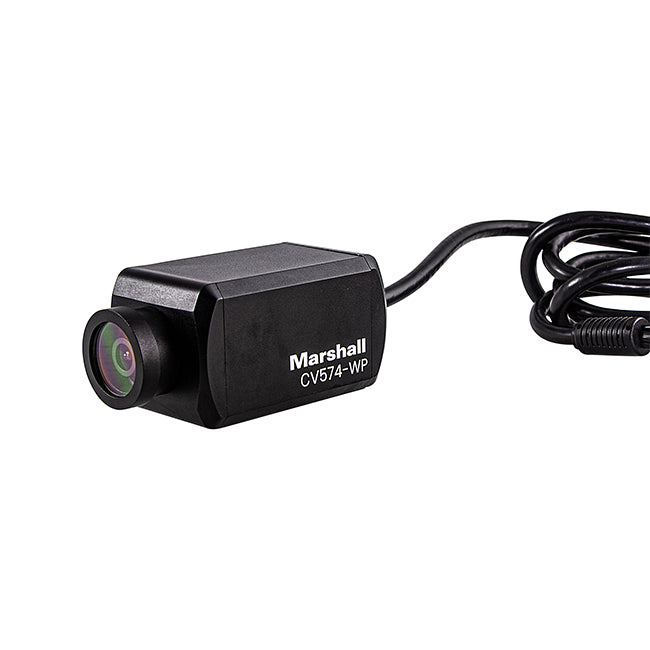

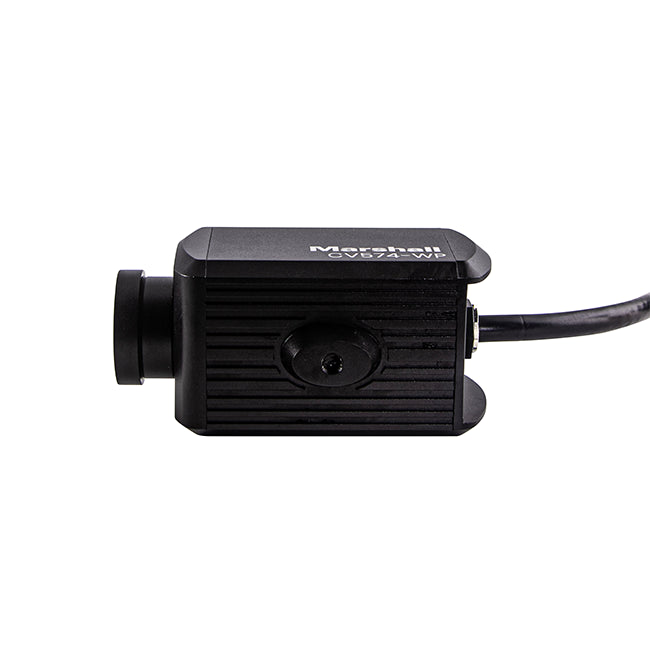

Marshall Electronics CV574-WP All-Weather UHD Camera NDI HX3 with M12 Lens
3840x2160p (UHD) up to 60fps over IP (NDI HX3 supports up to 1080p50/60)
FEATURES

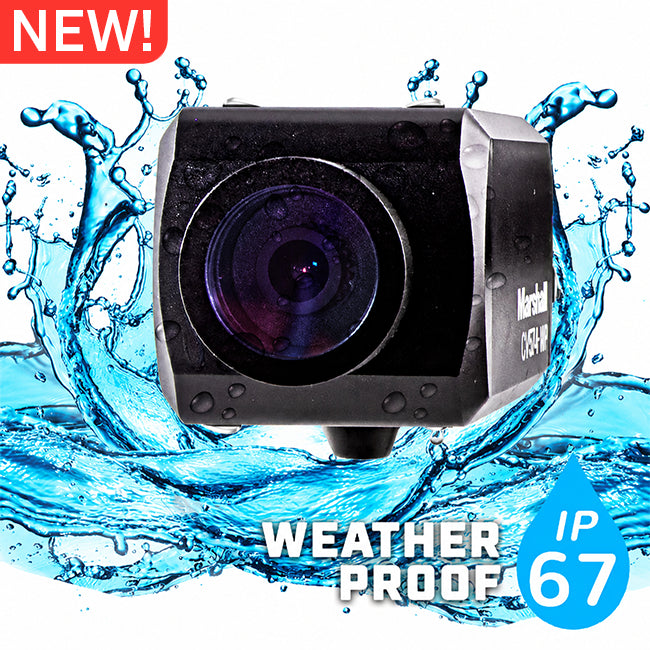

- Ultra-compact, IP67 weatherproof camera
- 8.46 Megapixel 1/2.8″ UHD sensor
- Interchangeable M12 lens mount
- 4.0mm M12 lens included (77° horizontal AOV)
- UHD 3840x2160p60 video output over IP
- Supports NDI HX3/HX2, RTSP, RTMP & SRT streaming protocols
- H.264 and HEVC video codecs
- Audio input for embedded audio
- VISCA over IP and web GUI remote camera control
- Powered via included 12VDC power supply or PoE over CAT cable
- Easy firmware upgrade in the field
- Industrial standard 1/4″-20 mount hole
Built around an advanced 8.46 Megapixel 1/2.8″ UHD sensor, the CV574-WP delivers exceptional 4K image quality with rich, accurate colour in virtually any environment. Designed for outdoor streaming and broadcast applications, the camera provides crystal-clear UHD video in low-light conditions and features a Night Mode that enables IR wavelength capture for imaging in complete darkness.
The CV574-WP features an interchangeable M12 lens mount and comes supplied with a high-quality 4.0mm prime lens with a 77° horizontal angle of view. A wide range of optional Marshall M12 lenses are available, allowing the camera to be tailored to the specific needs of any production, project or installation.

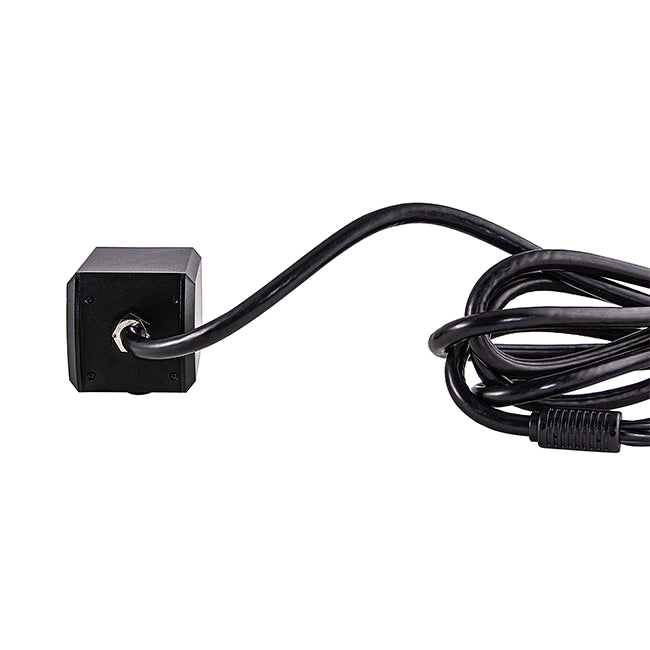

Machined from a single block of aluminium alloy, the CV574-WP combines a rugged IP67-rated housing with a durable 10′ (3m) breakout cable for secure connectivity in demanding environments. An industrial-standard 1/4″-20 mounting thread provides flexible and secure installation across a wide variety of applications.
The CV574-WP supports multiple professional streaming protocols including NDI HX3/HX2, RTSP, RTMP and SRT with H.264 and HEVC codecs for seamless integration into modern IP workflows. An integrated audio input allows audio to be embedded directly into the video stream, while remote camera adjustment and image matching are available through VISCA over IP or the intuitive web-based GUI. The camera can be powered using the included 12VDC power supply or via PoE over a single CAT cable, simplifying installation and reducing cable requirements.
The CV574-WP is ideal for outdoor streaming and network-based video production where image quality, reliability and flexibility are essential. Typical applications include live broadcast, concerts, corporate AV, courtrooms, government assemblies, sports, news, reality television, eSports, live performances and other installations operating in challenging weather conditions.
WHAT'S IN THE BOX
- x Marshall CV574-WP Camera Body
- 1x 10′ Breakout Cable (Attached to Camera Body)
- 1x 4.0mm M12 Lens
- 1x Power Supply Unit (PSU)
SPECIFICATIONS
| Sensor | |
| Image Sensor | 1/2.8” Progressive CMOS (Approx. 8.46 megapixels) |
| Scanning System | 16:9 Progressive |
| Sync. System | Internal |
| Effective Pixel | 3840(H) x 2160(V) |
| Min. Illumination | 0.5Lux (Day), 0.01Lux (Night) |
| Optics | |
| Lens | M12 4.0mm |
| Functions | |
| Back Light Compensation | WDR, BLC |
| Exposure | Auto / Manual |
| White Balance | AUTO / Manual / Indoor / Outdoor / One Push / AUTO Tracking (ATW) |
| Day & Night System | Day / Night: TDN(ICR) |
| Electronic Shutter | 1/30~1/10000 |
| Functions | Image Mirror/Flip, 2D+3DNR, Anti Flicker |
| Ethernet | |
| IP Protocols | NDI|HX2, NDI|HX3, SRT, RTMP, RTSP |
| Video Encode Format | H.264 / H.265 (Note: RTMP supports only H.264) |
| Video Output | |
| Interfaces | Ethernet |
| Output Resolutions (IP) | 2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60 |
| Output Resolutions (NDI|HX2) | 2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60 |
| Output Resolutions (NDI|HX3) | 1080p50/60 |
| Audio Input | |
| Line Level | 16kHz, 32kHz, 48kHz sample rates |
| Control | |
| Network | Web GUI / VISCA over IP |
| General | |
| Operation Temperature | -10℃ ~ 50℃ |
| Power Input | 12VDC (10V to 13.5VDC) |
| Power Consumption | 12VDC power: 5.625W, POE power: 6.7W |
| Dimensions | 113.45mm(L) x 55mm(W) x 61mm(H) |
| Weight | 1.65 lbs |
