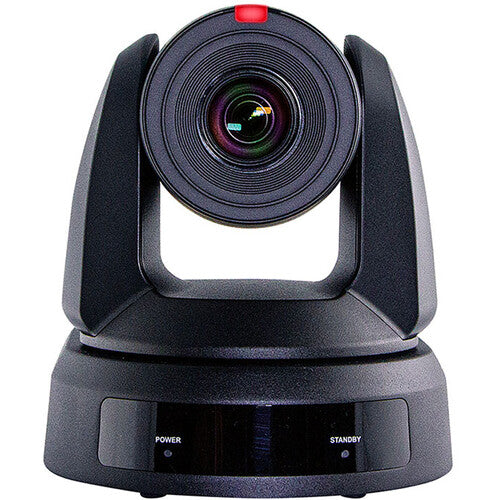

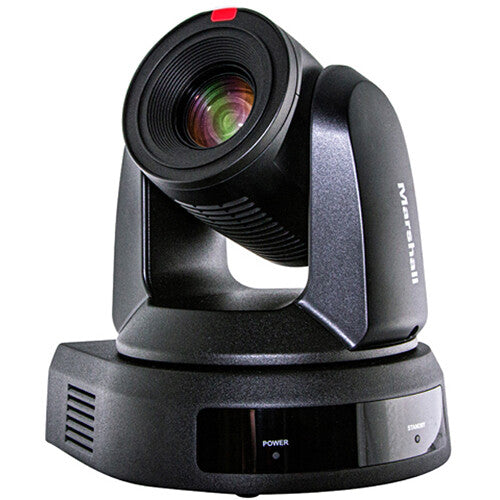

Marshall Electronics CV620-BI2 HD PTZ 20x Camera with 3GSDI, HDMI, USB 3.0 and IP (Black)

Marshall ElectronicsSKU: CV620-BI2

Price:
Sale price£1,810.80(incl. VAT)
£1,509.00

(ex VAT)

Tax included

Stock:
In stock
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

Marshall Electronics CV620-BI2 HD PTZ 20x Camera with 3GSDI, HDMI, USB 3.0 and IP (Black)

CV620-BI (Black)
1920x1080p @ 25, 29.97, 30, 50, 59.94 & 60 / 1920x1080i @ 50, 59.94 & 60 / 1280x720p @ 50, 59.94 & 60

FEATURES

  • 1920x1080p up-to 60fps
  • IP, 3GSDI, and HDMI simultaneous outputs
  • 20x optical zoom (5.3mm to 110mm)
  • Remote control using IR remote (included), VS-PTC-IP or VS-PTC-200 and other 3rd party software/hardware control decks.
  • 3.5mm audio input for external microphone

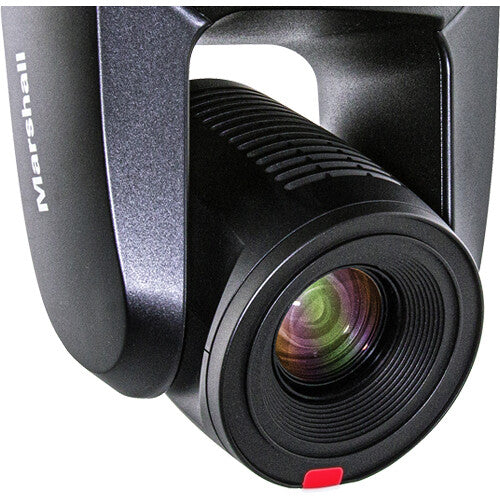

CV620-BI/WI is a compact PTZ camera utilising a professional-grade 2 megapixel sensor to capture crisp HD video at up to 60fps. The camera uses a 20x optical zoom lens, starting at a wide-angle 5.33mm (60° angle-of-view) through to 110mm (3° angle-of-view).

With the choice of three video outputs – IP, 3GSDI and HDMI, CV620-BI can be used with a variety of use-cases and workflows.

The camera also features an RJ45 ethernet connector, allowing a single cable to send video and audio, control with Visca over IP, as well as being able to power the camera with PoE. Signals are encoded with either H.264 or H.265 and can be decoded with any existing IP networked solution.

Marshall’s straightforward design and ease-of-use make this camera an affordable camera for a wide variety of broadcast and professional AV applications.

WHAT'S IN THE BOX

  • 1x Marshall CV620-BI PTZ Camera Body
  • 1x IR Remote Control
  • 1x Power Supply Unit (PSU)
  • 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
  • 1x RS-422 Connector
  • 1x Metal Plate A
  • 1x Metal Plate B
  • 1x M3 Screws Set

SPECIFICATIONS

Sensor
Sensor SONY IMX327
Resolution & Frame Rates
HD 1920x1080p 25, 29.97, 30, 50, 59.94 & 60
HD 1920x1080i 50, 59.94 & 60
HD 1280x720p 50, 59.94 & 60

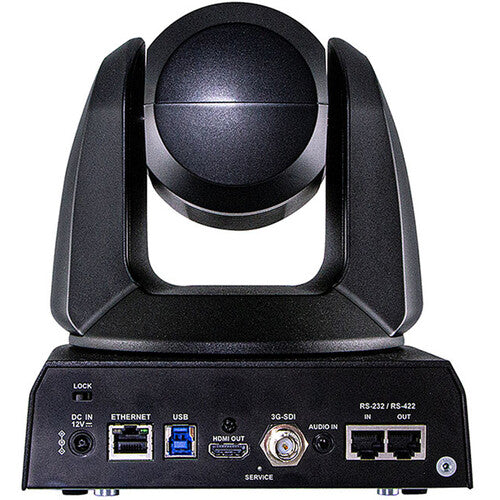

Video Output Connectors
Video Output Connectors 1x IP Ethernet (RJ45), 1x 3GSDI, & 1x HDMI
Lens
Focal Length 5.3mm to 110mm
Optical Zoom Ratio 20x
Audio
Input 3.5mm Stereo
Control Protocol
Control Protocol RS-232/RS-422 & VISCA over IP
