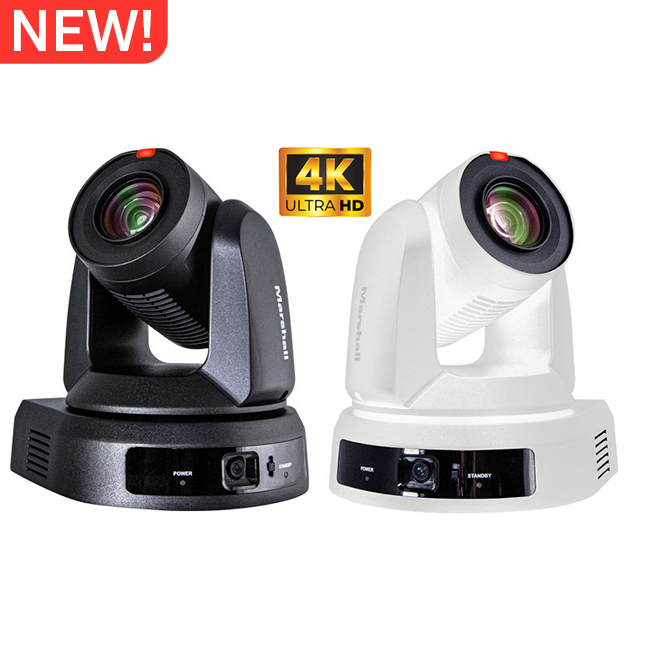

Marshall Electronics CV625-TW 25X UHD60 PTZ Auto Tracking with Dual Camera
CV625-TW (White)
1920x1080p @ 25, 29.97, 30, 50, 59.94 & 60 / 1920x1080i @ 50, 59.94 & 60 / 1280x720p @ 50, 59.94 & 60
FEATURES
- Accurate auto-track, follow and frame using AI facial learning
- 8 Megapixel FHD Sensor (1/1.8″) – 2160p, 1080p, & 720p (progressive), and 1080i (interlaced HDMI output only)
- 3G-SDI, HDMI, Ethernet and USB simultaneous outputs
- 25x optical zoom (7.1mm to 171.95mm) starting at 60° H.AOV, plus fixed base M12 lens camera at 83° H.AOV
- 340° pan and 120° tilt range with selectable PTZ maneuver speeds
- IP Protocols: RTSP, RTMP, RTMPS, SRT, Dante AV-H (Dante Ready)
- 3.5mm TRS stereo audio input (Mic/Line) with embedding on all available outputs
- Power: PoE+ (IEEE 802.3at), DC: 23.5W (max), PoE: 24.5W (max)
This unique system pairs a wide panoramic reference camera with a high-resolution PTZ camera, enabling AI-powered auto-tracking that smoothly follows presenters or subjects without the need for an operator. Whether capturing lectures, sermons, presentations, or live events, the CV625 keeps talent perfectly framed — automatically.
Delivering 4K UHD at 60fps with a 25× optical zoom, the CV625-TB/TW offers professional-grade image quality alongside advanced motion control. Multiple output options including HDMI, SDI, USB, and IP make it easy to integrate into broadcast, streaming, and conferencing environments.
Key highlights:
Dual-camera system with AI auto-tracking
4K UHD60 video quality
25× optical zoom with smooth PTZ movement
HDMI, SDI, USB, and IP outputs
Perfect for all studio, corporate AV, education, governmental and house of worship applications
Marshall CV625-TB/TW PTZ cameras feature the ability to automatically AI track, follow, and frame presenters for a more accurate and smoother self-adjusting presentation. The CV625 4k UHD cameras feature a high-performance 8-Megapixel 1/1.8-inch sensor to capture crisp, high-quality UHD video. The camera delivers up to 3840 x 2160 resolution at 60 frames per second (fps) with an 60-degree horizontal angle of view. The second static camera is a wide-angle view camera made for that panoramic angle of view. The CV625 offers versatility for various applications with its range of outputs, including 4K HDMI/RTSP streaming, Full HD 3G-SDI, Ethernet, and USB 3.0. Combining a 2-camera featured set for both remote and live installations, where the versatility of having a panoramic view of the area and a focused view of the subject or content is vital.
(strong)AI Auto Track, Follow and Frame(/strong)
Take the reins of your production with our AI auto-tracking system, designed to be proactive and predictive. This cutting-edge technology allows you to follow and frame presenters with natural and smooth maneuvers. Use the auto-tracking feature along with the panoramic camera to capture the perfect presentation. With the ability to pan, tilt, and zoom, the system uses AI to recognize faces and learn the movement dynamics of the subject, thereby anticipating motion and ensuring accurate following and framing with smooth transitions.
Two Camera Production
The CV625-TB/TW 4K UHD is equipped with a two-camera set featuring a perfect combination for both your remote and live presentations. With an optical 25X zoom lens, ideal for capturing the presenter or a focused presentation in 4K while having a fixed panoramic wide view of the audience, and the capability to display a head count.
Control Features Made Simple
With the two-camera feature in one unit, you can switch between two cameras or have a picture-in-picture as your output.
Crisp Full-HD Video Output
The CV625-TB/TW 4K UHD are built around a professional-grade 8-Megapixel 1/1.8-inch Sony sensor with smooth 25x Optical Zoom (7.1 mm ~ 171.95 mm) producing clear UHD video up to 3840X2160p60. Smart AI auto-focus identifies faces and maintains accurate and sharp focus of subjects.
WHAT'S IN THE BOX
- 1x Marshall CV625-TB/TW PTZ Camera Body
- 1x IR Remote Control
- 1x Power Supply Unit (PSU)
- 1x US Power Cable, 1x EU Power Cable,
SPECIFICATIONS
| Item | Spec |
| Sensor | 1/1.8″ 8MP (IMX678) |
| Video Format | 2160p : 59.94 / 50 / 29.97 / 25 1080p : 59.94 / 50 / 29.97 / 25 720p : 59.94 / 50 / 29.97 / 25 1080i : 59.94 / 50 |
| Video Output (HD) Interface | HDMI / 3G-SDI / Ethernet / USB3.0 |
| Optical Zoom | 25X |
| Horizontal Viewing Angle | 60° (±5%) |
| Focal Length | 7.1mm~171.95mm ±5% |
| Minimum Object Distance | Tele：1.5m，Wide：1.5M |
| Minimum Illumination | 0.1 lux (F1.6, 50IRE, 30fps) |
| Panoramic Lens | |
| Sensor | 1/2.8″ 8M (IMX415) |
| Video Format | 2160p 60fps |
| Horizontal Viewing Angle | 83.1° |
| People Counting | Yes |
| Tracking Distance | 2~18m |
| PTZ Pan & Tilt | |
| Panning Angle | +170 ~ 170° |
| Panning Speed | 0.1°~100°/sec |
| Tilting Angle | +90 ~ -30° |
| Tilting Speed | 0.1°~60°/sec |
| Tally Light | Yes |
| Software Spec | |
| Preset Positions | 256 |
| Focus System | Auto / Manual |
| Gain Control | Auto / Manual |
| White Balance | Auto / Manual |
| Exposure Control | Auto / Manual |
| WDR | Yes |
| 3D NR | Yes |
| Image Flip | Yes |
| Gesture Control | Yes |
| Tracking | |
| Auto Tracking | Yes |
| Auto Framing | Yes |
| SNR | ≥ 50dB |
| Minimum illumination | 10 Lux |
| Hardware Spec | |
| Power supply | DC , 12V@3A |
| Power consumption | DC Input ≦ 23.5W PoE(802.3at) ≦ 24.5W |
| Interface | |
| Video Output | HDMI 2160p : 59.94 / 50 / 29.97 / 25 1080p : 59.94 / 50 / 29.97 / 25 720p : 59.94 / 50 / 29.97 / 25 1080i : 59.94 / 50 3G-SDI 1080p : 59.94 / 50 / 29.97 / 25 720p : 59.94 / 50 / 29.97 / 25 1080i : 59.94 / 50 |
| Stream Protocol | RTSP / RTMP / RTMPS / SRT / Dante AV-H (Dante ready) |
| IP Stream | PTZ Camera : Stream 1 : H.264/HEVC 2160p 60fps Stream 2 : H.264/1080p 30fps Panoramic Camera : H.264 2160p 60fps |
| IP Compression | H.264, HEVC |
| USB | H.264 2160p 30 fps MJPEG 1080p 60 fps YUV2 480p 60fps HEVC 1080p 60 fps NV12 480p 60 fps |
| UVC Video Compression | H.264 / MJPEG / YUV2 / NV12 / HEVC |
| Video Latency | HDMI/SDI ≦ 67ms Stream ≦ 150ms UVC 4K@30 ≦ 160ms UVC 1080P@60 ≦ 160ms |
| Input | 3.5mm*1 Line In |
| Output | HDMI / 3G-SDI / USB / Ethernet |
| Compression Format | AAC |
| USB port | USB 3.0*1 Type-B |
| HDMI out | HDMI*1 |
| SDI out | 3G-SDI*1 |
| Network | RJ45*1 10M/100M/1G |
| Camera Control | |
| Interface | RS-232 / Ethernet / Remote / USB |
| Protocol | VISCA / VISCA over IP / ONVIF |
| Communication baud rate | 9600 (default) & 38400 |
| HTTP API command | Yes |
| Human Machine Interface | |
| Remote Controller | Infrared remote control Infrared remote control distance: 15m Remote control angle: ±15° |
| Remote Control | Yes, 40KHz |
| OSD Menu | English |
| Webpage | English |
| Environmental Spec | |
| Operating Temperature | 0~40˚C |
| Operating Humidity | 10% ~ 90 % |
| Storage Temperature | -20°C ~ +60°C |
