Marshall Electronics RCP-PLUS Multicamera Control Touchscreen

SKU: RCP-PLUS

Price:
Sale price£963.60(incl. VAT)
£803.00

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

Marshall Electronics RCP-PLUS Multicamera Control Touchscreen

RCP-PLUS ver 3, RS485, VISCA over IP, Compatible with CV300/500 series cameras.

FEATURES

  • 5" Touchscreen Camera Controller
  • For Marshall & Other Popular Cameras
  • 7 Cameras RS-485 or 100 VISCA-over-IP
  • Adjust, Paint & Match Cameras Remotely
  • Up to 1000' Maximum 3-Pin XLR Cable Run
  • Apply Settings to Each or All Cameras
  • White Balance, Exposure, Zoom, Focus
  • Menu Displays on Controller, Not Feed
  • Converts to Fiber for Longer Distances
  • Power via PoE or Included DC Adapter

Powerful Multi-Camera Control, Simplified

The Marshall RCP-PLUS is an intelligent, compact touchscreen controller designed to centrally manage a variety of professional broadcast cameras. Offering both VISCA-over-IP and RS-485 control, this unit allows you to operate and colour-match different types of cameras simultaneously – all from a single device.

With out-of-the-box compatibility for all Marshall camera models (including POV, PTZ, and box cameras) plus support for a selection of third-party cameras, the RCP-PLUS is a smart solution for live events, production studios, and OB trucks.


🔀 Control Mixed Camera Setups with Ease

  • Supports up to 7 cameras via RS-485, or up to 100 when combining RS-485 and VISCA-over-IP

  • Assign adjacent buttons to different protocols without switching modes – ideal for hybrid camera environments

  • Save time and reduce complexity when operating across multiple camera types and positions


Pre-Loaded Camera Profiles

The RCP-PLUS comes pre-programmed to support all major Marshall camera lines – including the CV420e/Ne, CV355-30X, CV420-30X, CV370/374, and CV570/574 series. It’s also compatible with a selection of popular models from other manufacturers, making it a versatile tool for cross-brand control environments.


🎨 Precision Camera Paint Control

Achieve perfect image matching and control across your production with intuitive adjustments for:

  • White balance, exposure, gain, gamma, iris, shutter, pedestal

  • Resolution, frame rate, red/blue level adjustments

  • Use the favourites menu to quickly access critical controls tailored to live events or productions

  • Save and recall camera presets directly to the unit or via USB stick for ultimate flexibility


🖥️ Touchscreen + Tactile Control in One Device

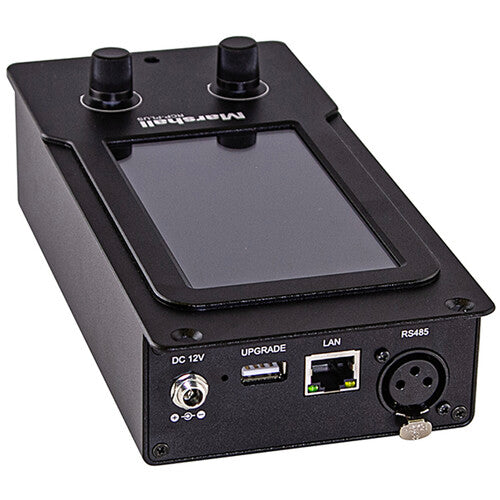

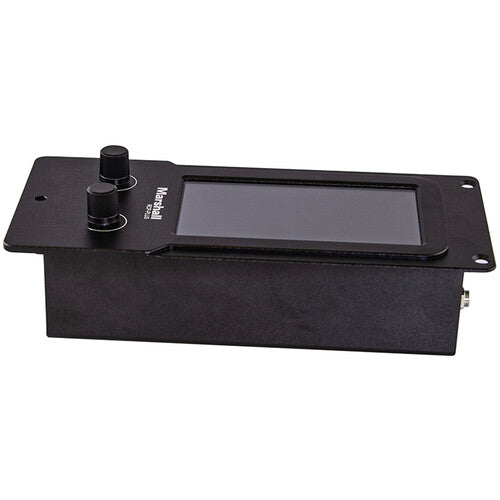

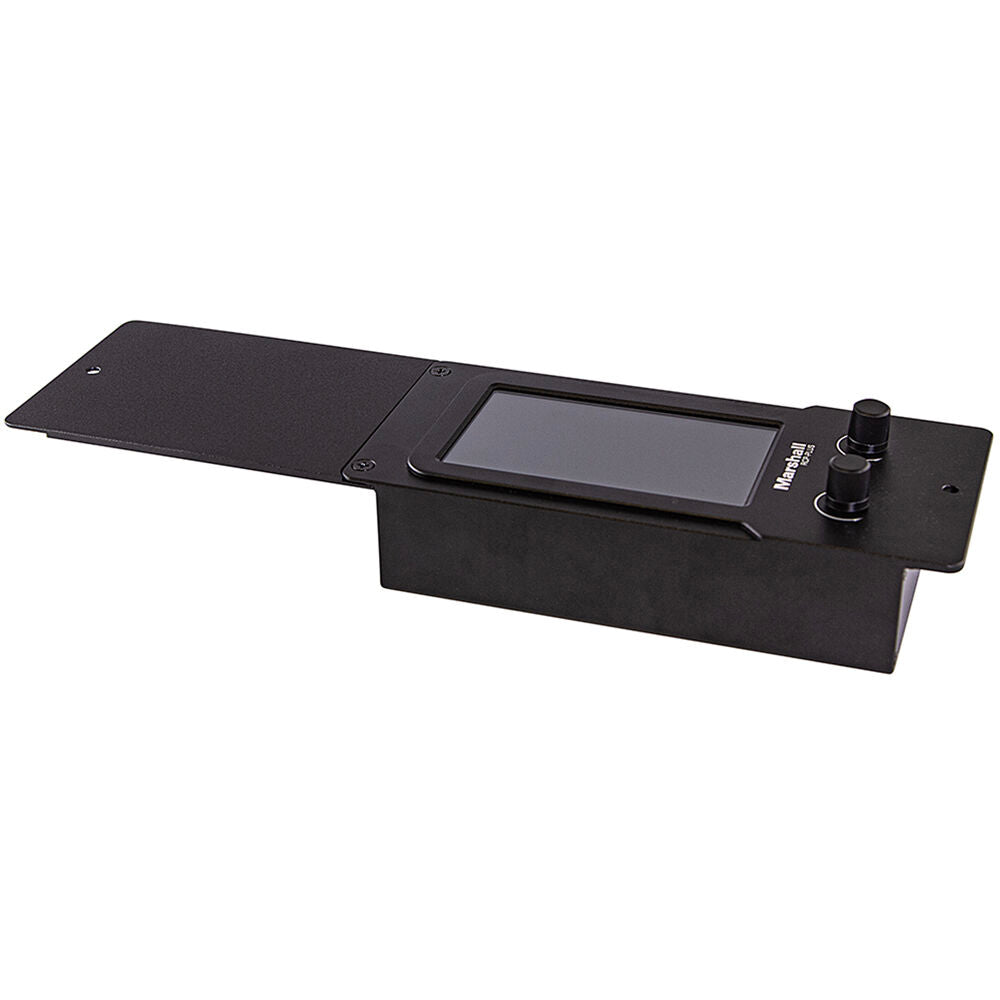

Housed in a robust aluminium chassis, the RCP-PLUS features:

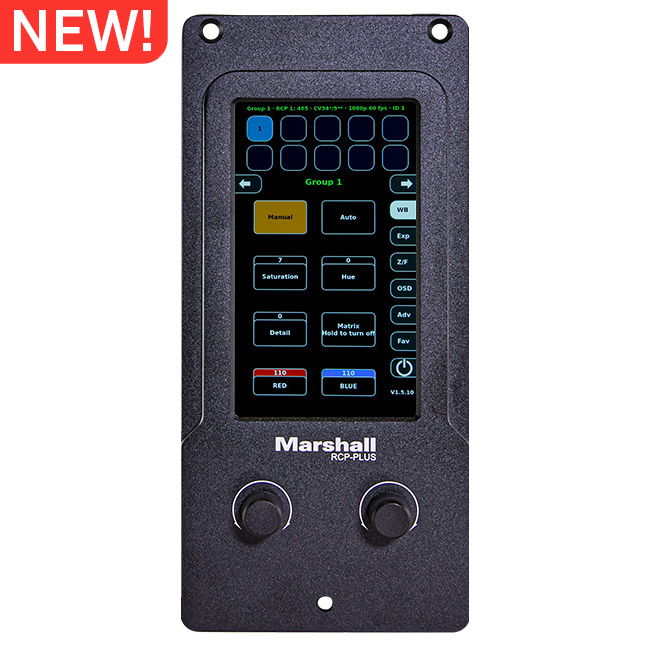

  • A crisp 5-inch TFT LCD touchscreen for rapid navigation

  • Dual precision dials for fine-tuning your camera image with absolute control


📡 Remote Operation via XLR or Fibre

Ideal for remote productions and mobile broadcast setups:

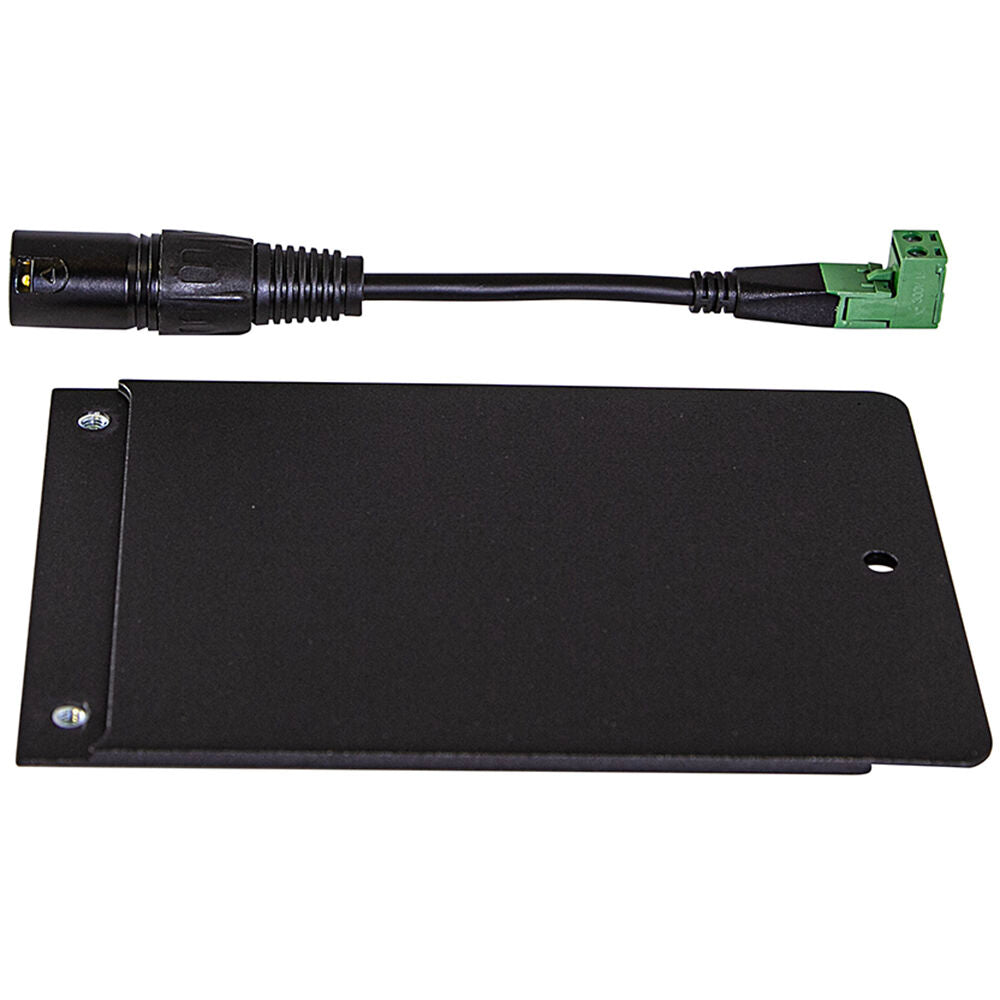

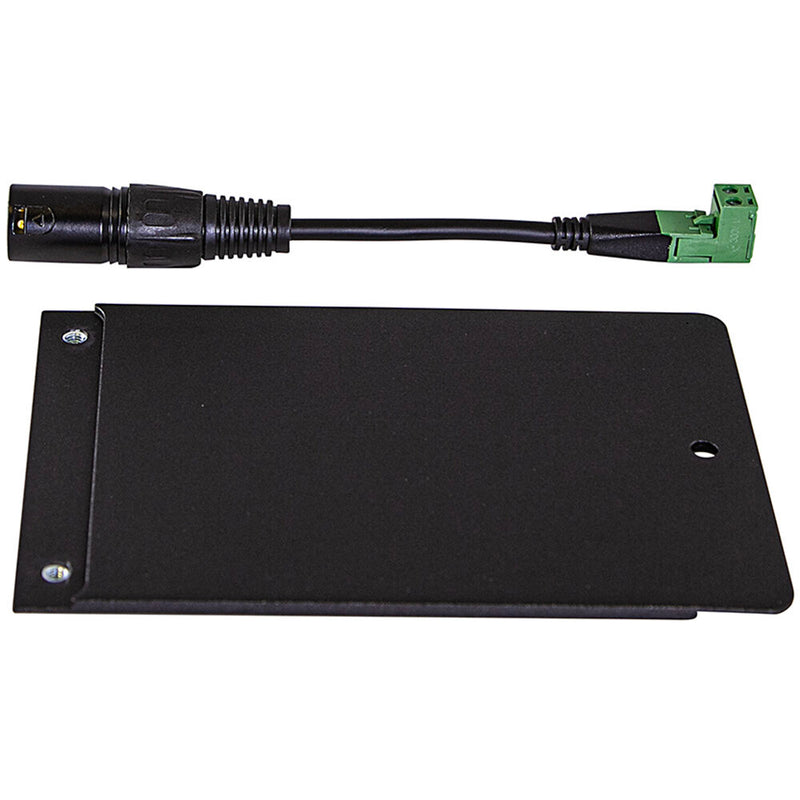

  • Connect via standard 3-pin XLR cable up to 1000 feet (300m) with the included XLR-to-Euroblock adaptor

  • Convert to fibre optic for extended range control in larger environments

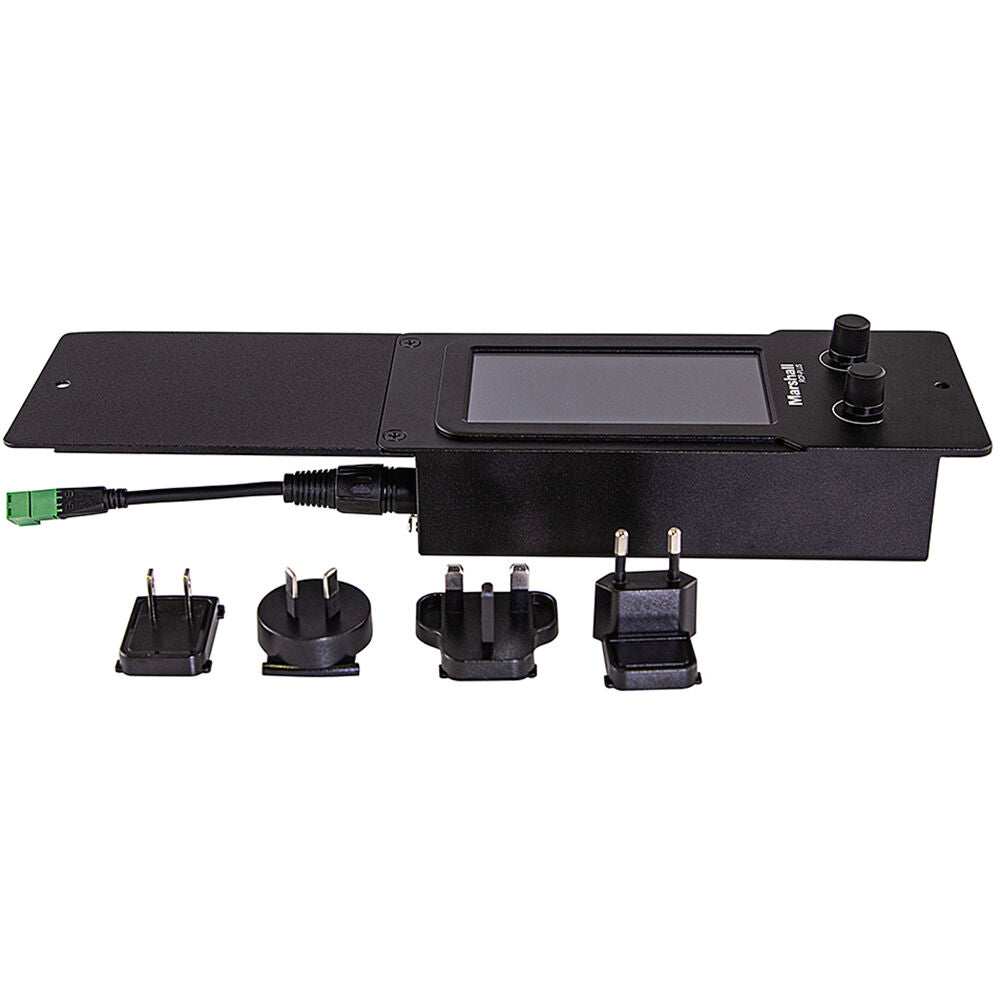

Flexible Power Options

Power the unit via PoE (Power over Ethernet) for simple integration into IP networks, or use the included DC power adapter. Average power draw is less than 12W, making it efficient and reliable in any setting.
