Description

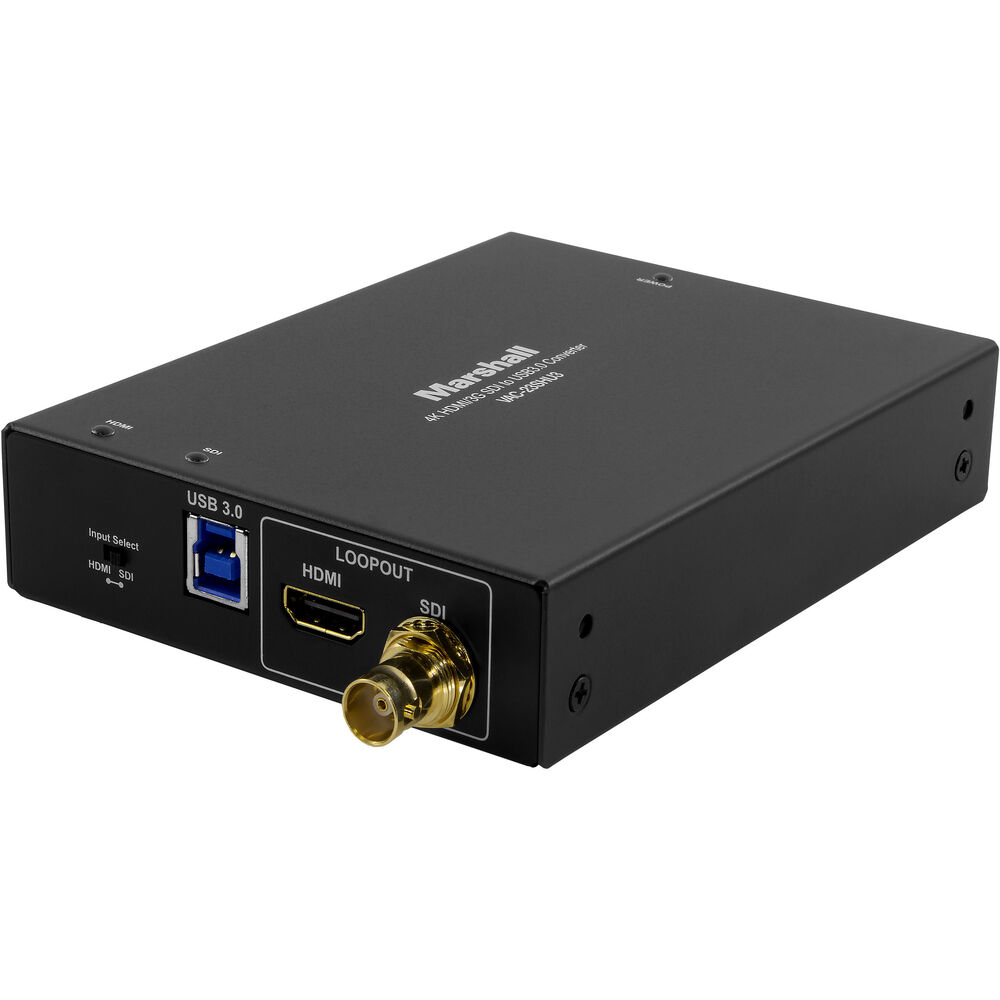

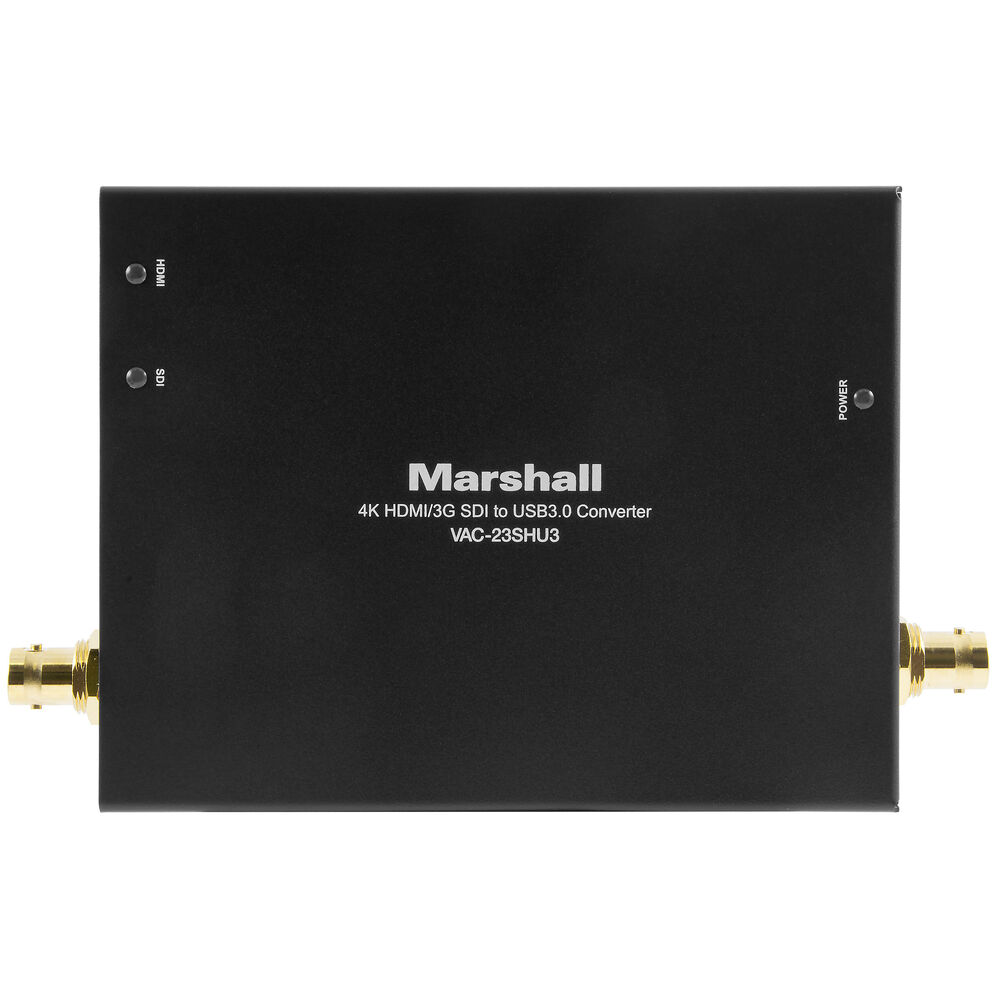

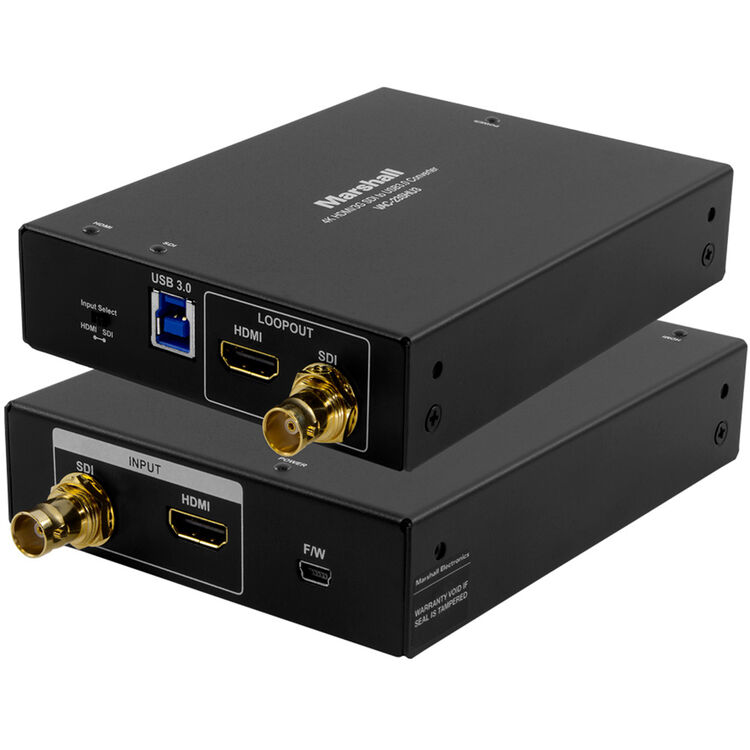

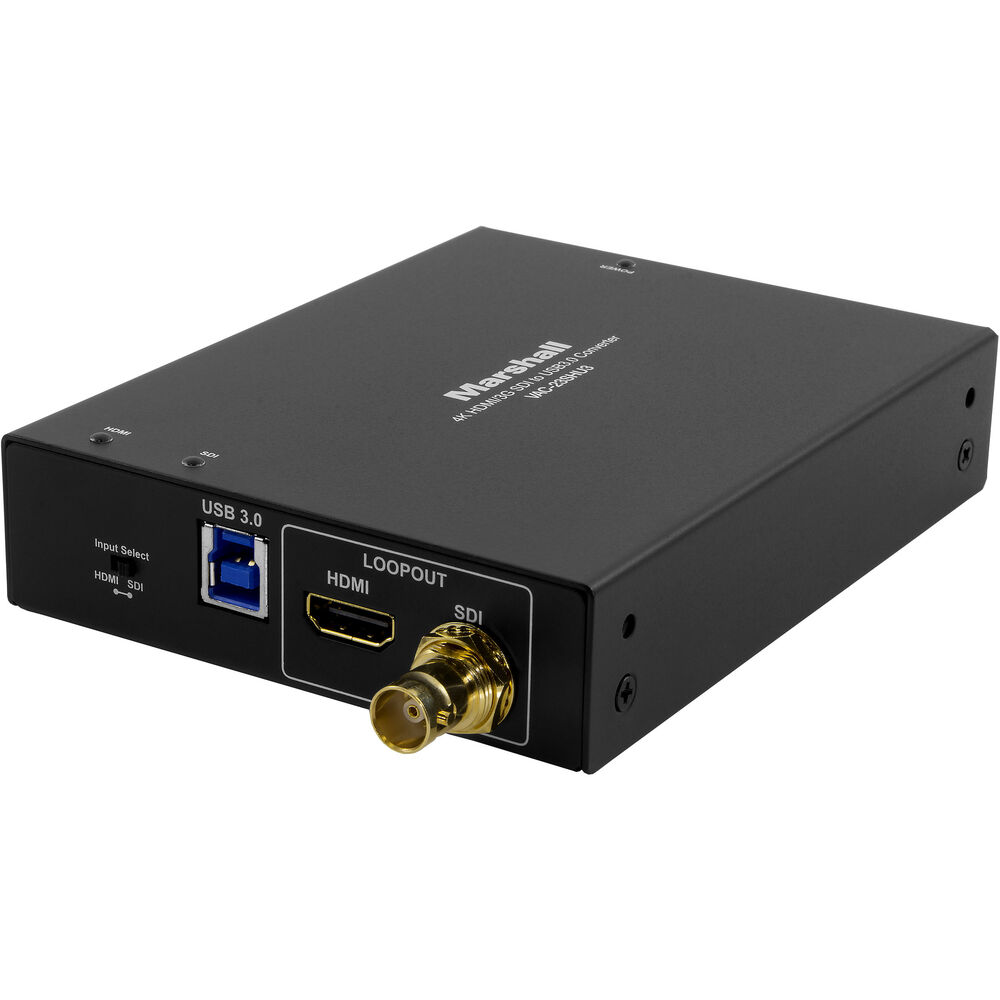

Marshall Electronics VAC-23SHUC HDMI & 3G/SDI Video / Audio to USB-C (USB3.0/2.0) Adapter
FEATURES
- Connect 3G/SDI & HDMI devices to a Mac/PC/Linux computer via USB-C
- Plug & play design ensures instant hassle-free setup
- USB-powered – no separate power supply required
- Computer control interface with UVC control
- 10-bit input sampling
- Compatible with applications including Zoom, Skype & WebEx
- Active HDMI and SDI loop-through
VAC-23SHUC converts HDMI 2.0 or 3G-SDI inputs to USB-C, allowing any Marshall camera to interface with a Mac, PC or Linux computer for streaming and teleconferencing.
Active loop-through HDMI & SDI outputs and 10-bit input sampling allow seamless integration with professional AV workflows without sacrificing quality.
SPECIFICATIONS
| Video Inputs | 1x HDMI 2.0 (UHD/4K Up-To 30P) & 1x 3G-SDI (1080 Up-To 60P) |
| Video Outputs | USB 3.0 Type-C, HDMI 2.0 (Loop-Through) & 3G/SDI (Loop-Through) |
| Maximum input resolution | 4096x2160p30 (HDMI 2.0), 1920x1080p60 (3G-SDI) |
| Maximum output resolution | 3840x1260p30 (USB 3.0), 1280x720p30 (USB 2.0), source (HDMI/3G-SDI passthrough outputs) |
| Supported colour sampling formats | HDMI 1080p/720p: YCbCr 4:4:4 8/10/12bits, YCbCr 4:2:2 8bits and RGB 8/10/12bits HDMI 2160p: YCbCr 4:4:4 8bits, YCbCr 4:2:0 8/10/12bits, RGB 8bits 3G-SDI: YCbCr 4:2:2 10bits |
VAC-23SHUC features a rugged and compact design for enhanced portability with power provided through the USB-C output.
