Description

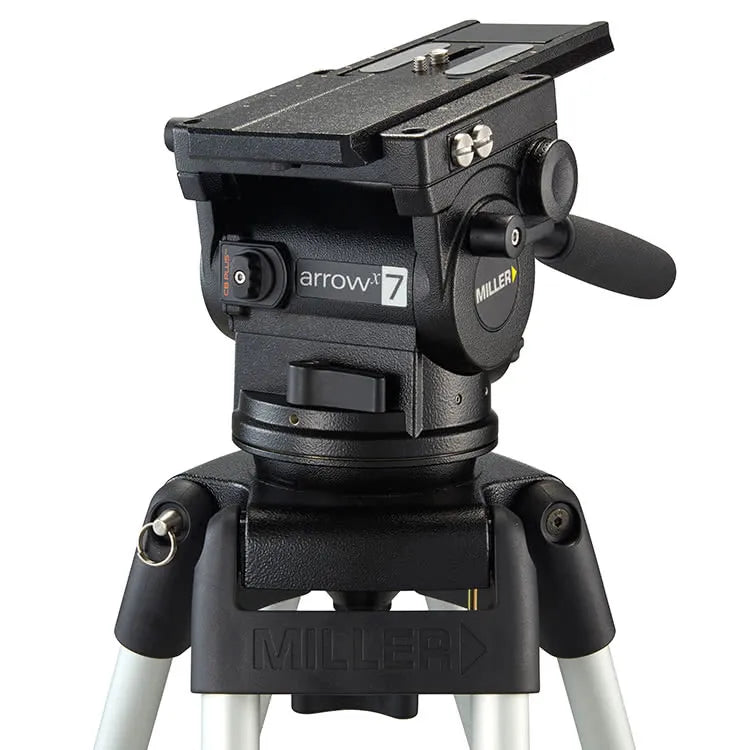

MILLER 1076 Arrowx 7 Fluid Head
FEATURES
- Compact, lightweight and versatile.
- 7 selectable positions of fluid pan and tilt drag +0.
- 16 position CB Plus™ counterbalance system.
- Wide payload range 6-25kg (13.2-55.1lbs).
- Fluid drag system with smooth start and soft stop technology & balanced diagonal transitions.
- Controls “all in one location” design for fast easy and practical use.
- Illuminated bubble level and pan-tilt drag controls.
- Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
- Quick release, 120mm sliding camera platform with camera plate (euro).
- Removable ball level stud allows for flat base mounting with 3/8” screw thread.
- Mitchell base adaptable.
- Robust construction for rugged outdoor shooting conditions.
- Optional second pan handle mount.
- Side mounting point for viewfinders and accessories.
- 3 year warranty.
Following in the tradition and reputation of the world-renowned Arrow series, the Arrowx 7 sets new dimensions in professional camera support augmenting the power of expression of creative professionals.
Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 7 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
6-25kg (13.2-55.1lb) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrowx 7 ideal for EFP, Studio and Field OB enabling it to be used with a wide range of cameras, lenses and accessories and offering.
CB Plus™ is an innovative sequential counterbalance design, taking traditional counterbalancing a step forward ahead of the rest, resulting in repeatable, accurate and rapid setup.
CB Plus™ features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently.
The CB Plus™ “one flick” switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.
The new Arrowx 7 comes with the reliability and “THE RIGHT FEEL” that are the hallmarks of every Miller product.
SPECIFICATIONS
| Camera Platform |
Quick release camera plate (Euro) |
|---|---|
| Counterbalance Positions |
16 selectable positions |
| Height Above Bowl |
162mm (6.4") |
| Illuminated Controls |
Bubble Level |
| Mounting Base |
Ø100mm (3.9") ball levelling with 3 x M5 holes for flat base mounting |
| Pan Handle |
Telescopic 390-590mm (15.4-23.2") |
| Pan Range |
360° |
| Pan Tilt Drag |
7 selectable fluid drag positions + 0 |
| Pan Tilt Locks |
Positive lock calliper brake system |
| Payload Range |
6.0-25.0kg (13.2-55.1lbs) |
| Sliding Range |
120mm (4.7) |
| Temperature Range |
-40° to +65°C (-40° to +149°F) |
| Tilt Range |
+ 90°/ -75° |
| Weight |
3.4kg (7.4lbs) |
