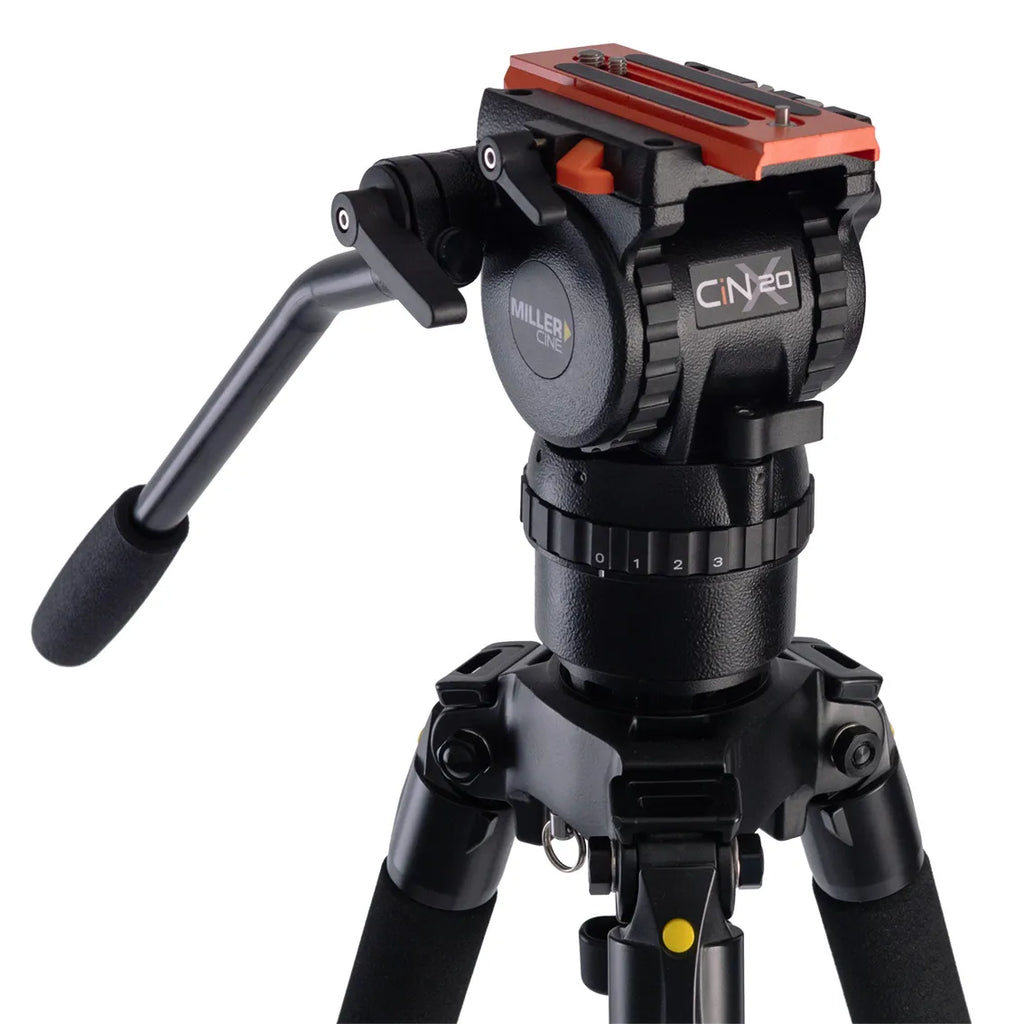

MILLER 1120 CiNX 20 Fluid Head

For on the go creative professionals needing an all-rounder and affordable solution with uncompromised performance.

FEATURES

3 selectable of fluid pan-tilt drag positions + 0.
• 16 CB PLUS selectable counterbalance positions 15+0.
• Perfect for payloads to 0-8 kg (0-17.6lbs).
• Fluid drag system with smooth start and soft stop technology & balanced diagonal transition.
• Side loading base plate with Versa camera plate 100mm of balance travel.
• #1288 Ø75 claw-ball level std. or optional #1290 Ø100 claw-ball level, #1295 Ø150 claw-ball level & #1225 Mitchell base adaptor.
• Removable claw ball level for flat base mounting (sliders) with 3/8” screw hole.
• Interchangeable Miller/Versa camera platforms.
• Ergonomically located CB Plus™ control switch.
• Positive selection radial ring drag controls.
• Illuminated “bullseye” bubble level.
• Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
• Side mounting points for viewfinders and optional accessories.
• Optional second pan handle mount.
• 3 year warranty, light, versatile and adaptable performer

Ideal for cinematic style shooting where adaptability to third party accessories is important.

The 1120 CiNX 20 is specifically designed to provide flexibility. It has an array of optional accessories to enable the user to configure the head for specific jobs.

While the heads comes ready to use in a cinematic mode on a 75mm tripod, there may be times when some other configurations are required, for example sturdier legs is may be desired. In this case the 75mm claw-ball can be replaced with a 100mm or 150mm claw-ball or a Mitchell base adaptor.

It can be also mounted as a flat base directly onto a slider by removing the claw-ball altogether and the pan handles can be replaced with a different type from a wide selection of pan handles from Miller. Have a look at the optional accessories available. The Arri mounting adaptors makes it possible to attach popular Arri adaptors.
