Description

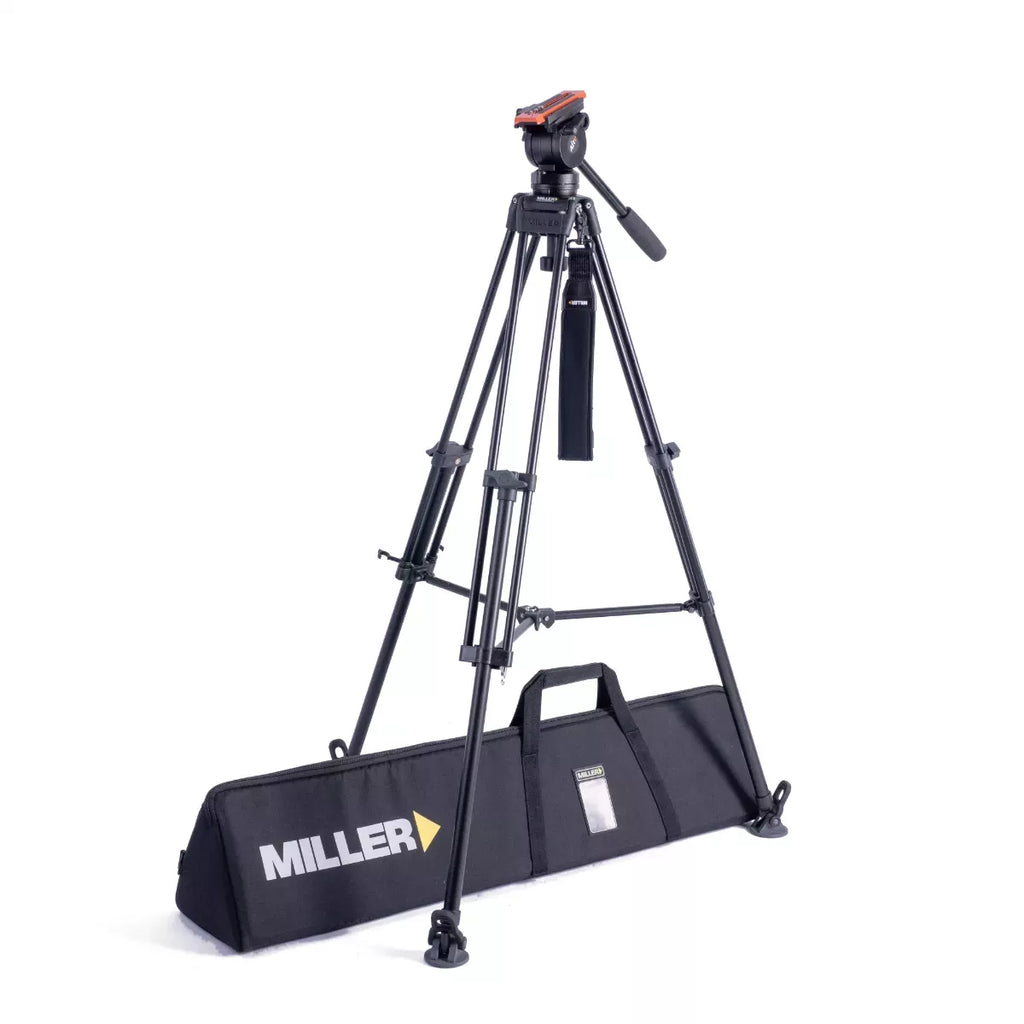

Miller AiRVPlus Toggle LW Alloy Tripod Ground Spreader and Soft Case Tripod - 3017
AirV (1044) Toggle LW Tripod (440) AG Spreader (835) Pan Handle (682) Strap (1520) Feet (550) Softcase (3512)
*Balance portable camera payloads from 2kg - 5kg
FEATURES

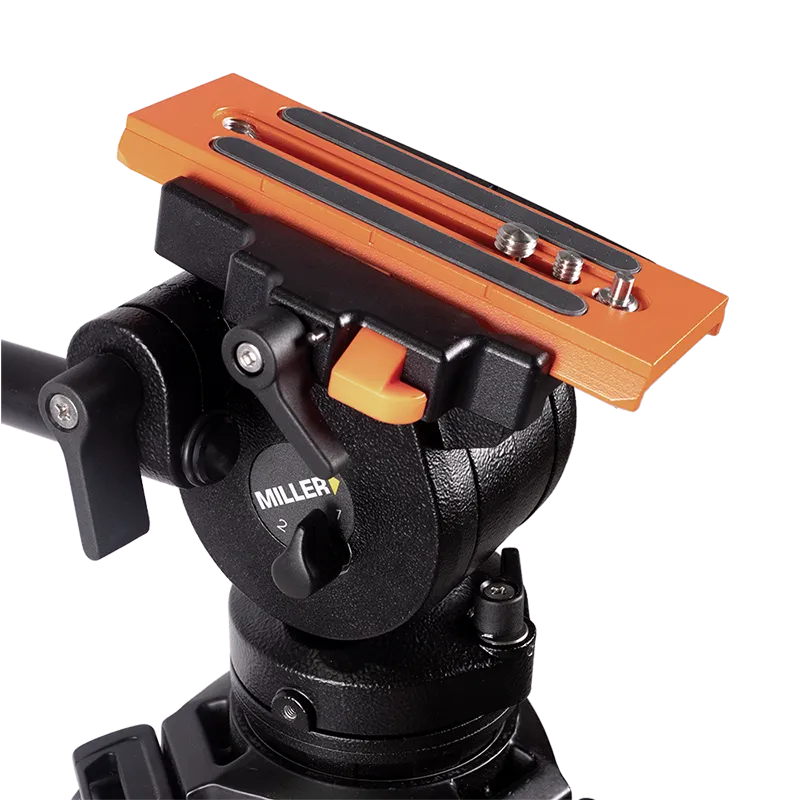

Side loading, quick release Versa plate, with 100mm of balance travel.
• Consistent fluid drag performance in extreme environments.
• Versa, quick release, side load camera plate compatible with Manfrotto 501 plate, Kondor Blue ARCA/Pivot, DJI QR, SmallRig QR
• 2 selectable positions of counterbalance.
• Perfect for camera payloads to 2-5kg 4.4-11lbs .
• Integrated 75mm bowl.
• 1-stage fast toggle adjustment legs.
• Durable black anodised alloy tubing.

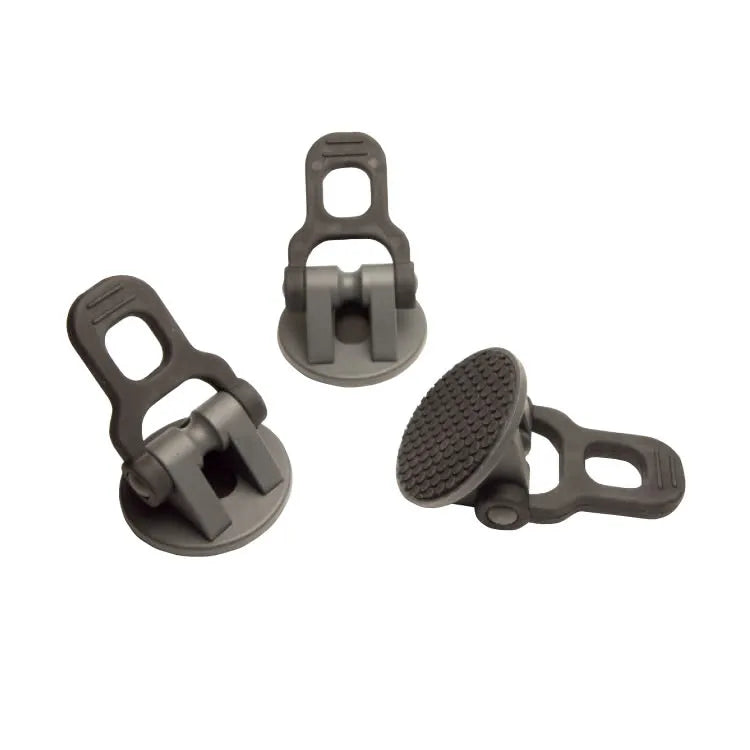

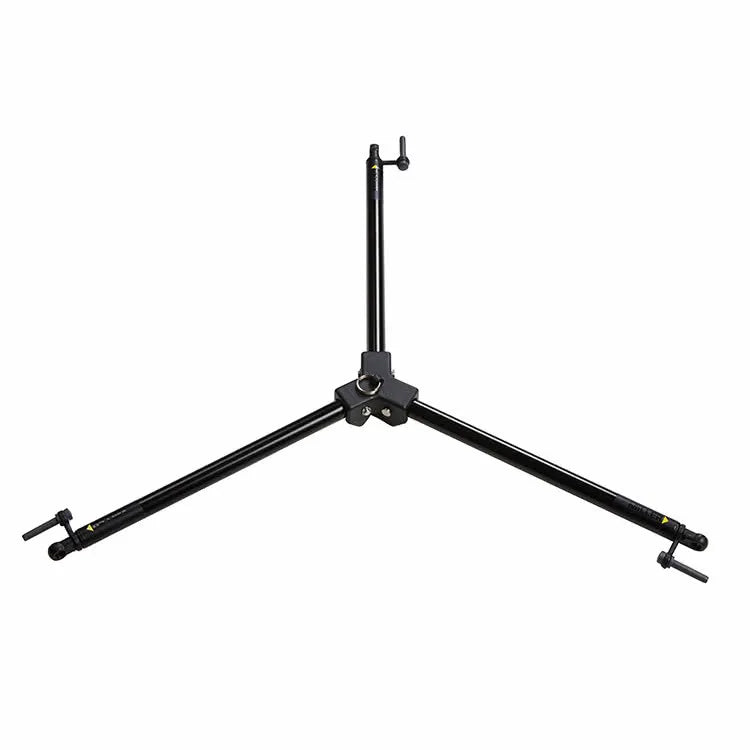

• Comes with above ground spreader and rubber feet.

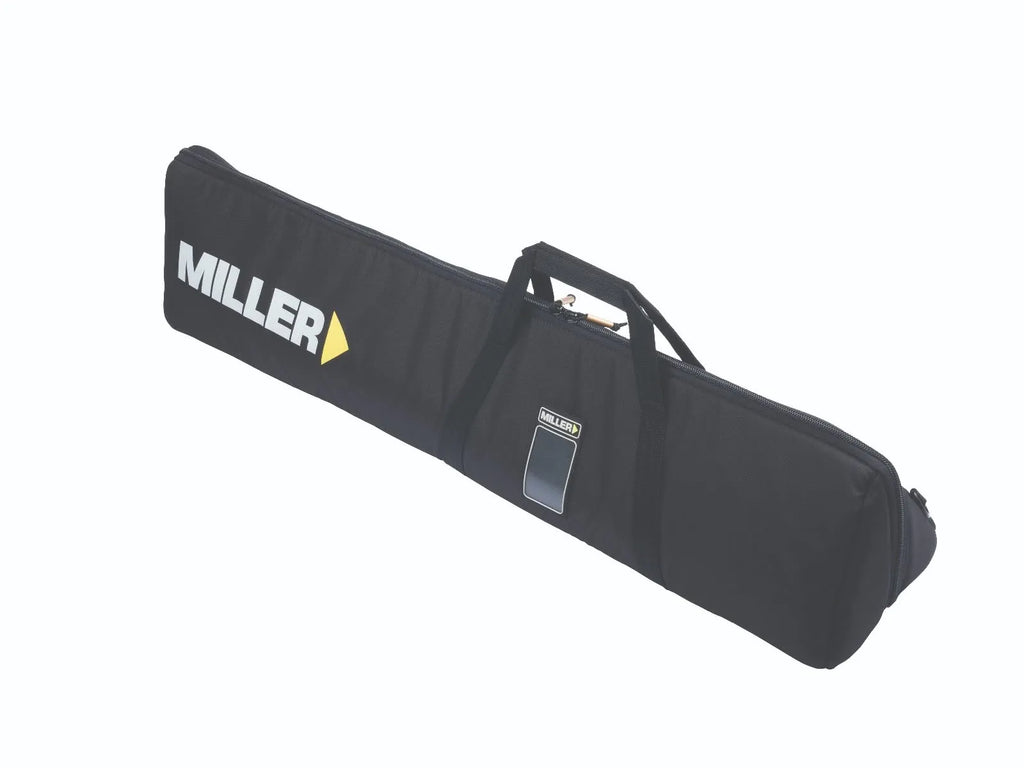

• Comes with 1-stage tripod bag.
• 3 year warranty.
The 3017 AiRVPlus Toggle system is light weight, quick to set up and delivers outstandingly smooth pans and tilts. For that fast action set-up the dual position counterbalance plus 100mm camera plate travel enables quick and easy balancing in both standard and heavier camera configurations. Whatever your application the AiRVPlus will always impress. The AiRV head housing is made of durable alloy and comes with a three year full manufactures warranty. It is designed and constructed using the same techniques quality components and material as the more expensive professional heads in the Miller range. It is made to last and can easily serviced.

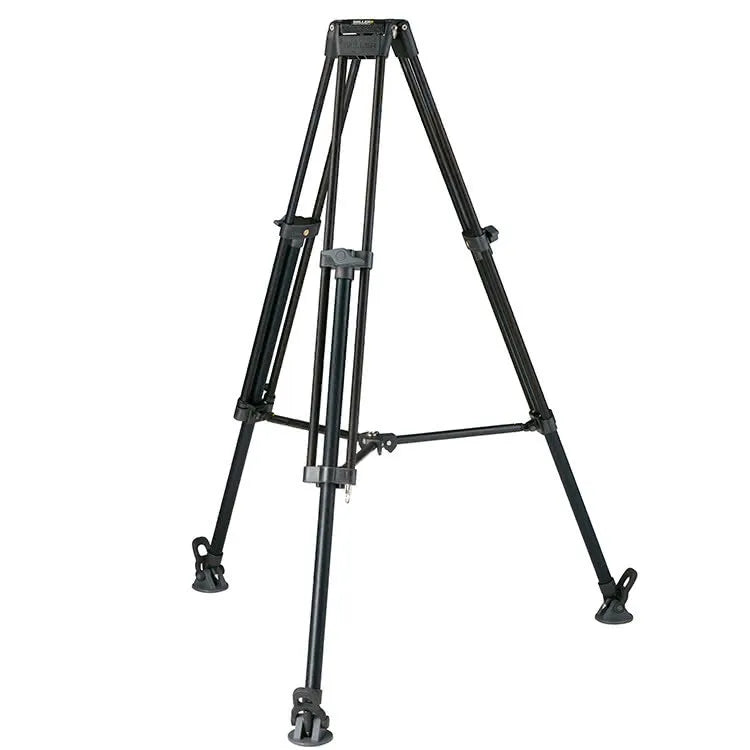

The AiRVPlus Toggle LW tripod alloy with above ground spreader makes for the most traditional AiRVPlus system in the AiRVPlus range, the positive Toggle locks mean quick set-ups while the rubber feet mean the system can be used over any terrain.
SPECIFICATIONS
| Camera Platform |
Quick release, side load Versa camera plate |
|---|---|
| Components |

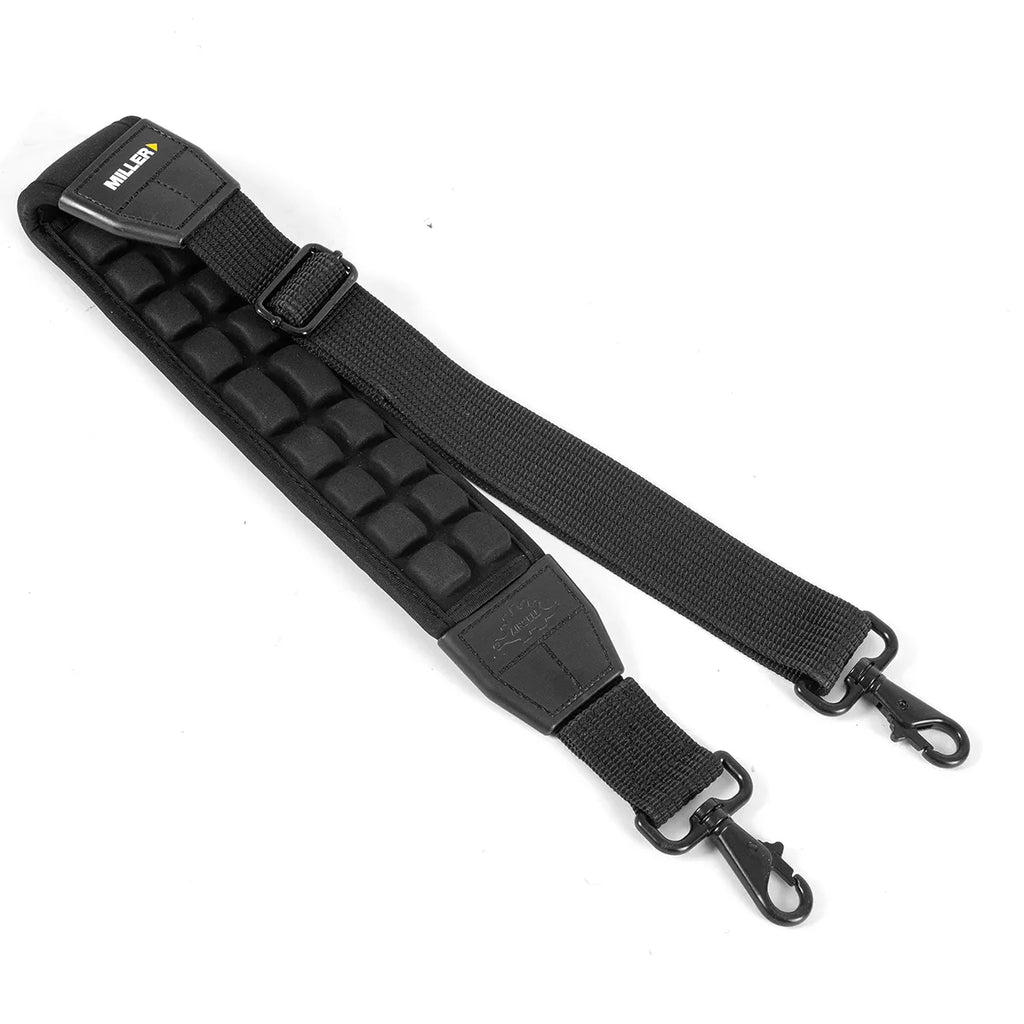

1044: AIRV fluid head, 440: Toggle 75 LW tripod (alloy), 682: Pan handle – fixed with clamp, 835: DS tripod spreader, 550: Rubber feet (set of 3), 554: Shoulder strap (padded), 3512: Softcase 1-stage |
| Counterbalance Positions |
2 selectable positions |
| Height Above Bowl |
146mm (5.7") |
| Height Range |
757-1467mm (29.8-57.6" ) |
| Leg Extension |
1-stage |
| Leg Material |
Alloy |
| Lock Type |
Toggle |
| Mounting Base |
Ø75mm (2.9") ball levelling |
| Pan Handle |
Fixed length 390mm (15.4") |
| Pan Range |
360° |
| Pan Tilt Drag |
Fixed |
| Pan Tilt Locks |
Positive lock caliper brake system |
| Payload Range |
2-5kg (4.4-11.0lbs ) |
| Sliding Range |
100mm (3.93") |
| Temperature Range |
-40° to +65°C (-40° to +150°F) |
| Tilt Range |
+ 90°/ -75° |
| Transport Length |
967mm (38.1") |
| Weight |
5kg (11.1lbs ) |
