Nanlux AS-PJA-EV Projection Adapter for PJ-NLM-15-30

This projection adapter is designed for Evoke series NL mount light fixtures, enabling them to be compatible with ETC barrels and lenses.

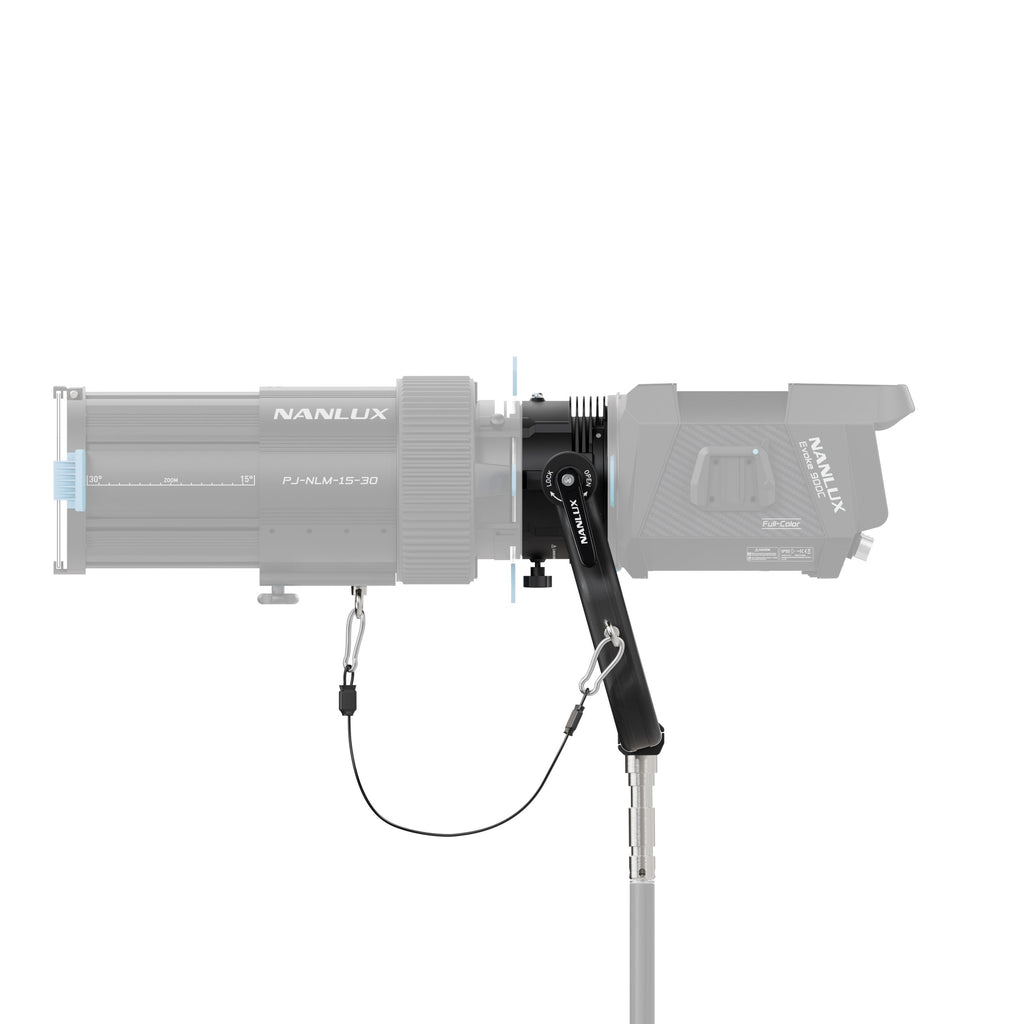

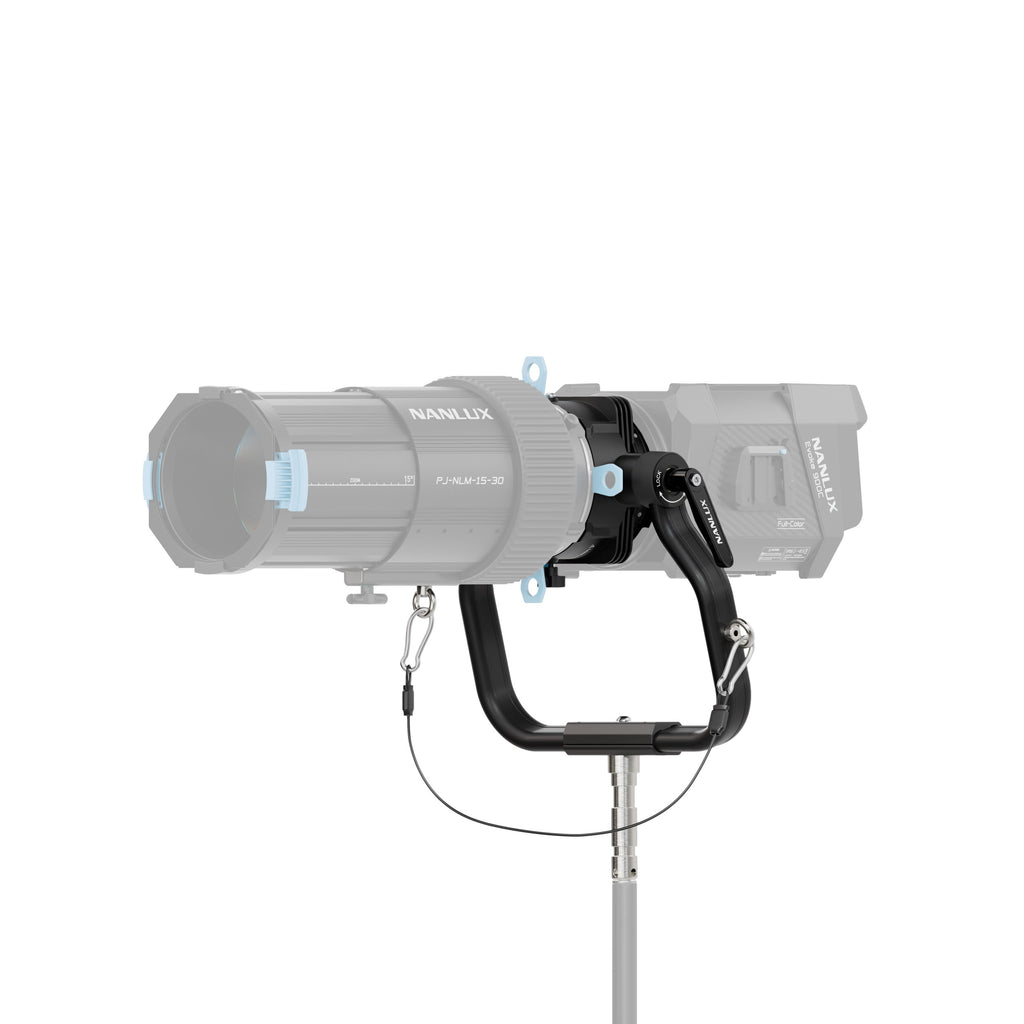

It is made of aluminum alloy, combined with external heat sink fins at the holder, effectively improving heat dissipation. Equipped with two adjustable handles for security, it ensures locking even when a heavy projection attachment is mounted. A 15° offset design of the yoke allows for a larger downward angle on a light stand while maintaining stability. Loosening the fastening knob at the bottom allows rotation of the projection attachment to adjust the beam angle. The yoke on the projection adapter is equipped with an eyebolt for connecting a safety cable (not included) to the eyebolt on the projection attachment or light fixture for additional security.

SPECIFICATIONS

Product Size: 447×148.67×524.17mm/17.6×5.9×20.6″
Product Weight: 4.724kg/10.41lb
Material: aluminum alloy, stainless steel, optical glass, ABS
Compatible with: Evoke series NL mount light fixtures

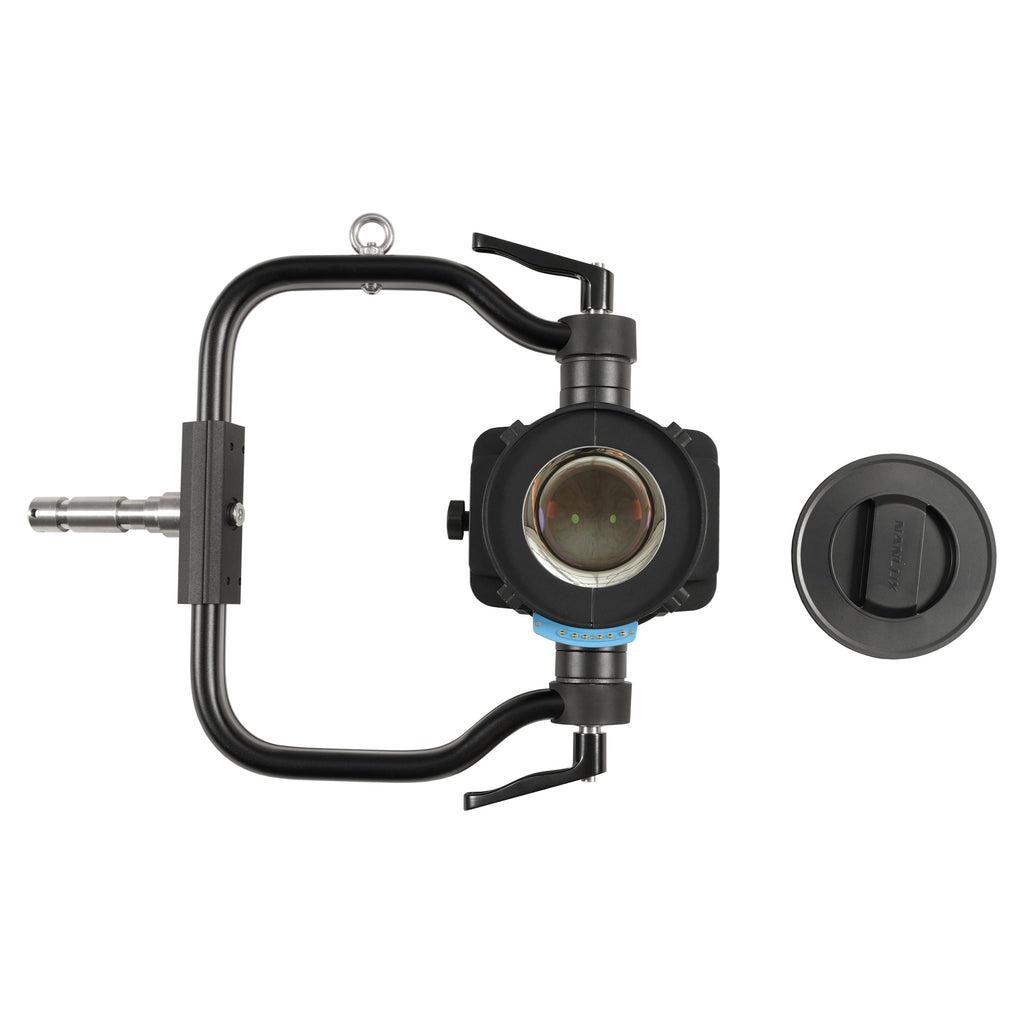

Includes:
Projection Adapter × 1
Plastic Protective Cover (back cover) × 1
User Manual × 1
