Description
NANLUX Evoke 2400B Trolley Case Kit - EVOKE-2400B-ST-KIT
**Please note: The UK distributor does NOT drop ship this item so please allow 2 days lead time**
FEATURES
- For Studio and Film/TV Production
- Output: 41,910 Lux at 9.8' at 5600K
- 2700-6500K CCT, +/- 80 G/M Tint
- CRI 96 | TLCI 97
- AC Power
- Onboard, DMX, Bluetooth, App Control
- IP55 Weatherproof
- 45° Reflector

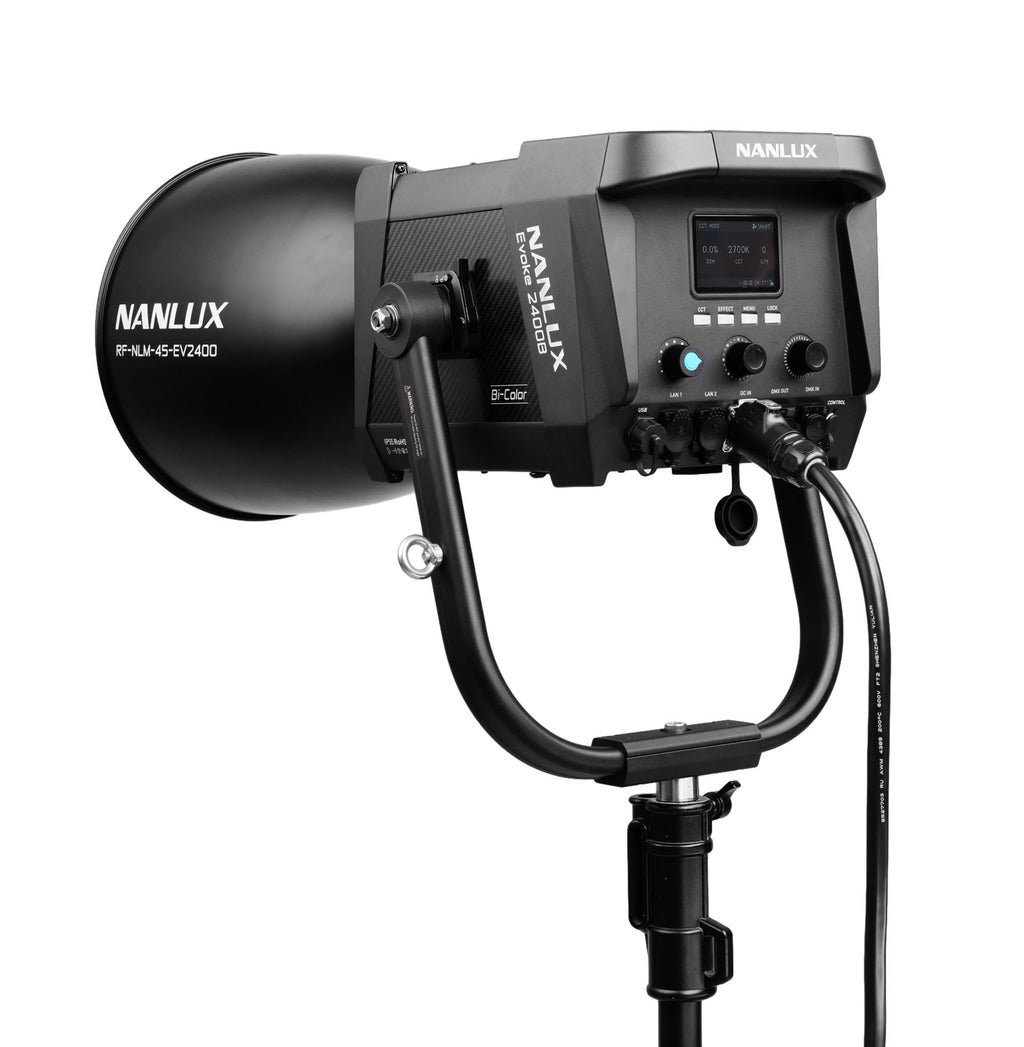

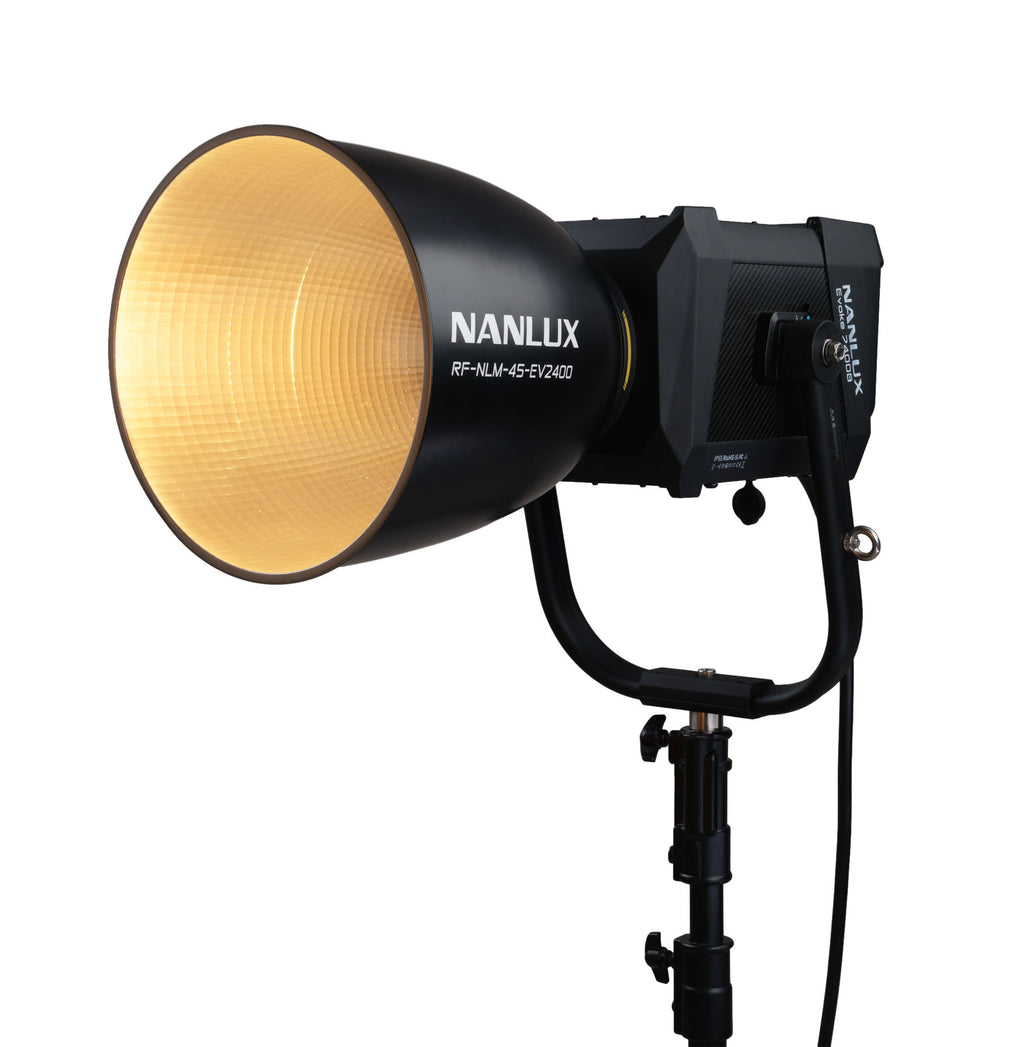

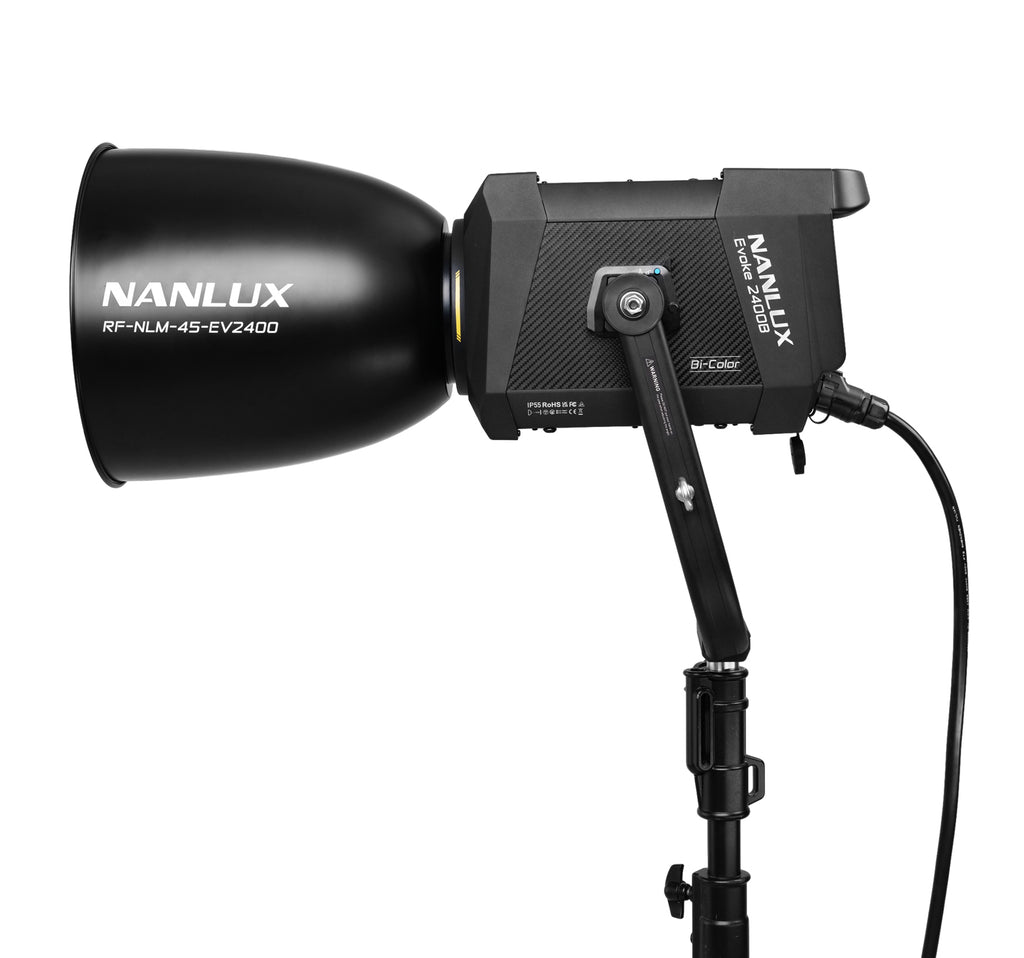

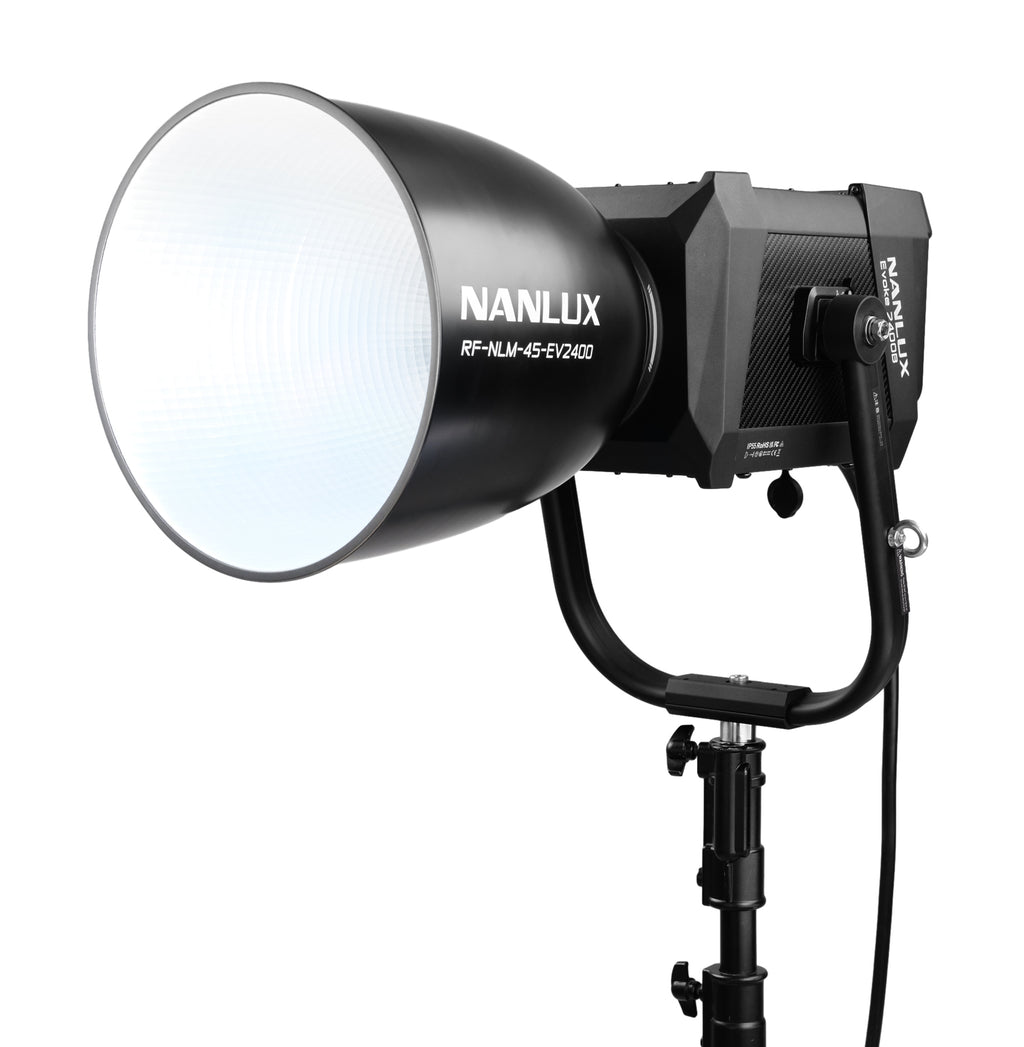

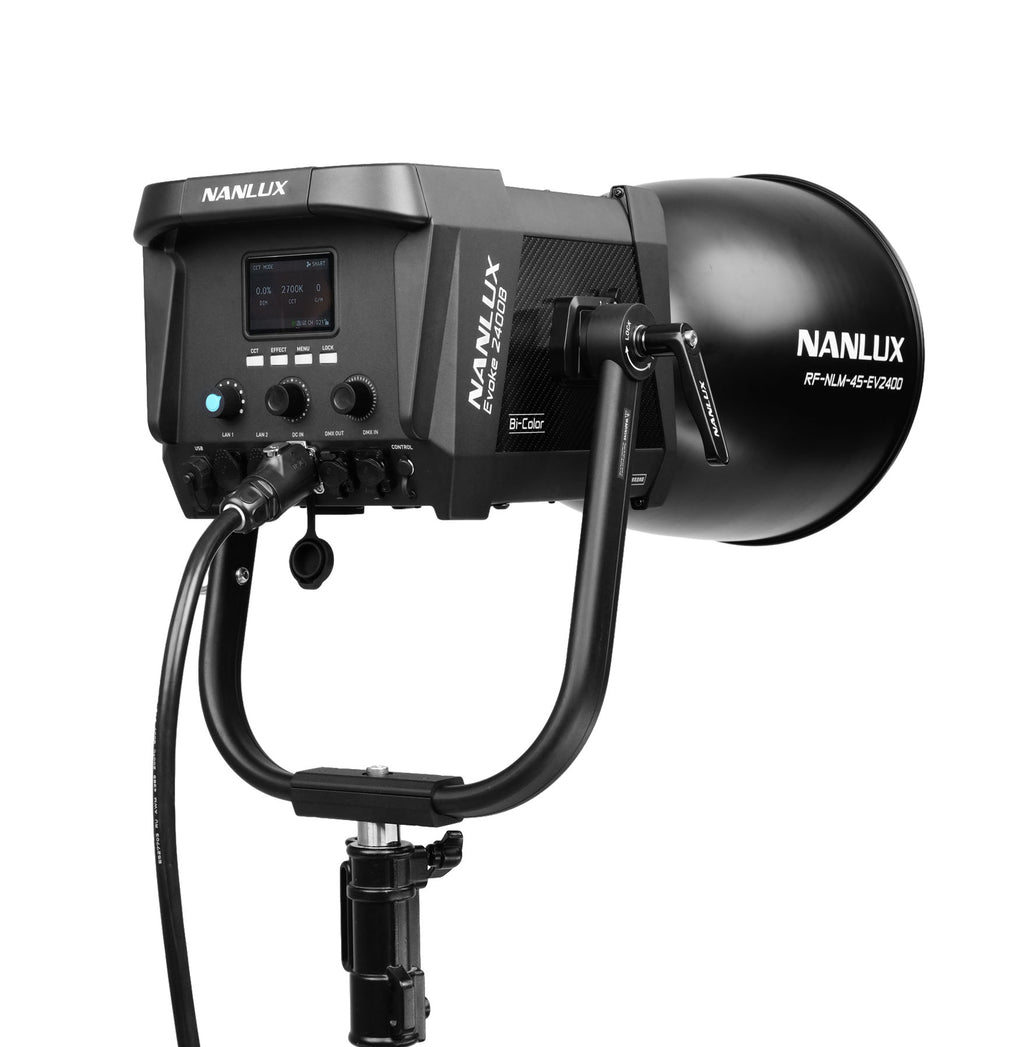

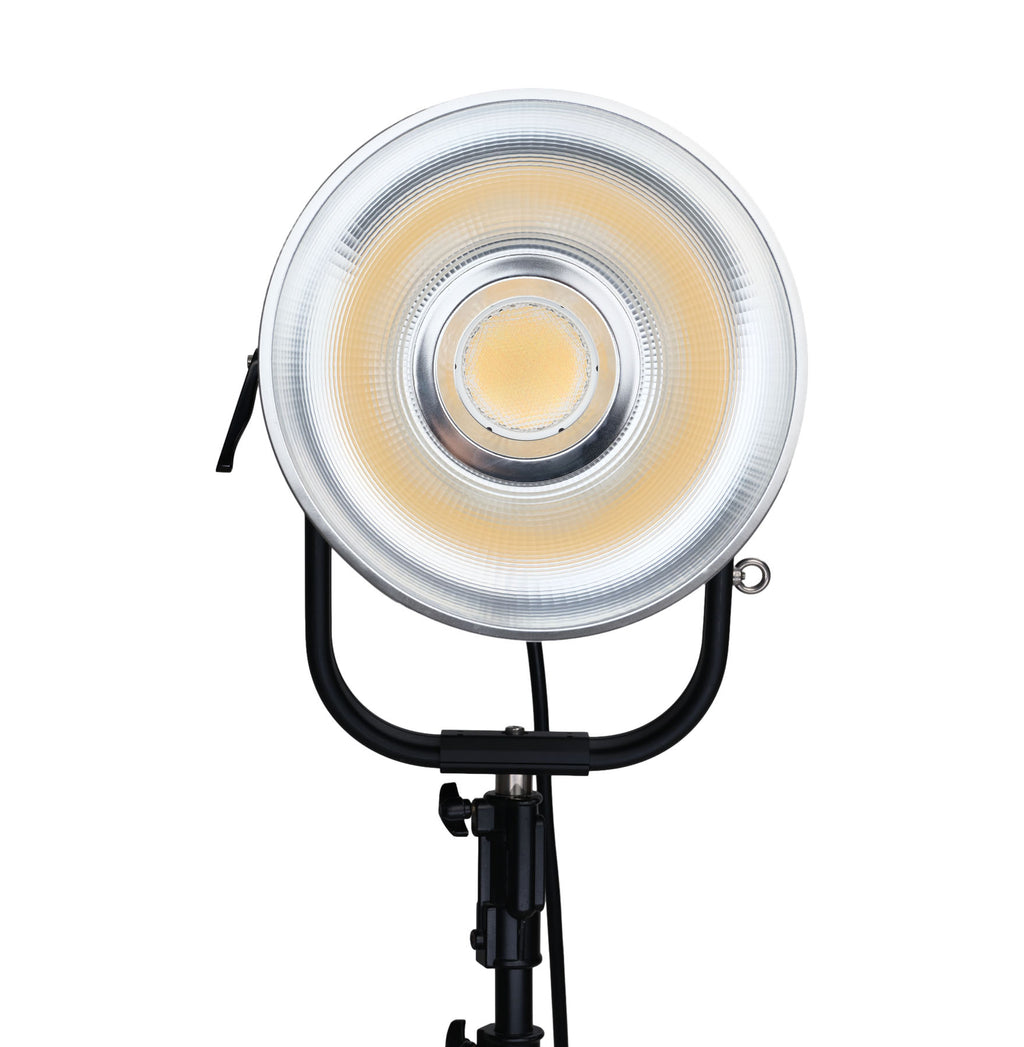

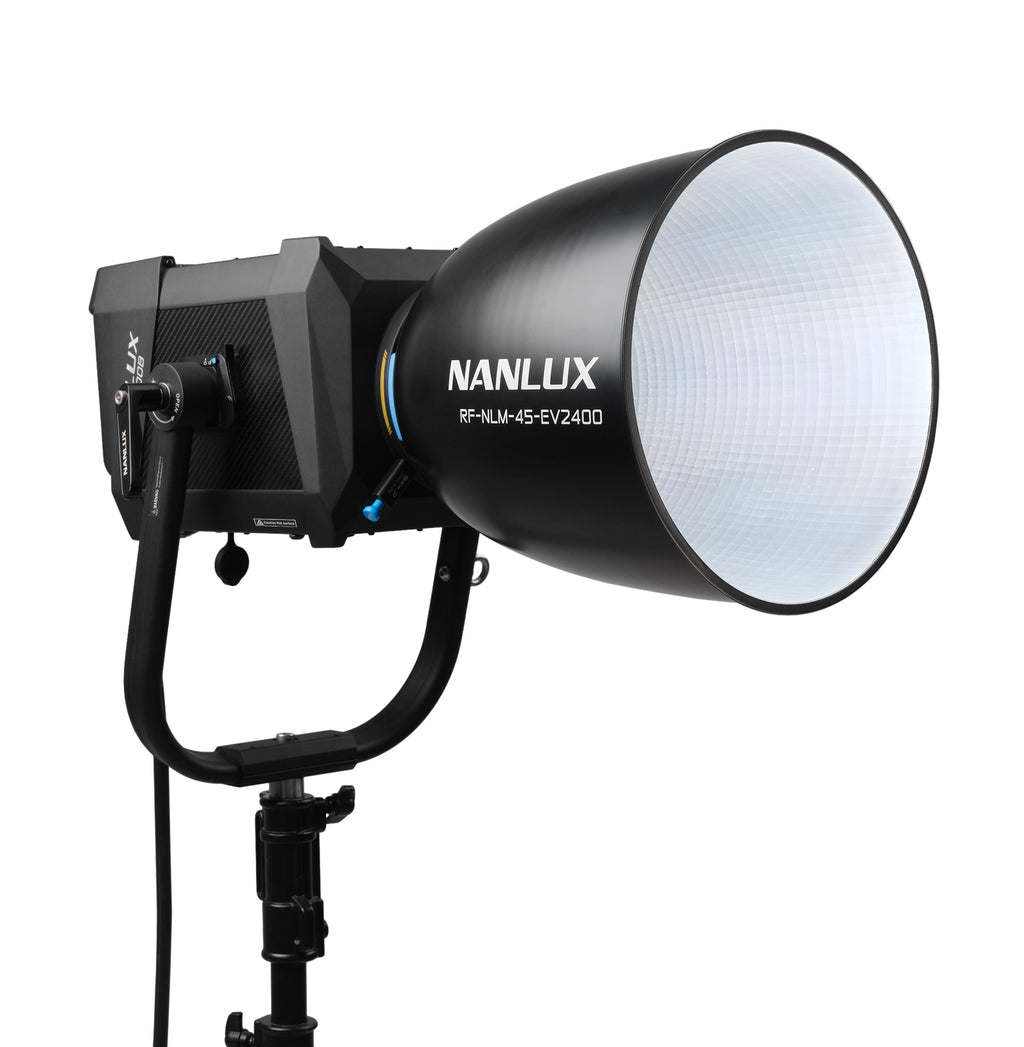

NANLUX Evoke 2400B LED Bi-colour Spot Light In Trolley Case – with NL Mount Reflector 45° in separate Carton Packaging.
SPECIFICATIONS
| Product Information | |
| Model No. | Evoke 2400B |
| Description | LED Bi-colour Spot Light |
| Rated Power | 2400W |
| Input Voltage/Current | DC48V/26A AC100V-240V 50/60Hz |
| Beam Angle | 100° |
| LED Type | WW |
| Product Size (mm) | Light Fixture(w/o COB protective cap): 427.3×316.4×265.1mm/16.8×12.5×10.4″ Power Supply: 389.2×172.2×268.3mm/15.3×6.8×10.6″ |
| Product Weight (kg) | Light Fixture(w/o COB protective cap): 15kg/33.1lb Yoke: 2kg/4.41lb Power Supply: 11.58kg/25.53lb |
| Control | On-board, 2.4G, Bluetooth, DMX/RDM, LumenRadio, Wire Control(reserved), NANLINK APP, Art-Net & sACN |
| Dimming | 0-100%, 0.1% increment |
| IP Rating | IP55 |
| Operating Temperature Range | -20℃-45℃ |
| CRI | average 96 |
| TLCI | average 97 |
| TM-30 | Rf：average 95 Rg：average 100 |
| CCT | 2700K-6500K (G/M±80) |
Function |
|
| 1. CCT: 2700K-6500K, fully dimmable 0-100% in 0.1% increment, G/M ±80 | |
| 2. EFFECT: 12 built-in practical effects: CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding. | |
| 3. Four fan modes: SMART, FULL SPEED, LOW SPEED, OFF. The maximum output is 100% when the fan is in SMART or FULL SPEED state. The maximum output is 50% when the fan is in LOW SPEED state. The maximum output is 10% when the fan is OFF. |
|
| 4. Two output modes: MAX OUTPUT and CONSTANT OUTPUT. | |
| 5. Accessory recognition function: Evoke 2400B has accessory recognition function, for recognizing accessories that with optical contacts, this function can be turn on/off on the menu. | |
| 6. Two language options: English and Chinese. | |
| 7. Support firmware update. | |
| 8. Bluetooth reset function. | |
Structure |
|
| 1. Separate design of light fixture and power supply, high power output with ultra-bright output. | |

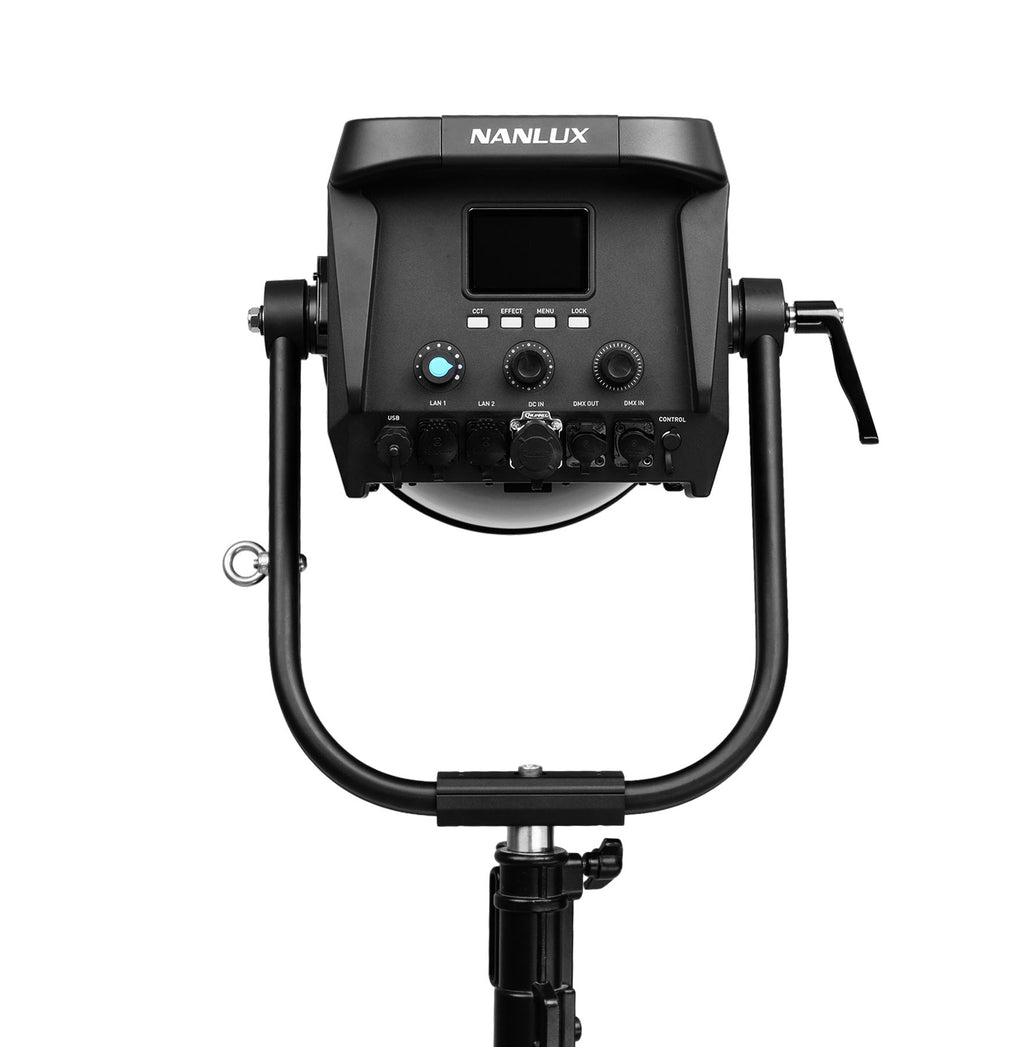

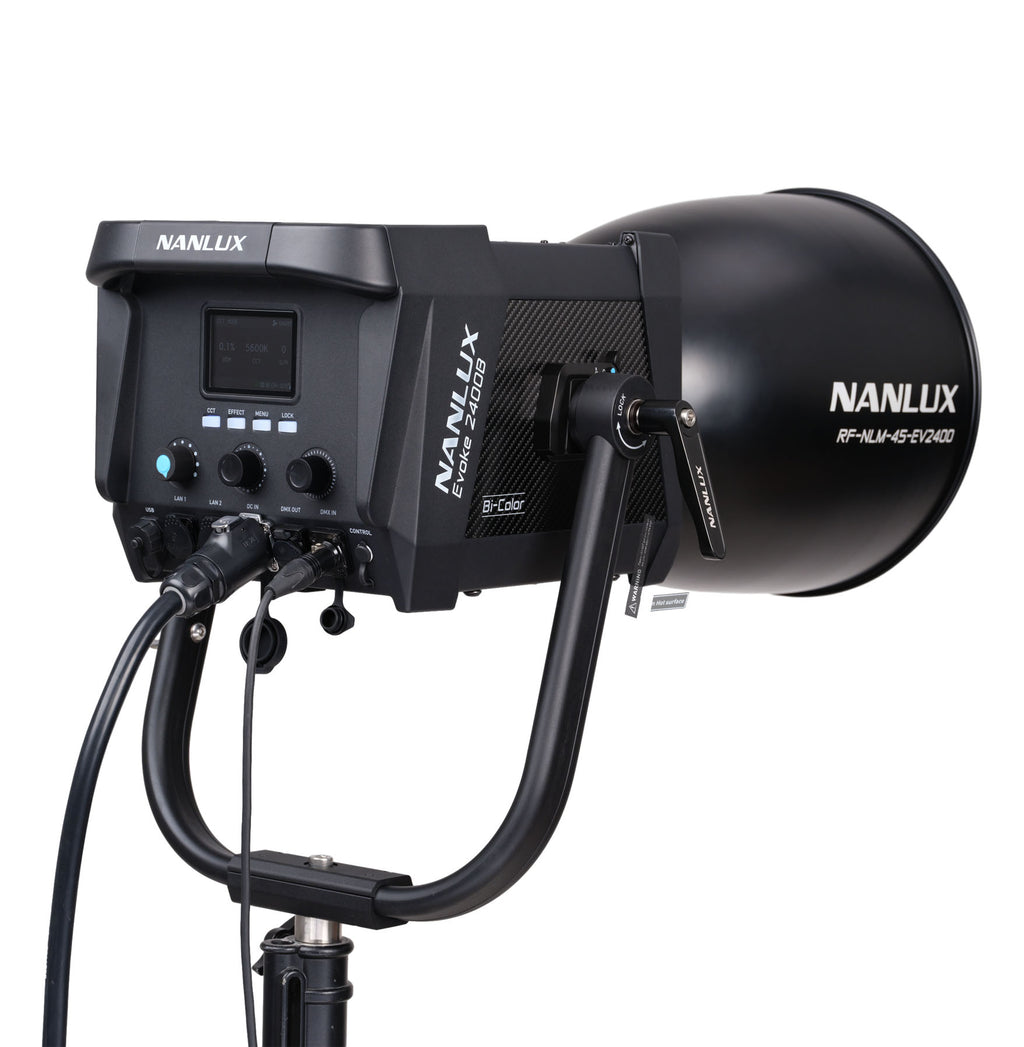

| 2. 3.5 inch screen, with four buttons and three knobs. | |
| 3. Robust and durable metal material construction, with IP55 rating. | |
| 4. Quick release design of yoke with eye bolt, enable Evoke 2400B to rotate in 360-degree. | |
| 5. Integral disassembly design makes it convenient for maintenance and replacing parts. | |
| 6. Quick release plate & clamp for the power supply, with clamping range of φ15-50mm. | |

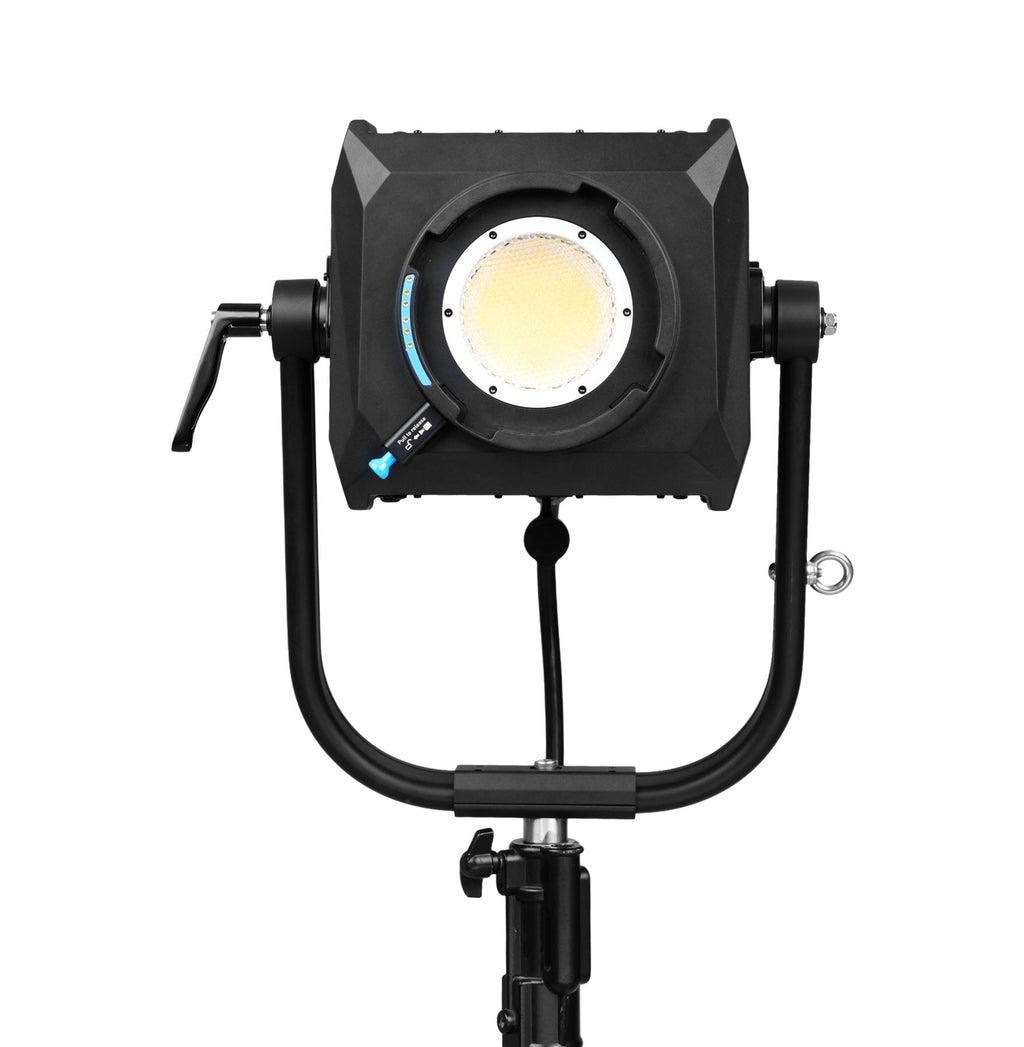

| 7. Evoke 2400B is built with NL mount and optical contacts, makes it compatible with NL mount accessories and modifiers that with optical contacts. | |
Control |
|
| 1. On-board control: Evoke 2400B can be operated through the control panel on the fixture. | |
| 2. Bluetooth: Evoke 2400B has built-in bluetooth module for directly controlled by NANLINK APP. | |
| 3. 2.4G: Evoke 2400B has built-in 2.4G receiver, enabling it to be controlled by remote controller or by NANLINK APP via the NANLINK box. | |
| 4. DMX/RDM: Support DMX/RDM control. | |
| 5. LumenRadio: Built-in Lumenradio module for remote control. | |
| 6. Wireless control on/off function. | |
| 7. Reserved wired control function. | |
| 8. Support Art-Net and sACN control protocol. |

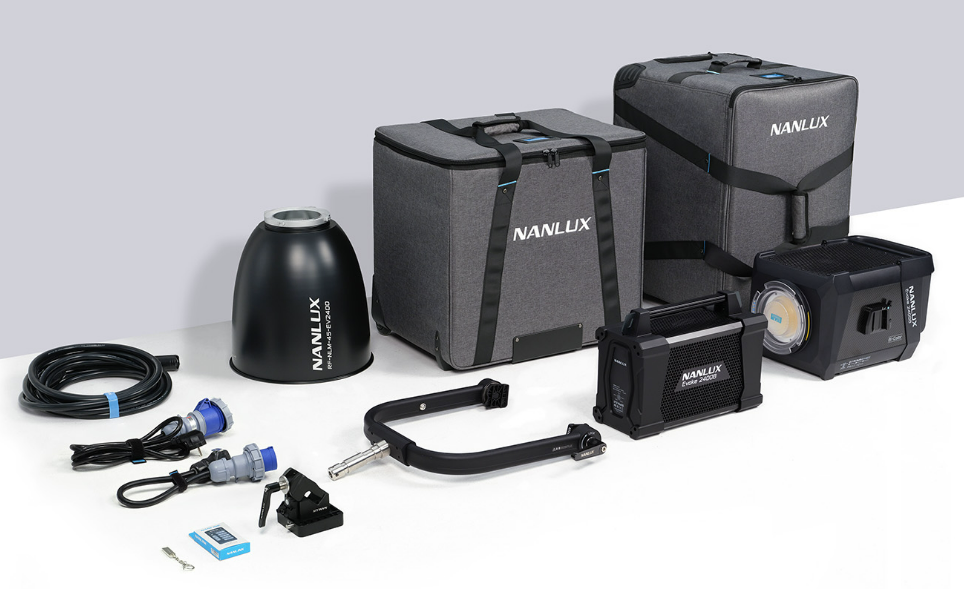

Configuration:
Evoke 2400B×1
Yoke×1
Power Supply×1
RF-NLM-45-EV2400 Reflector 45°×1
USB Drive×1
AS-CP-QR-EV Quick Release Clamp×1
WS-RC-C2 Remote Controller×1
DC Connection Cable 7.5M×1
AC Power Cable 3M×1
User Manual×1.
Packing Info:
Light Fixture: 73×53×57cm
Power Supply: 50.5×47.5×38cm
G.W.(kg):
Light Fixture: 28kg
Power Supply:22kg”
