Description

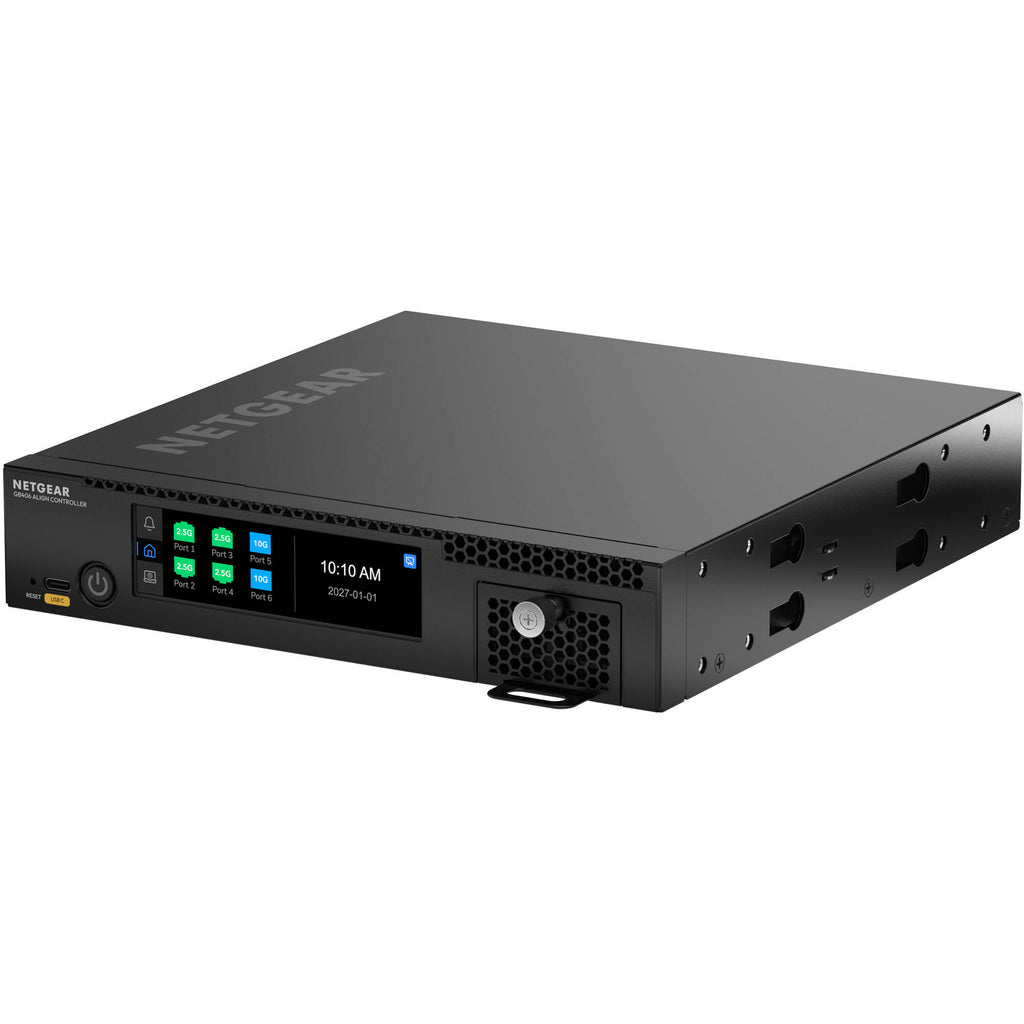

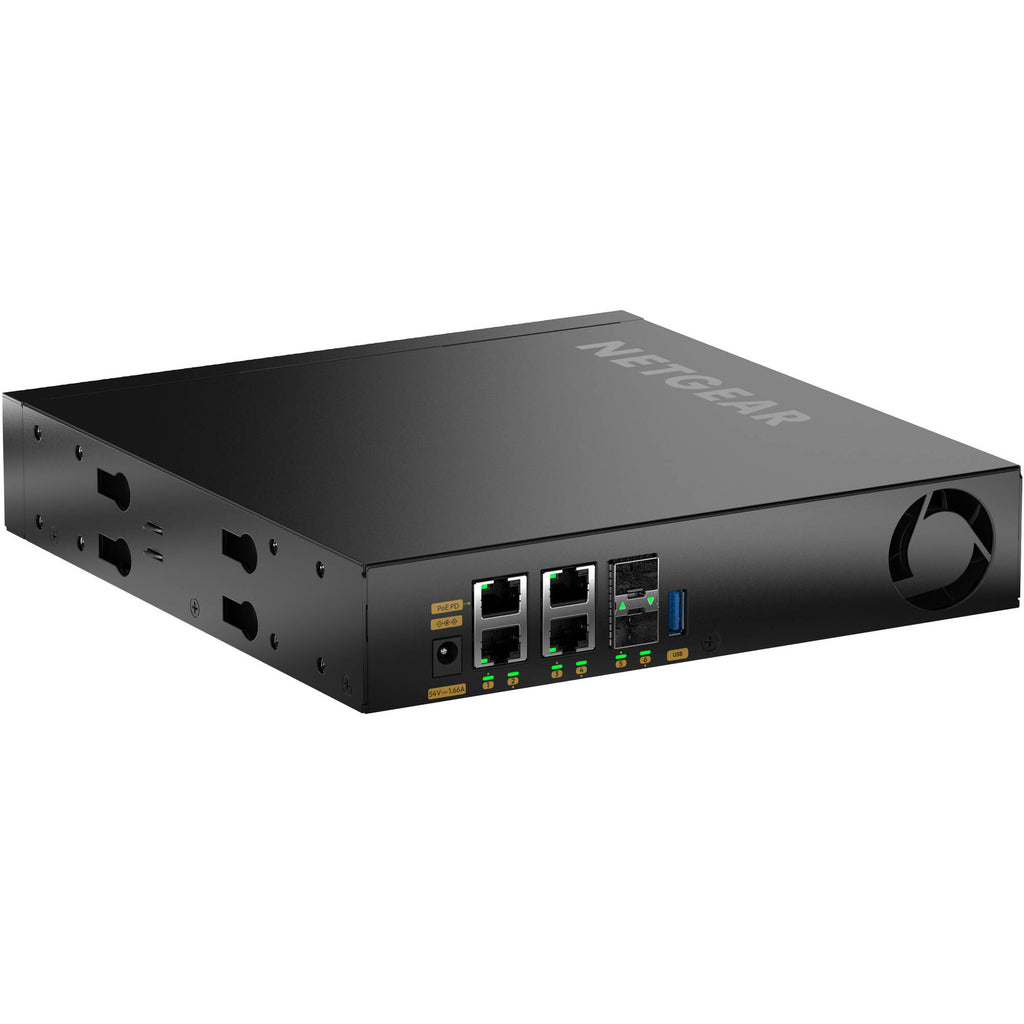

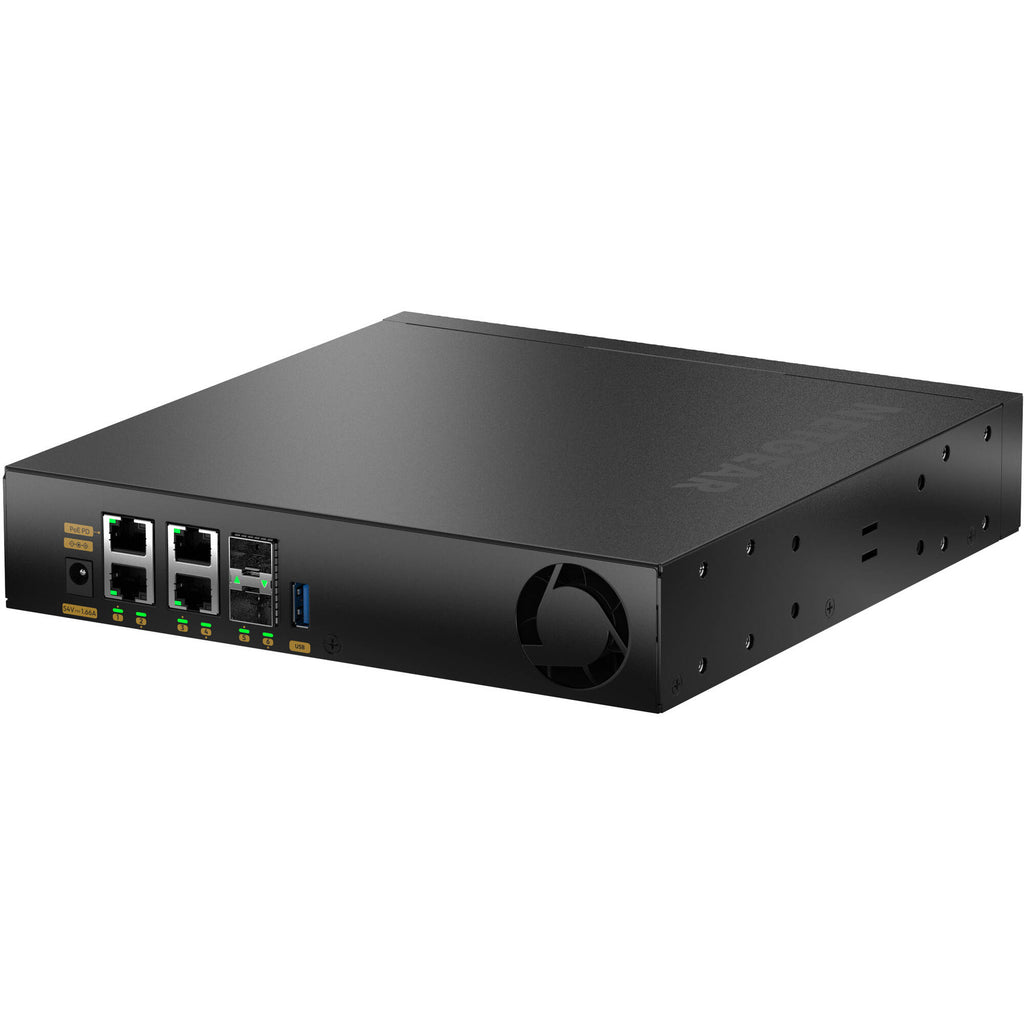

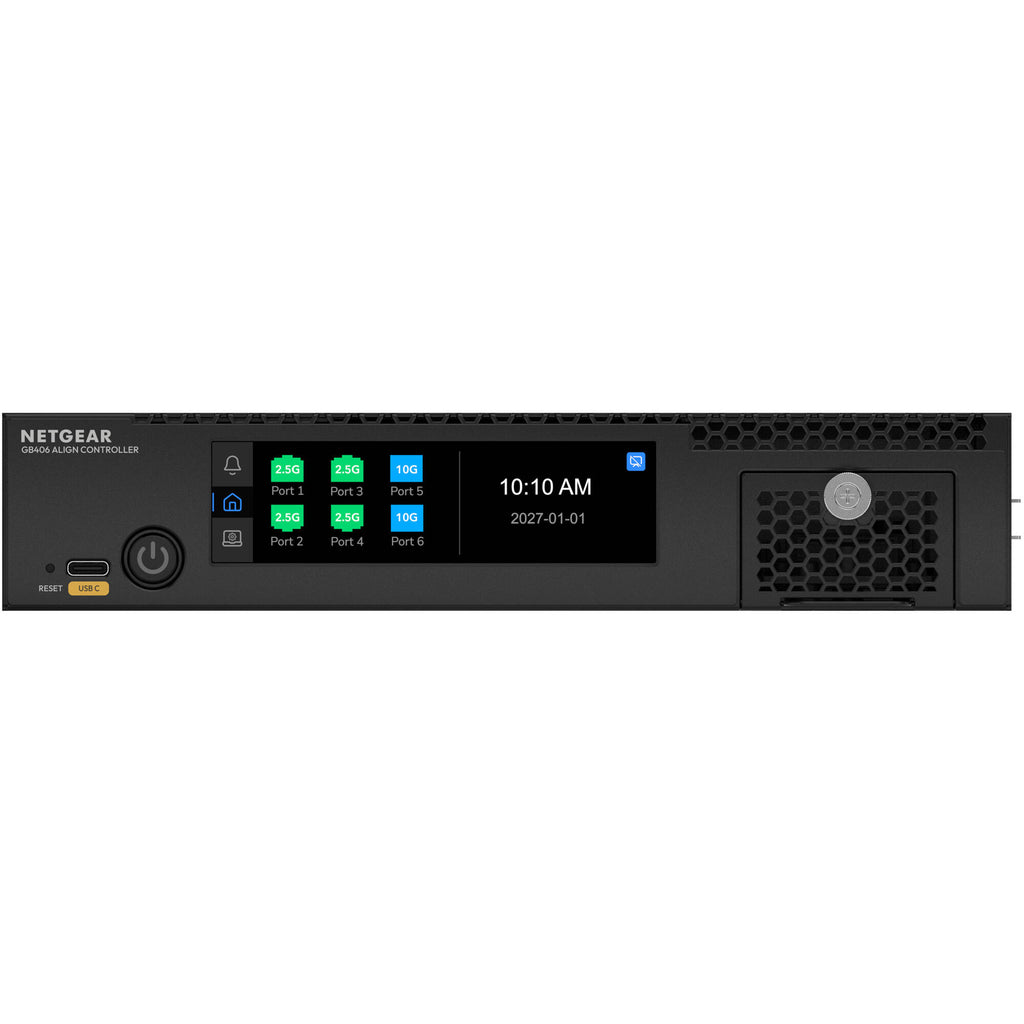

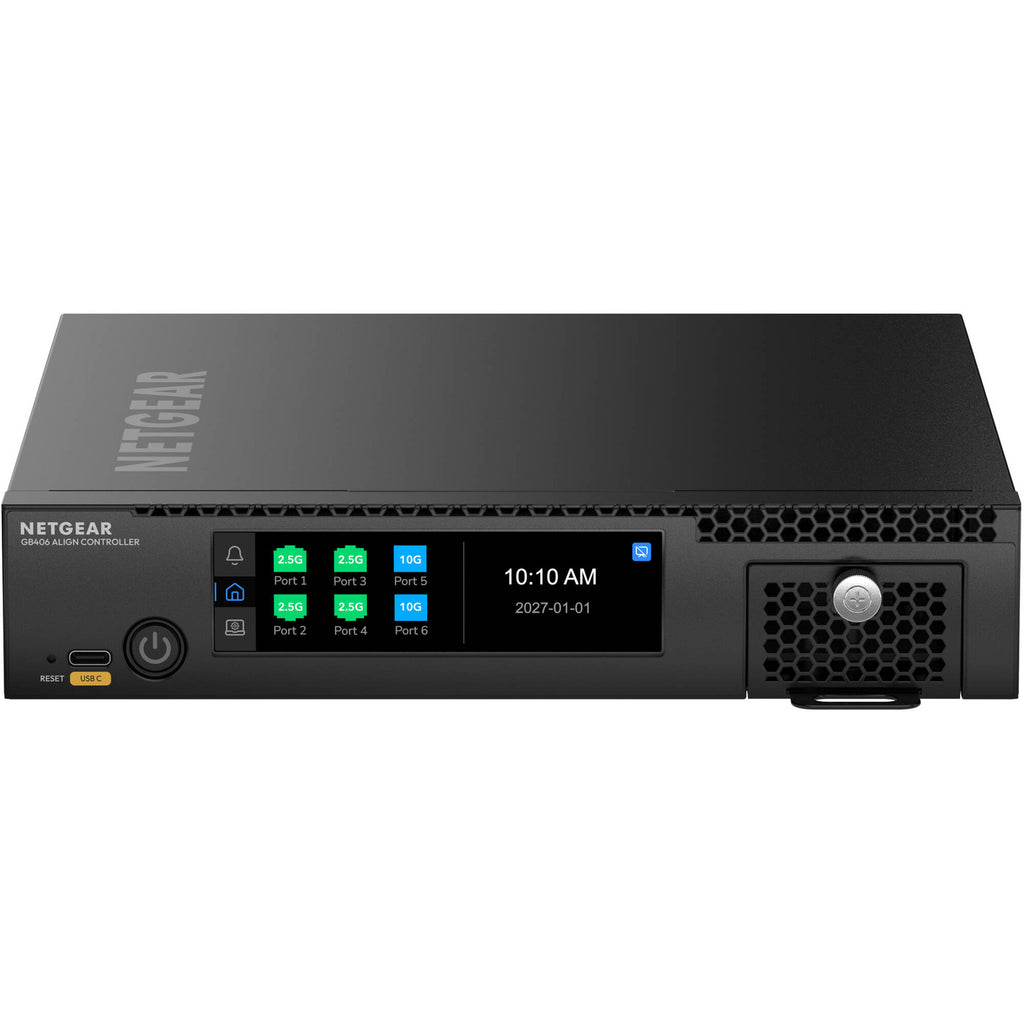

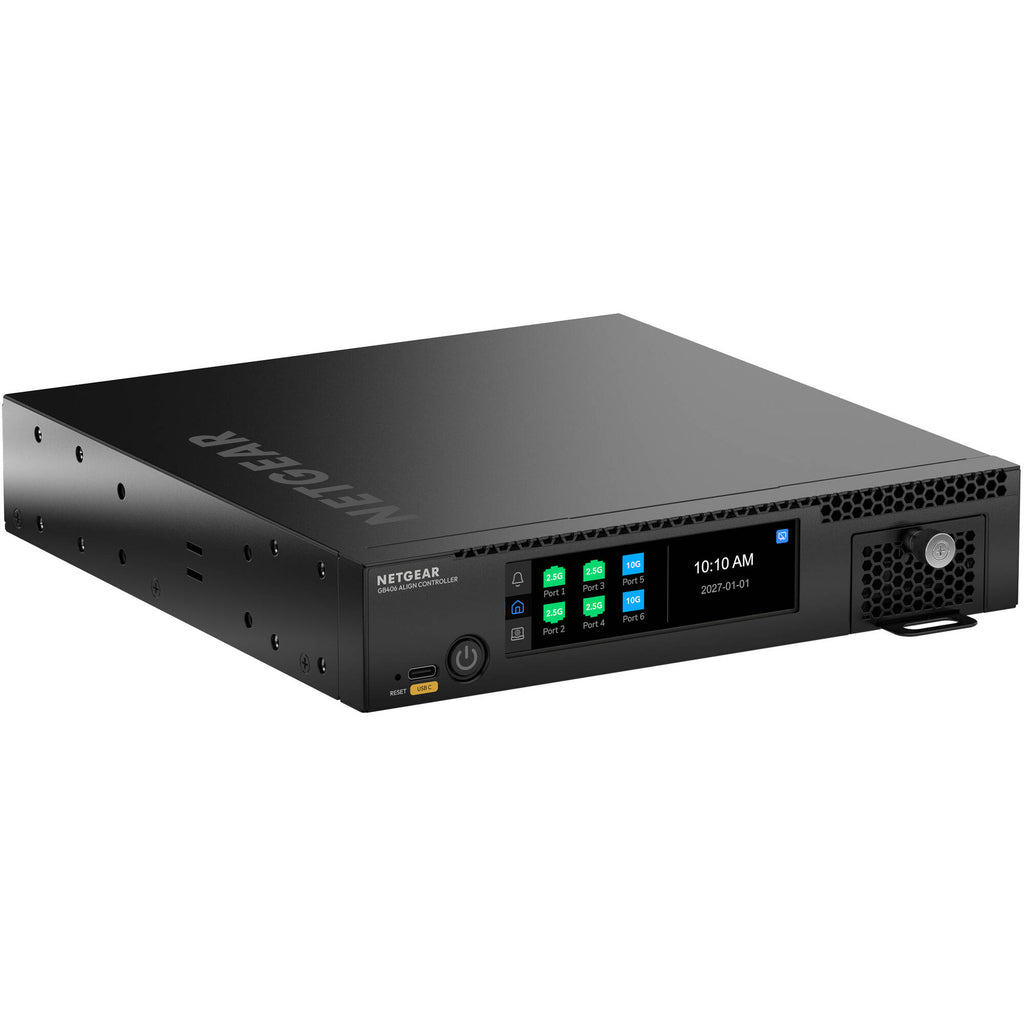

Netgear GB406-100NES Align Controller GB406
FEATURES
• NETGEAR's first AV platform: hosts Engage with local and remote access (license required for remote), runs third-party applications, and consolidates timing and network services in one appliance
• Onboard PTPv2 Grandmaster and Boundary Clock with SMPTE ST 2110 / ST 2059-2 / AES67 support
• gPTP AVB support alongside NTP, Syslog, DNS, and DHCP server services
• Powered by PoE++ (802.3bt Type 4) — no dedicated power circuit required
• Local AC adapter included as a backup power source
• Intel Amston Lake octa-core x7809 2.4 GHz CPU with 16 GB LPDDR5 RAM
• 64 GB internal storage with SATA Gen 3.2 M.2 2242 expansion bay
• Ubuntu platform with Docker
• NETGEAR 5-year warranty included
Meet NETGEAR Align Controller
For ten years, NETGEAR has been the switching infrastructure AV-over-IP runs on. The Align Controller is the layer above it: a single purpose-built appliance that consolidates timing, network services, and AV management - and serves as the open platform for AV applications.
Built for broadcast. Ready for live events, campus AV, and everything in between.
From broadcast studios to sports arenas to university campuses, the Align Controller gives AV integrators a stable, always on platform engineered for environments where reliability is non-negotiable.
WHAT'S IN THE BOX
|
NETGEAR Align Controller (GB406) |
1 |
|
One external 54V/1.66A power adapter and local AC power cord(s) |
1 |
|
USB Type-C to USB-A 2.0 console cable |
1 |
|
Rubber caps for the SFP+ sockets |
2 |
|
Rubber footpads for tabletop use |
4 |
|
1-unit rackmounting standard brackets |
1 |
|
2-unit pairing kit for two half-width GB406 Align Controllers in a single rack space |
1 |
|
Installation guide (QR code) |
1 |
SPECIFICATIONS
|
Width |
220mm |
|
Depth |
230mm |
|
Height |
43.2mm |
|
Weight |
1.7 kg (3.75 lb) |
|
Form Factor |
Half-width, shallow 1U, rack-mountable |
|
Number of Ports |
6 |
|
Primary port speed |
2.5 Gigabit |
|
Processor |
Intel Amston Lake octa-core x7809, 2.4 GHz |
|
Memory |
16 GB LPDDR5 RAM |
|
Coverage |
64 GB internal; SATA Gen 3.2 M.2 2242 expansion bay |
|

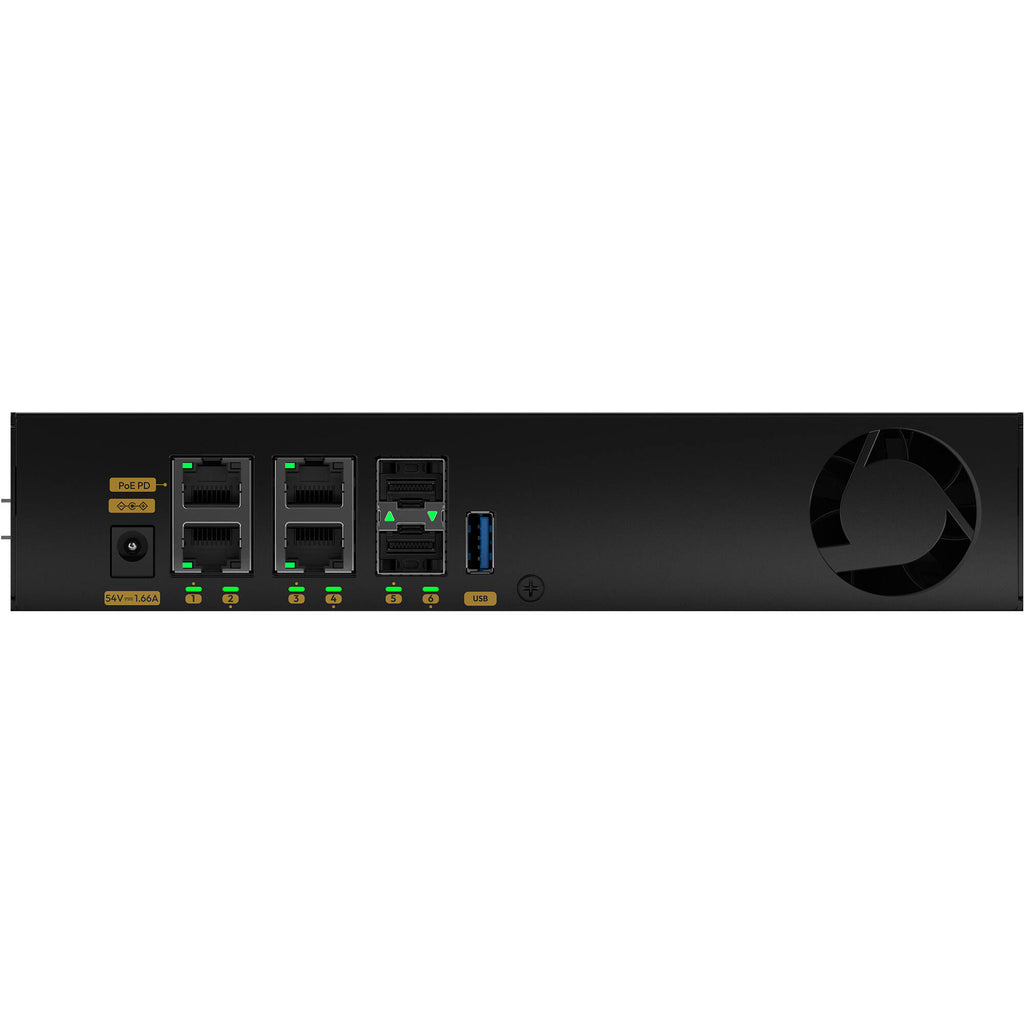

Coverage ports |
4 x 2.5 GbE (Intel I226) |
|
Fiber ports |
2 x 10G SFP+ (Intel XS710) |
|
Primary power |
PoE++ 802.3bt Type 4 |
|
Backup Power |
Local AC adapter (APS254W-10000S, included) |
|
Power consumption |
71 W / 242.26 Btu/hr |
|
Timing standards |
Grandmaster clock for IEEE 1588 PTPv2, SMPTE ST 2110 / ST 2059-2 / AES67, gPTP AVB |
|
Network Services |
NTP, Syslog, DNS, DHCP |
|
Platform |
Ubuntu, Docker; future NETGEAR and third-party app support |
|
Acoustics |
32.8 dB @ 25 °C |
