Neutrik NBNC75BDD6X RearTWIST UHD BNC Connector - 201-780

NEUTRIKSKU: 201-780

Price:
Sale price£4.50(incl. VAT)
£3.75

(ex VAT)

Tax included

Stock:
In stock
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

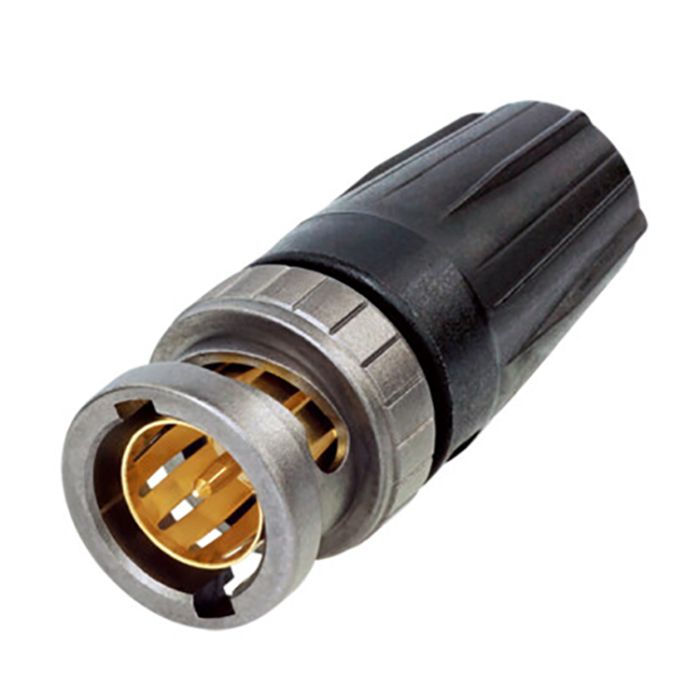

Neutrik NBNC75BDD6X RearTWIST UHD BNC Connector - 201-780

The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.

FEATURES

  • Optimized contact pin and insulator design for UHD-data transmissions
  • Proven rearTWIST technology
  • Swiss antraloy plating
  • Fully compatible with conventional BNC chassis connectors
  • Improved return loss values at high frequencies

Optimized Return Loss

Due to an optimized insulator design and reduced crimp diameter from center pin the Neutrik rearTWIST UHD BNC connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.

Crimp Dimensions

In order to achieve optimum return loss values at high frequencies the crimp dimension of the contact pin has been reduced.

Pin 1.07 mm
Shield 4.53 mm
Crimp die DIE-R-BNCX-PDG
Approved Cables

To guarantee high performance for each cable-connector combination at high frequencies Neutrik measured common COAX cables which are specifically designed for ultra high definition transmission (UHD). Find all approved cables listed below.



UHD optimized cables:
Evolution XPC OFC Precision 12GHz 23AWG Coax, Belden 4855P, Belden 4855R

Technical Information

Product

Title NBNC75BDD6X
Connection Type BNC 75 Ω
Gender Male



Electrical

Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1.5 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage < 50 V
VSWR ≤1.06 / >30 dB up to 6 GHz
≤1.13 / >24 dB up to 12 GHz
≤1.22 / >20 dB up to 18 Ghz



Mechanical

Cable O.D. 4.3 mm
Cable retention > 30 N (center)
Crimp size  4.53 Hex crimp (shield)
Crimp size (pin) 1.07 crimp
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize

Locking device Bayonett
Cable anchoring Jacket crimping



Material

Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
Insert Brass (CuZn39Pb3)
Shell Antraloy
Shell plating PP



Environmental

Temperature range - 30 °C to +85 °C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
